Plan 8151LB
Duplex with Matching 1338 Square Foot Units and a 1-Car Garage - 3 Beds 2.5 Baths
Heated S.F.
2,676
Units
2
Width
Depth
Floor Plan

Plan 8151LB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 8151LB

1-800-854-7852

1-262-521-4596

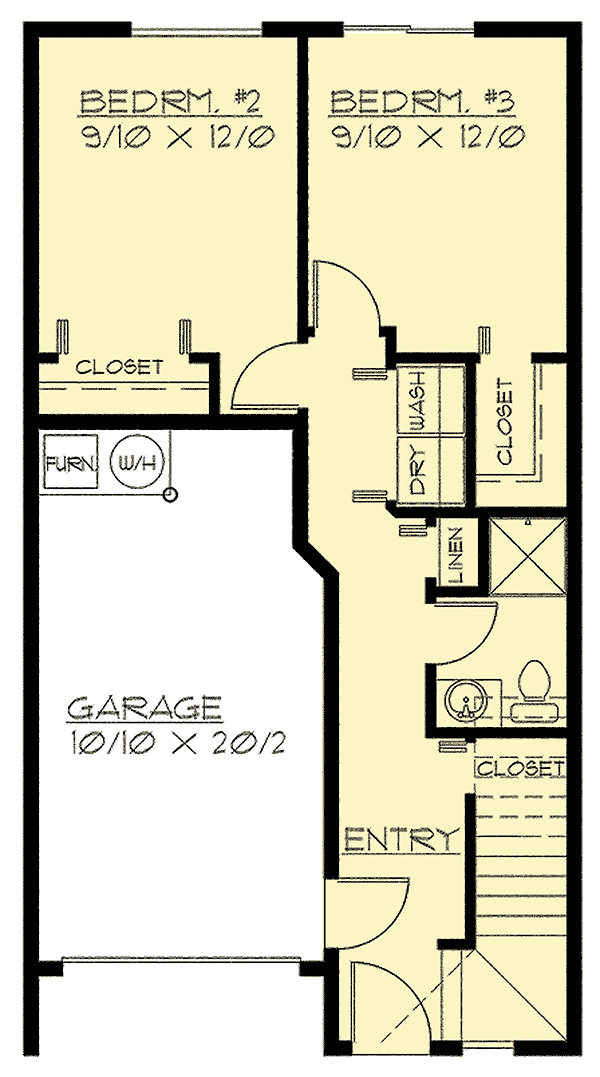

Main Level
floor plan image Main Level

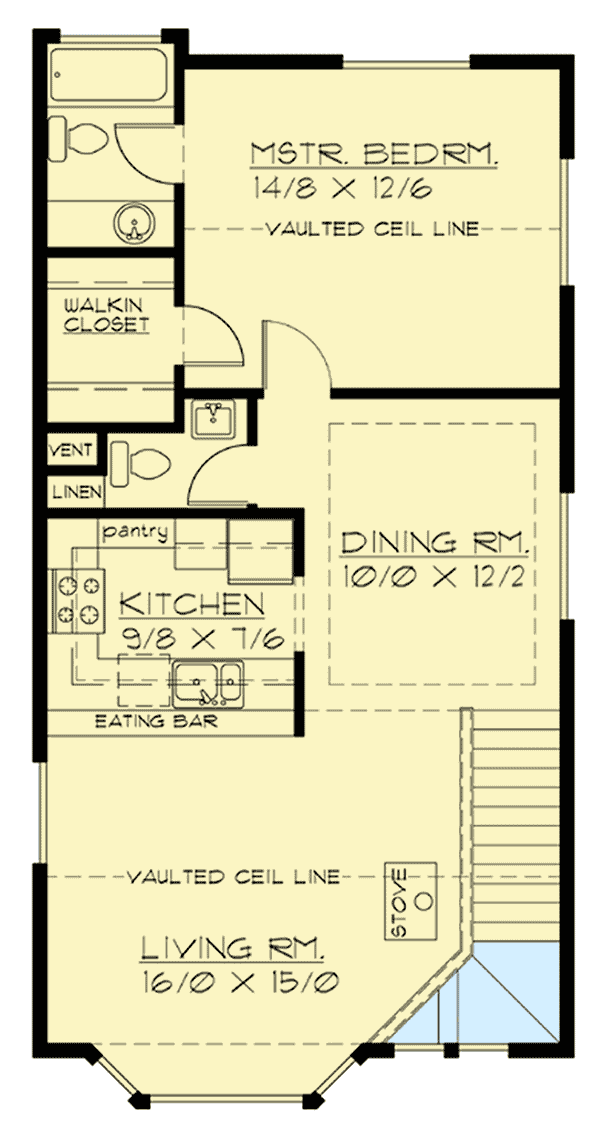

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan gives you matching 3 bed, 2.5 bath units each with 1,338 square feet of heated living and a 1-car 218 square foot garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,338Sq. Ft.
557 Sq. Ft.
1st Floor
781 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
218 Sq. Ft.
21'width
39'depth
27' 2"height
Unit B
1,338Sq. Ft.
557 Sq. Ft.
1st Floor
781 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
218 Sq. Ft.
21'width
39'depth
27' 2"height
What's Included

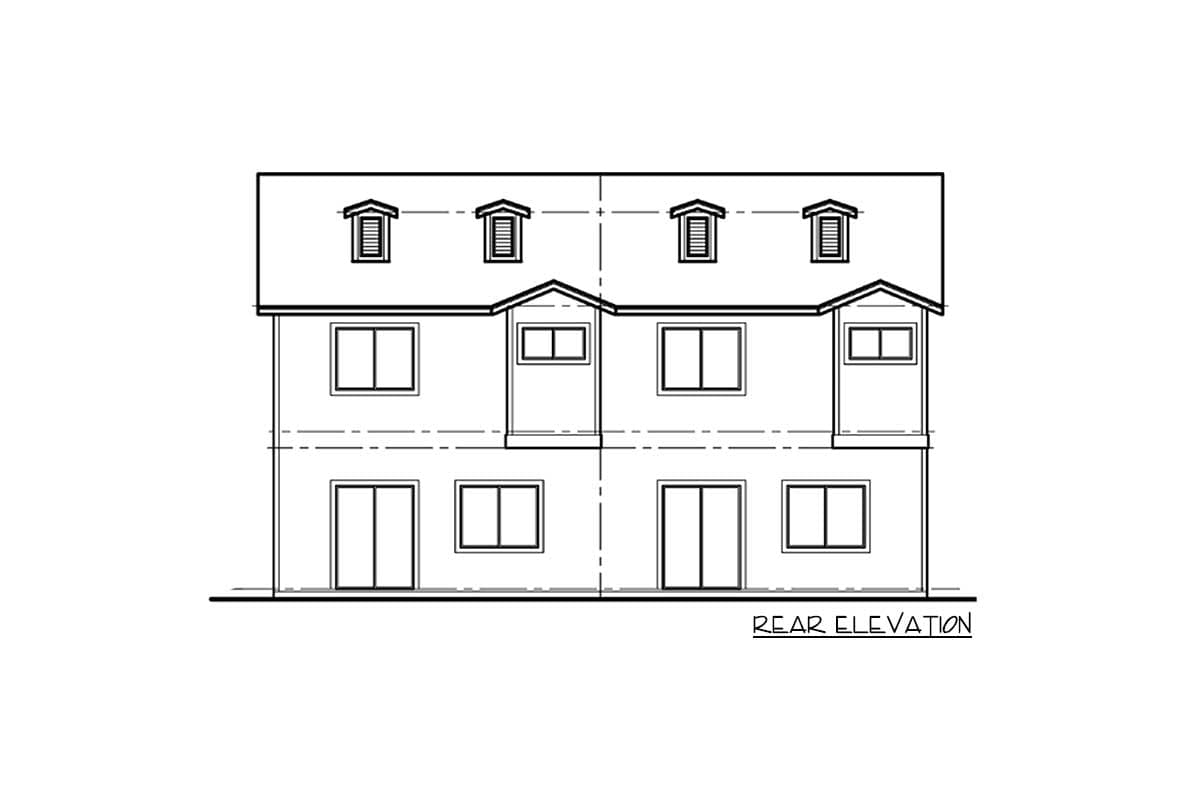

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,676 sq. ft.

1st Floor

1,114 sq. ft.

2nd Floor

1,562 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

39' 0"

Max Ridge Height

27' 2"

Garage

Type

Drive Under

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,676 sq. ft.

1st Floor

1,114 sq. ft.

2nd Floor

1,562 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

39' 0"

Max Ridge Height

27' 2"

Garage

Type

Drive Under

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 2nd Floor
