Duplex with Matching 2 Bed Units - 768 Sq Ft Per Unit

Heated S.F.

1,536

Units

2

Width

Depth

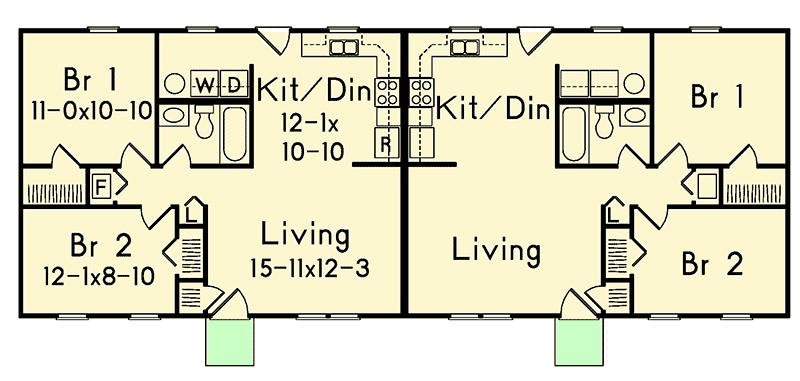

Floor Plan

Main Level

floor plan image Main Level

Plan Details

Each unit in this one-story duplex gives you 2 beds and a shared bath and 768 square feet of heated living area.
A fireplace warms the open living and dining area.
The laundry area is tucked off the kitchen keeping it out of sight yet convenient.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

build gallery item - Duplex House Plan 57337HA Comes to Life in North Carolina

Duplex House Plan 57337HA Comes to Life in North Carolina

9

Photos

Unit A

768Sq. Ft.

768 Sq. Ft.

1st Floor

2Beds

1Full Bath

None

32'width

24'depth

19' 2"height

Unit B

768Sq. Ft.

768 Sq. Ft.

1st Floor

2Beds

1Full Bath

None

32'width

24'depth

19' 2"height

What's Included

Front Cover Sheet
Detailed Floor Plans
Foundation Plan
Roof Plan
Exterior Elevations
Interior Elevations
Cross Section
Mechanical – Shows location of furnace
Electrical – Shows location of outlets, switches and fixtures
Plumbing – Shows location of fixtures

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,536 sq. ft.

1st Floor

1,536 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

24' 0"

Max Ridge Height

19' 2"

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

1,536 sq. ft.

1st Floor

1,536 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

24' 0"

Max Ridge Height

19' 2"

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections
