Plan 18717CK

Dynamic Open Floor Plan

Heated S.F.

2,681

Beds

3

Baths

2.5

Stories

2

Cars

2

Floor Plan

Main Level

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Detached Garage

floor plan image Detached Garage

Plan Details

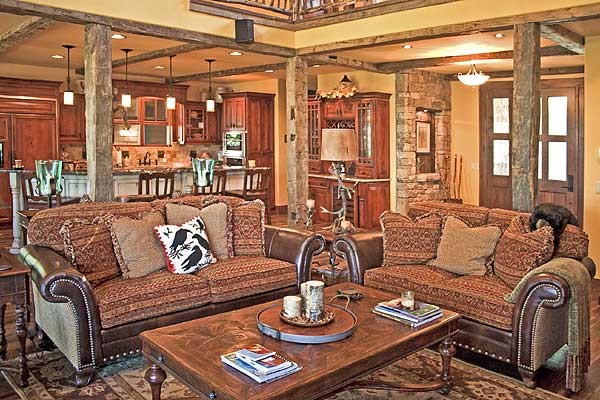

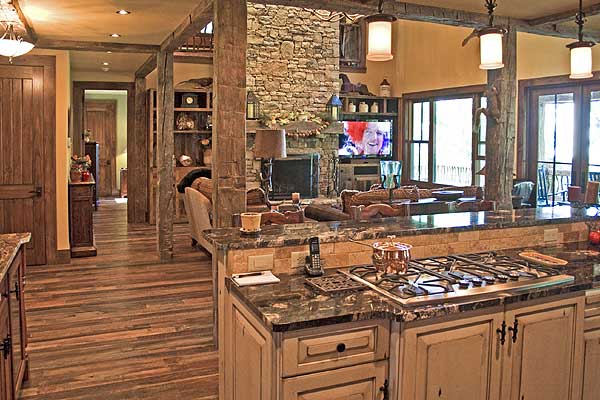

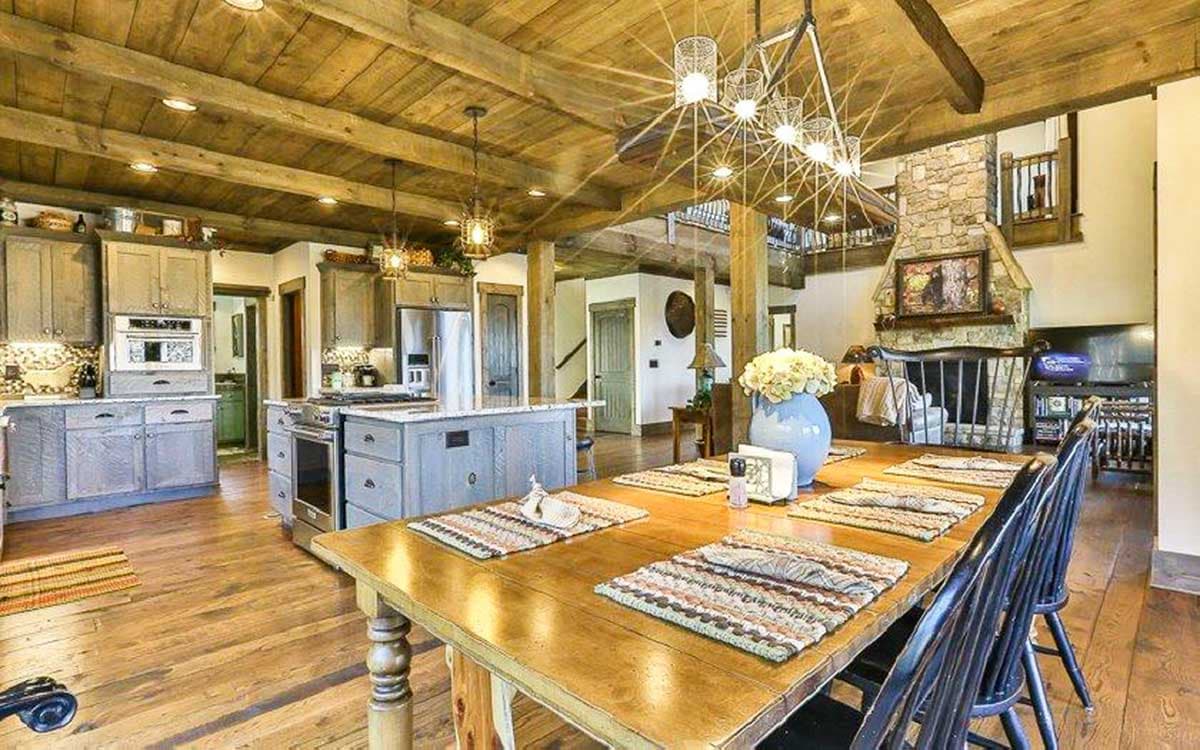

Columns are all that separate the main rooms in this captivating Mountain home plan.

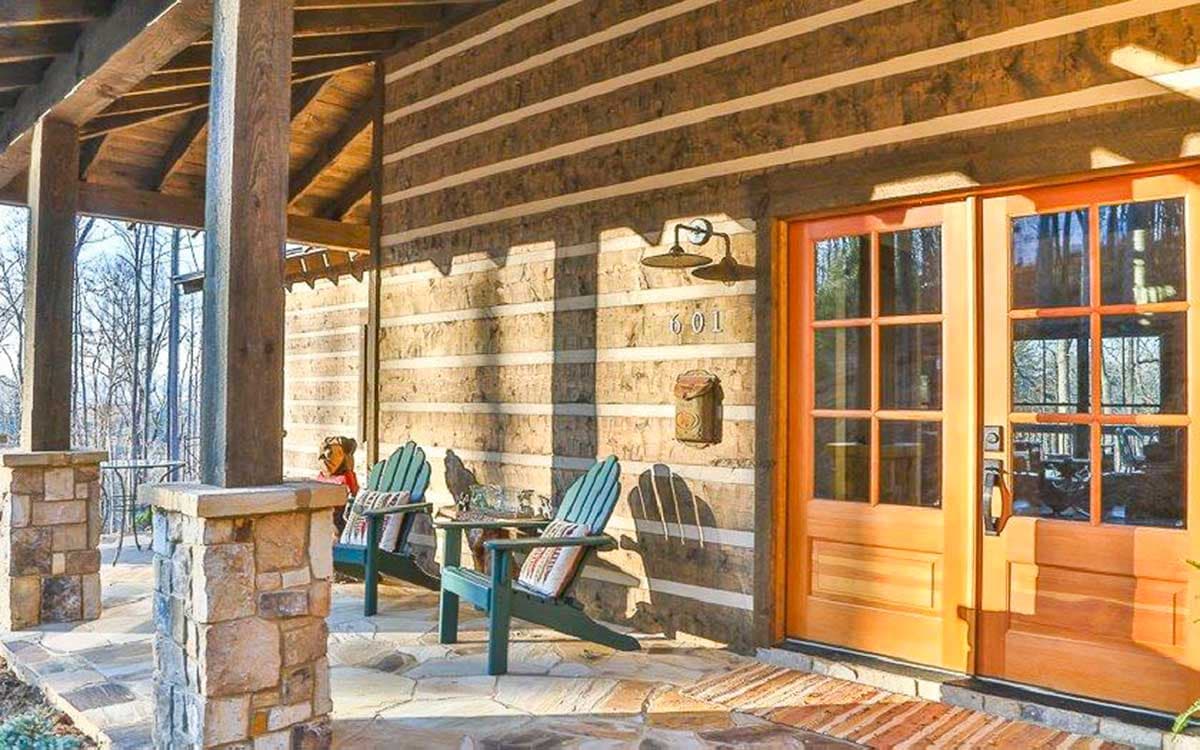

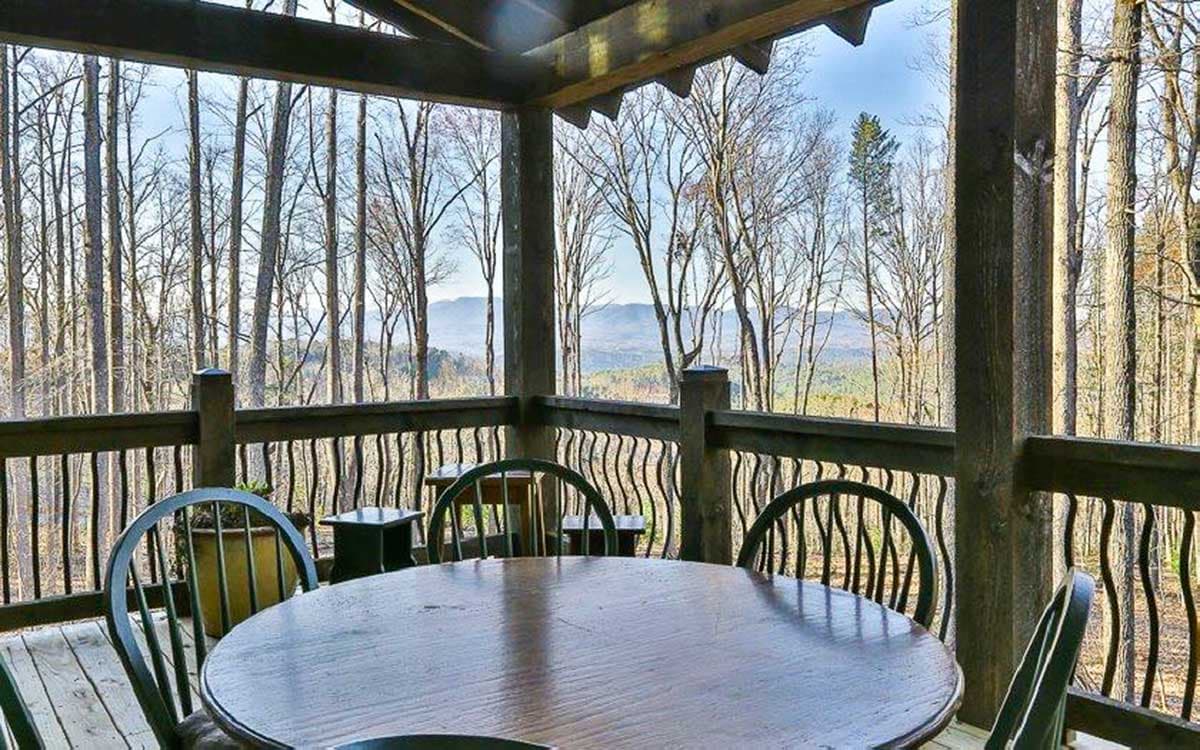

This allows sweeping views right out to the large rear covered porch.
Set off the the left, the master suite enjoys a romantic fireplace and private bath.
On the second floor, there is both a loft and cozy sitting nook that overlook the great room below.
The loft could become another bedroom should you need it.

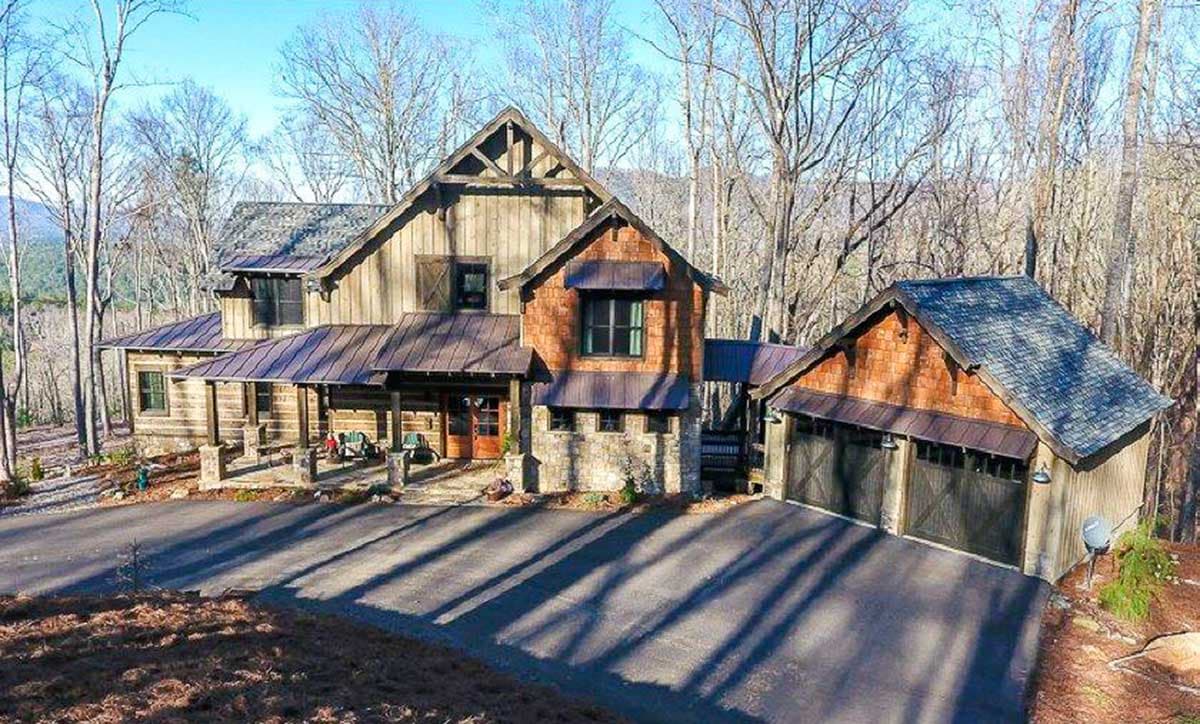

Added Bonus: This house plan comes with a detached 2-car garage giving you 624 square feet of room for your cars and/or storage.
Related Plan: Get an alternate exterior with House Plan 18730CK

What's Included

Foundation
Framing
Floor plan
Roof
Special sections
Details page
Electrical plan
Door and window schedule
Elevations with details
Cross sections as needed

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,681 sq. ft.

1st Floor

1,598 sq. ft.

2nd Floor

1,083 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 0"

Depth

48' 8"

Max Ridge Height

34' 10"

Garage

Type

Detached

Area

624 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
