Plan 69101AM
Easy Living on Two Floors
Heated S.F.
3,926
Beds
5
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 69101AM

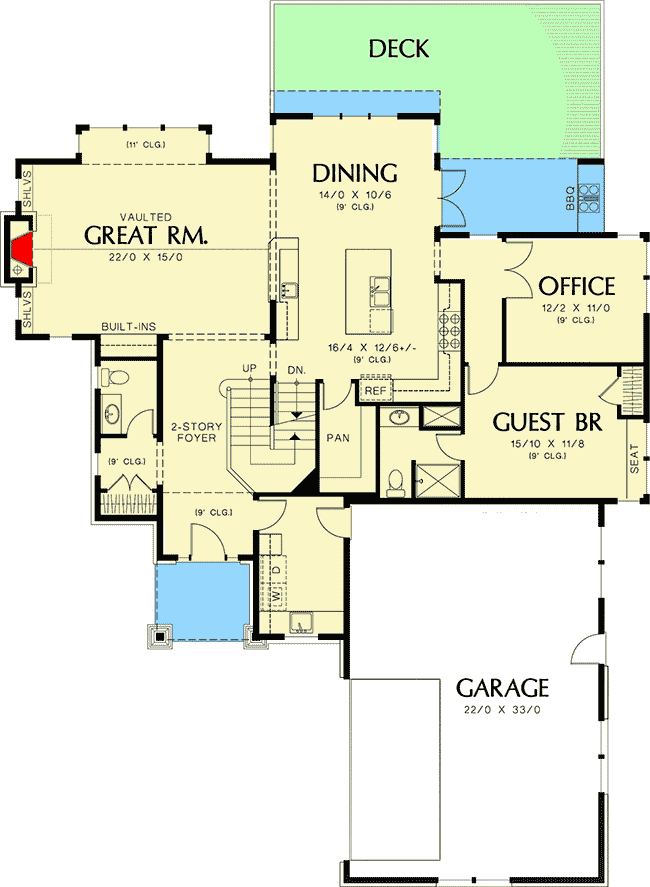

Main Level
slide image 0

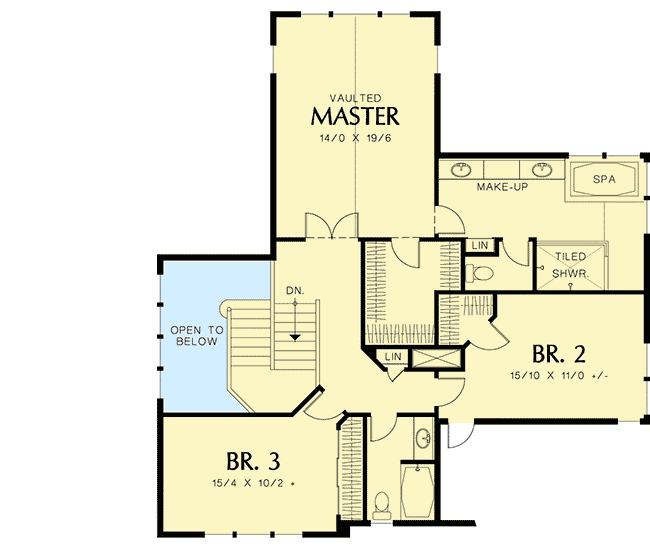

Second Floor
slide image 1

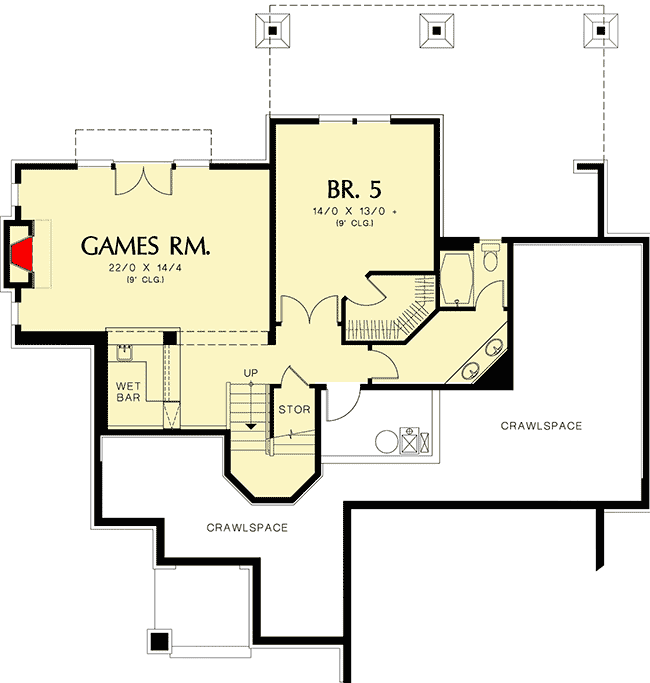

Lower Level
slide image 2

Plan 69101AM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Second Floor
floor plan image Second Floor
Lower Level
floor plan image Lower Level
Plan Details
  • From its high double gable to its stout front stoop, this home plan announces an easy way of living. Forget conventional floor plan layouts, though. This home's comfort relies on a fresh, yet sensible room arrangement.
  • To begin with, the floor plan absorbs the third stall of the garage, providing the necessary space without the unsightly look of a monstrous garage wing. Instead, the home features an attractive side-load design that only displays a two-car garage door.
  • In another well-planned space, a main-level office and guest suite are tucked behind the garage. Even though they are on the main level, they are well removed from the main activity spaces. A hallway off the kitchen leads to the office behind double doors and the guest suite, which includes a built-in seat.
  • The foyer accepts traffic from the garage entrance as well as the front door, and provides access to a coat closet, a powder bath, and a U-shape staircase. Three bedrooms, including the master suite, are on the upper level.
  • A lower level is included for a lot that slopes to the rear. The same U-shape staircase descends, accessing a games room with wet bar and another bedroom and bath.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,926 sq. ft.

Lower Level

984 sq. ft.

1st Floor

1,735 sq. ft.

2nd Floor

1,207 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

70' 0"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

765 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Outdoor Kitchen

Wet Bar

Square Footage Breakdown

Total Heated Area

3,926 sq. ft.

Lower Level

984 sq. ft.

1st Floor

1,735 sq. ft.

2nd Floor

1,207 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

70' 0"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

765 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Outdoor Kitchen

Wet Bar
