Plan 530024UKD
Efficient 2-Bed House Plan with Wrap-Around Porch
Heated S.F.
1,189
Beds
2
Baths
2
Stories
1
Floor Plan

Plan 530024UKD

Main Level
slide image 0

Plan 530024UKD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

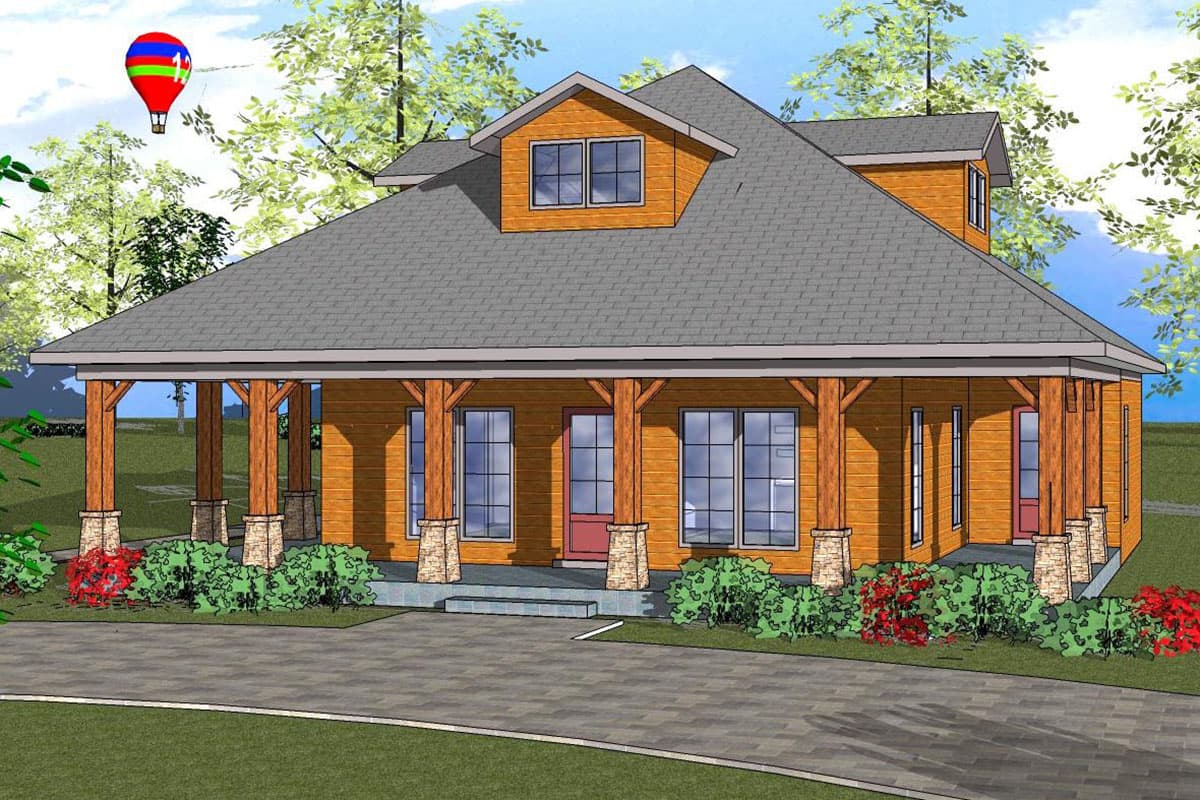

  • This simple and efficient house plan includes 1,189 square feet of living space, surrounded by a charming wrap-around porch.
  • A dormer window on each elevation of the home maximizes access to natural light.
  • Upon entering, discover the open living space that combines the living room and eat-in kitchen. The kitchen island doubles as a space to prep meals and dine, and a nearby closet houses the washer and dryer units.
  • The master bedroom occupies the right side of the home, and includes a door to the front porch, as well as a full bath.
  • Bedroom 2 resides next door to a full bath, and also provides access to the front porch.
What's Included
  • Title Sheet - Isometric of Front Elevation
  • Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0

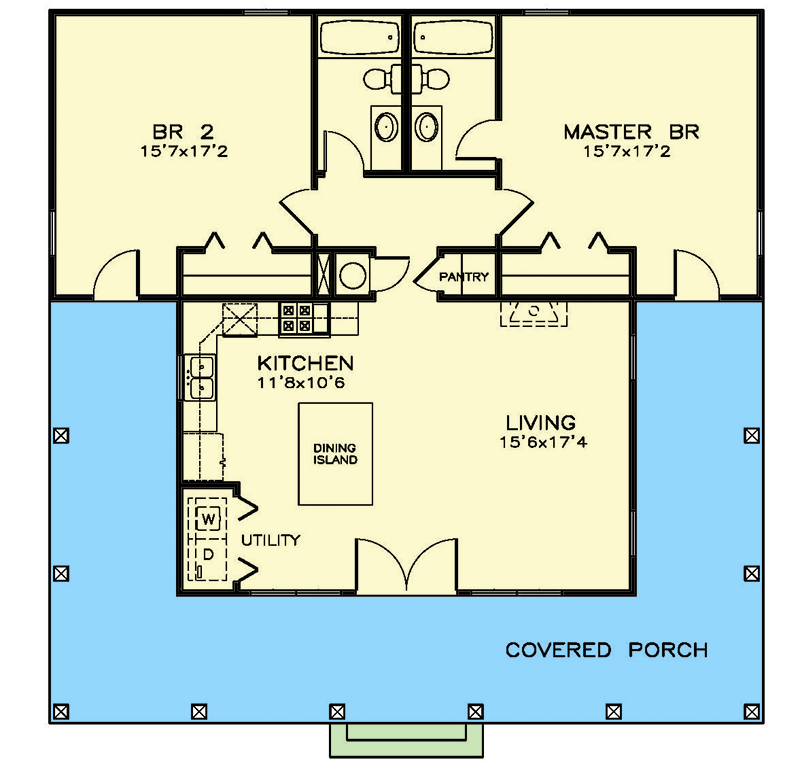

  • Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house. ¼” = 1’-0 scale

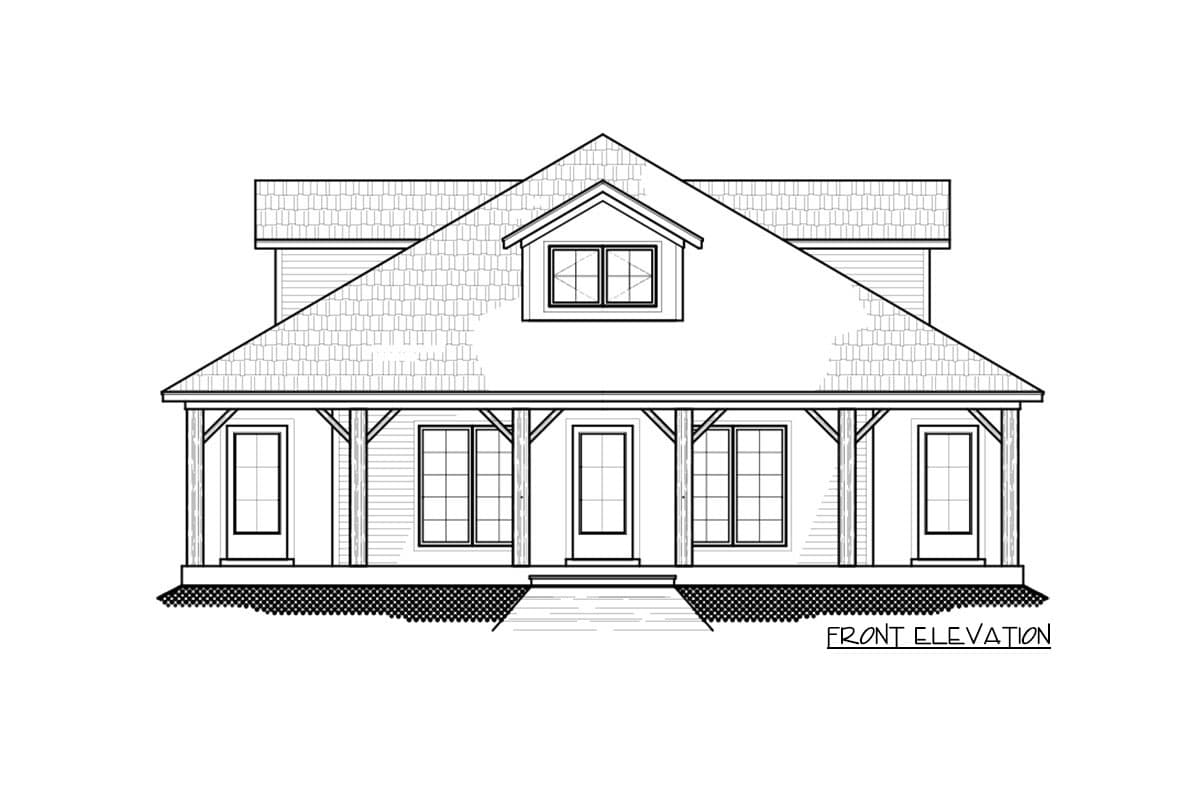

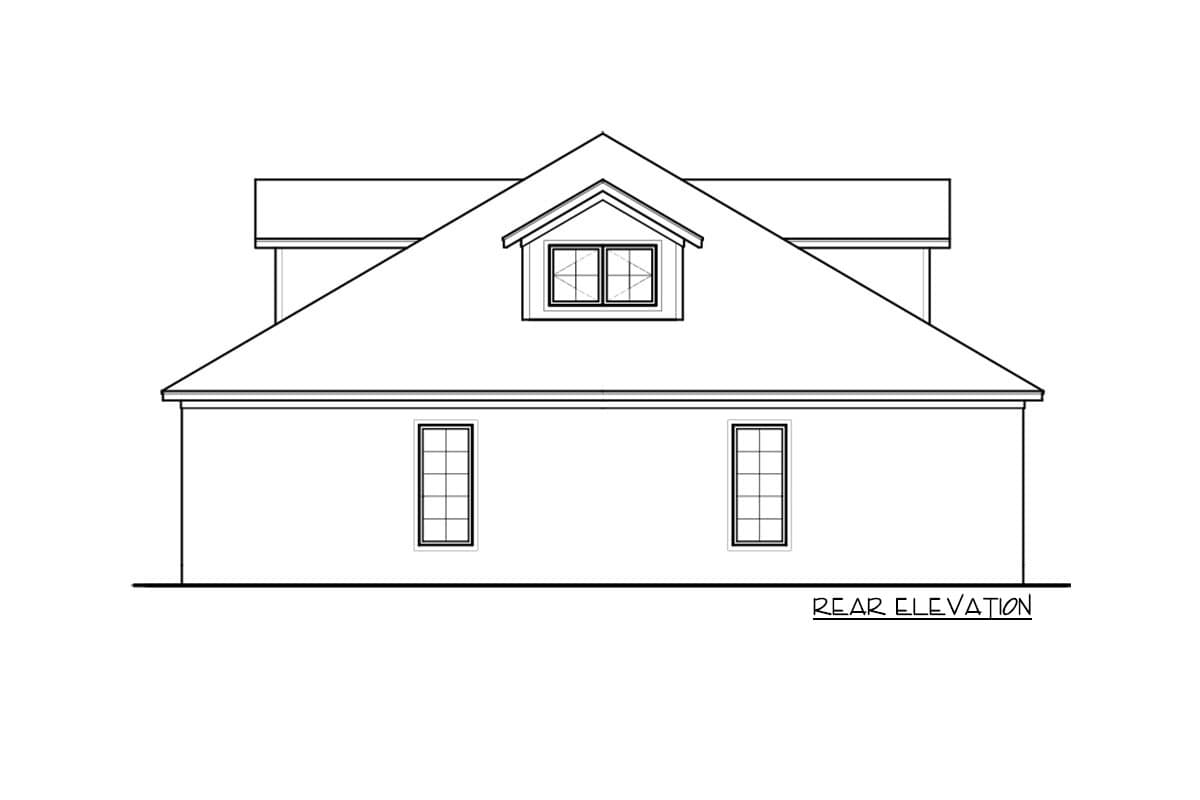

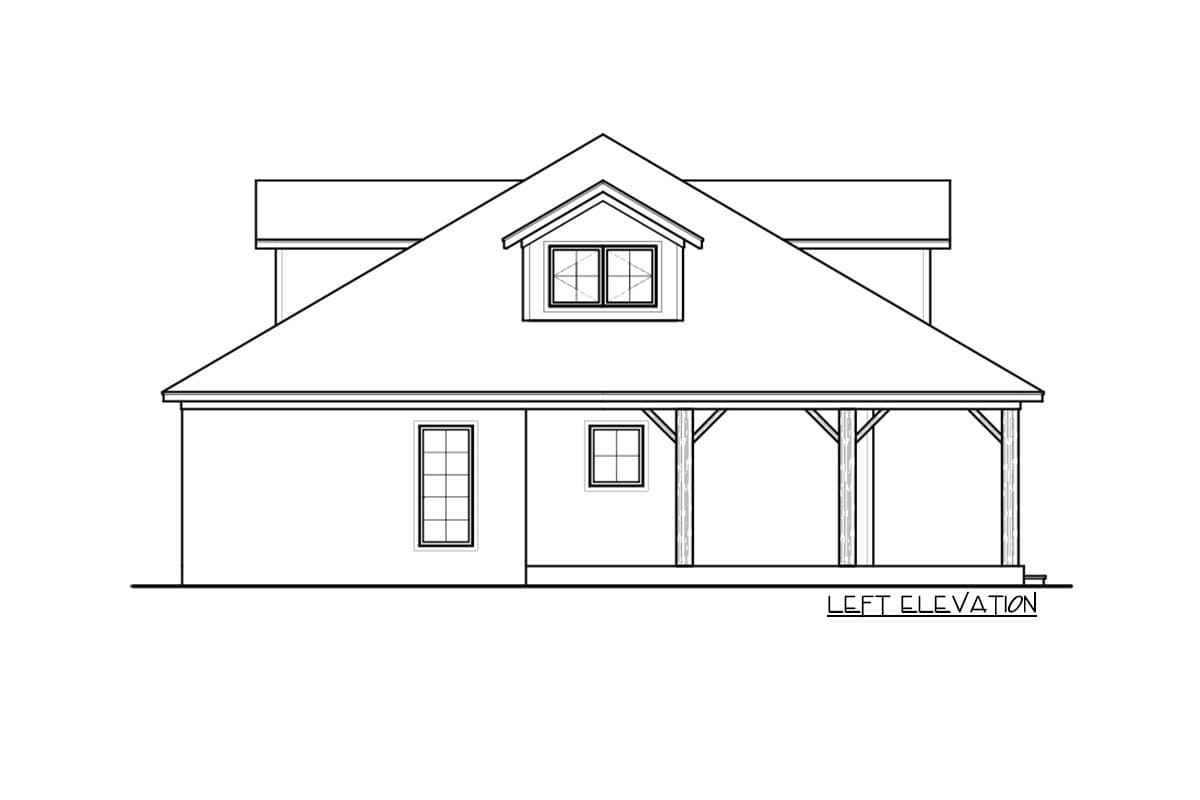

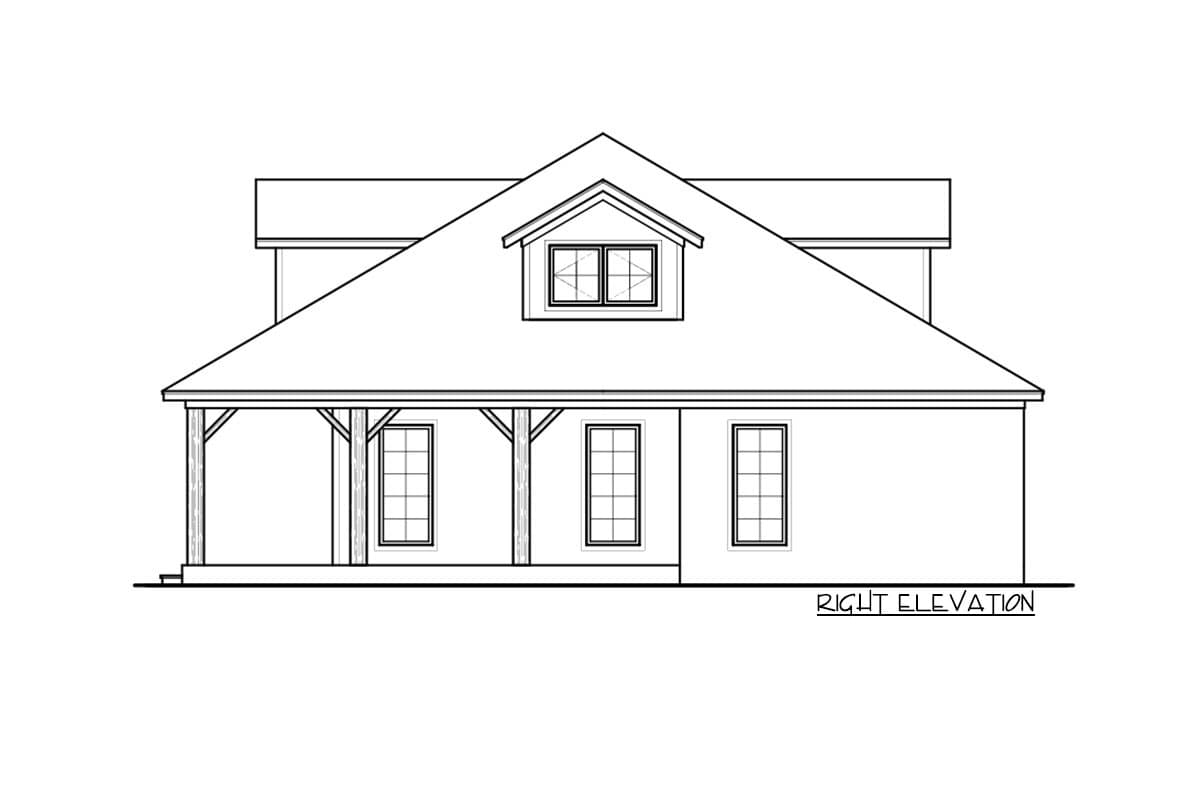

  • Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.
  • Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers. Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.
  • Notes & Details ‐ per IRC 2015
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,189 sq. ft.

1st Floor

1,189 sq. ft.

Porch, Combined

575 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

42' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Architectural Style

Coastal

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

1,189 sq. ft.

1st Floor

1,189 sq. ft.

Porch, Combined

575 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

42' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Architectural Style

Coastal

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
