Plan 56424SM

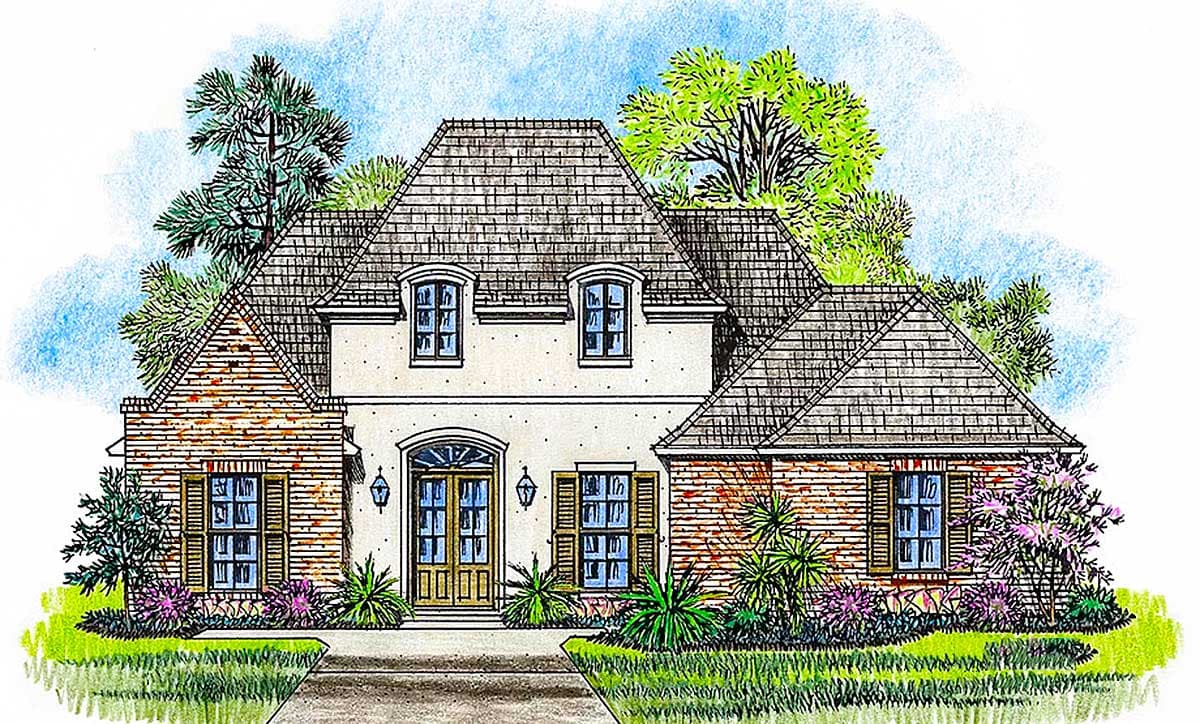

Elegant Acadian House Plan
Heated S.F.
2,204
Beds
4 - 5
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 56424SM

Main Level
slide image 0

Plan 56424SM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This elegant Acadian house plan offers you a private guest suite away from the family bedrooms.
  • 12' high ceilings expand the foyer and the family room that is open to the kitchen and nook.
  • Don't need a formal dining room? Use this as a study or even an extra bedroom.
  • The gorgeous master suite is tucked away at the back of the house giving you a quiet retreat.
  • A large storage room in the garage can be locked to keep your belongings secure.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,204 sq. ft.

1st Floor

2,204 sq. ft.

Porch, Rear

207 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

89' 6"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Flat

12' 0''

Family Room

Flat

12' 0''

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
