Plan 510003WDY

Elegant Acadian House Plan with Courtyard Garage

Heated S.F.

3,356

Beds

4

Baths

4.5

Stories

1

Cars

3

Floor Plan

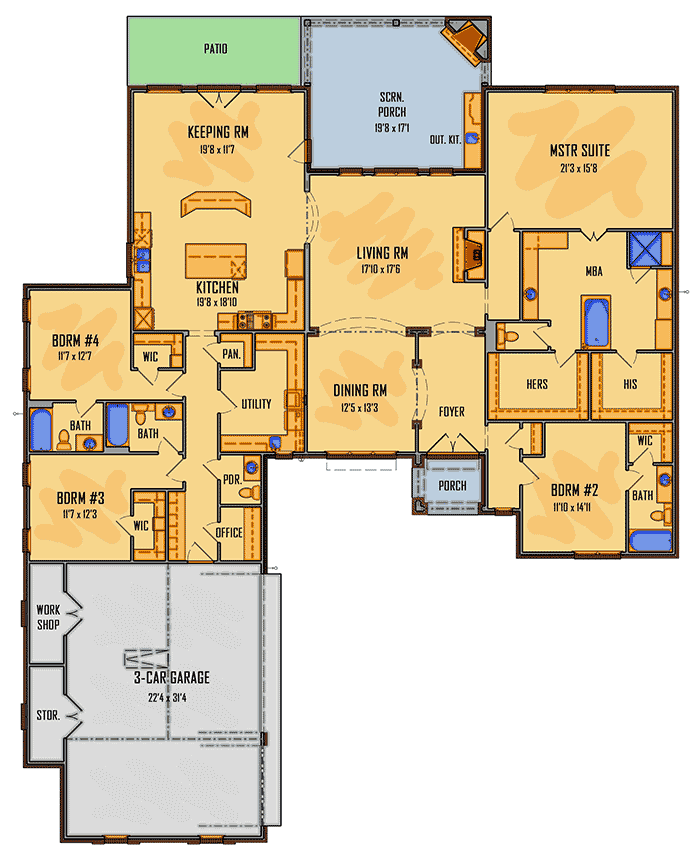

Main Level

floor plan image Main Level

Plan Details

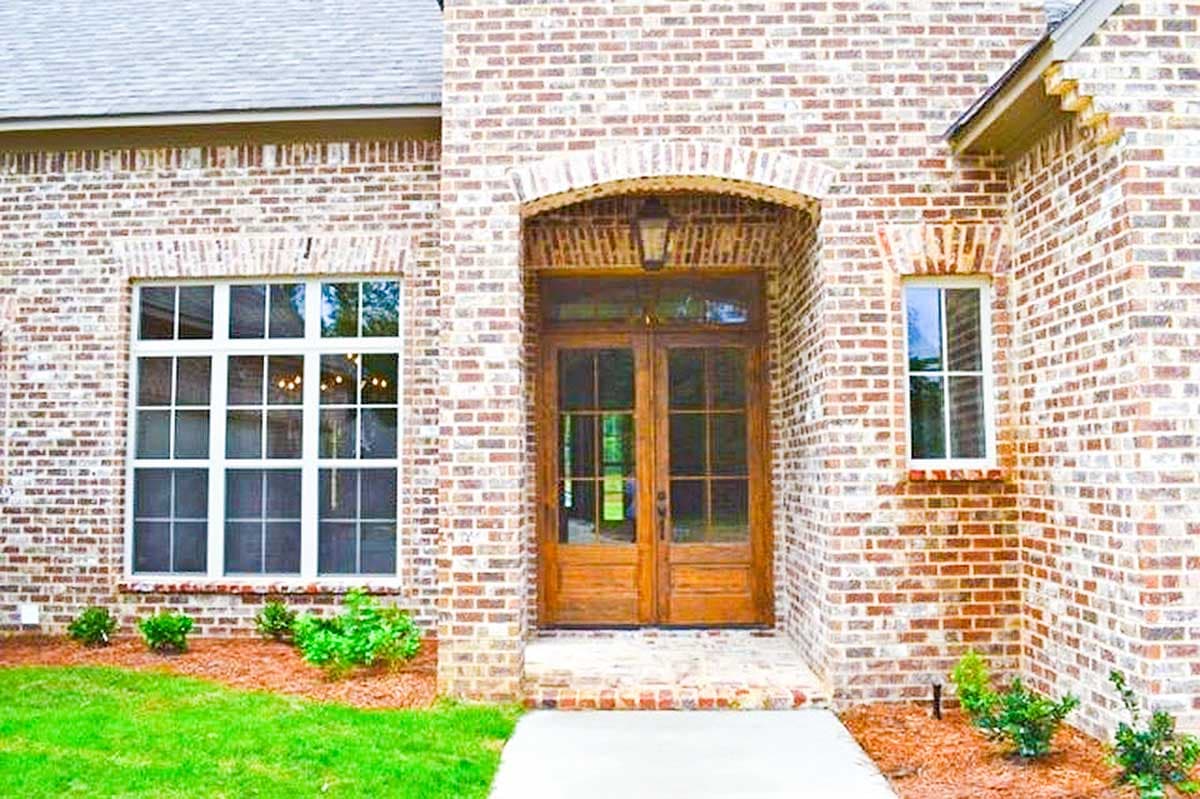

An elegant brick exterior and gorgeous hip roof lines add grace and style to this Acadian house plan.
With a big screened porch and a spacious interior, the home works well for large families.
A wide arched opening leads you from the foyer to the formal dining room with more arches opening to the living room.

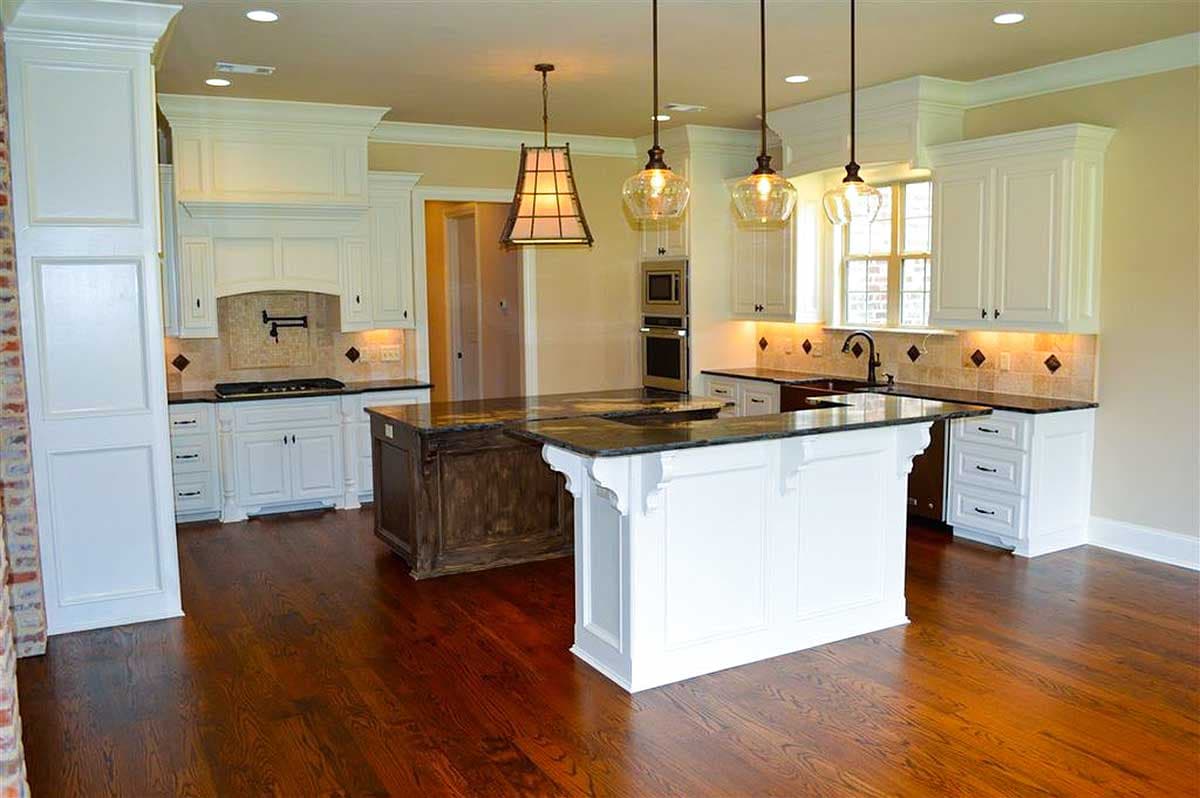

There are two islands in the big kitchen that shares space with the keeping room.
Homeowners get a huge master bathroom with a big soaking tub set in the middle as the focal point.
Each bedroom has a private bathroom and walk-in closet.
A pocket home office is tucked away by the garage entry.

What's Included

This plan has 8 sheets as follows:

Coversheet Color Rendering
Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

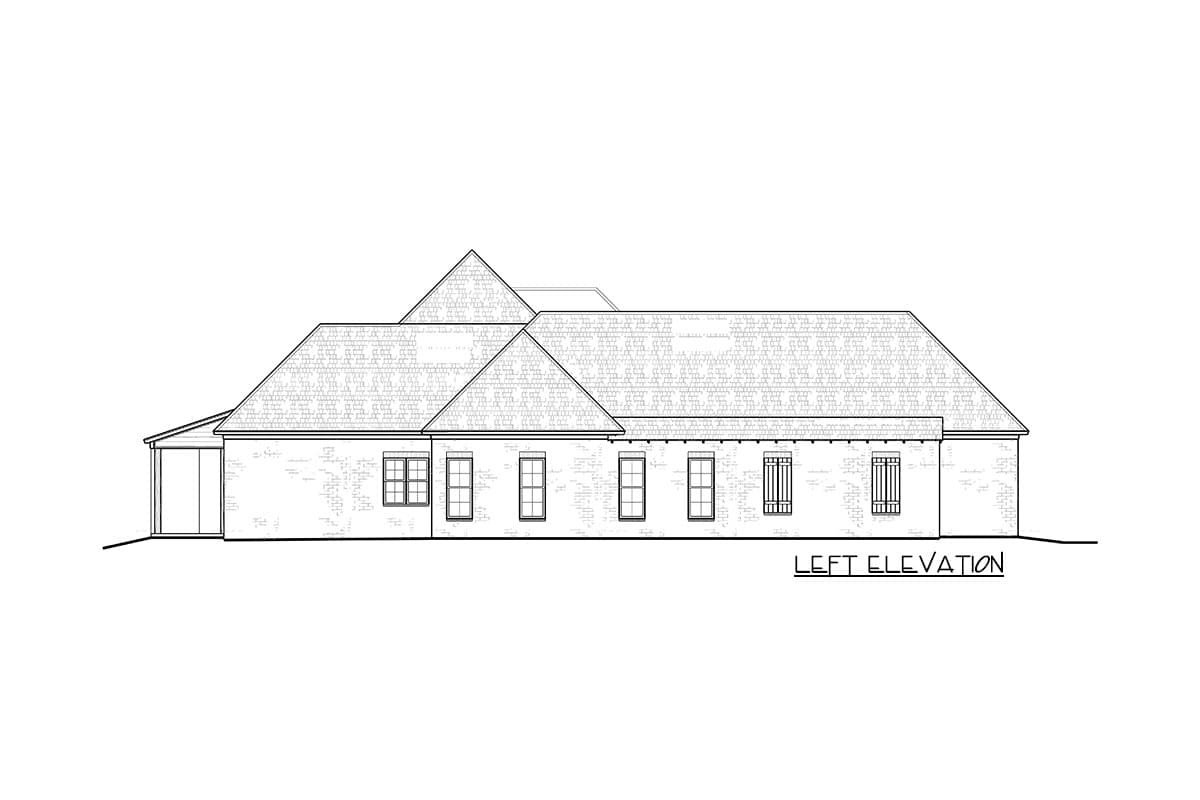

Front and Left Elevations with Material Descriptions Misc Details

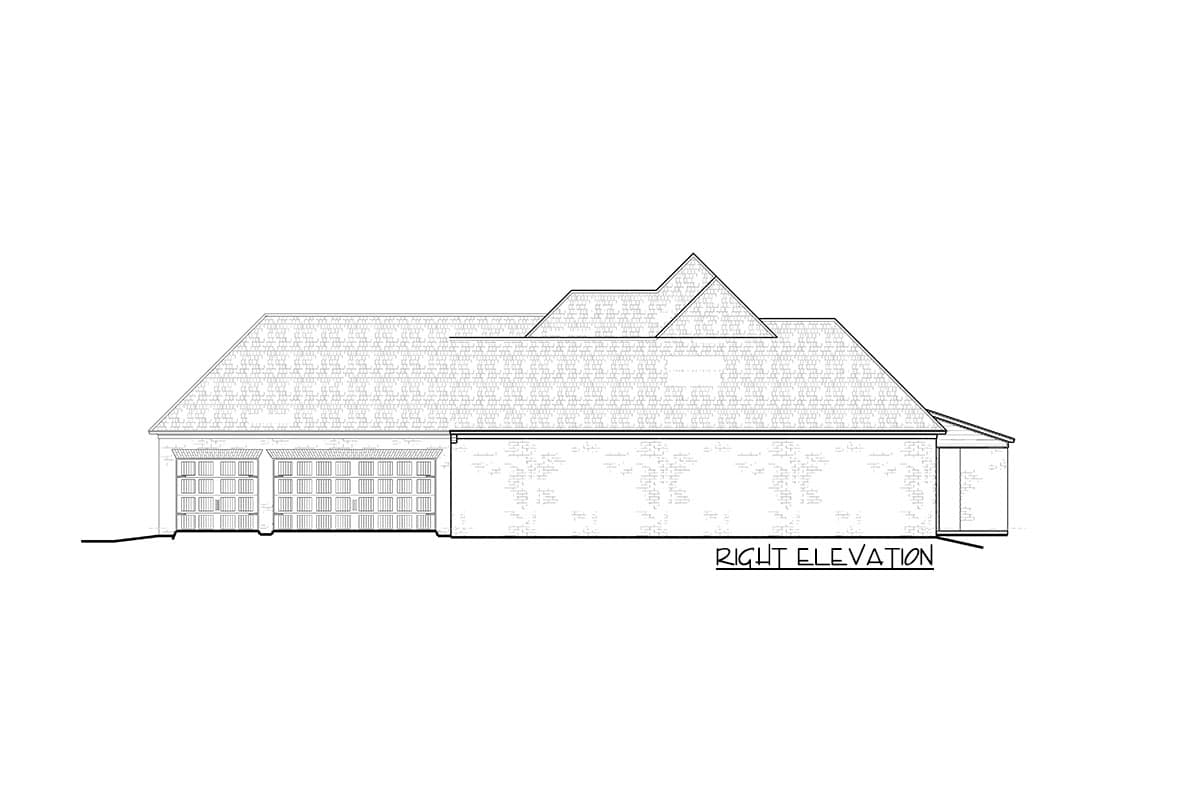

Rear and Right Elevations, Cornice
Roof Plan and Building Sections Rafter Schedules
Electrical Plans and Schedules
Slab Foundation
Slab Foundation Footing Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,356 sq. ft.

1st Floor

3,356 sq. ft.

Porch, Front

52 sq. ft.

Porch, Rear

363 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 10"

Depth

99' 11"

Garage

Type

Attached

Area

827 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

16 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

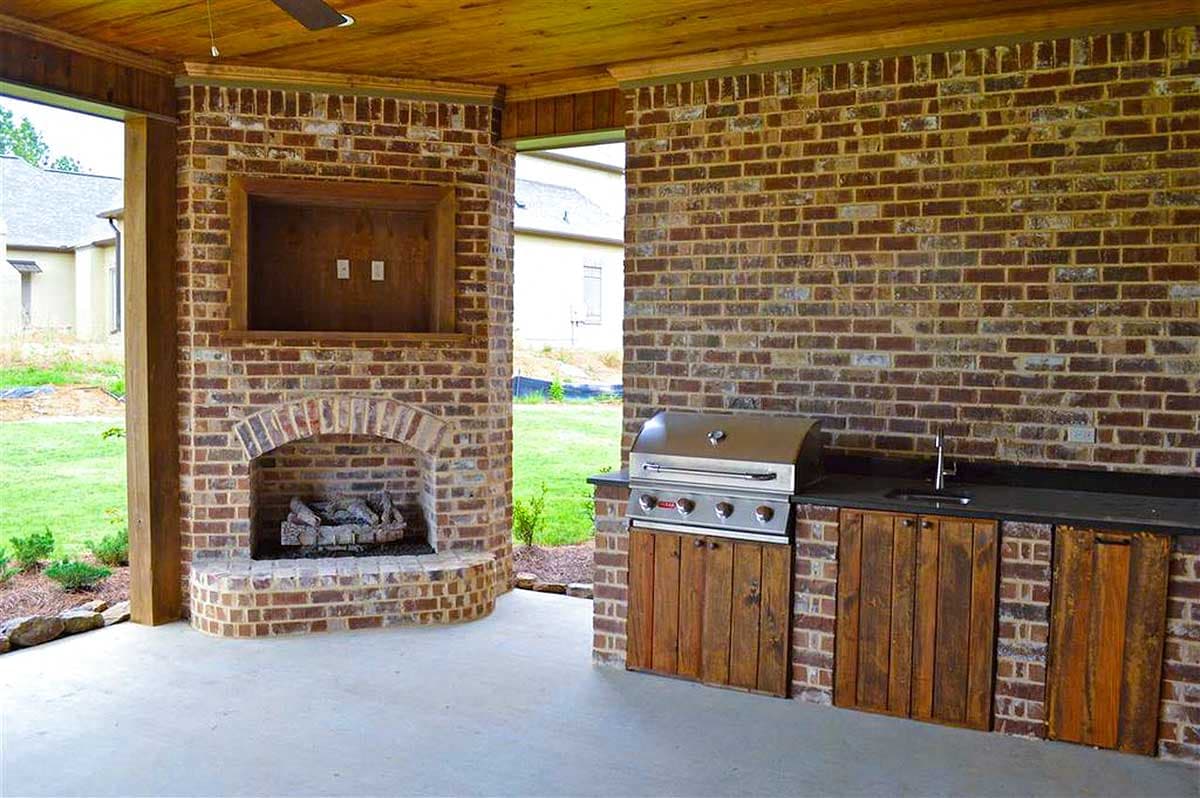

Outdoor Fireplace

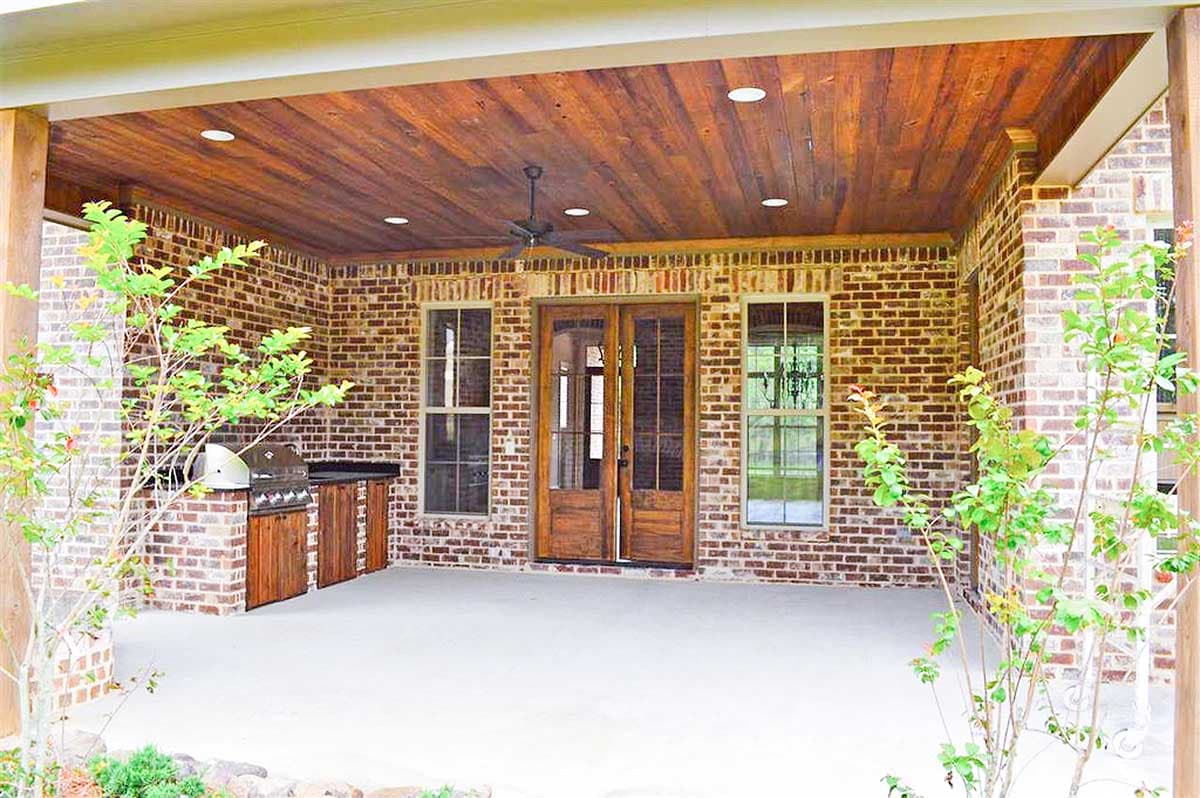

Outdoor Kitchen

Two Kitchen Islands
