Plan 510128WDY

Exclusive

Elegant Acadian House Plan with Smart Floor Plan
Heated S.F.
2,206
Beds
4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 510128WDY

Main Level
slide image 0

Plan 510128WDY

1-800-854-7852

1-262-521-4596

Main Level

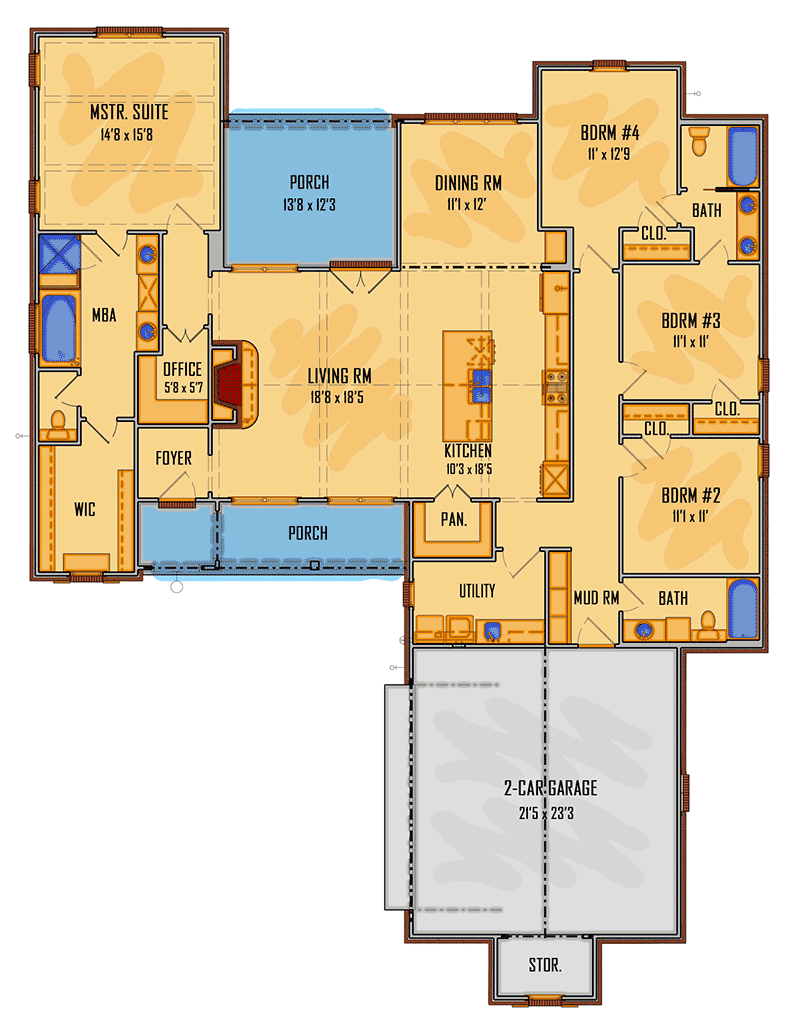

floor plan image Main Level
Plan Details
  • Simple elegance defines this Acadian house plan, complete with a smart floor plan for families of any size.
  • A welcoming front porch invites you inside to discover a generously-sized living room, combined with the kitchen. Exposed beams overhead offer a beautiful design element, while making the shared living spaces feel even larger.
  • Retreat to the secluded master suite, just past a pocket office, which includes a 5-fixture bath and a walk-in closet.
  • Three family bedrooms reside on the opposite side of the home; two share a Jack-and-Jill bath, and one includes a full bath.
  • A hall bath neighbors the 2-car garage for added convenience when trying to get out of the door in a hurry, and a sizable laundry room offers additional storage space.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,206 sq. ft.

1st Floor

2,206 sq. ft.

Porch, Combined

285 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 10"

Depth

79' 2"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

20' 1''

Dining Room

10' 0''

Foyer

10' 0''

Master Bedroom

10' 0''

Master Bath

9' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Home Office

Square Footage Breakdown

Total Heated Area

2,206 sq. ft.

1st Floor

2,206 sq. ft.

Porch, Combined

285 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 10"

Depth

79' 2"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

20' 1''

Dining Room

10' 0''

Foyer

10' 0''

Master Bedroom

10' 0''

Master Bath

9' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Home Office
