Plan 5563BR
Elegant French Styling
Heated S.F.
2,791
Beds
3 - 4
Baths
2
Stories
1
Cars
3
Floor Plan

Plan 5563BR

Main Level
slide image 0

Plan 5563BR

1-800-854-7852

1-262-521-4596

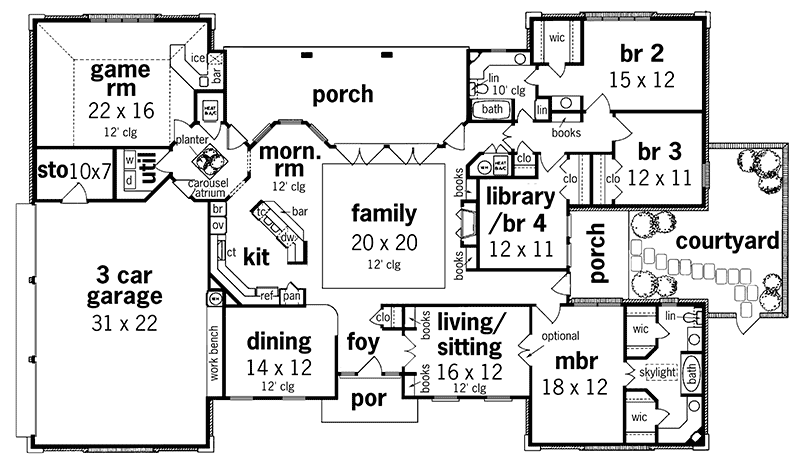

Main Level
floor plan image Main Level
Plan Details

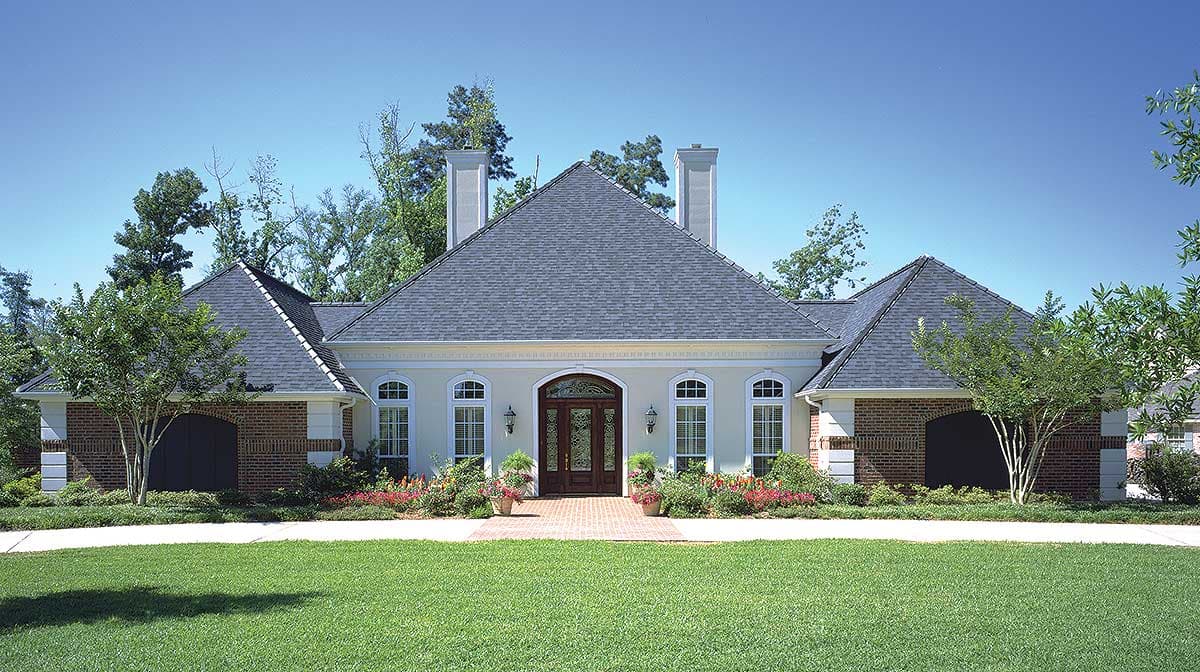

  • Brick and stucco adorn the exterior of this elegant French-style home plan, which also features stylish quoins and keystones.
  • At the center of the floor plan, the family room is framed by a ceramic-tile floor that continues into the morning room and the open, airy kitchen.
  • Handsome built-in bookshelves flank a tile-faced fireplace in the family room and two sets of French doors open to a back porch.
  • Just past the morning room, a spectacular carousel atrium with a center planter and bright sky windows offers a beautiful and peaceful retreat.
  • An exciting game room with a refreshing wet bar lies beyond.
  • The formal areas include a raised dining room and a living room that could also serve as a private sitting room for the master suite. Secluded from the rest, the master suite overlooks a courtyard and a side porch and includes a private bath.
  • Related Plan: For an alternate floor plan and some extra room, see 55089BR.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

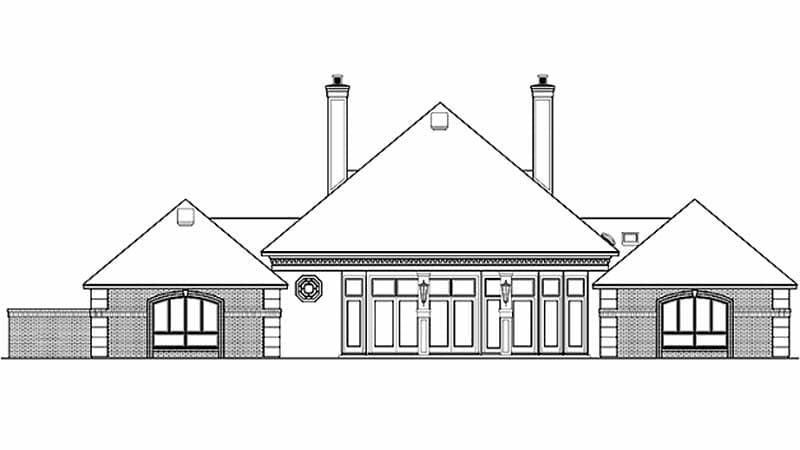

  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,791 sq. ft.

1st Floor

2,791 sq. ft.

Storage

70 sq. ft.

Porch, Rear

473 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

84' 0"

Depth

54' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

682 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

European

French Country

Southern

Special Features

Bedrooms - Clustered

Courtyard

Game/Rec Room

Master Suite - 1st Floor

Master Suite - Sitting Area

Wet Bar

Plan Collections

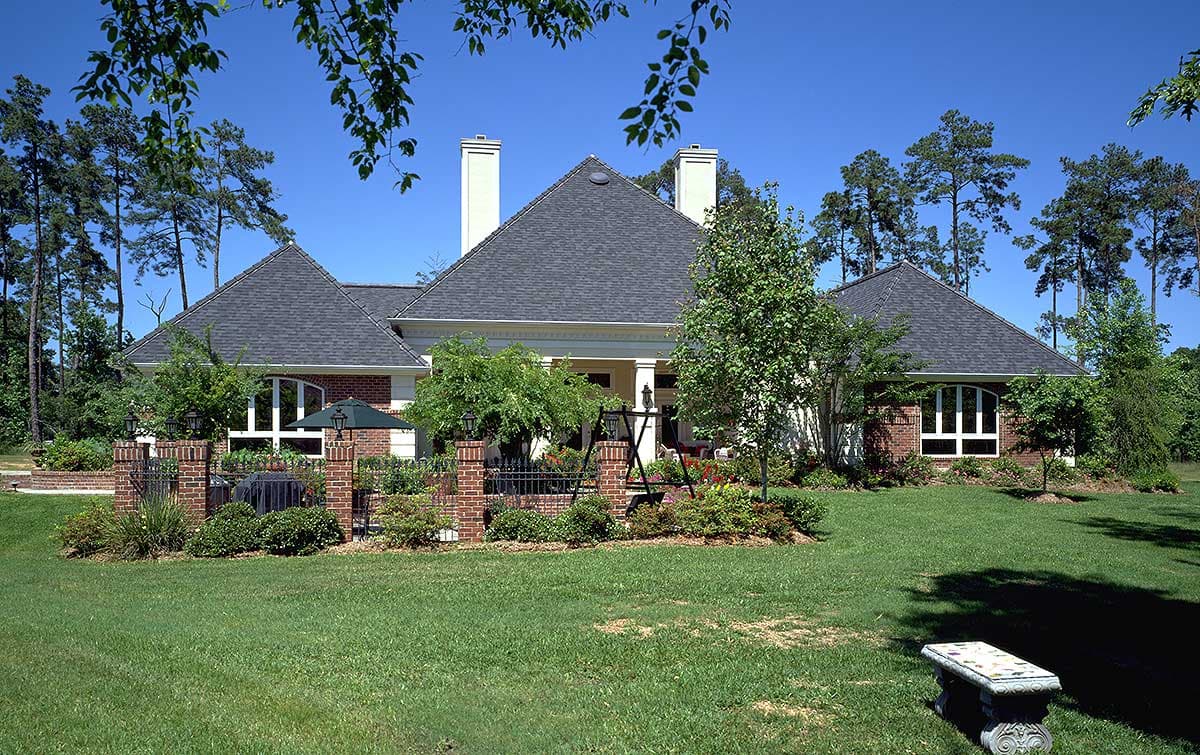

Photo Gallery
