Name: Plan 66011WE: Elegant Luxury House Plan with Bonus Room Above 3-Car Garage - 4000 Sq Ft
SKU: 66011WE
Price: 1445.0 USD
Availability: InStock

Plan 66011WE

Elegant Luxury House Plan with Bonus Room Above 3-Car Garage - 4000 Sq Ft

Heated S.F.

4,000

Beds

3 - 4

Baths

3.5

Stories

Cars

Floor Plan

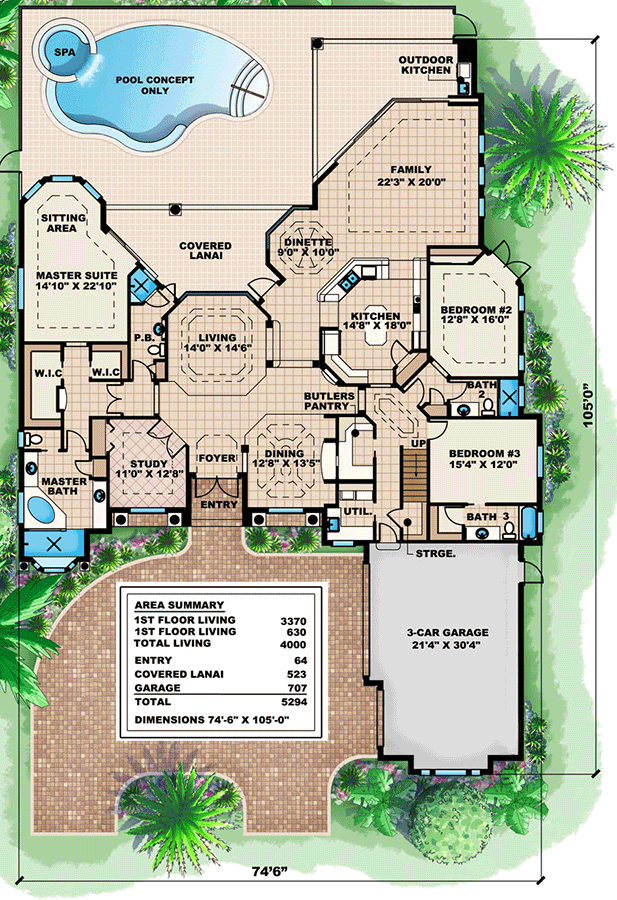

Main Level

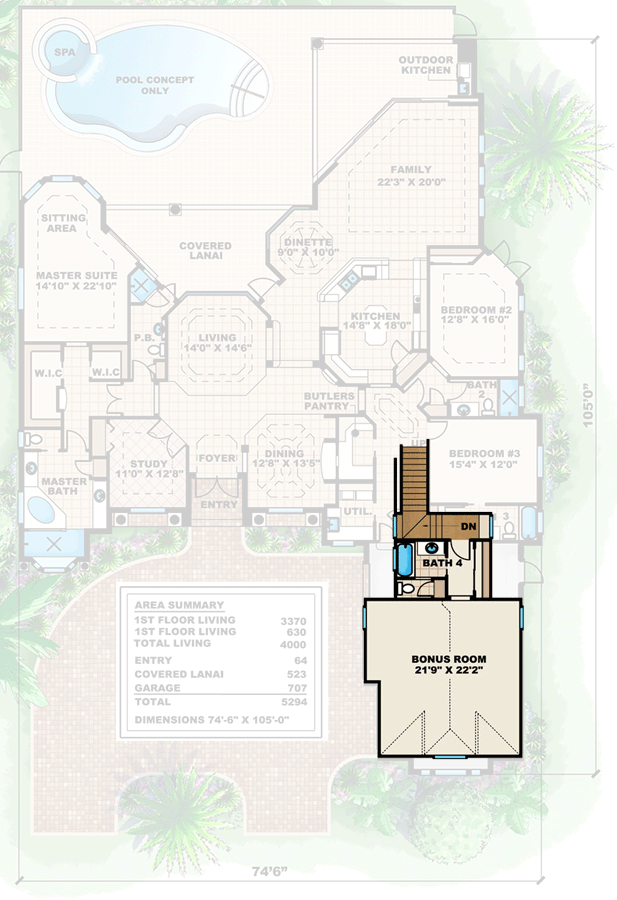

Bonus

Plan Details

This award winning luxury house plan is a unique combination of coziness and elegance. The floor plan flows flawlessly without compromising privacy or style. Natural views and the outdoor living spaces enhances the open, spacious feeling inside a home. This home plan encompasses this belief and is certainly setting a trend in residential design.
Distinguishing qualities include the overall layout and flow of the house plan, coffered ceilings that maximize daylight while reflecting grandeur and richness.
A pass-through wet bar that can also be used as a butler's pantry. The loft above the garage is a fun and logical use of space for a second floor game or media room.
The gourmet kitchen is superior in design and convenience. The dropped coffered ceiling in the kitchen provides intimate recessed lighting and a wonderful place to display art and kitchen decor.
Related Plans: Eliminate the bonus level with house plan 66271WE. Get a smaller version with house plan 66007WE (3,508 sq. ft.). Get a larger home with house plans 66274WE (4,480 sq. ft.) and 66185WE (5,087 sq. ft.).

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
