Plan 849097PGE

Exclusive

Elegant New American House Plan with Main Level Master and Bonus Room

Heated S.F.
3,609
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 849097PGE

Main Level
Main Level
Bonus Room
Bonus Room

Plan 849097PGE

M-F 9am-5pm EST |

1-203-761-8500

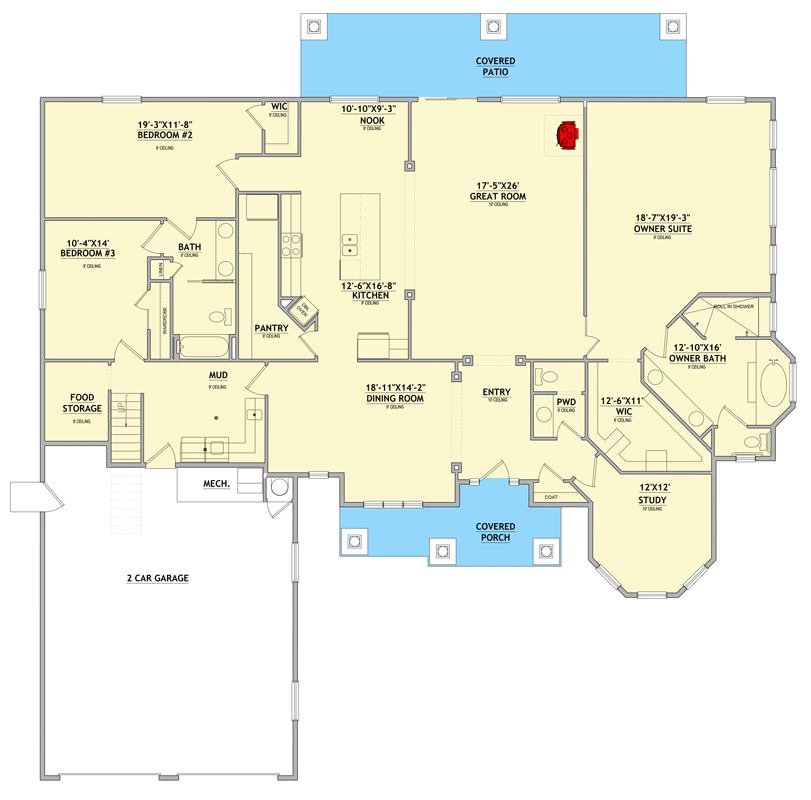

Main Level

Plan 849097PGE: Elegant New American House Plan with Main Level Master and Bonus Room - Floor Plan - Main Level - Craftsman, European, New American, Traditional

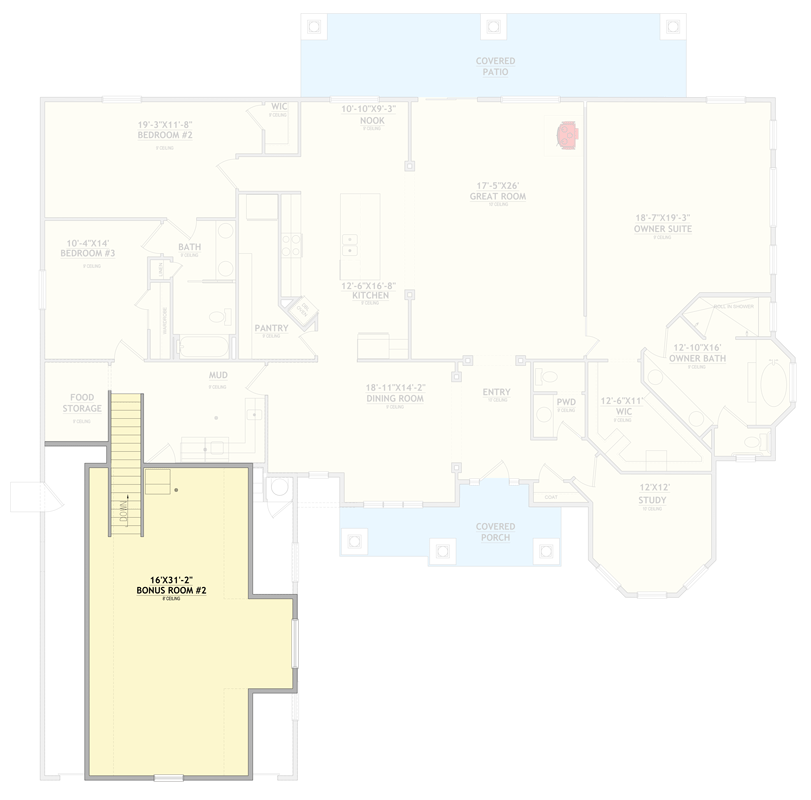

Bonus Room

Plan 849097PGE: Elegant New American House Plan with Main Level Master and Bonus Room - Floor Plan - Bonus Room - Craftsman, European, New American, Traditional

Plan Details

  • Boasting 3,609 finished sq ft, 3 bedrooms, 2.5 baths, and a 783 sq ft 2-car garage, this New American style house plan features inviting Craftsman details.
  • Step onto the charming curved walkway to a covered entry flanked by stately columns, leading into a thoughtfully designed layout featuring a convenient main-level home office.
  • The heart of the home features a seamless flow between the main living areas, including a breakfast nook, a formal dining space, and a well-appointed kitchen with a walk-in pantry.
  • The private primary suite is conveniently located on the main floor for ultimate relaxation, while secondary bedrooms are thoughtfully split for privacy and comfort.
  • A welcoming covered entry porch provides a charming spot for greeting guests.
  • The second floor features a finished bonus room, offering flexible space perfect for a media room, play area, or additional guest quarters.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,609 sq. ft.

1st Floor

3,019 sq. ft.

2nd Floor

590 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 4"

Depth

77' 6"

Max Ridge Height

27' 11"

Garage

Type

Standard

Area

783 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

European

New American

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Finished Bonus Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,609 sq. ft.

1st Floor

3,019 sq. ft.

2nd Floor

590 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 4"

Depth

77' 6"

Max Ridge Height

27' 11"

Garage

Type

Standard

Area

783 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

European

New American

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Finished Bonus Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive
