Plan 360006DK
Elegant Southern Ranch House Plan
Heated S.F.
2,971
Beds
3 - 4
Baths
3 - 4
Stories
1
Cars
2
Floor Plan

Plan 360006DK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 360006DK

1-800-854-7852

1-262-521-4596

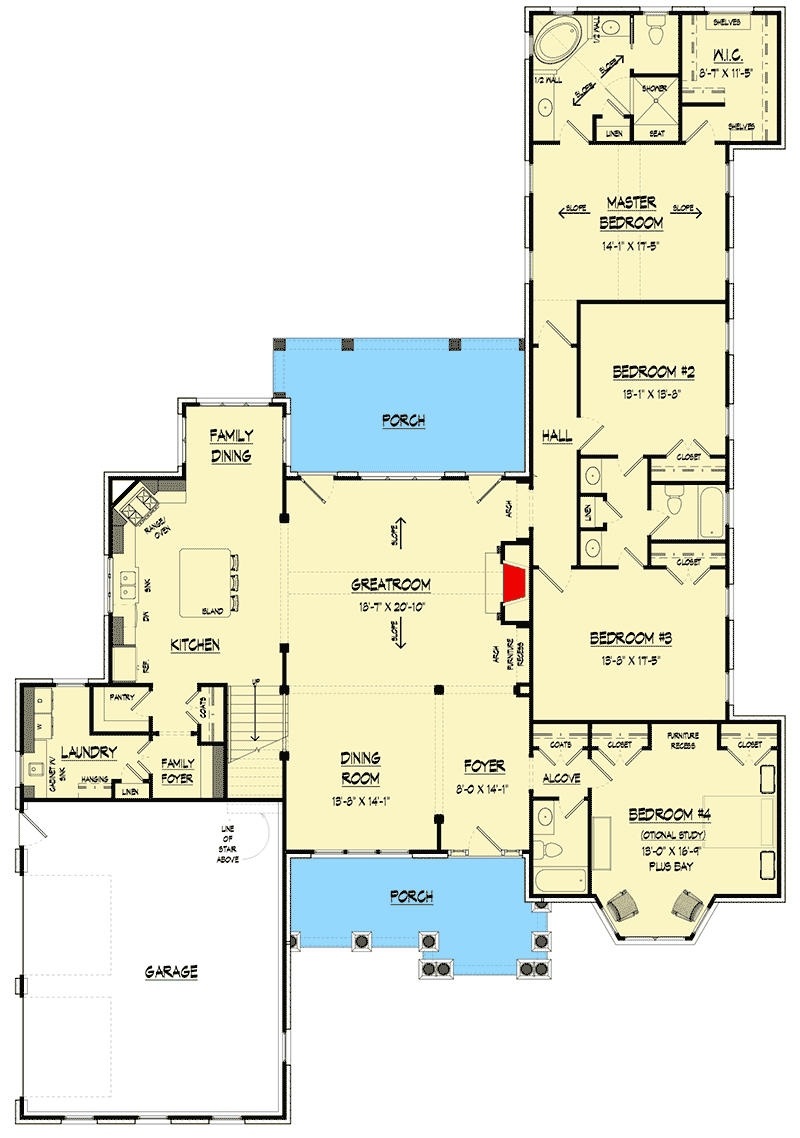

Main Level
floor plan image Main Level

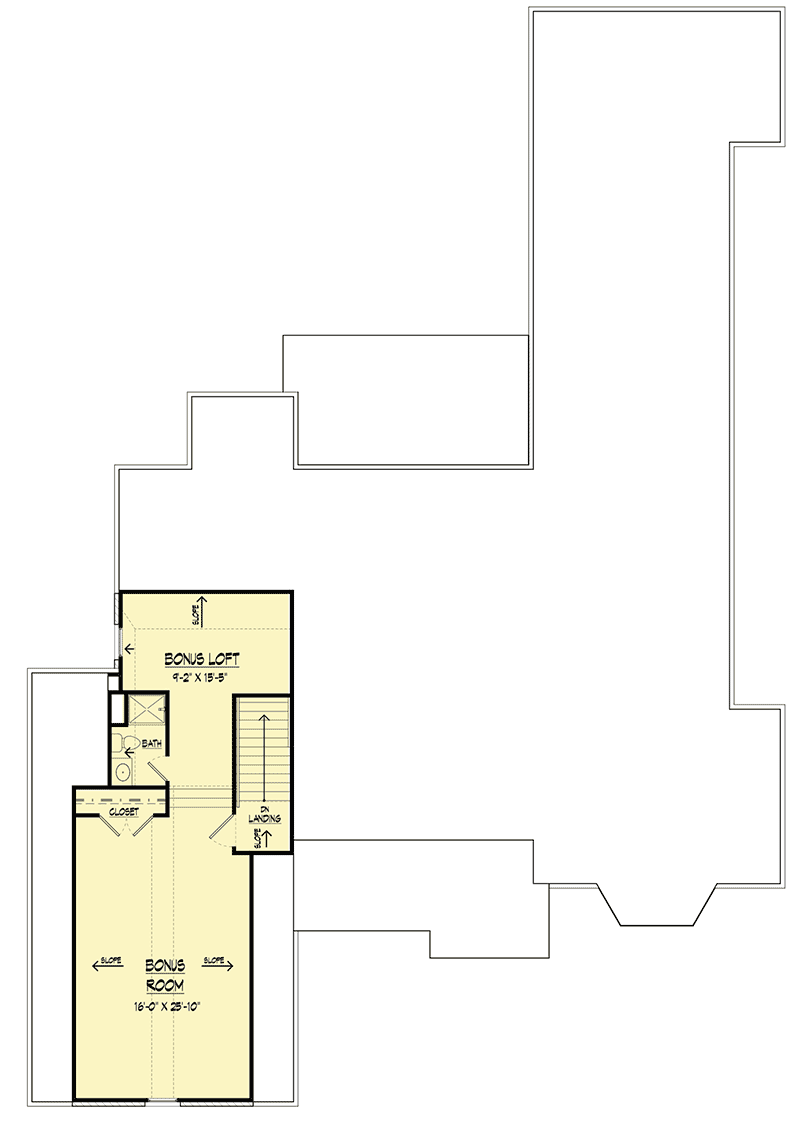

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Beautiful and elegant interior columns keep the sight lines open in this Southern ranch house plan.
  • The enormous vaulted great room is warmed by a big fireplace that can be seen from the kitchen island.
  • Windows on three sides of the breakfast nook brighten the whole area.
  • Bedrooms are grouped on the right side of the home with bedroom 4 in front extended by a bayed sitting area.
  • Bedrooms 3 and 4 share a connected bathroom with two sinks to keep things moving in the mornings.
  • The gorgeous master suite has vaulted ceilings in both the bedroom and the spacious bathroom.
  • Built-in shelves keep the master walk-in closet organized.
What's Included
  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,971 sq. ft.

1st Floor

2,971 sq. ft.

Bonus

750 sq. ft.

Porch, Front

207 sq. ft.

Porch, Rear

264 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 6"

Depth

100' 10"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

686 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor
