Plan 9009PD
Elegant Traditional Home Plan - 2841 Sq Ft
Heated S.F.
2,841
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 9009PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 9009PD

1-800-854-7852

1-262-521-4596

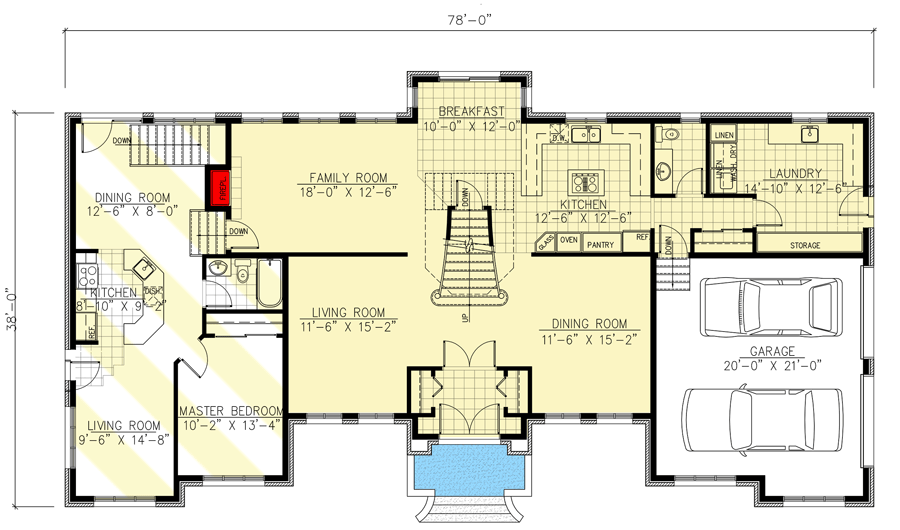

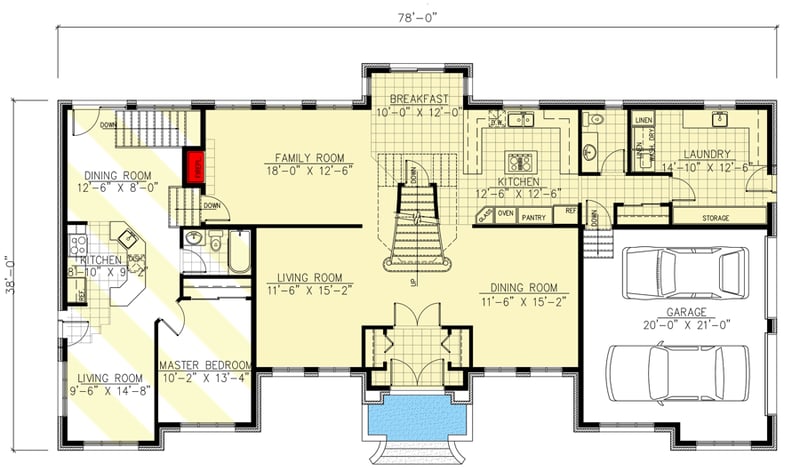

Main Level
floor plan image Main Level

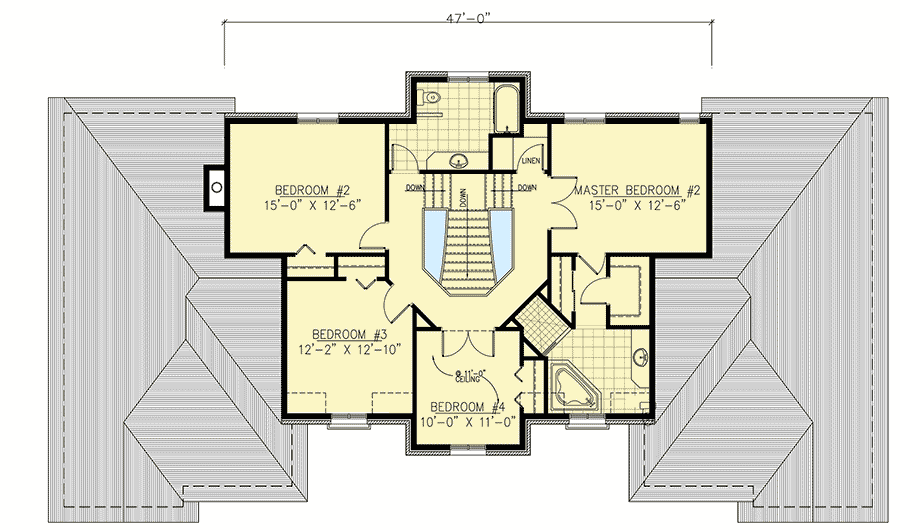

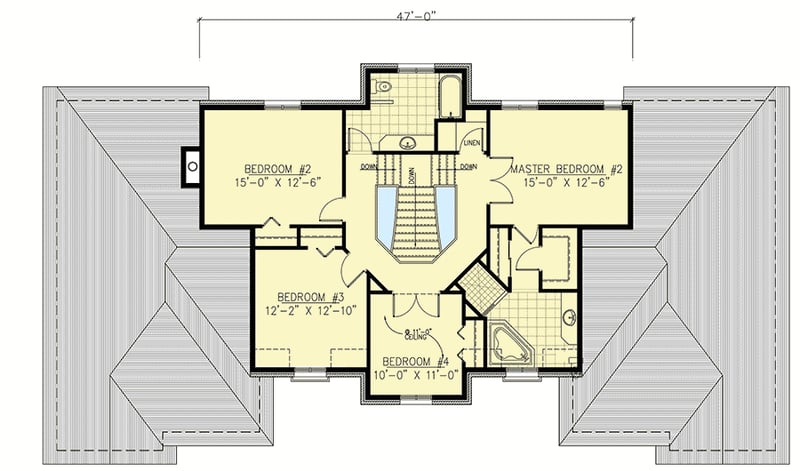

2nd Floor
floor plan image 2nd Floor
Plan Details

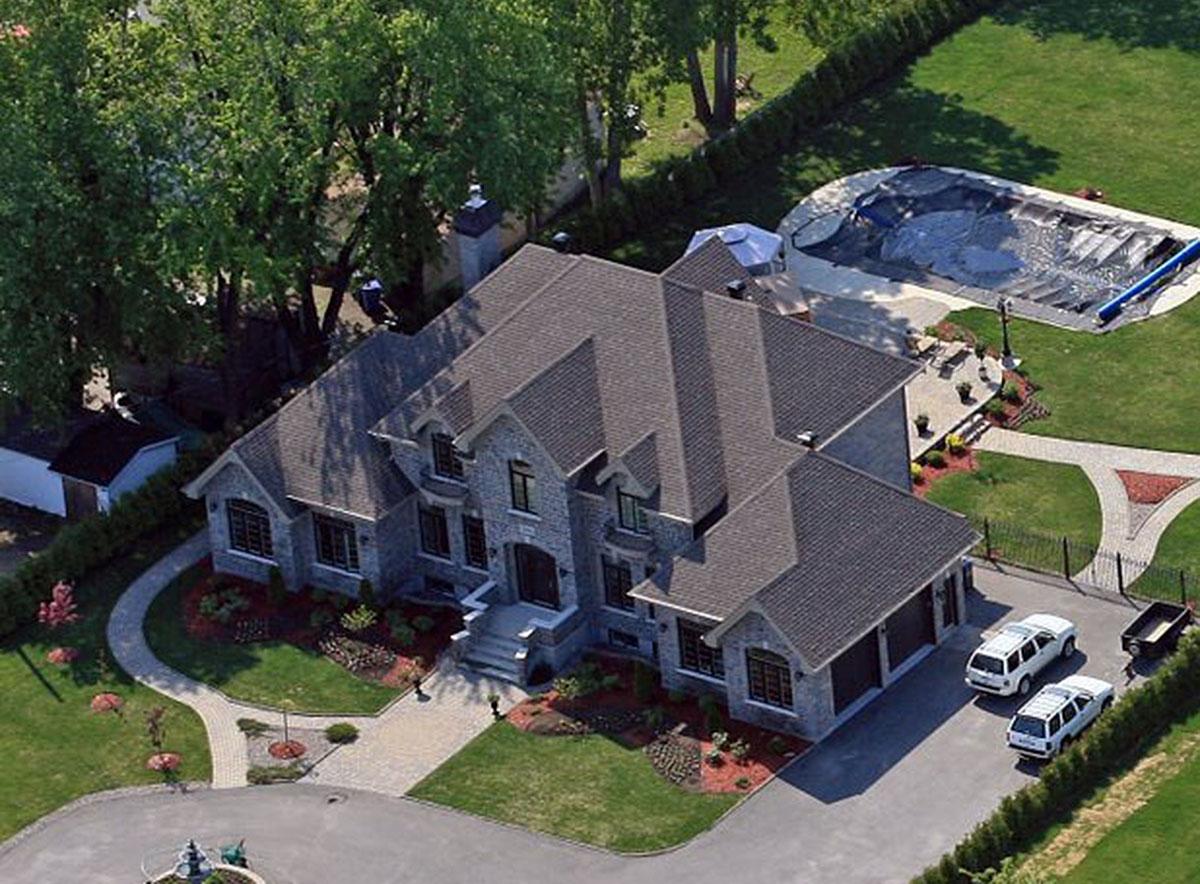

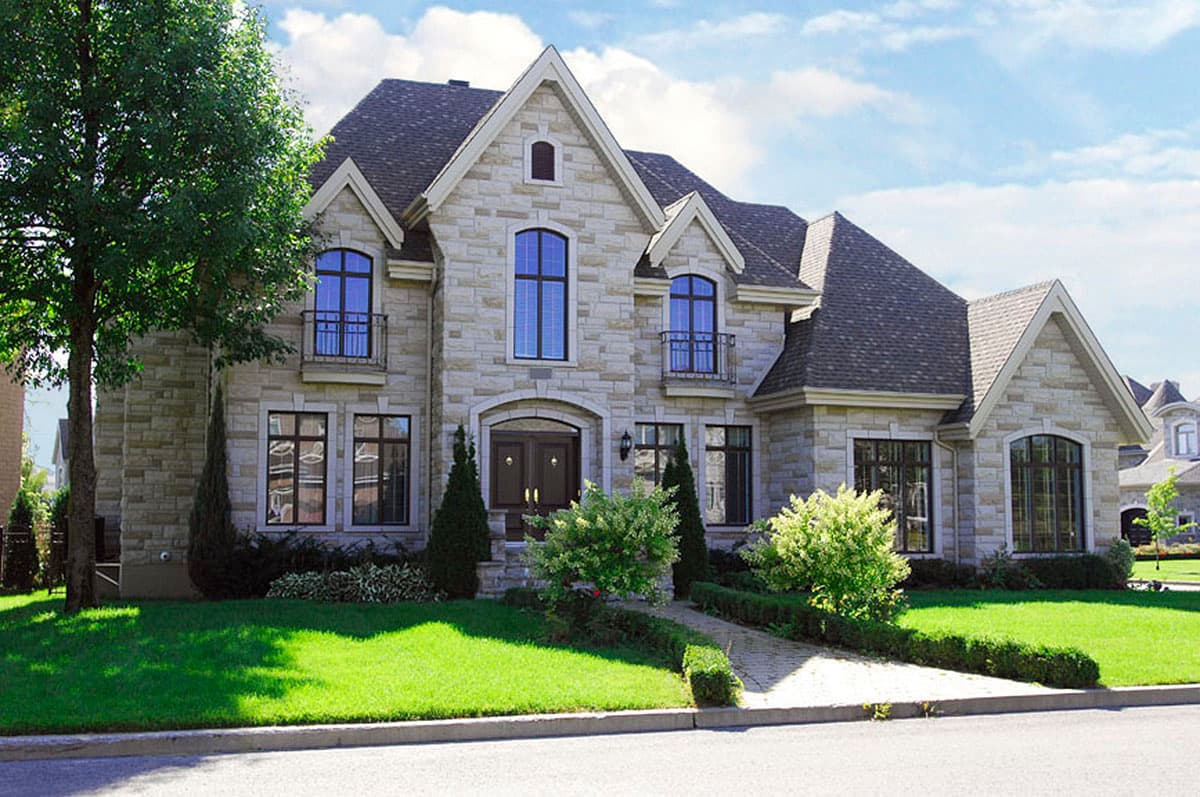

  • Steep hip roofs and a stone exterior add European elegance to this large, comfortable home with a 708 square foot in-law suite attached.
  • In-laws can live comfortably with their own kitchen, dining and living space and still be close to the grandkids.
  • A magnificent staircase catches your eye in the main home as you enter through double front doors.
  • The formal living and dining rooms are open to each other and the foyer, creating a feeling of spaciousness.
  • You will have plenty of room to move around in the extra-large laundry room off the garage.
  • On the second floor, three bedrooms share a hall bath while the master suite enjoys its own private bath.
  • An open rail allows you to overlook the staircase and foyer below.
What's Included
Please note this plan is designed to the National Building Code of Canada.

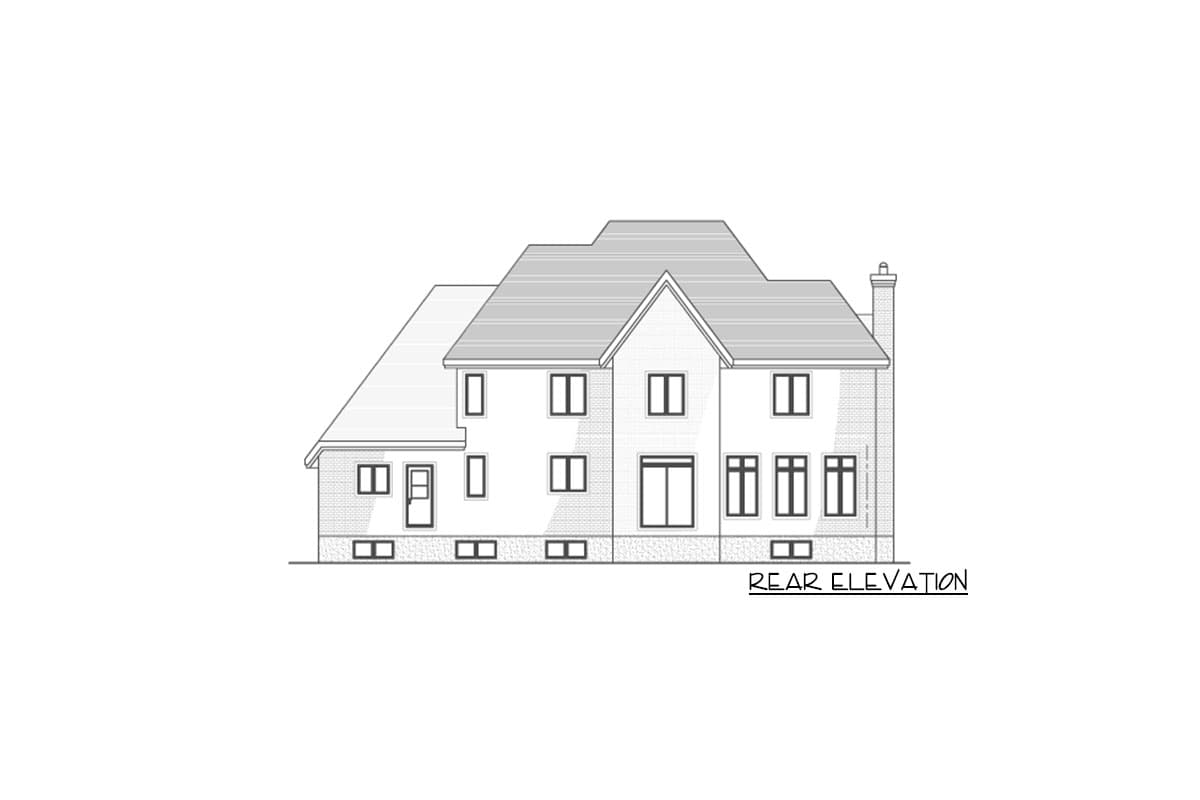

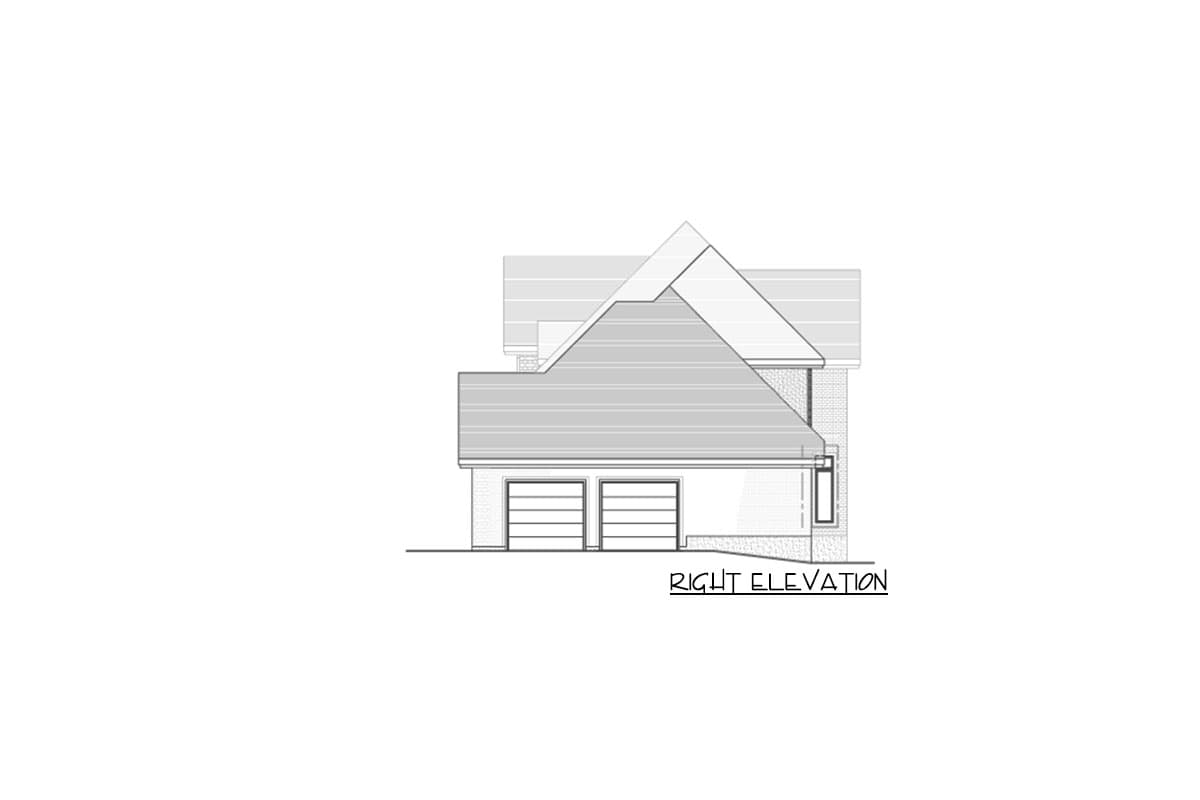

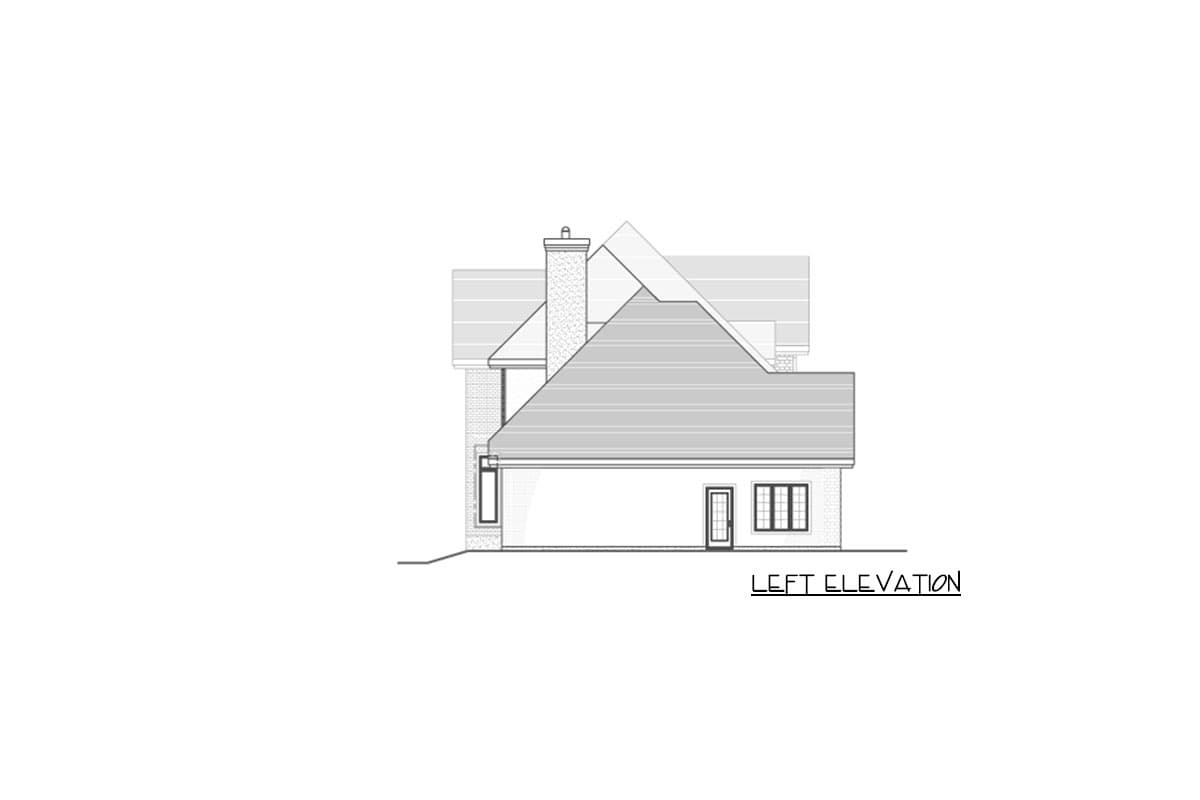

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,841 sq. ft.

1st Floor

1,523 sq. ft.

2nd Floor

1,318 sq. ft.

Basement Unfinished

1,523 sq. ft.

Bonus

708 sq. ft.

Porch, Front

47 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 6"

Depth

42' 0"

Max Ridge Height

36' 6"

Garage

Type

Attached

Area

420 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 2"

Second Floor

8' 2"

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

French Country

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor

Mudroom

Plan Collections

Canadian House Plans

Closed Floor Plans

Luxury

Metric

Multi-Generational
