Plan 860047MCD

Exclusive

Enchanting 4-Bed Home with Bonus Room above Garage - 3243 Sq Ft
Heated S.F.
3,243
Beds
4
Baths
4
Stories
1-2
Cars
3
Floor Plan

Plan 860047MCD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 860047MCD

1-800-854-7852

1-262-521-4596

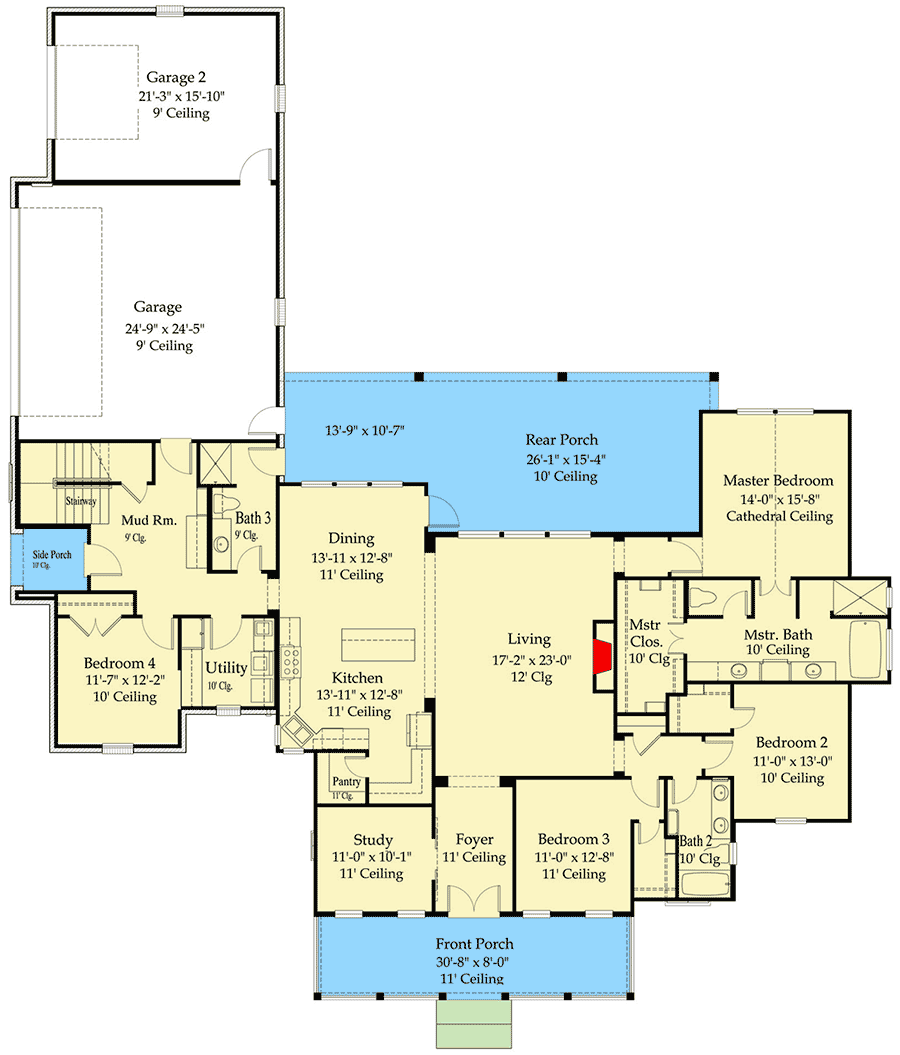

Main Level
floor plan image Main Level

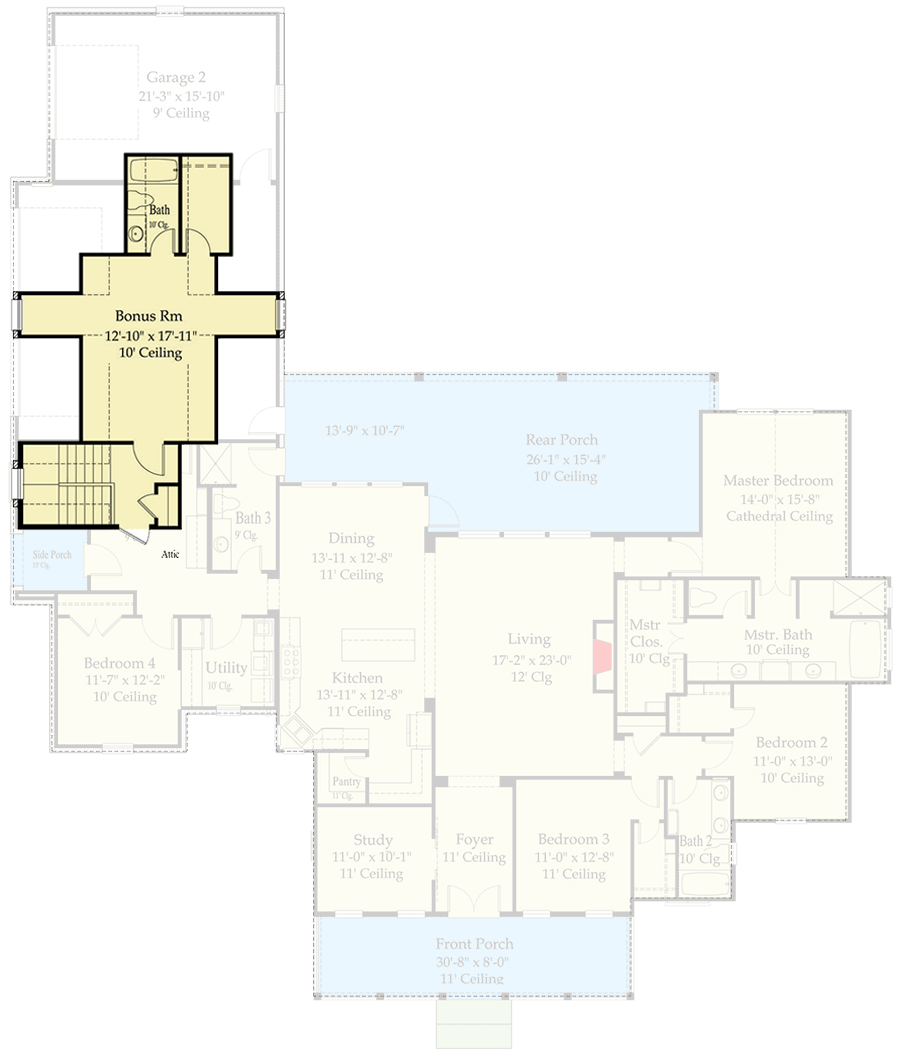

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The elongated front porch defines this enchanting, 4-bedroom home, while welcoming guests inside. Three dormers centered over the porch add to the curb appeal, as well as boost access to natural light.
  • The heart of the home combines the living room and eat-in kitchen, and extends outdoors onto a spacious rear porch. A large island in the kitchen increases prep space, and the close proximity to the pantry provides quick and easy access when needed.
  • Barn doors off the foyer reveal a quiet study to read or get some work done, while the spacious utility room can accommodate even the most active of families.
  • The master bedroom, with its own foyer, boasts a dramatic, cathedral ceiling, along with a lavish en suite with a walk-in closet. Three other family bedrooms are located on this level with enough distance between them to provide additional privacy.
  • Three garage bays attach to the rear of the home, and the bonus room above features a full bath and is included in the total square footage figures.
What's Included
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,243 sq. ft.

1st Floor

2,700 sq. ft.

2nd Floor

543 sq. ft.

Porch, Combined

848 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

84' 6"

Depth

95' 4"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

1032 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Acadian
