Plan 640005SRA
Energy Efficient Contemporary Mountain Home Plan
Heated S.F.
4,551
Beds
3 - 4
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 640005SRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 640005SRA

1-800-854-7852

1-262-521-4596

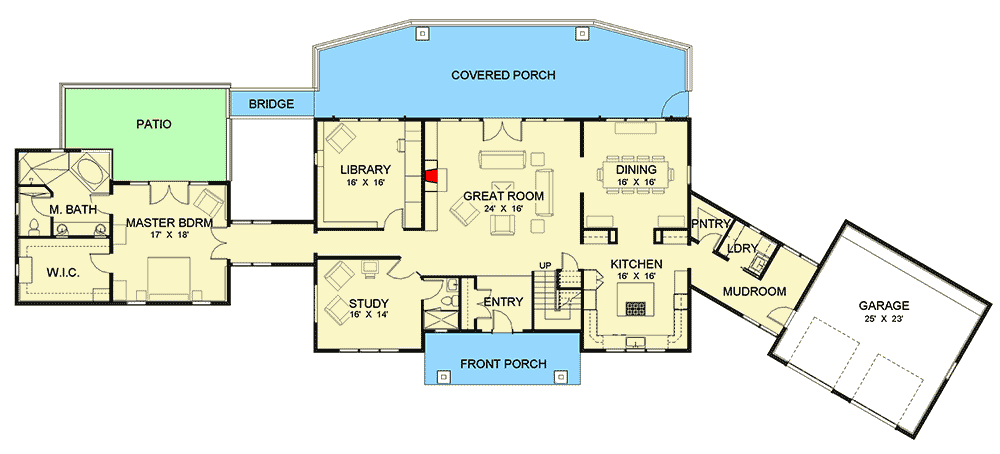

Main Level
floor plan image Main Level

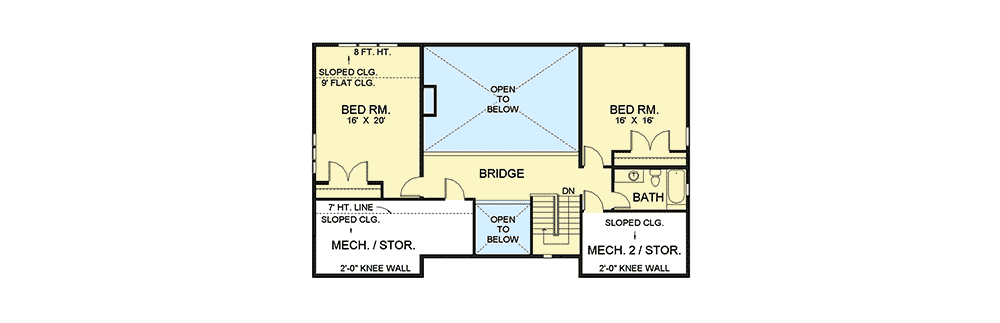

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This contemporary mountain home plan features vaulted ceilings in the soaring great room, expansive views and generous indoor/outdoor living spaces.
  • This home’s open floor plan has fantastic natural daylighting in every room and spaces that flow functionally one into the next.
  • The master bedroom suite is accessed by a bridge and features a private zen garden and soaking tub with a frameless glass corner window.
  • An energy efficient envelope, ground-source heat pump, passive solar design, 10kw PV system, an ERV (Energy Recovery Ventilator), and "tuned" windows combine to create a HERS 22 home.
What's Included
This plan set has 28 pages and includes the following:
  • Cover sheet with cgeneral notes
  • Photos
  • Detailed floor plans

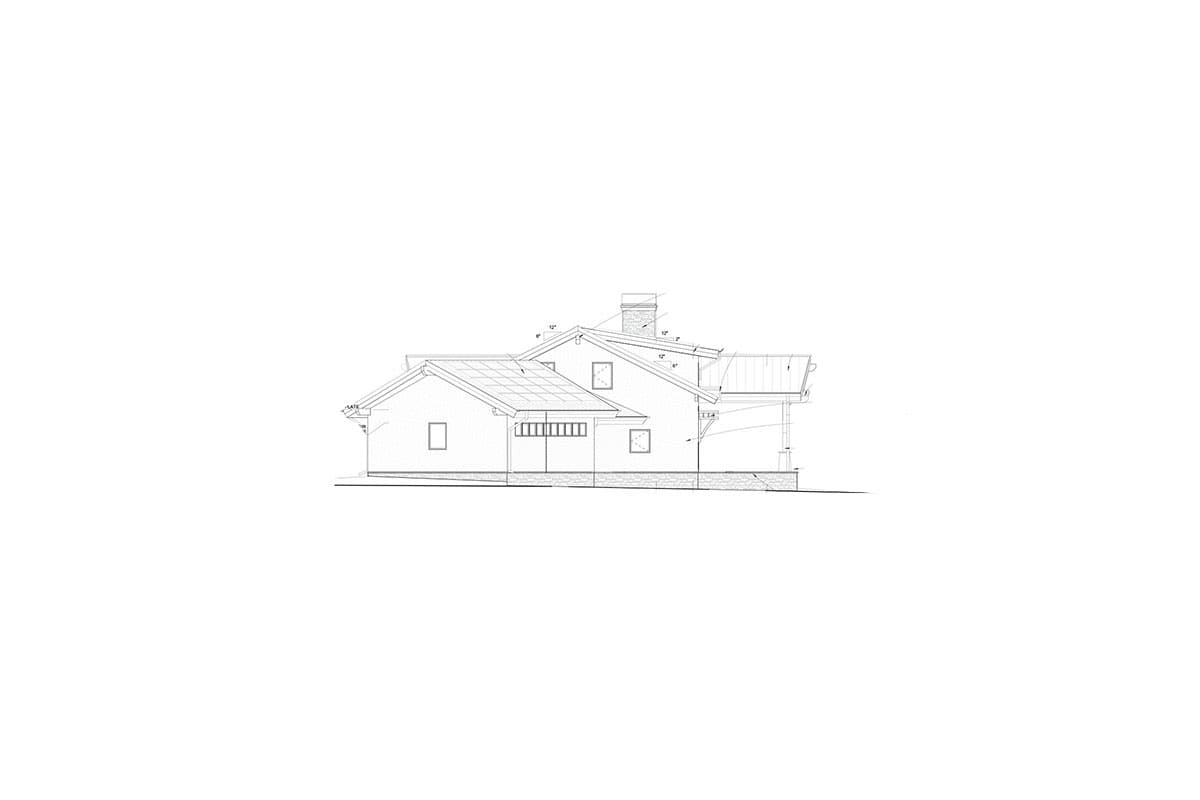

  • Exterior  elevations
  • Sections
  • Details
  • Interior elevations
  • Electrical plans
  • Foundation and first and second floor framing plans
  • Roof framing plan
  • Structural details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
