Plan 32504WP

English Cottage with Expansion

Heated S.F.

3,549

Beds

4

Baths

4.5

Stories

2

Cars

2

Floor Plan

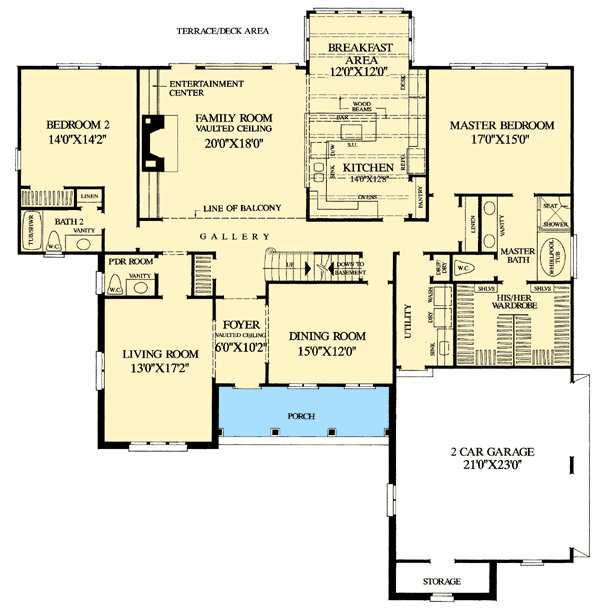

Main Level

floor plan image Main Level

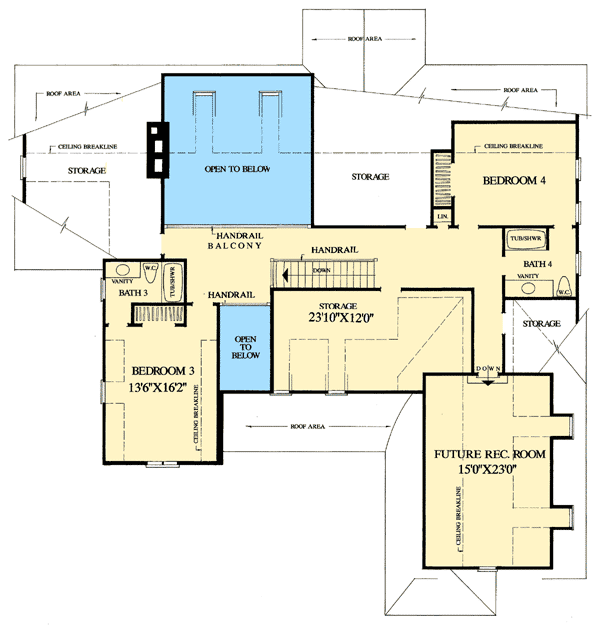

2nd Floor

floor plan image 2nd Floor

Plan Details

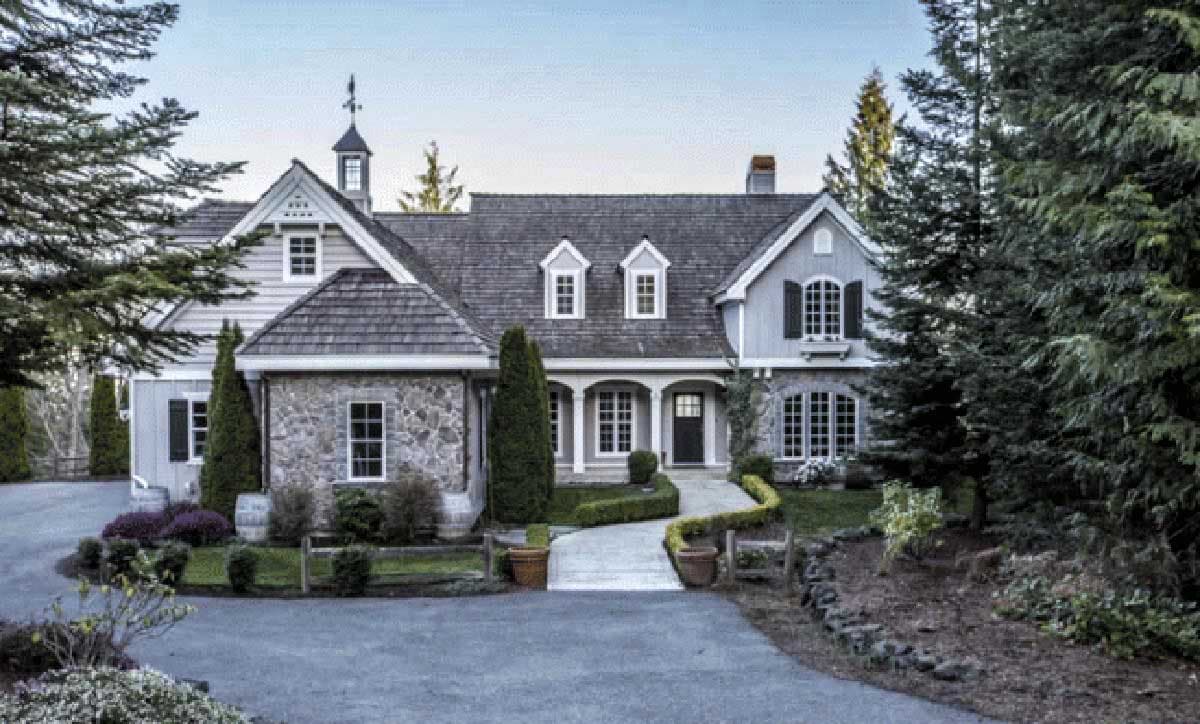

This split bedroom English cottage gives you master down convenience and room for expansion with a future rec room over the garage.

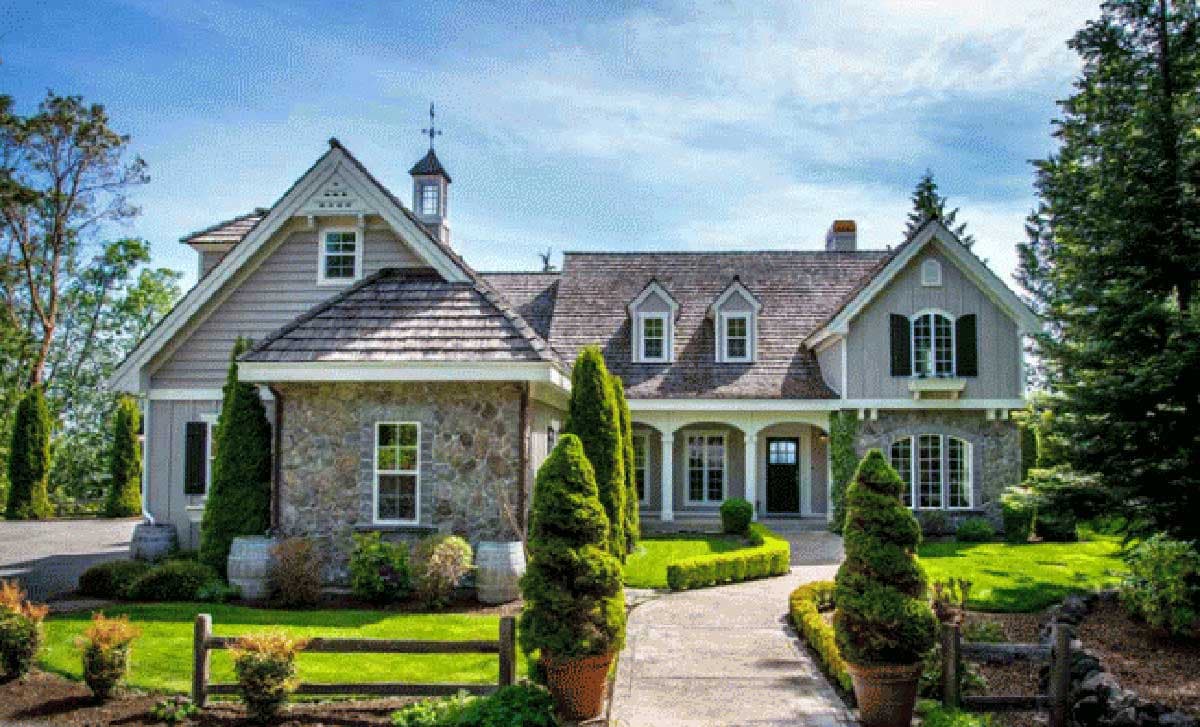

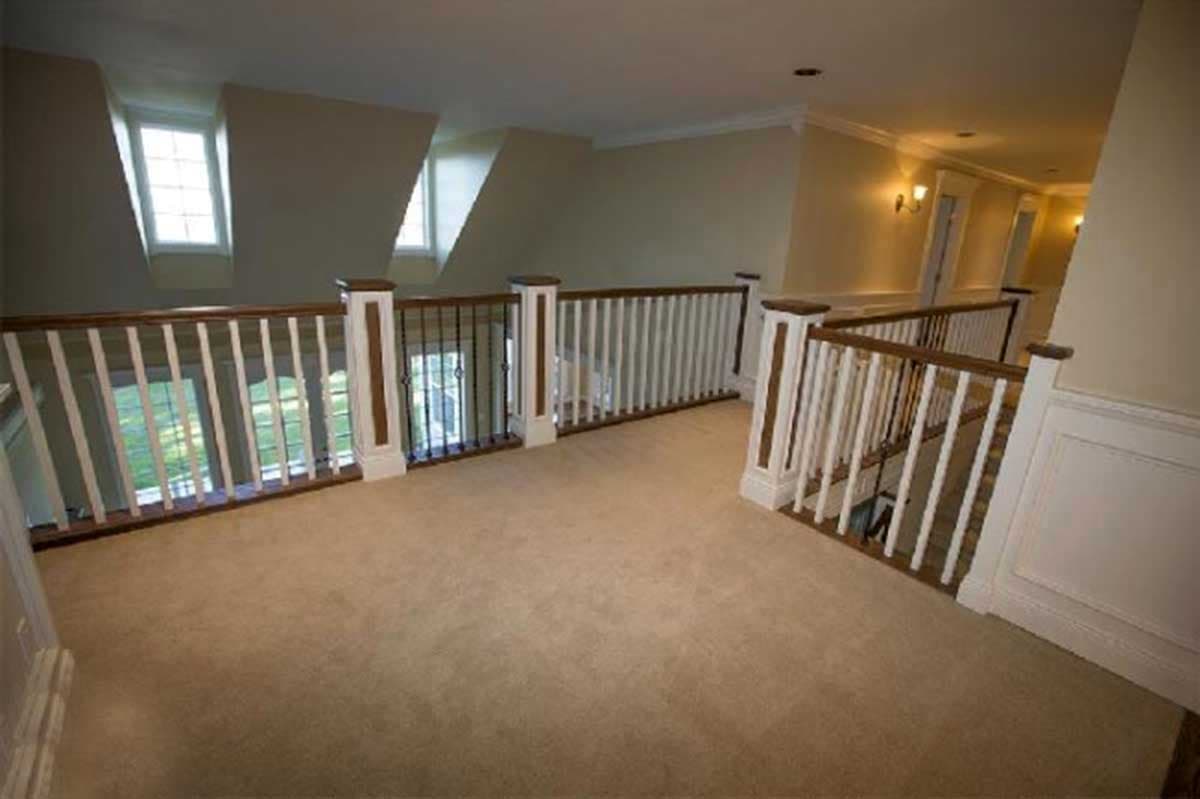

Come in off the front porch to the foyer with an overlook above and veiws through to the family room

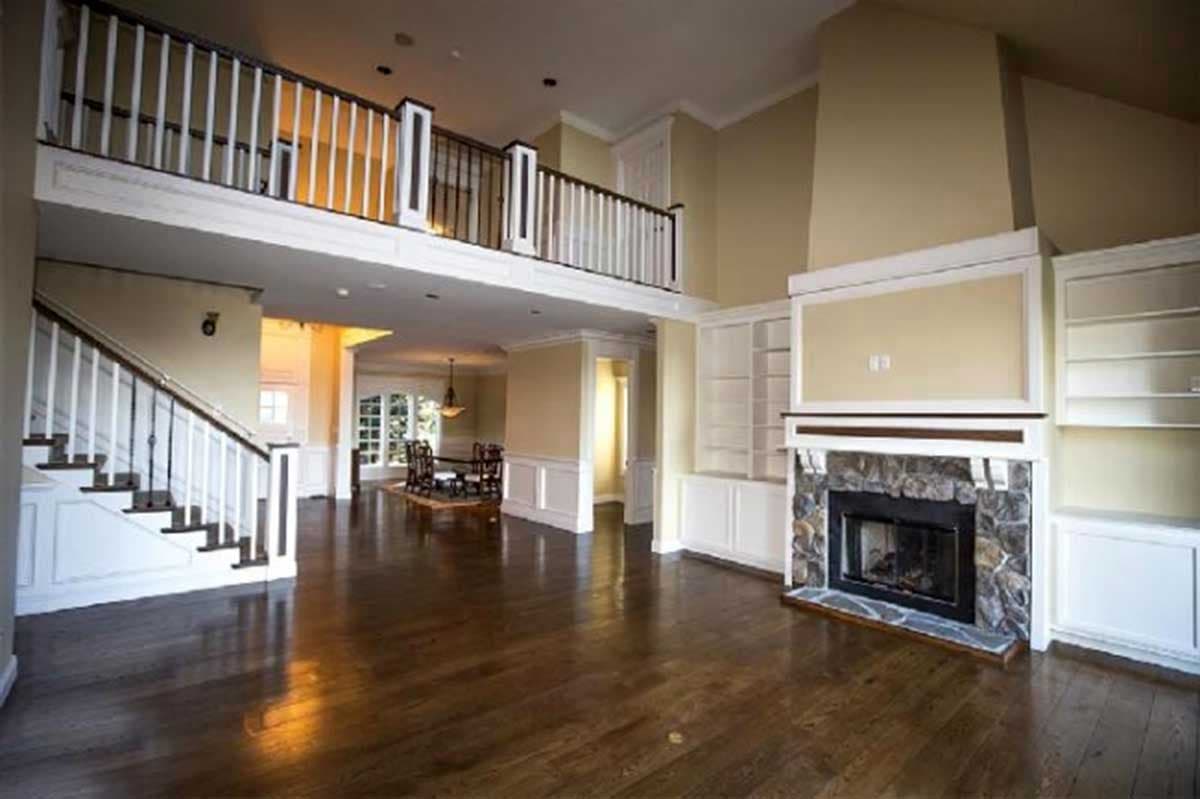

The family room room can be seen from above and has a fireplace flanked by attractive built-ins. It also has direct access to the terrace or deck area outside and is open to the kitchen.

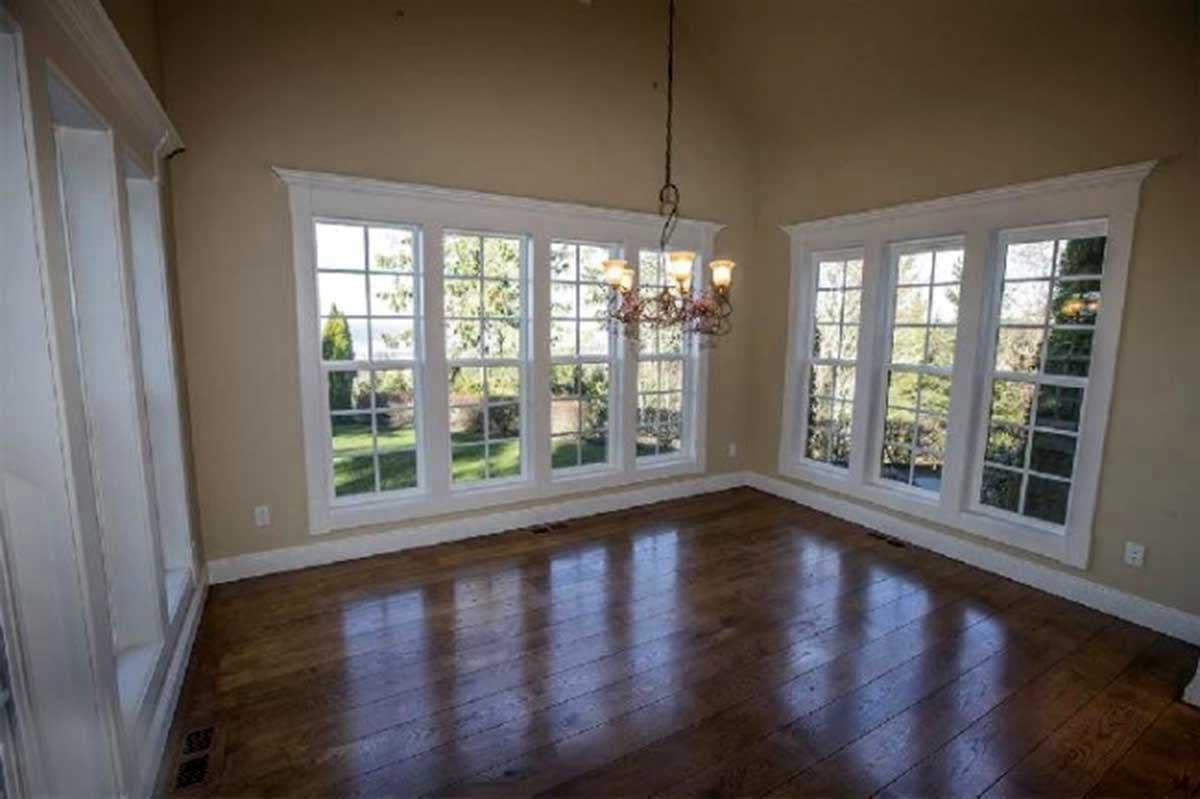

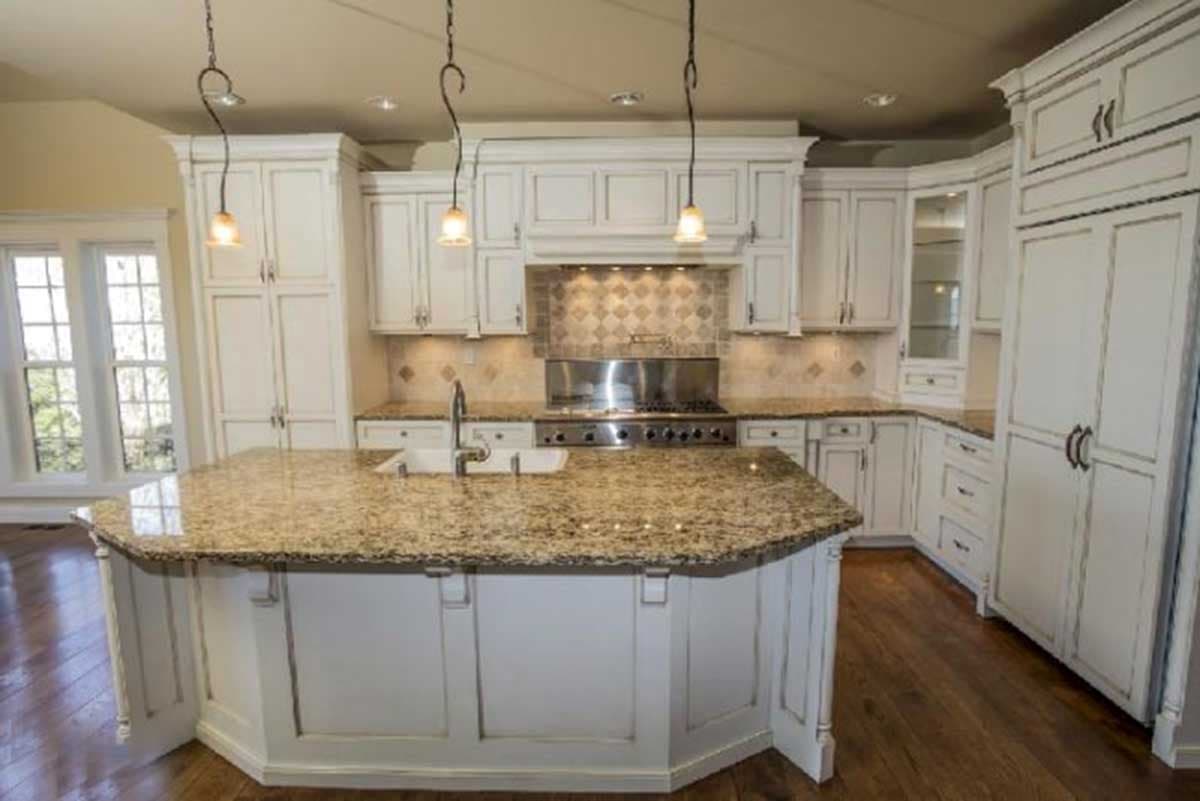

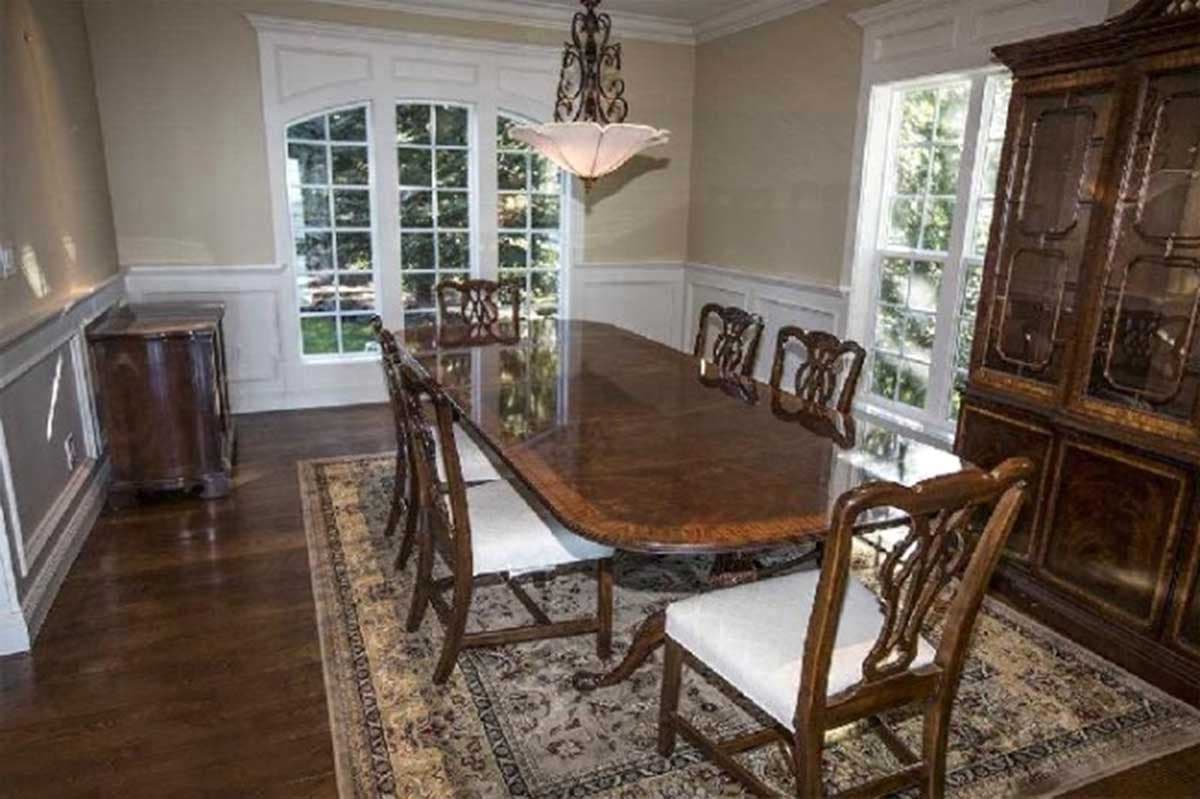

The kitchen is roomy and has attractive wood beams on the ceiling and views through the windows in the breakfast area. Serving guests in the formal dining area is also a breeze.
Upstairs, two bedrooms each have their own bath.

What's Included

Front elevation rendering
Foundation
Dimensioned floor plans
Electrical plans
Cross section through house

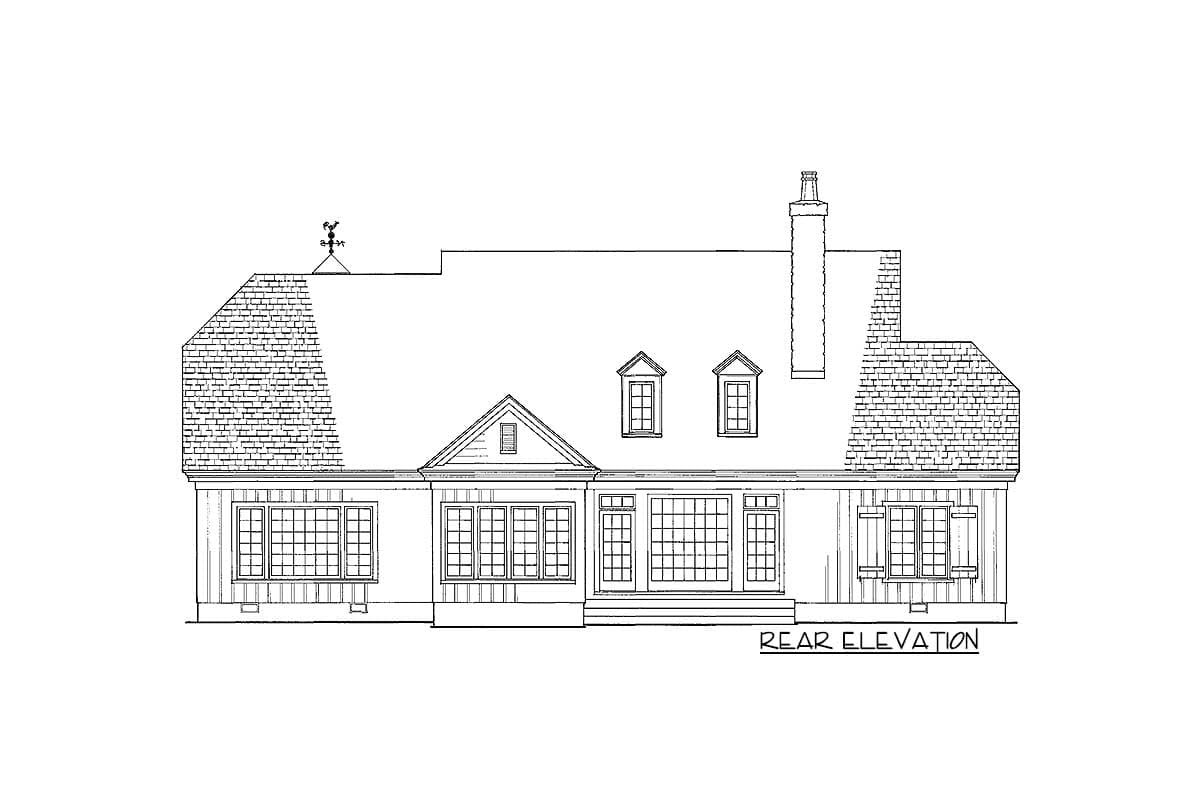

All exterior elevations
Selected interior elevations
Door and window sizes
Fireplace, stair, molding and cabinet details
Roof plan
Exterior details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,549 sq. ft.

1st Floor

2,568 sq. ft.

2nd Floor

981 sq. ft.

Basement Unfinished

1,255 sq. ft.

Bonus

385 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 8"

Depth

71' 0"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

483 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Special Features

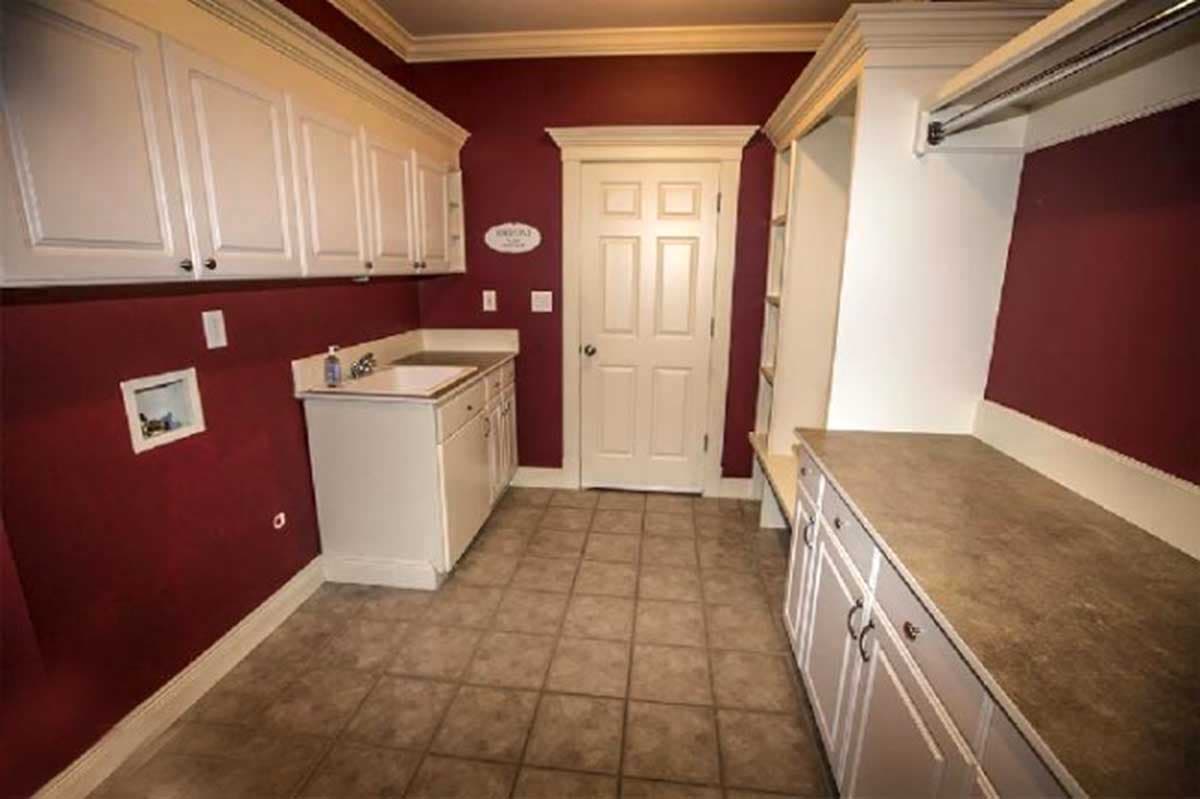

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
