Plan 69386AM
English Countryside Style Duplex - 3 Bedroom Units Each Over 1500 Sq Ft
Heated S.F.
3,152
Units
2
Width
Depth
Floor Plan

Plan 69386AM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 69386AM

1-800-854-7852

1-262-521-4596

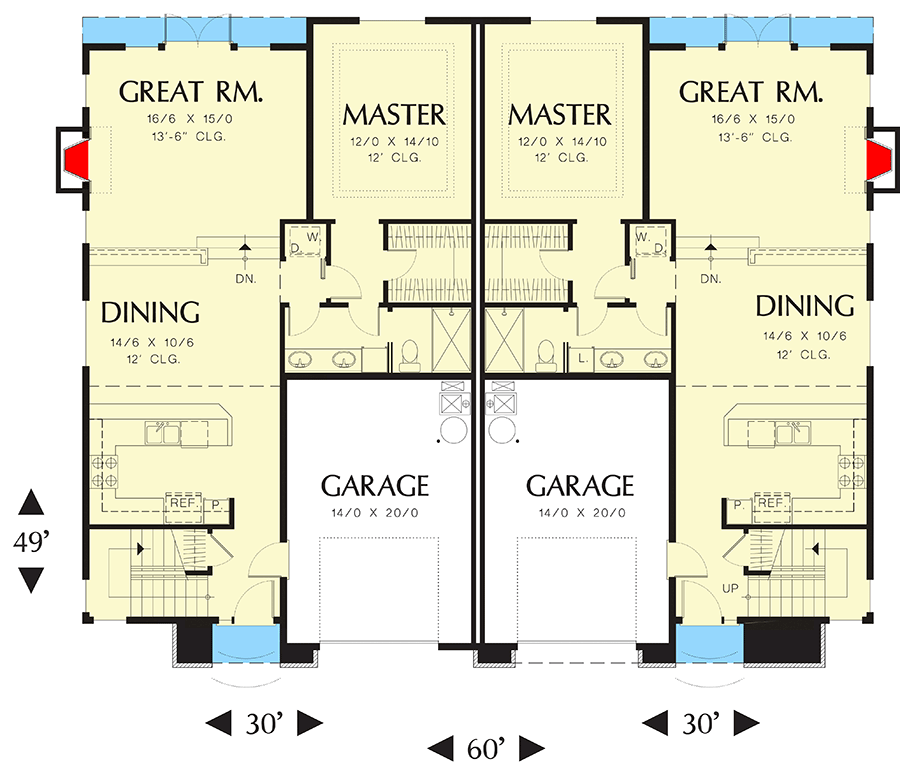

Main Level
floor plan image Main Level

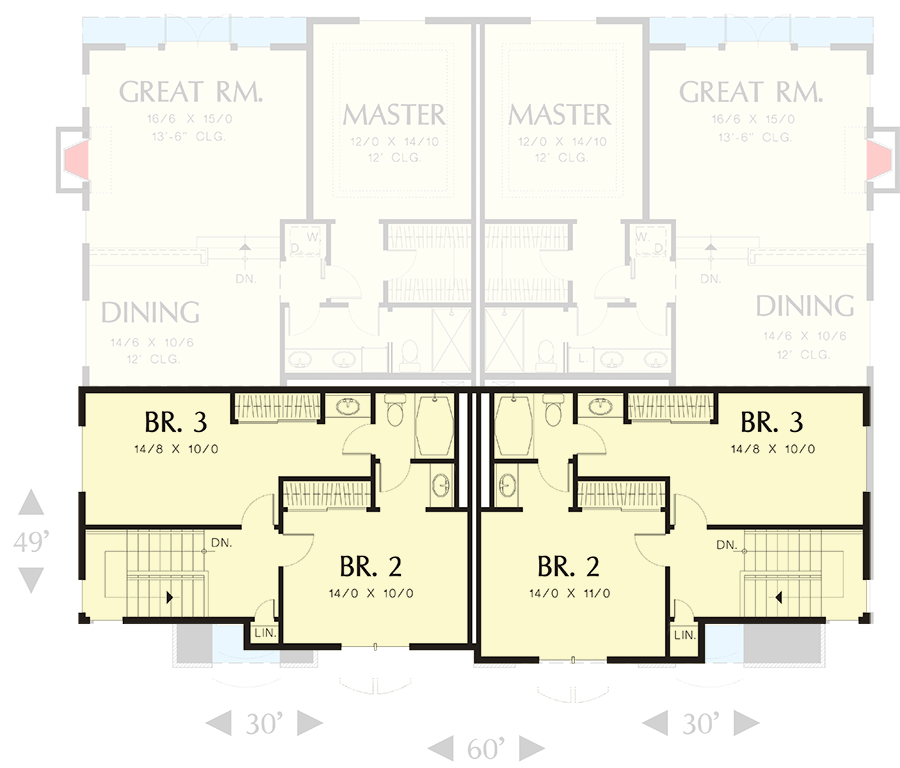

2nd Floor
floor plan image 2nd Floor
Plan Details

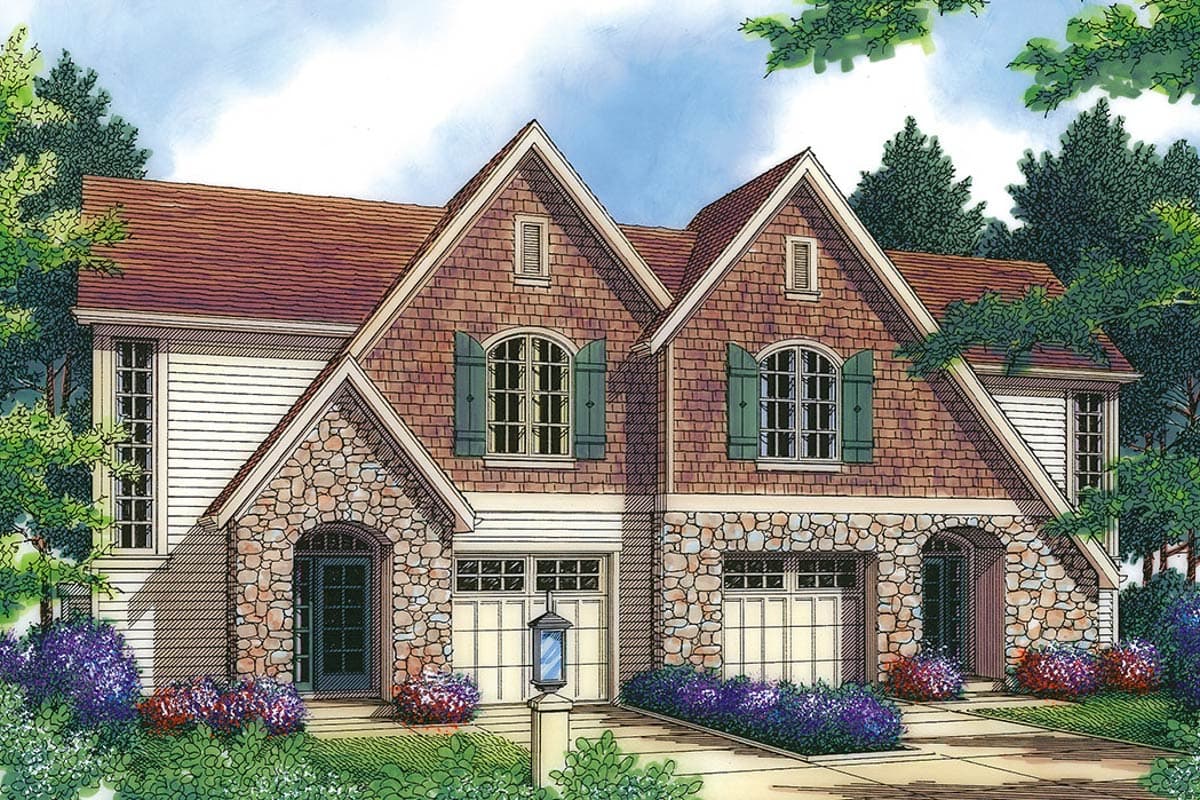

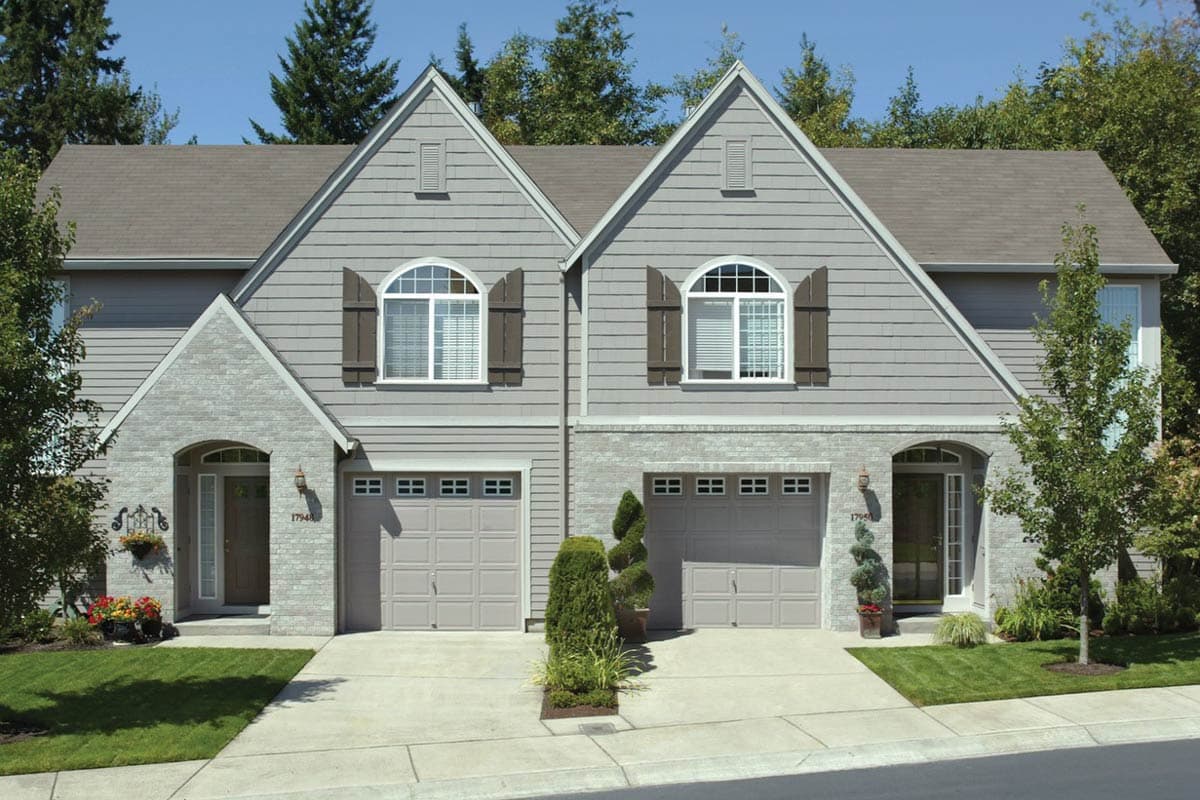

  • Twin peaks, filled with the flavor of the English countryside, contain nearly identical duplex units. Cedar shingles and coarse stone enhance the effect. Each side has a one-car garage to the front and opens at an arched, recessed entry. Immediately to one side of the entry is a stairway to the upper level.
  • A U-shaped kitchen sits next to the dining room (with twelve-foot ceiling) and has a pantry and snack counter. The great room is sunken just a few steps and features a fireplace and double doors opening to the rear yard.
  • A first-floor master suite is a convenient trend. This one has a walk-in closet, twelve-foot tray ceiling and bath with dual sinks. Space for a stackable washer/dryer is nearby. The upper level features two additional bedrooms with private lavatory areas in a shared bath.
  • Related Plan: Get a version with all 3 bedrooms upstairs with duplex house plan 69387AM (1,953 square foot units).
Unit A
1,567Sq. Ft.
1073 Sq. Ft.
1st Floor
494 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Vehicle
Attached
298 Sq. Ft.
30'width
49'depth
29'height
Unit B
1,585Sq. Ft.
1073 Sq. Ft.
1st Floor
512 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Vehicle
Attached
298 Sq. Ft.
30'width
49'depth
29'height
What's Included

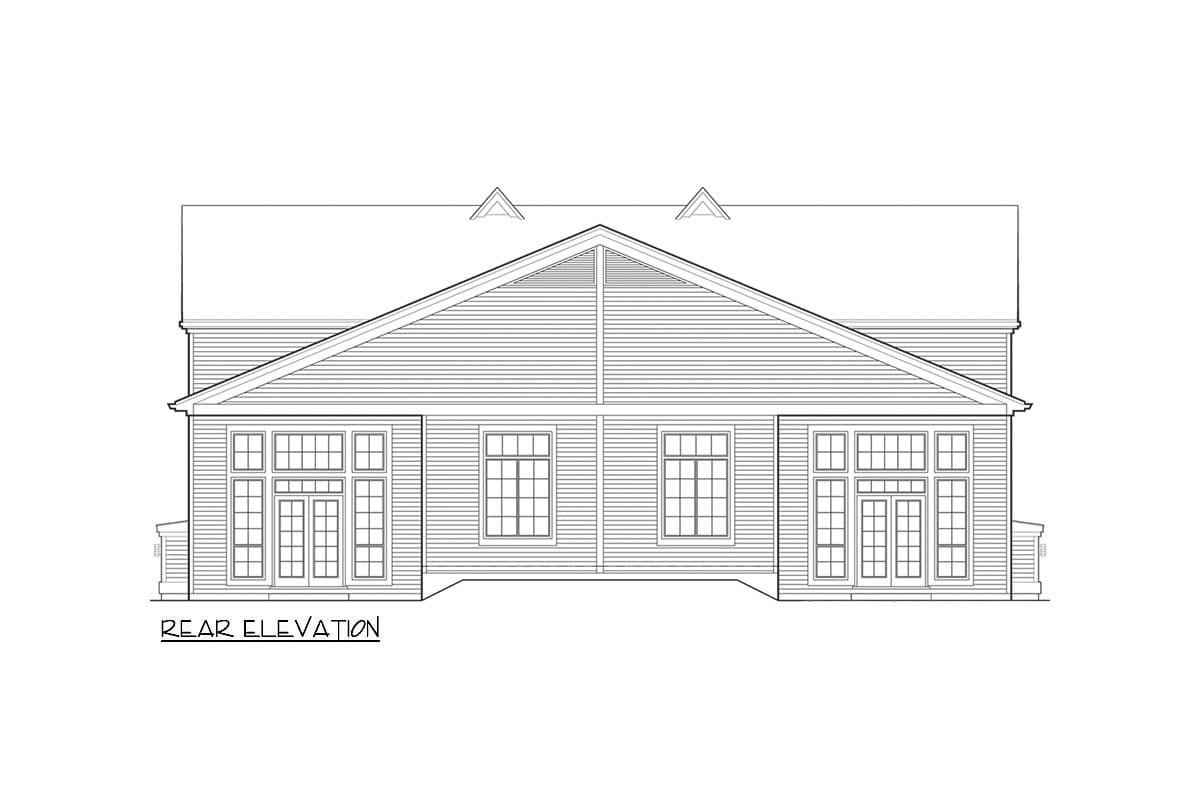

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,152 sq. ft.

1st Floor

2,146 sq. ft.

2nd Floor

1,322 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

49' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

European

French Country

Tudor

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,152 sq. ft.

1st Floor

2,146 sq. ft.

2nd Floor

1,322 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

49' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

European

French Country

Tudor

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
