Plan 59894ND

Entry with Columns and High Ceiling

Heated S.F.

7,045

Beds

3 - 4

Baths

5.5

Stories

2

Cars

3

Floor Plan

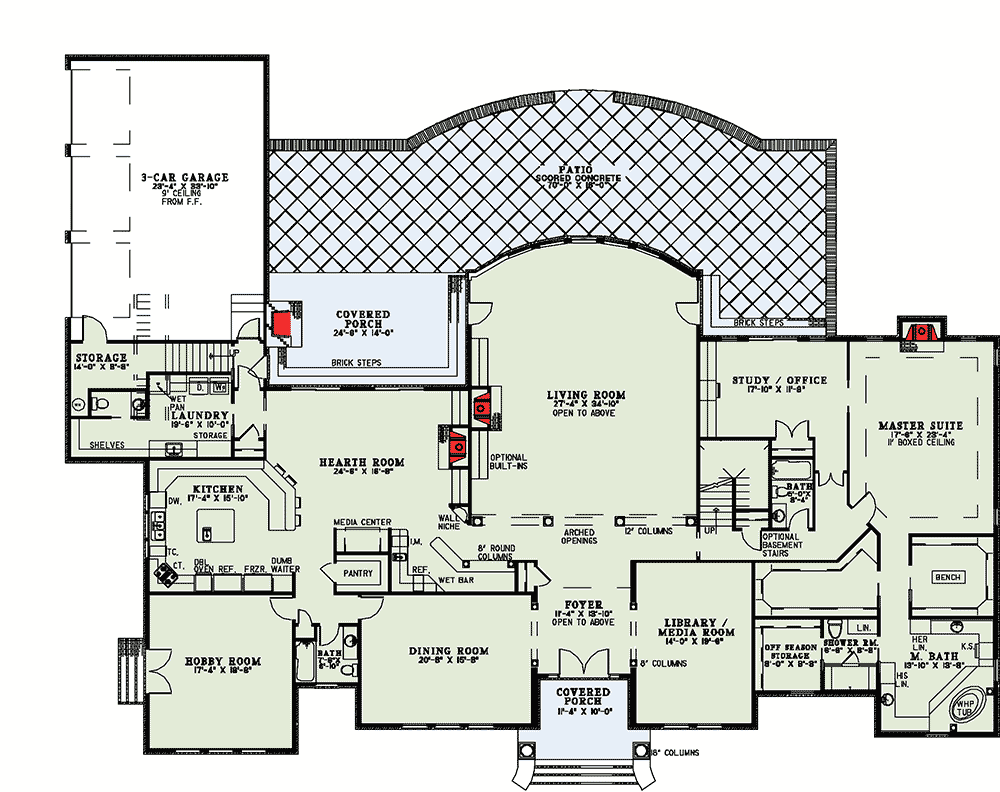

Main Level

floor plan image Main Level

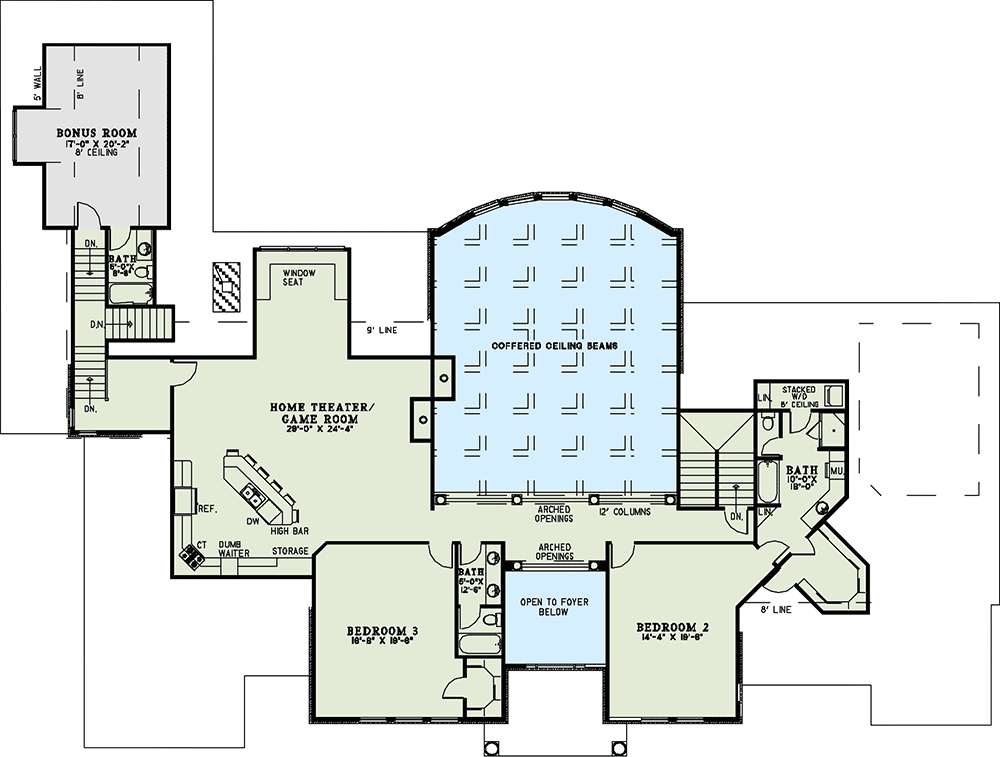

2nd Floor

floor plan image 2nd Floor

Plan Details

It is easy to entertain around the fireplace in the living room. After the guests leave, enjoy the relaxing atmosphere in the library/media room.
The huge patio adjoins with the covered porch.
The study/office will also give dad his own space indoors.
This home plan offers plenty of space with private bedrooms, a hobby room, and a home theater/game room with a built-in kitchen area for snacks.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

7,045 sq. ft.

1st Floor

4,920 sq. ft.

2nd Floor

2,125 sq. ft.

Bonus

372 sq. ft.

Porch, Front

114 sq. ft.

Porch, Rear

361 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

112' 6"

Depth

85' 0"

Max Ridge Height

41' 0"

Garage

Type

Attached

Area

925 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Master Suite - 1st Floor

Multiple Stairs

Plan Collections
