European Cottage Plan with Living Areas Up Front - 1569 Sq Ft
Heated S.F.
1,569
Beds
2 - 3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 69121AM

Main Level
slide image 0
Basement Option
slide image 1
Lower Level
slide image 2

Plan 69121AM

1-800-854-7852

1-262-521-4596

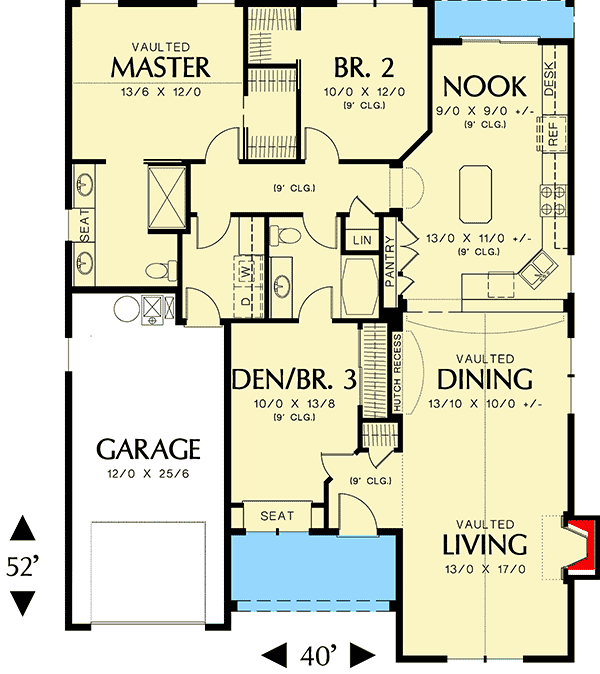

Main Level
floor plan image Main Level
Basement Option
floor plan image Basement Option
Lower Level
floor plan image Lower Level
Plan Details
  • Wonderfully symmetric, this plan is smaller in size but huge in its appeal. Board-and-batten siding with stone accents at the foundation join an arched and columned entry with dormer window for a superb visual effect.
  • The floor plan makes the most of a narrow footprint, putting living areas to the front and bedrooms to the back.
  • Both the living and dining rooms are vaulted. The living room features a warming fireplace; the dining room has a recessed niche to hold a hutch and is separated from the kitchen by a 42' arched counter.
  • Extras in the kitchen include a built-in desk, an island and a large pantry.
  • The den (or make it a family bedroom) has a window seat with flanking built-in shelves overlooking the front porch.
  • A walk-through hall bath serves Bedroom 2, which has a walk-in closet.
  • The master suite contains a vaulted salon and a bath with window seat and dual lavatories.
  • A service alcove opening to the garage has space for a washer and dryer.
  • Related Plan: Get an alternate version with house plan 69120AM.
What's Included

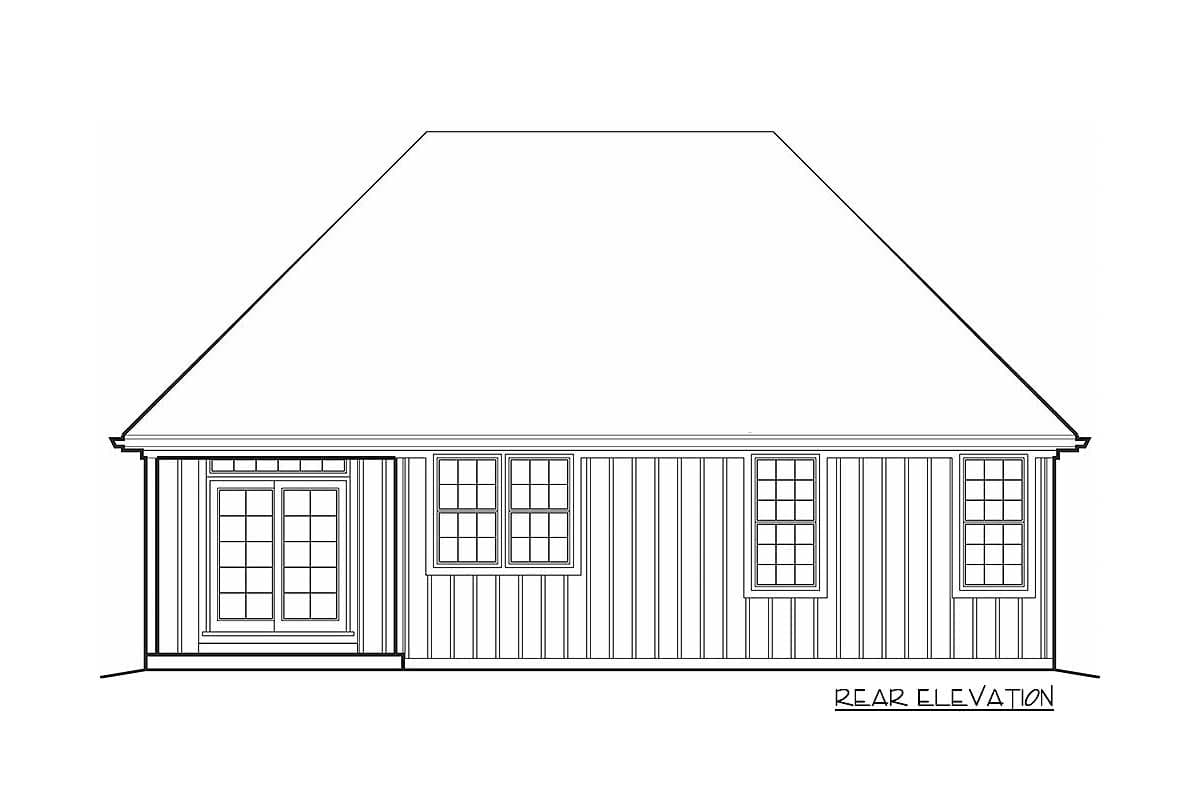

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us
