Plan 48217FM
European Elegance
Heated S.F.
2,941
Beds
3 - 4
Baths
3.5+
Stories
1
Cars
3
Floor Plan

Plan 48217FM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 48217FM

1-800-854-7852

1-262-521-4596

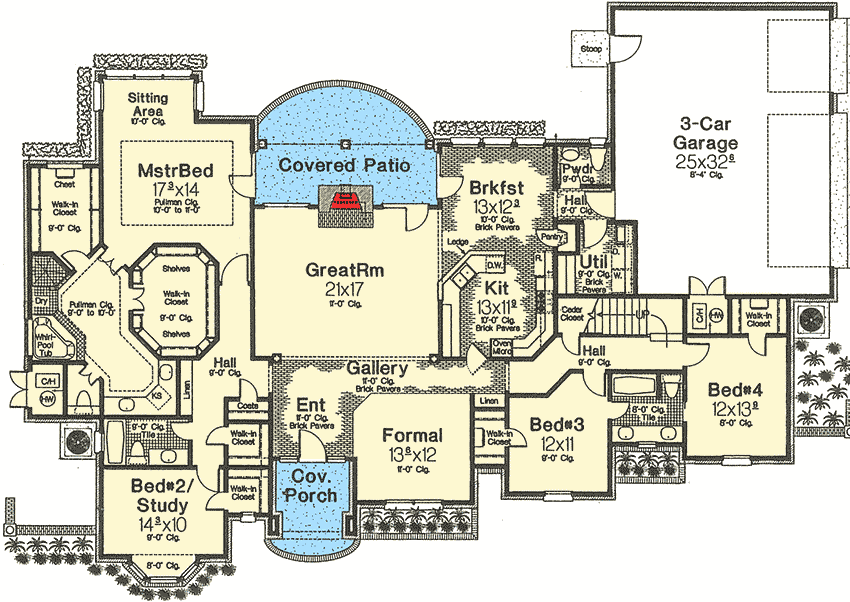

Main Level
floor plan image Main Level

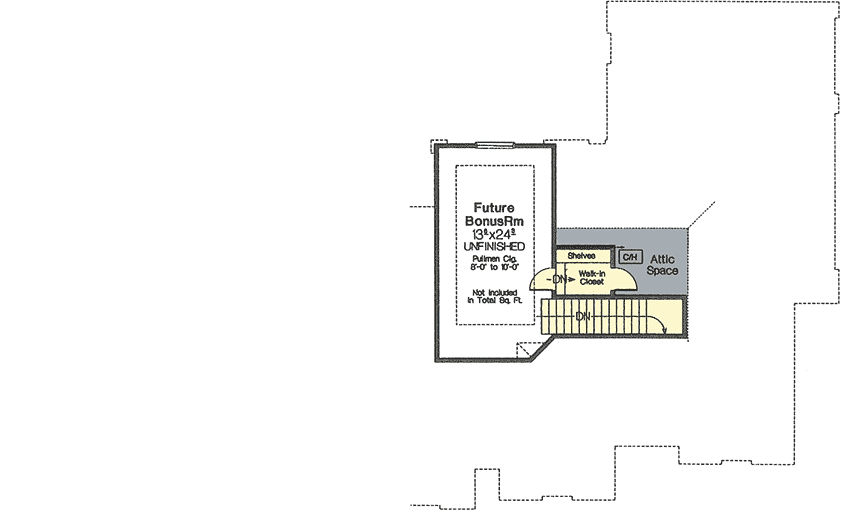

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This home plan has traditional amenities combined with the elegance of a European design. The entry foyer and gallery open to the great room with fireplace. A covered patio accessed through the great room is ideal for outdoor entertaining.
  • The kitchen is open to the breakfast and great rooms. A pantry is a nice touch. Just steps away you'll find your formal dining room.
  • The master bedroom suite includes his and her walk-in closets and a sitting area with views to the rear gardens. Indulge in the master bath whirlpool tub.
  • There are two additional bedrooms and a guest suite each with walk-in closets. The guest bedroom includes a private bath and can double as a study.
  • A powder room and the utility room are conveniently located off the three-car garage.
  • An upper level bonus room with walk-in closet is available for future expansion.
  • Related Plans: Need more room? Gain over 500 sq. ft. with house plan 48203FM.
  • For a smaller three bedroom version, see house plan 48278FM (2,742 sq. ft.).
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

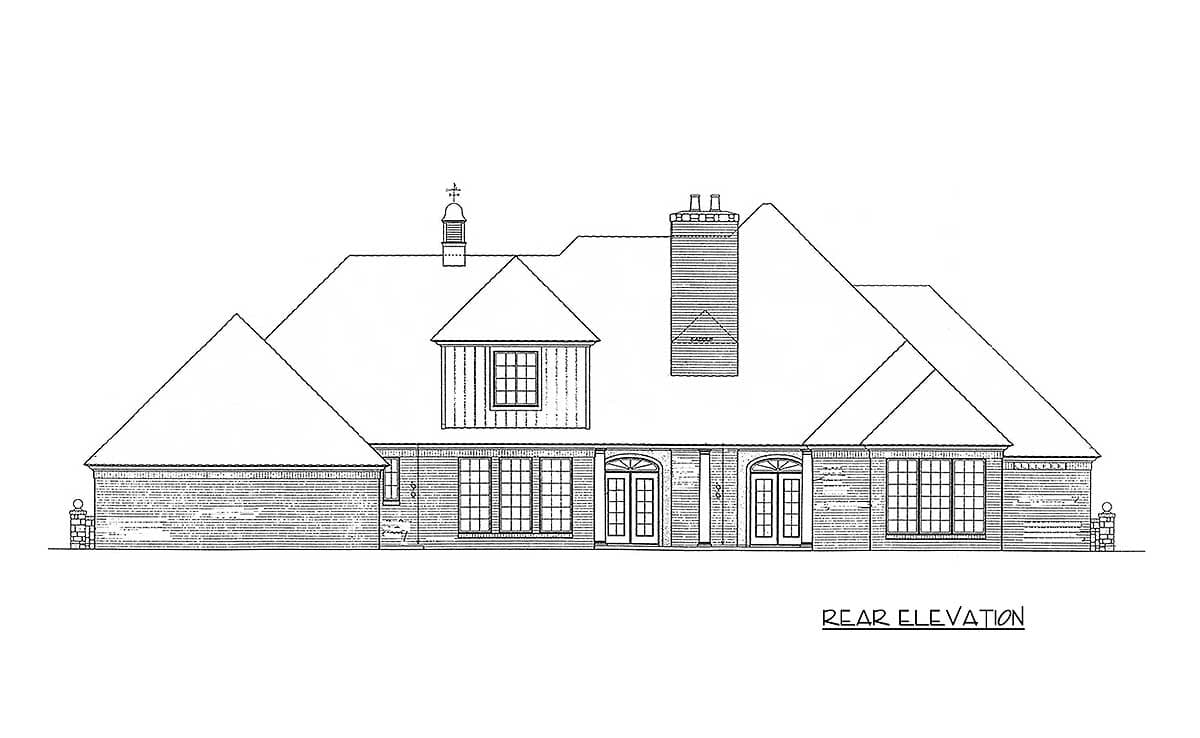

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,941 sq. ft.

1st Floor

2,941 sq. ft.

Bonus

359 sq. ft.

Entry

72 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

91' 0"

Depth

64' 7"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

809 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Room

Ceiling Type

Height

Entry

11' 0''

Master Bedroom

Pullman

11' 0''

Bonus

Pullman

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Flex Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Square Footage Breakdown

Total Heated Area

2,941 sq. ft.

1st Floor

2,941 sq. ft.

Bonus

359 sq. ft.

Entry

72 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

91' 0"

Depth

64' 7"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

809 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Room

Ceiling Type

Height

Entry

11' 0''

Master Bedroom

Pullman

11' 0''

Bonus

Pullman

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Flex Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom
