Name: Plan 36634TX: European Home Plan with Wrap-around Porch and Game Room - 4891 Sq Ft
SKU: 36634TX
Price: 1650.0 USD
Availability: InStock

Plan 36634TX

European Home Plan with Wrap-around Porch and Game Room - 4891 Sq Ft

Heated S.F.

4,891

Beds

Baths

4.5

Stories

Cars

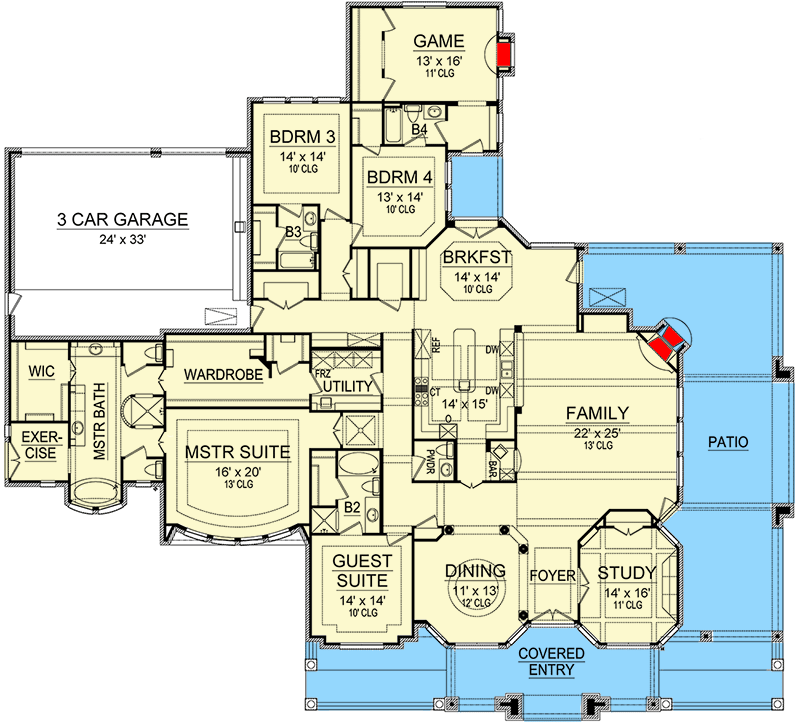

Floor Plan

Main Level

Plan Details

Upon entering the foyer, the beauty of this luxury, European home plan makes itself known with the unique ceiling heights, designs, and shapes.
The formal dining room is generously sized and sits across from a quiet study. Straight ahead, the family room features a corner fireplace and exposed beams overhead. Large windows overlook the wrap-around porch, while allowing natural light to infiltrate the living spaces.
A gourmet kitchen with a coffered ceiling design, island, and pantry is a chefs' dream.
The large master suite has a garden tub, barrel vault ceiling, his and her walk-in closets, and total access to the laundry room.
Located in the rear of the home, the secondary bedrooms have private baths and walk-in closets.
Related Plan: Get a smaller version with house plan 36181TX (4,536 sq. ft.).

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

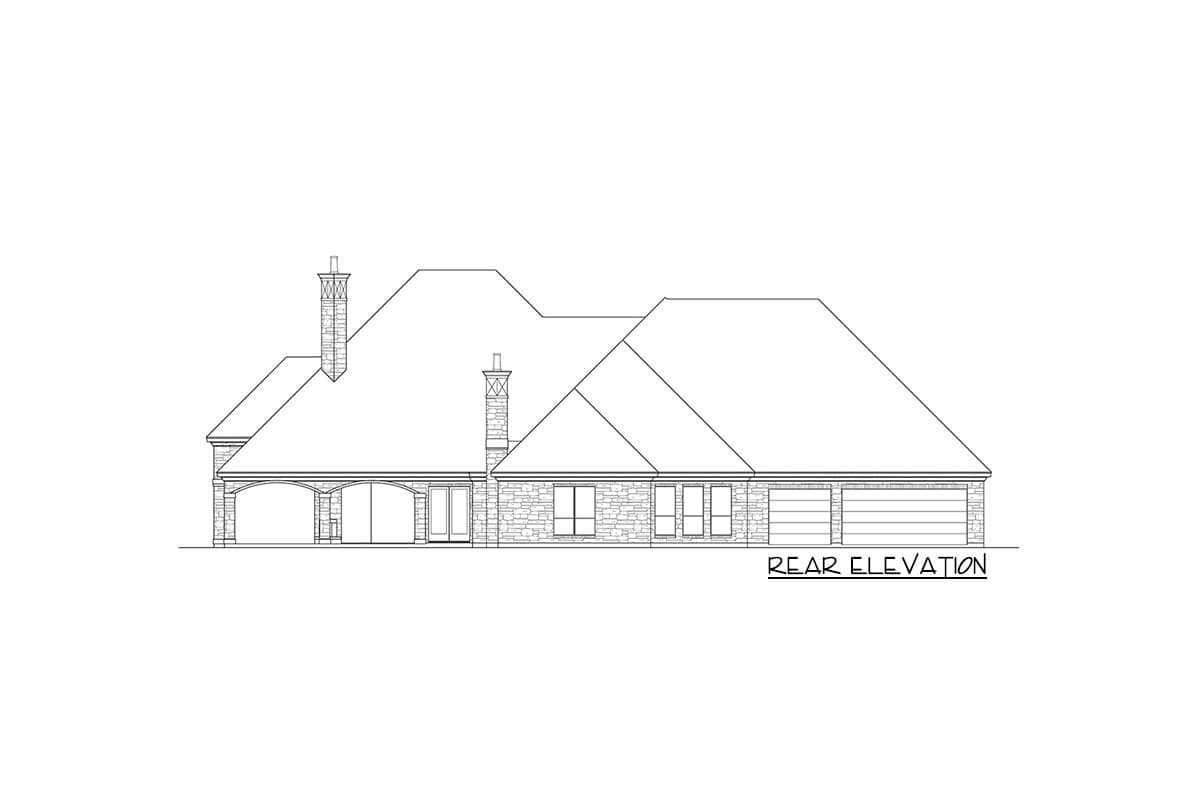

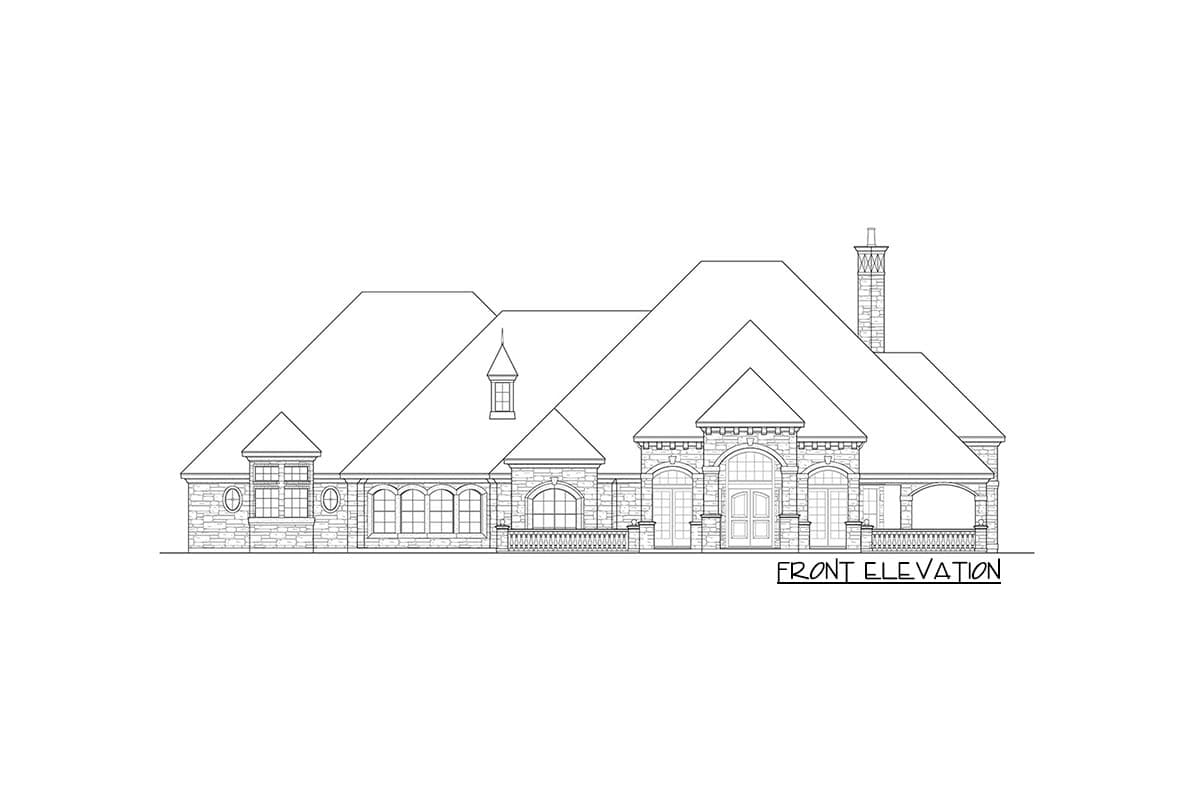

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

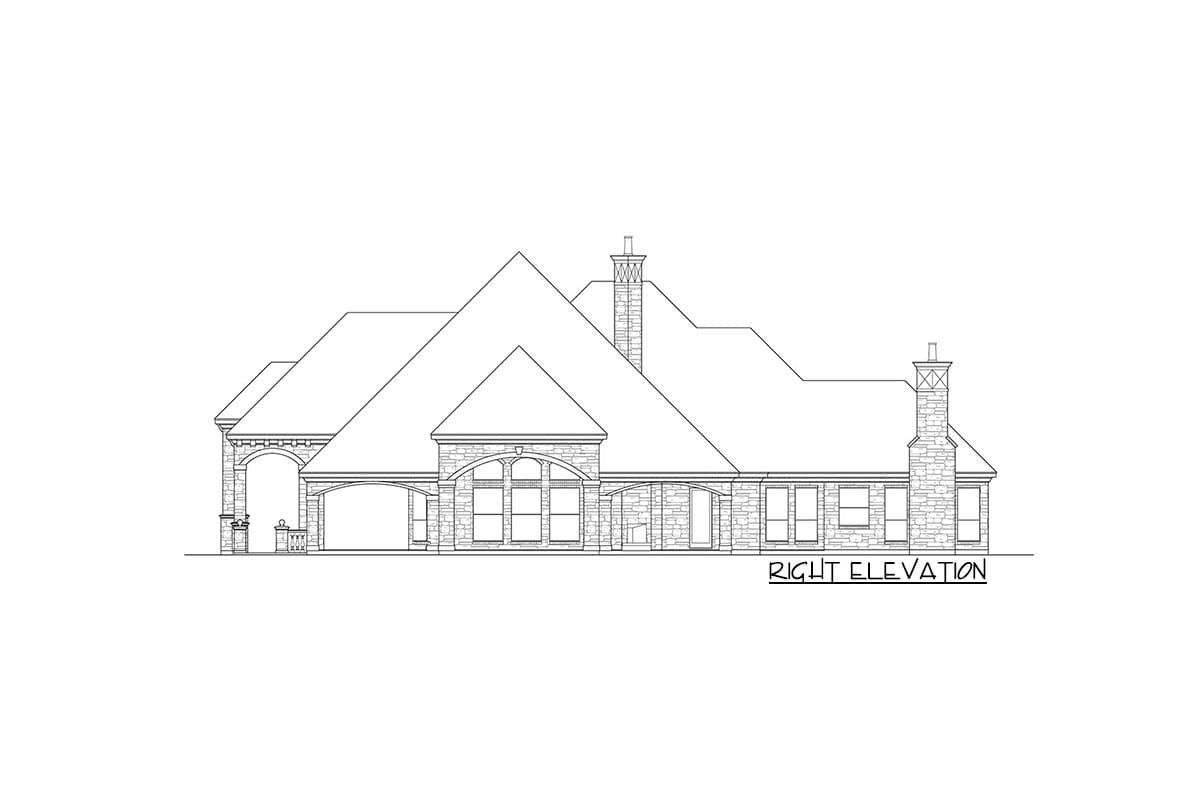

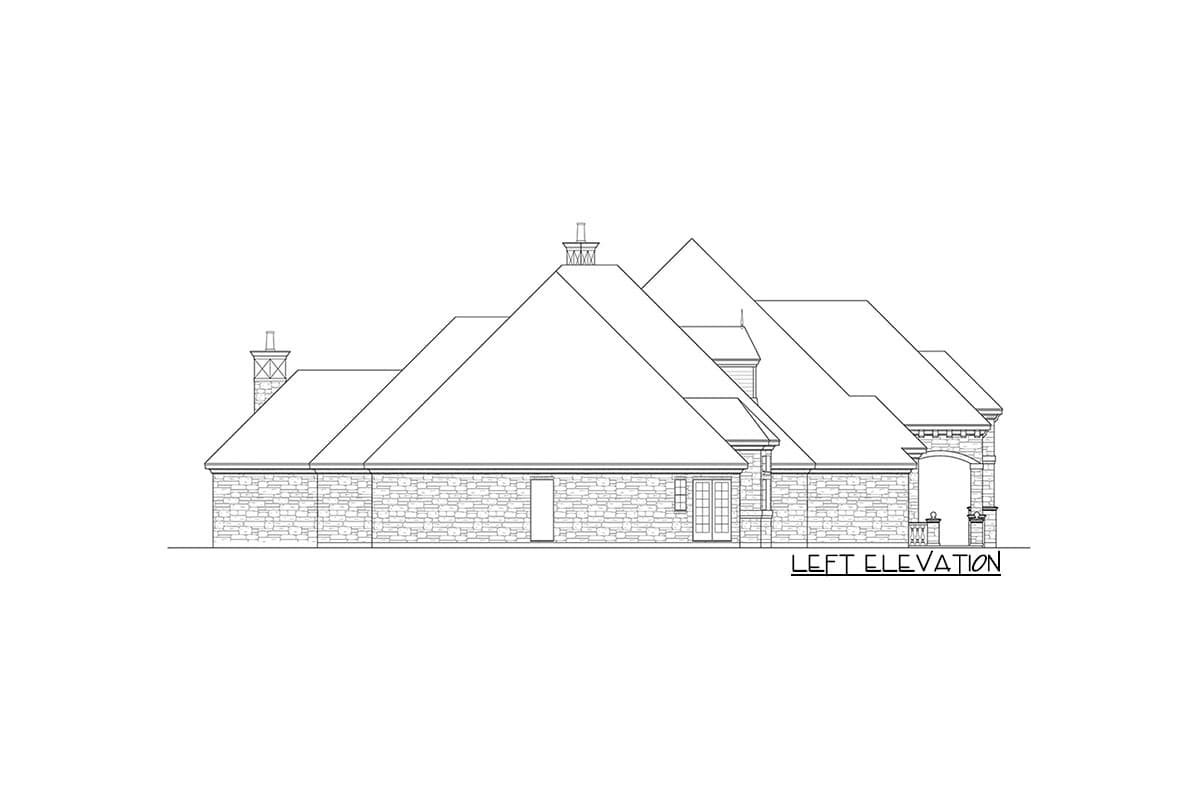

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
