Plan 82114KA
European House Plan with Two Versions
Heated S.F.
2,468
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 82114KA

Main Level
slide image 0

Plan 82114KA

1-800-854-7852

1-262-521-4596

Main Level

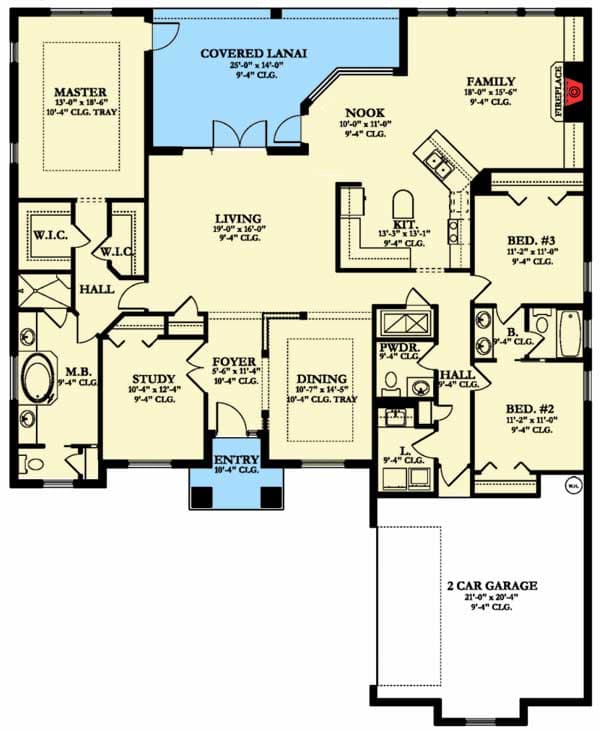

floor plan image Main Level
Plan Details
  • Accents of stone and a lovely hip roof characterize this European house plan that offers two versions.
  • A tray ceiling tops the formal dining room where you can see right into the big living room and covered lanai beyond.
  • Around the corner, the informal area combines the kitchen with the bayed nook and family room.
  • The whole left wing of the home is devoted to the large master suite where homeowners are treated to a tray ceiling, two walk-in closets and a large master bathroom with a big soaking tub.
  • Bedrooms 2 and 3 share a connected jack and jill bathroom.
  • Related Plan: Get a different exterior with house plan 82115KA (2,468 sq. ft.).
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,468 sq. ft.

1st Floor

2,468 sq. ft.

Porch, Front

82 sq. ft.

Porch, Rear

167 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

58' 8"

Depth

72' 4"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

510 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,468 sq. ft.

1st Floor

2,468 sq. ft.

Porch, Front

82 sq. ft.

Porch, Rear

167 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

58' 8"

Depth

72' 4"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

510 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
