Plan 871016JEN
European Ranch Plan with Split-bed Layout
Heated S.F.
4,225
Beds
4
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 871016JEN

Main Level
slide image 0
2nd Floor
slide image 1

Plan 871016JEN

1-800-854-7852

1-262-521-4596

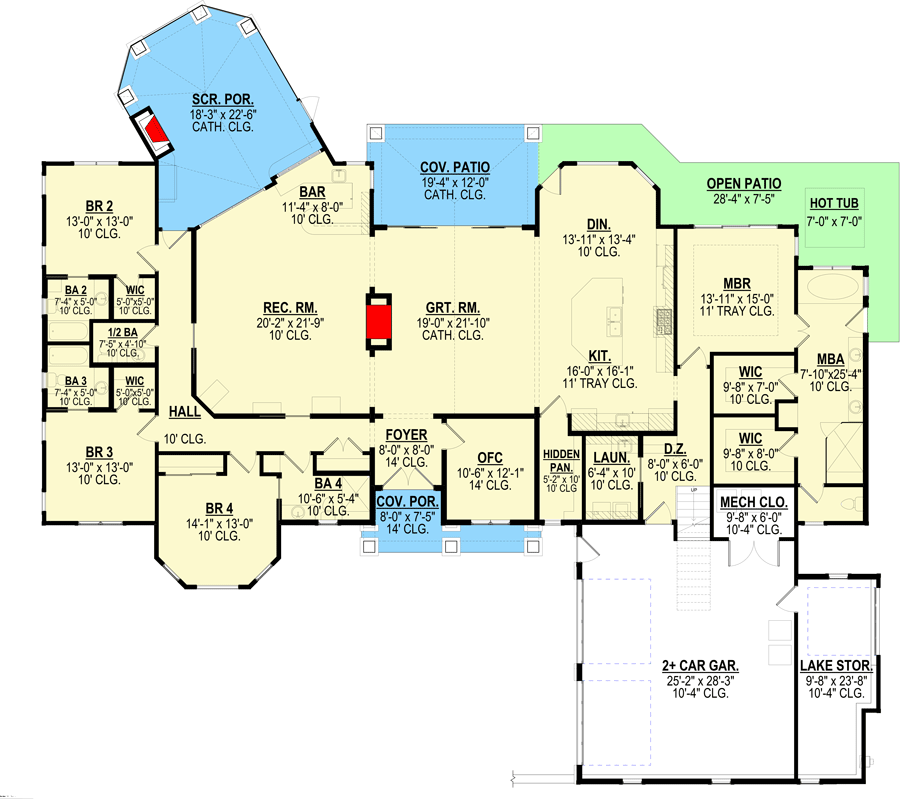

Main Level
floor plan image Main Level

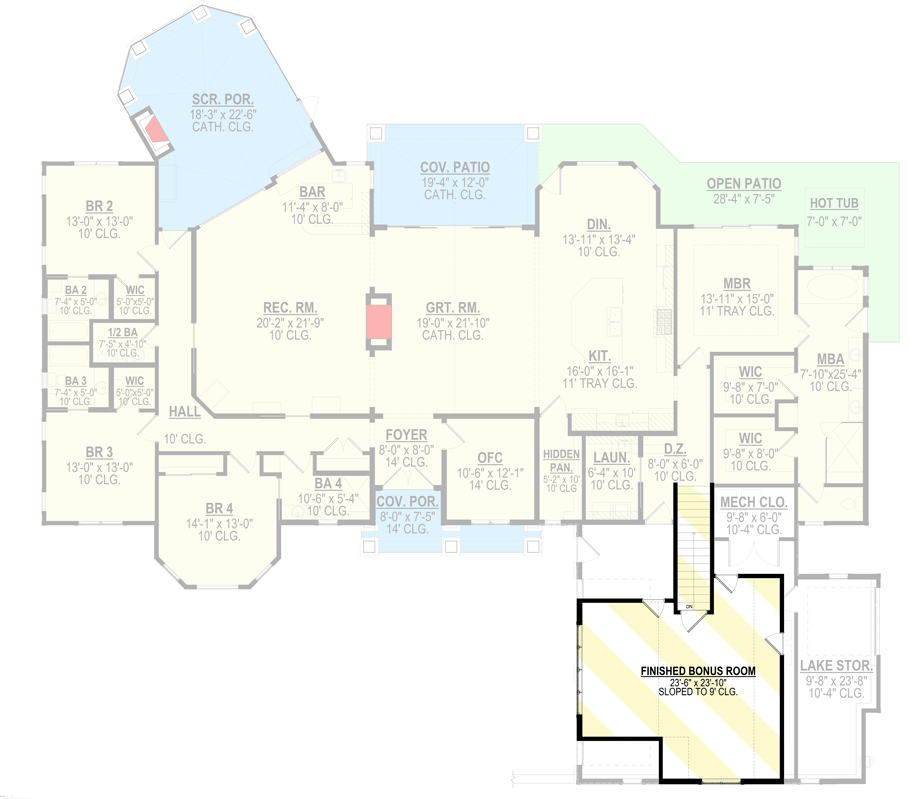

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Designed with entertaining in mind, this exclusive European Ranch home plan features an expansive gathering space with a central double-sided fireplace connecting the great room with the adjacent rec room.
  • The large island, 6-burner range, and hidden pantry define this dreamy kitchen, while multiple outdoor living areas, including a screened porch, invite you to spend time outdoors.
  • The split-bedroom layout separates the master bedroom for the utmost privacy. The homeowner will appreciate the oversized sliding door to the patio, dual walk-in closets, and spacious bathroom.
  • Three bedroom suites line the left side of the design and a home office just off the foyer completes the main level.
  • An additional storage room attached to the garage is perfect for lawn supplies or lakefront properties, and a bonus room above the garage offers a flexible space or future expansion.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.
What's Included
  • Foundation plan
  • Detailed floor plans
  • Roof plan
  • Elevations (all four sides)
  • Sections
  • 3D model views
  • Electrical plans
  • Framing details
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown
