Plan 510009WDY
European Style 4-Bedroom House Plan with Bunk Room Upstairs
Heated S.F.
3,178
Beds
4
Baths
3.5+
Stories
2
Cars
3
Floor Plan

Plan 510009WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510009WDY

1-800-854-7852

1-262-521-4596

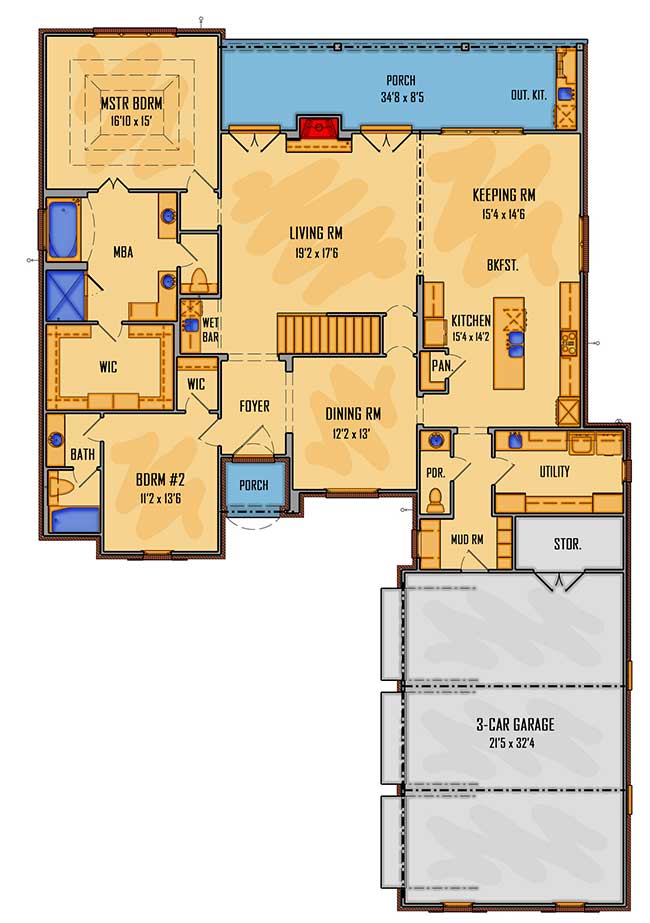

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Four bedrooms and large rooms wrapped up in an elegant European exterior make this European house plan ideal for a large family.

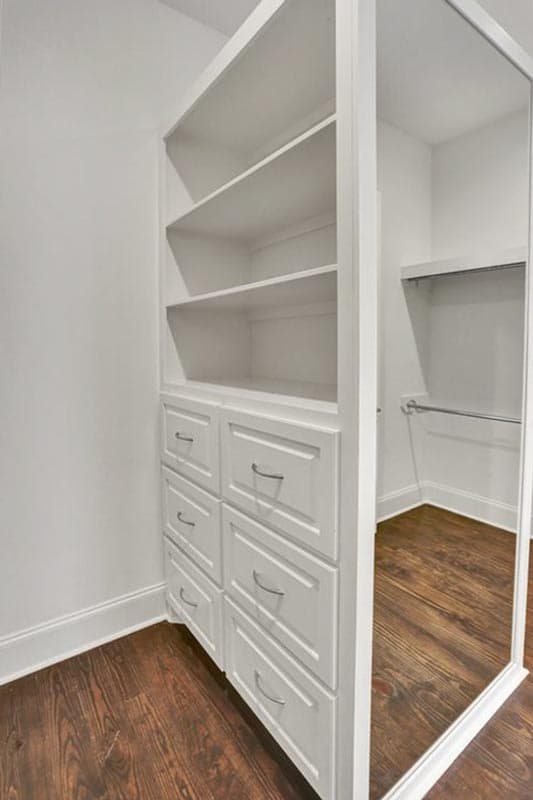

  • Thoughtful extras include walk-in closets for every bedroom, two wet bars and a media room up on the second floor.

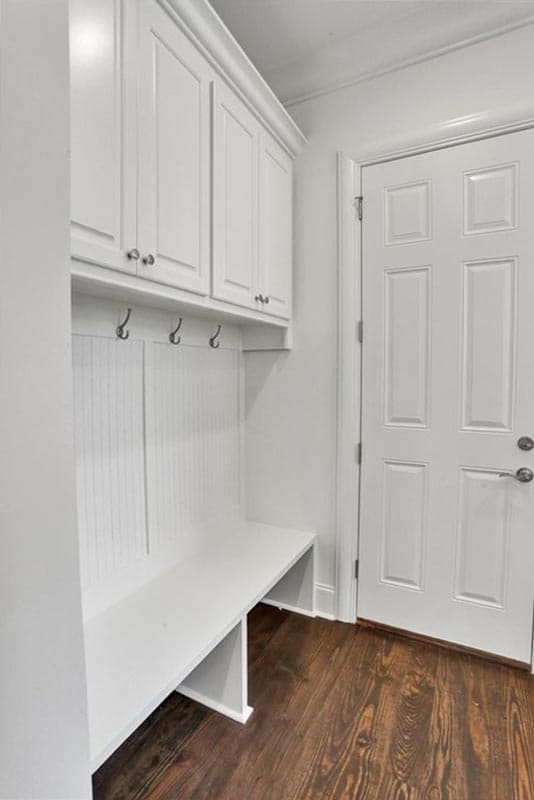

  • Even the mud room is well organized with its built-in cubbies.
  • Hang out in the keeping room or the two-story living room, both of which overlook the large rear porch with its outdoor kitchen.

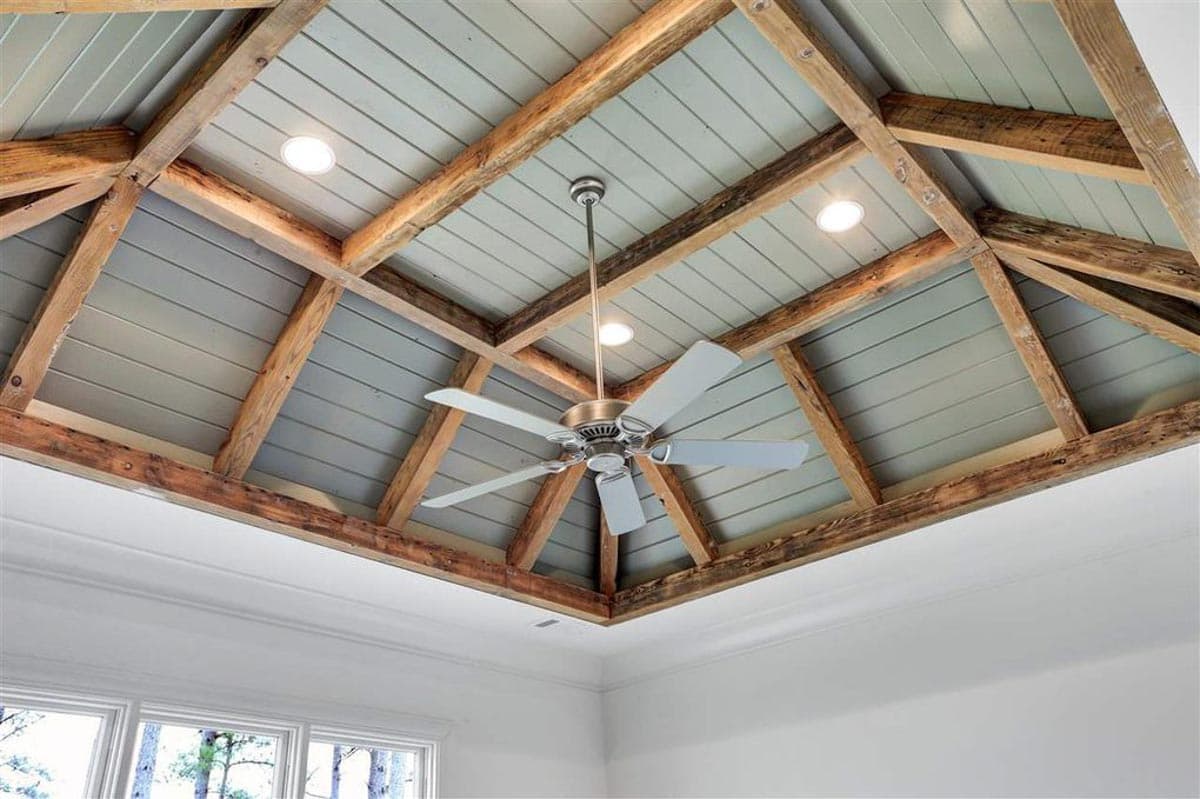

  • The first floor master suite has a beautiful triple tray ceiling and a large private master bathroom.
  • The guest suite is also on the first floor off the foyer.

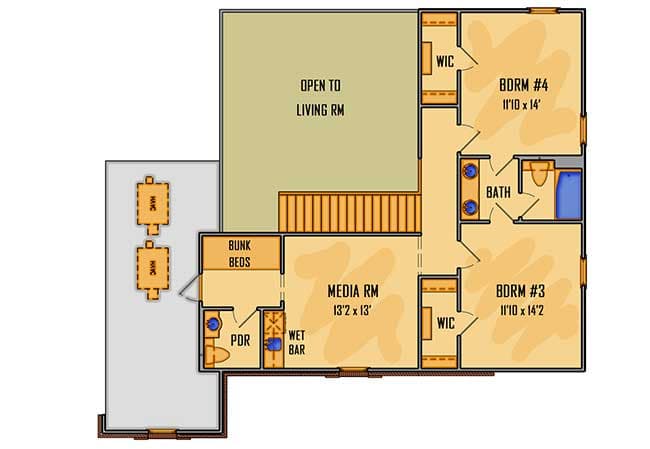

  • Kids will love having their friends sleep over in the upper floor bunk bed alcove with a nearby half bath for convenience.
What's Included
This plan has 9 sheets as follows:
  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor with Dimensions, Notes

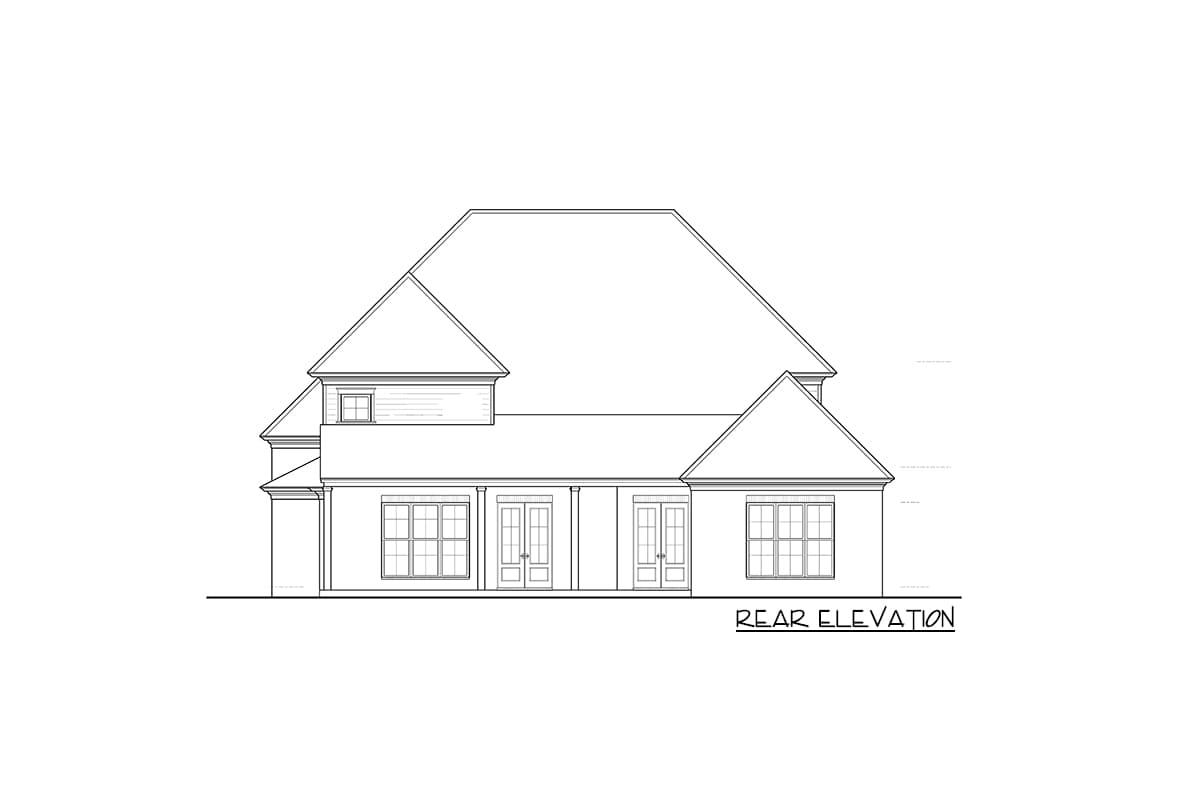

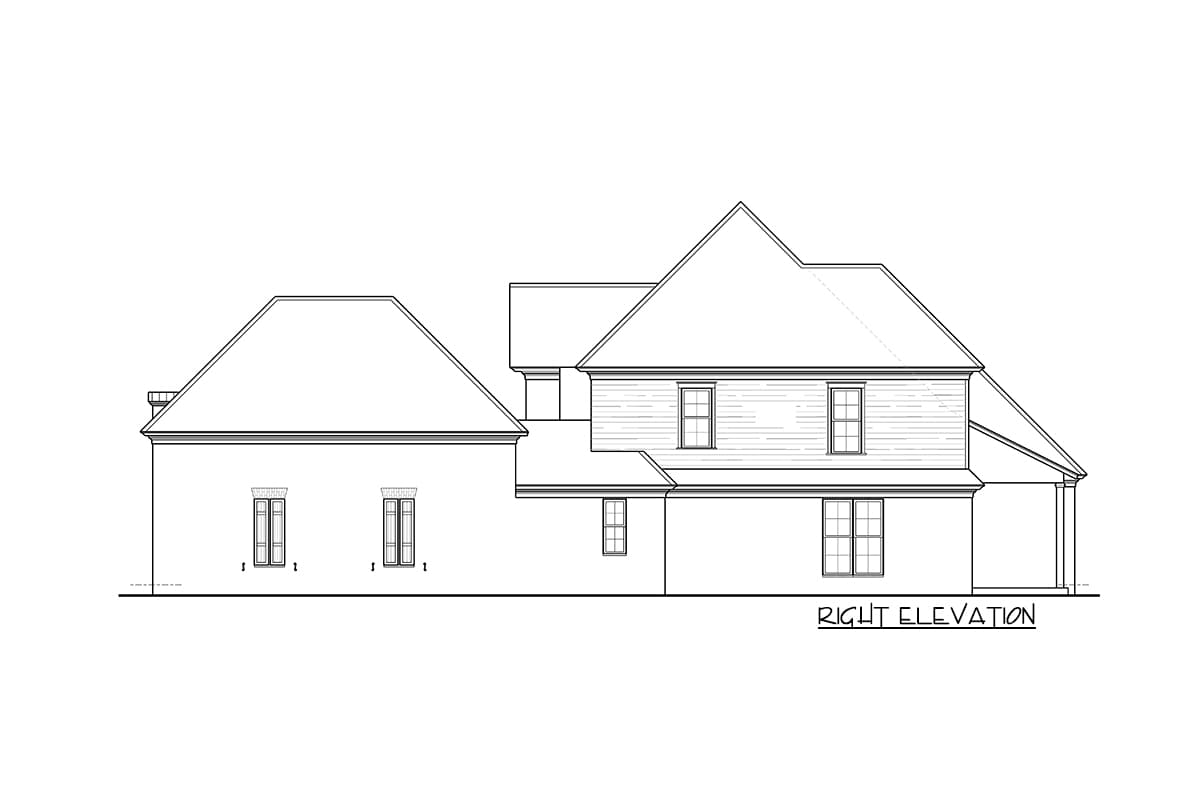

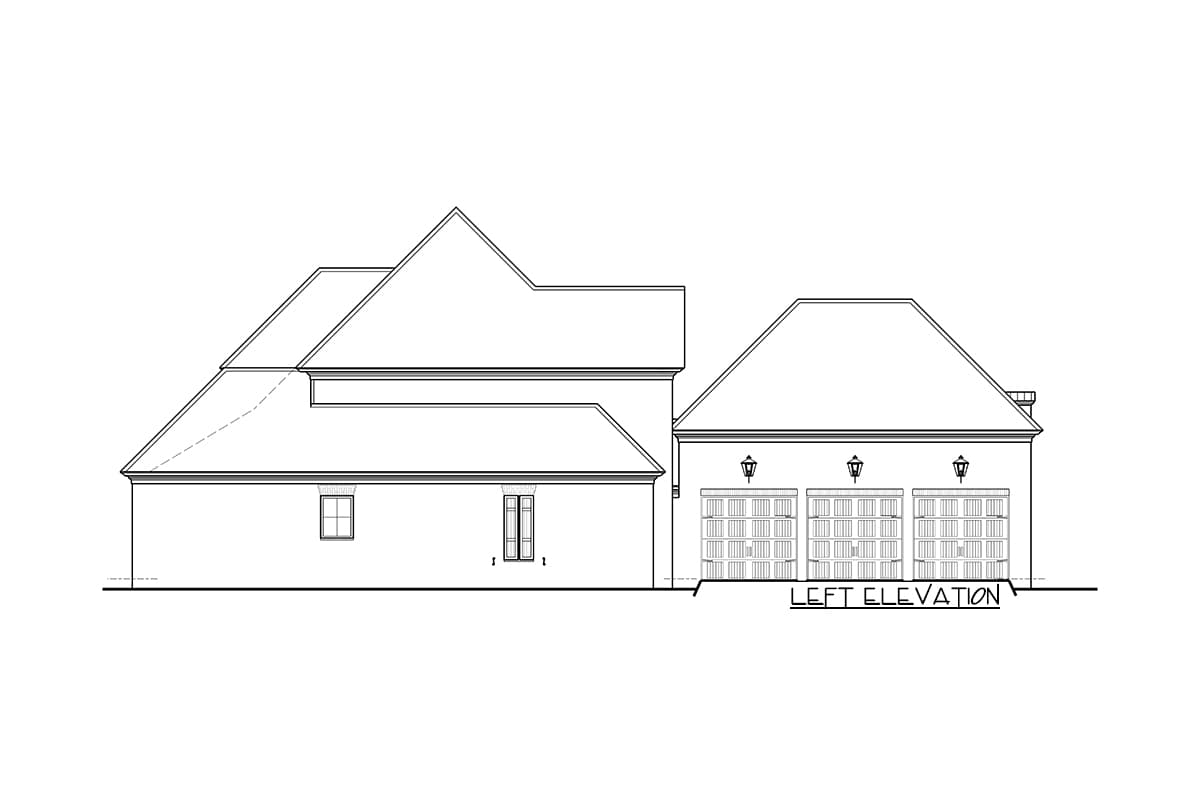

  4. Front, Rear, Left and Right Elevations, Roof Plan
  5. Building Sections, Cornice Details, Rafter Schedules
  6. Misc. Details, Notes
  7. 1st and 2nd Floor Electrical Plans, Schedules
  8. Slab Foundation Plans
  9. Slab Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,178 sq. ft.

1st Floor

2,309 sq. ft.

2nd Floor

869 sq. ft.

Porch, Front

36 sq. ft.

Porch, Rear

320 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 11"

Depth

85' 4"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

780 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

European

French Country

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Kitchen

Two Story Great Room

Wet Bar

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,178 sq. ft.

1st Floor

2,309 sq. ft.

2nd Floor

869 sq. ft.

Porch, Front

36 sq. ft.

Porch, Rear

320 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 11"

Depth

85' 4"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

780 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

European

French Country

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Kitchen

Two Story Great Room

Wet Bar

Plan Collections

Photo Gallery
