Plan 11748HZ
Everything You Could Ask For
Heated S.F.
2,400
Beds
3 - 4
Baths
3 - 4
Stories
1-2
Cars
2
Floor Plan

Plan 11748HZ

Main Level
slide image 0
Bonus
slide image 1

Plan 11748HZ

1-800-854-7852

1-262-521-4596

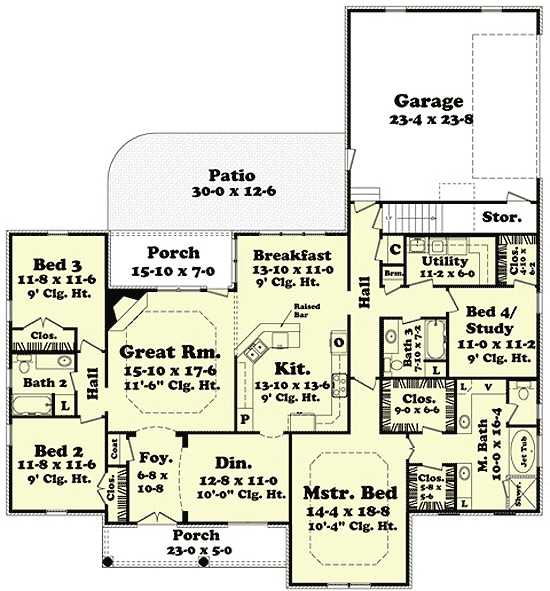

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • This French Acadian inspired home plan has everything you could ask for including four large bedrooms, one of which could be used as a study.
  • The design is semi-open floor plan to make the home seem larger.
  • High 10'4' ceilings can be found in the formal dining room that is open to the foyer. Even higher ceilings - 11'6' - are in the great room with its angled fireplace and rear covered porch access.
  • The oversized kitchen has a large island with raised bar, cook top and double ovens.
  • The large rear porch and patio offer plenty of space for entertaining and cooking out with your family and friends.
  • A spacious master suite with raised ceilings will pamper the owners. The suite features two large walk in closets, a separate tub, custom glass shower and dual sinks.
  • This plan also includes a bonus room that could be used for a 5th bedroom or game room.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,400 sq. ft.

1st Floor

2,400 sq. ft.

Bonus

377 sq. ft.

Porch, Front

115 sq. ft.

Porch, Rear

111 sq. ft.

Storage

49 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 4"

Depth

72' 2"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Bonus Room

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

USDA Approved
