Plan 5113MM
Excellent Value and Plenty of Options
Heated S.F.
1,751
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 5113MM

Main Level
slide image 0

Plan 5113MM

1-800-854-7852

1-262-521-4596

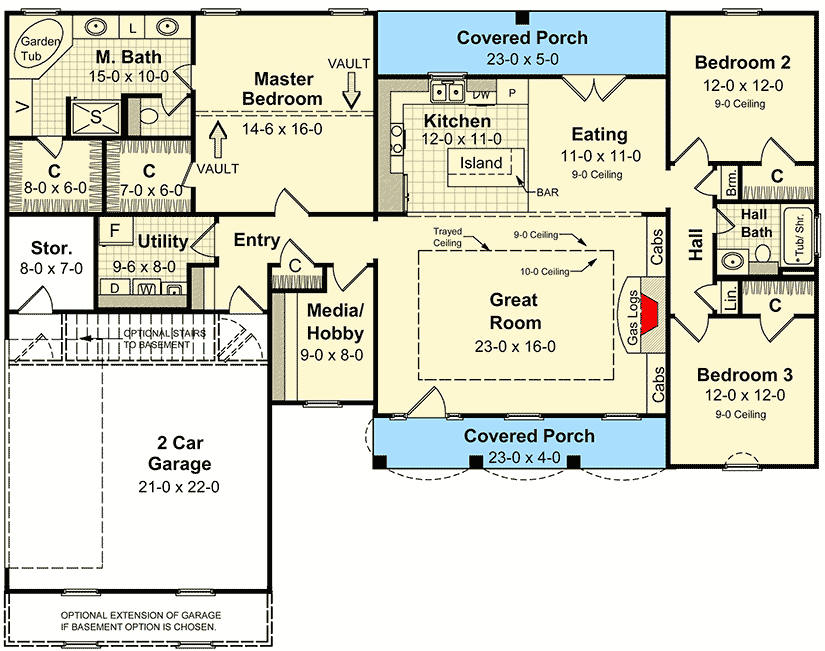

Main Level
floor plan image Main Level
Plan Details

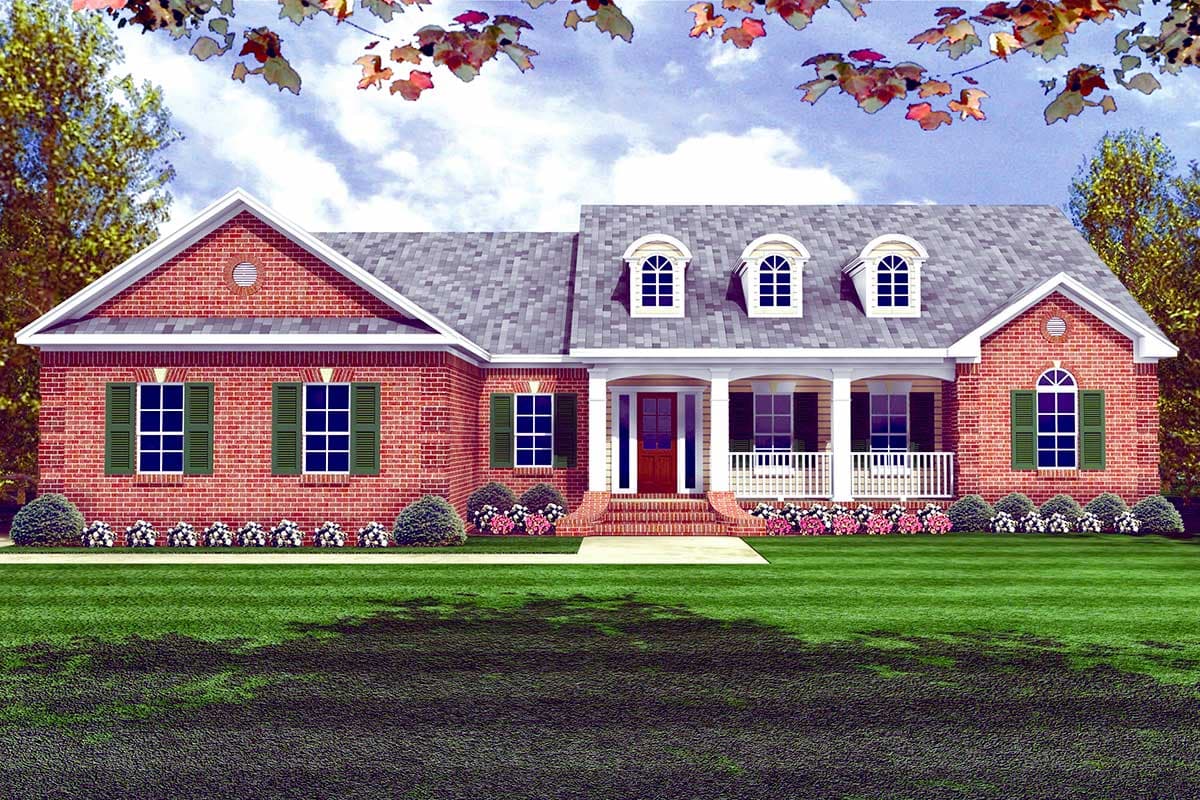

  • This is a classic traditional style home plan with great touches and a open floorplan with a split-bedroom arrangement.
  • Vaulted ceilings in the master bedroom and a trayed ceiling in the great room with fireplace (gas logs or conventional) and built-ins lend to the home plan's expansive feel.
  • The vaulted expansive master suite has his-and her walk-in closets, spa tub, shower and dual sinks.
  • The rear grilling porch expands your entertaining options.
  • The kitchen is open to the great room and the eating area, big enough for a nice dining room table.
  • Related Plans: Get alternate versions with house plans 51017MM, 51006MM, 5127MM, 5125MM, 5126MM, 5196MM and 5197MM.
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

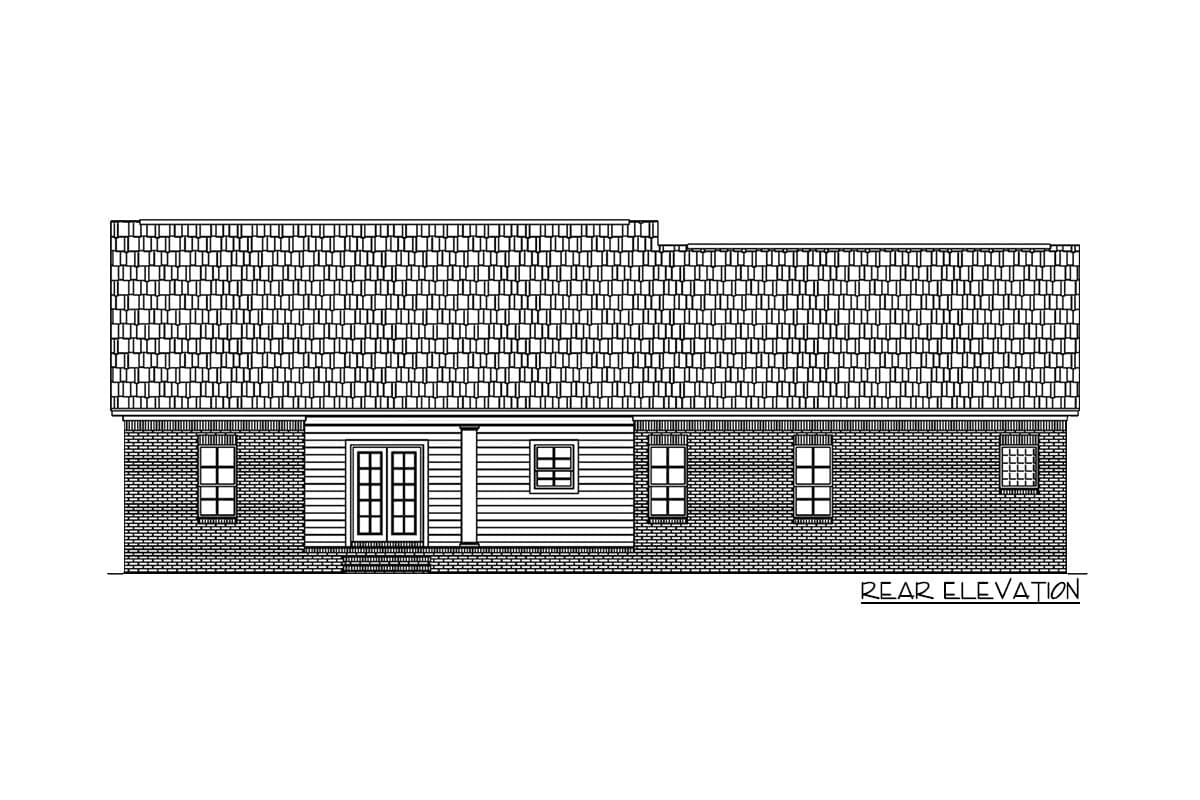

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,751 sq. ft.

1st Floor

1,751 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

113 sq. ft.

Storage

54 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

46' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

460 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Flex Room

Master Suite - 1st Floor

Media Room

Mudroom

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,751 sq. ft.

1st Floor

1,751 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

113 sq. ft.

Storage

54 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

46' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

460 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Flex Room

Master Suite - 1st Floor

Media Room

Mudroom

Plan Collections

Photo Gallery

USDA Approved
