Plan 500017VV

Exclusive

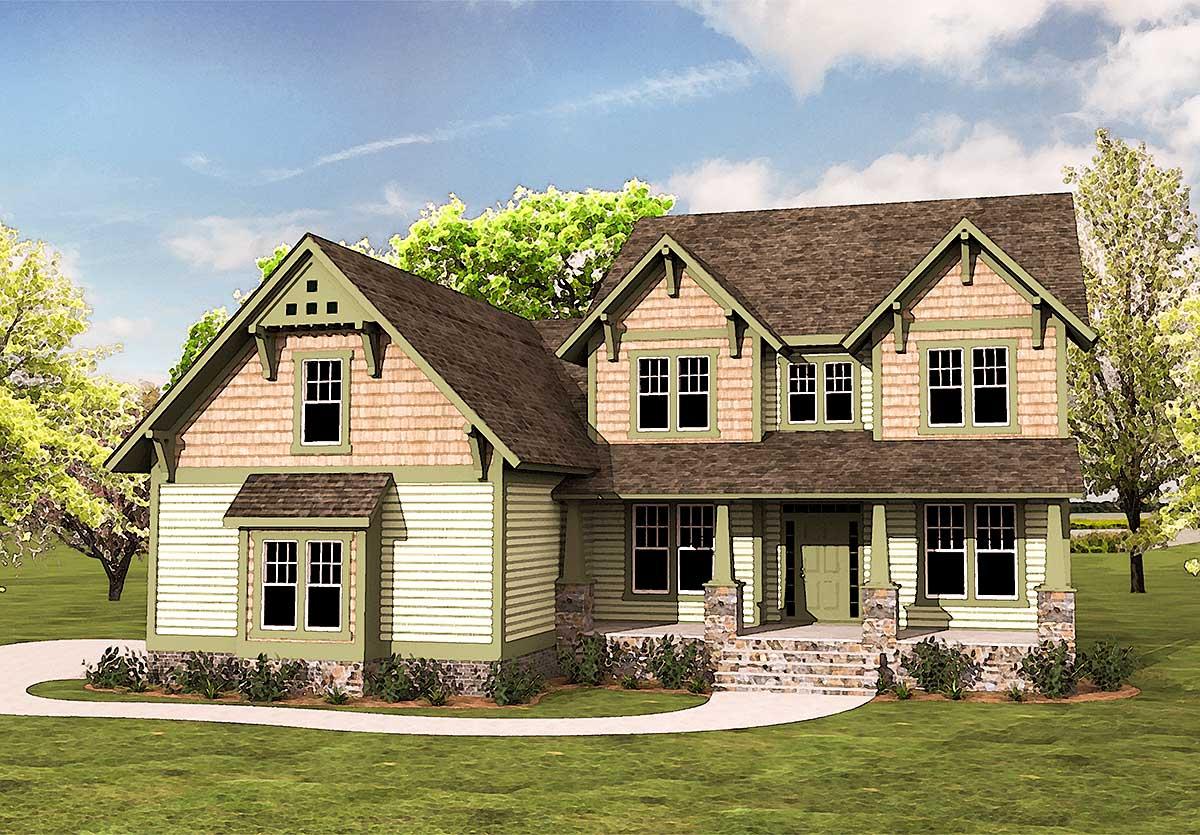

Exciting Craftsman House Plan with First Floor Master Suite - 3332 Sq Ft

Heated S.F.

3,332

Beds

4

Baths

3.5

Stories

2

Cars

2

Floor Plan

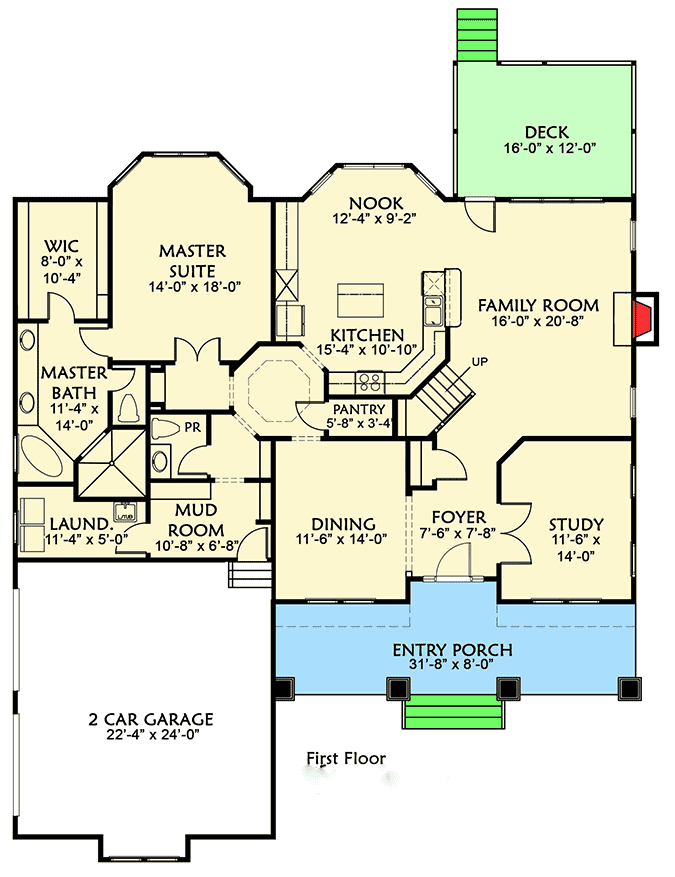

Main Level

floor plan image Main Level

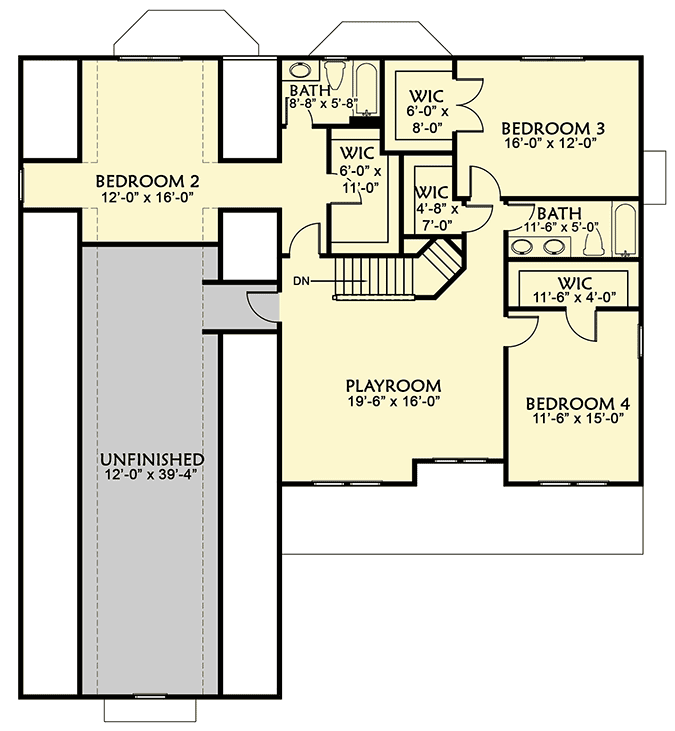

2nd Floor

floor plan image 2nd Floor

Plan Details

Large and comfortable rooms are the hallmark of this exciting Craftsman house plan with a main floor master suite.
Two bay windows in back extend the living spaces in the nook and master suite.
There's an abundance of counter space in the well-designed kitchen that has a peninsula eating bar open to the family room.
An octagonal rotunda with a tray ceiling in the center of the home directs you to the kitchen, master suite or formal dining room.
The second floor belongs to the kids with each bedroom having a giant walk-in closet.
The spacious playroom keeps toys out of the first floor living areas. Unfinished space off the playroom gives you 525 square feet of storage.
Related Plan: Get an alternate version with less space with house plan 500088VV (2,982 sq. ft.).

What's Included

Cover sheet with notes
Foundation
Floor plans
Elevations
Sections
Framing plans
Electrical plans

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,332 sq. ft.

1st Floor

1,922 sq. ft.

2nd Floor

1,410 sq. ft.

Porch, Front

269 sq. ft.

Deck

192 sq. ft.

Storage

525 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 8"

Depth

70' 4"

Max Ridge Height

35' 11"

Garage

Type

Attached

Area

574 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
