Plan 23759JD
Exciting Craftsman House Plan with Four or Five Bedrooms
Heated S.F.
3,570
Beds
4 - 5
Baths
5
Stories
3
Cars
2
Floor Plan

Plan 23759JD

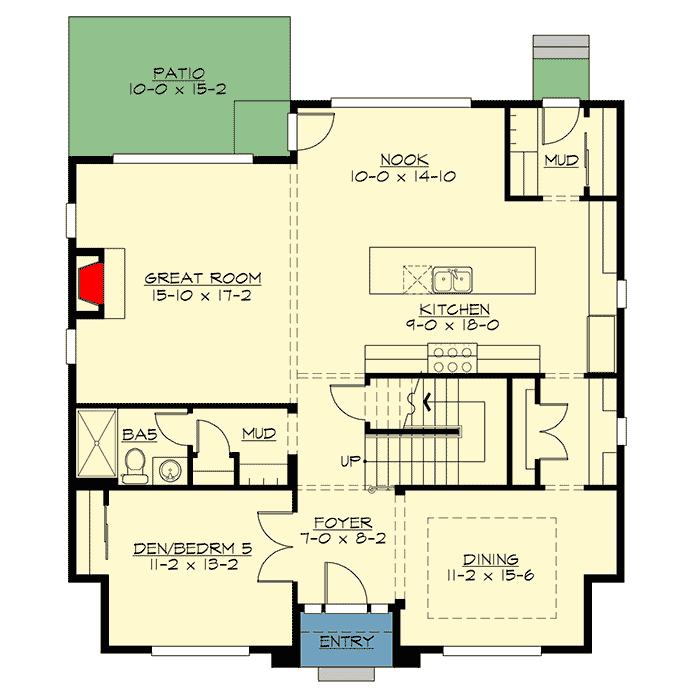

Main Level
slide image 0

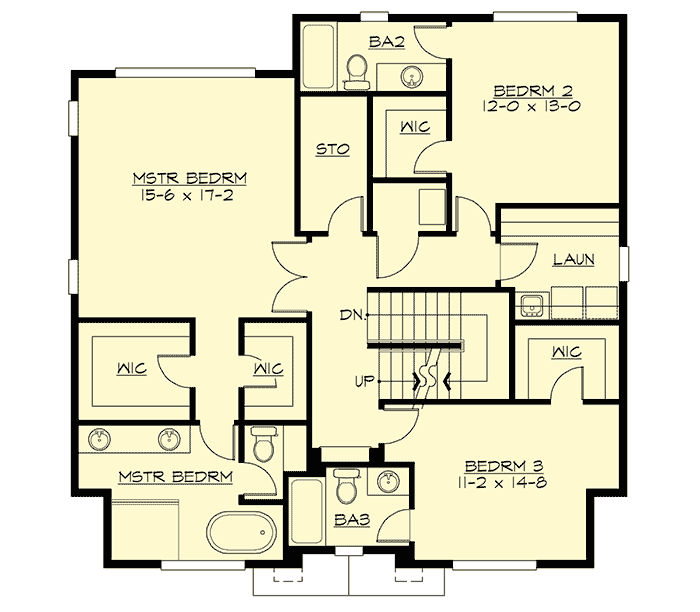

2nd Floor
slide image 1

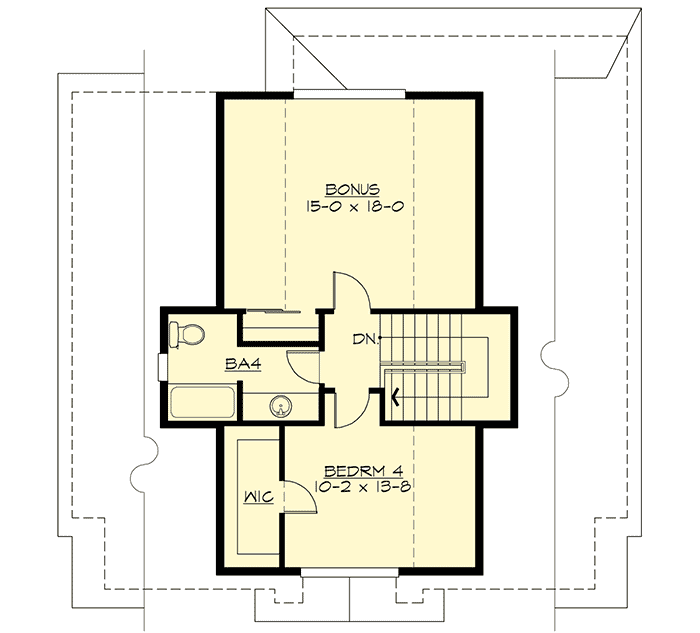

3rd Floor
slide image 2

Plan 23759JD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
3rd Floor
floor plan image 3rd Floor
Plan Details
  • Choose from five bedrooms or four and a den in this flexible Craftsman house plan.
  • The beautiful open floor plan gives you marvelous sight lines and makes the home feel larger.

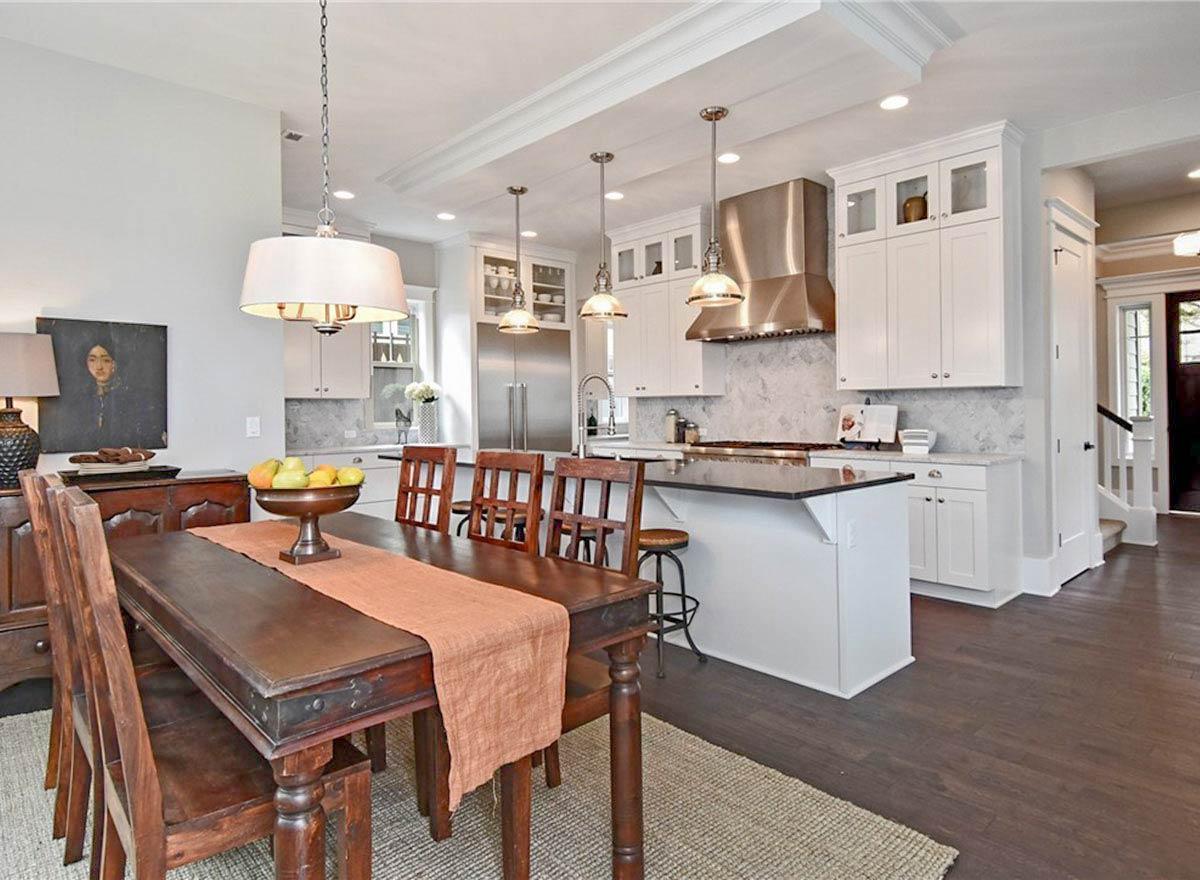

  • A butler's pantry separates the large kitchen from the dining room with extra counter space that comes in handy when entertaining.
  • On the upper floor, a large laundry room also has extra counter space for folding clothes.
  • Every bedroom upstairs gets a walk-in closet and the master suite has two.
  • A large storage closet is great for off-season clothes, suitcases and holiday decorations.
  • On the third floor, bedroom 4 is off by itself and the bonus room will be a family favorite.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

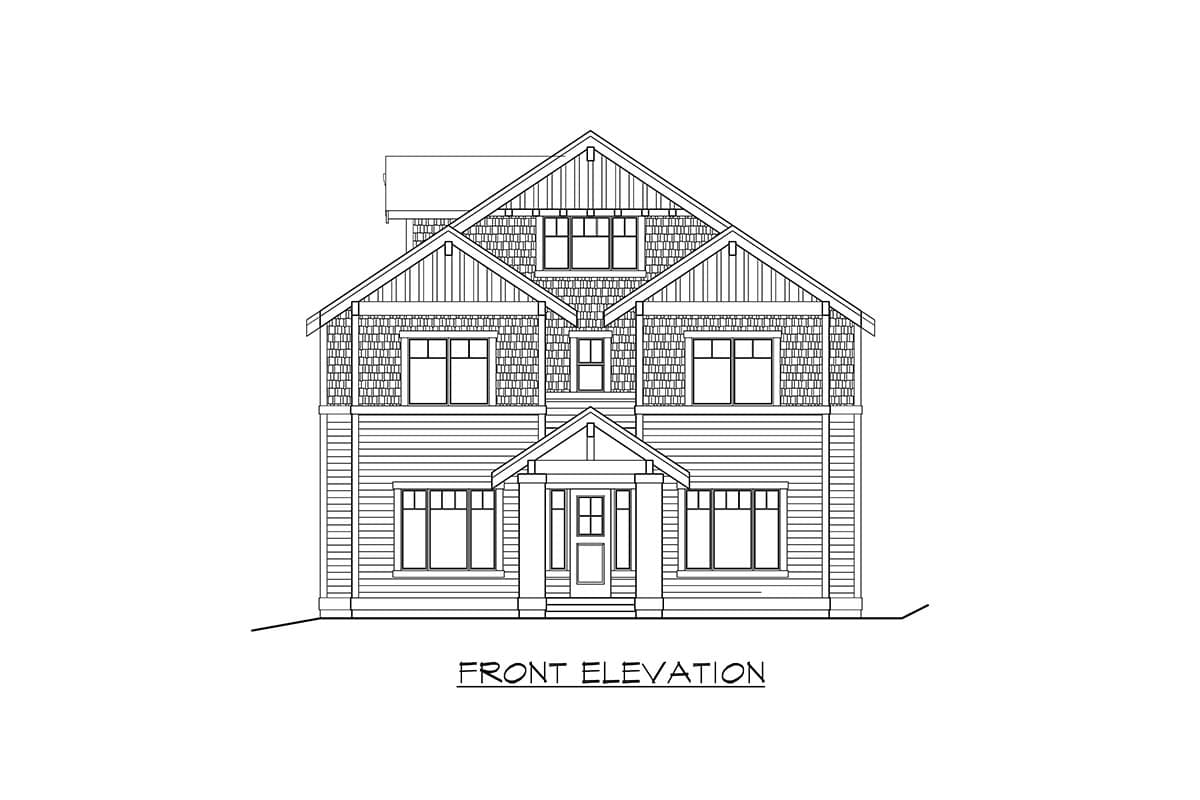

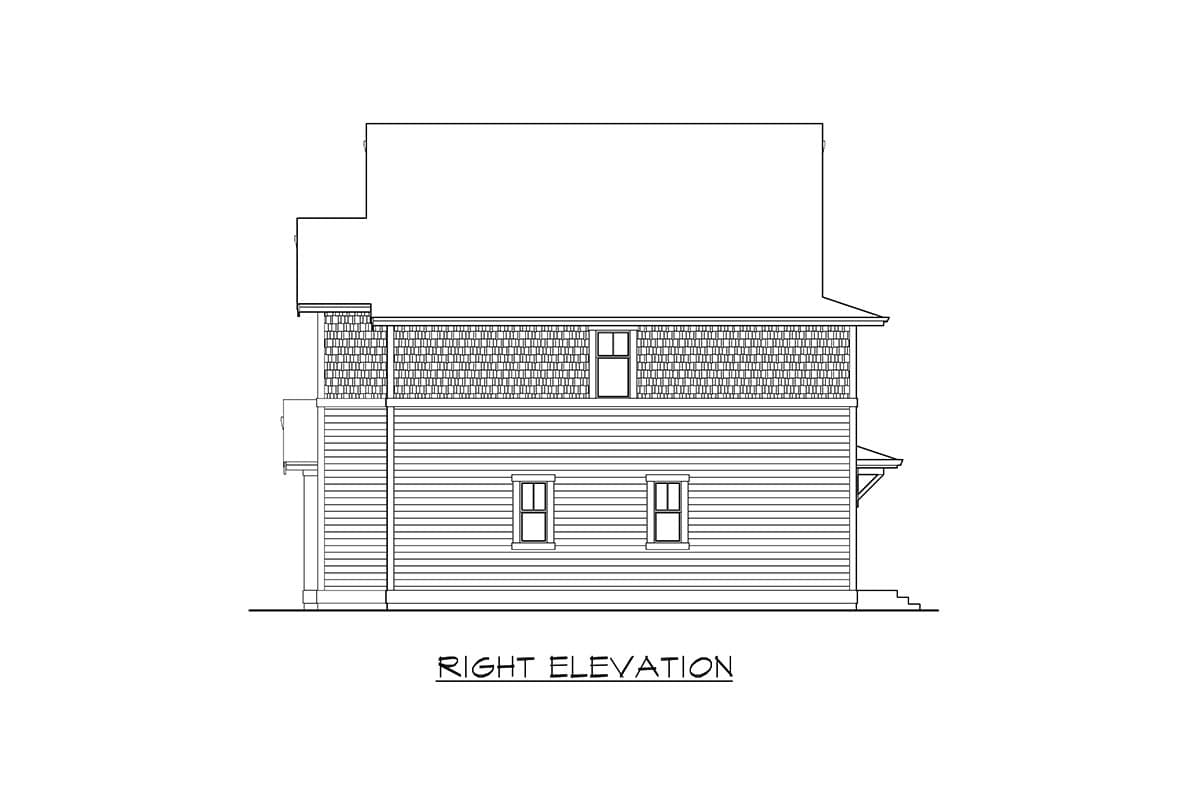

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,570 sq. ft.

1st Floor

1,460 sq. ft.

2nd Floor

1,398 sq. ft.

3rd Floor

712 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 8"

Depth

40' 6"

Max Ridge Height

34' 3"

Garage

Type

Detached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Den

Laundry - Upstairs

Master Suite - 2nd Floor
