Plan 510197WDY

Exclusive

Exclusive 2-Story Acadian House Plan with Keeping Room and Cabana Porch - 4273 Sq Ft
Heated S.F.
4,273
Beds
6
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 510197WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510197WDY

1-800-854-7852

1-262-521-4596

Main Level

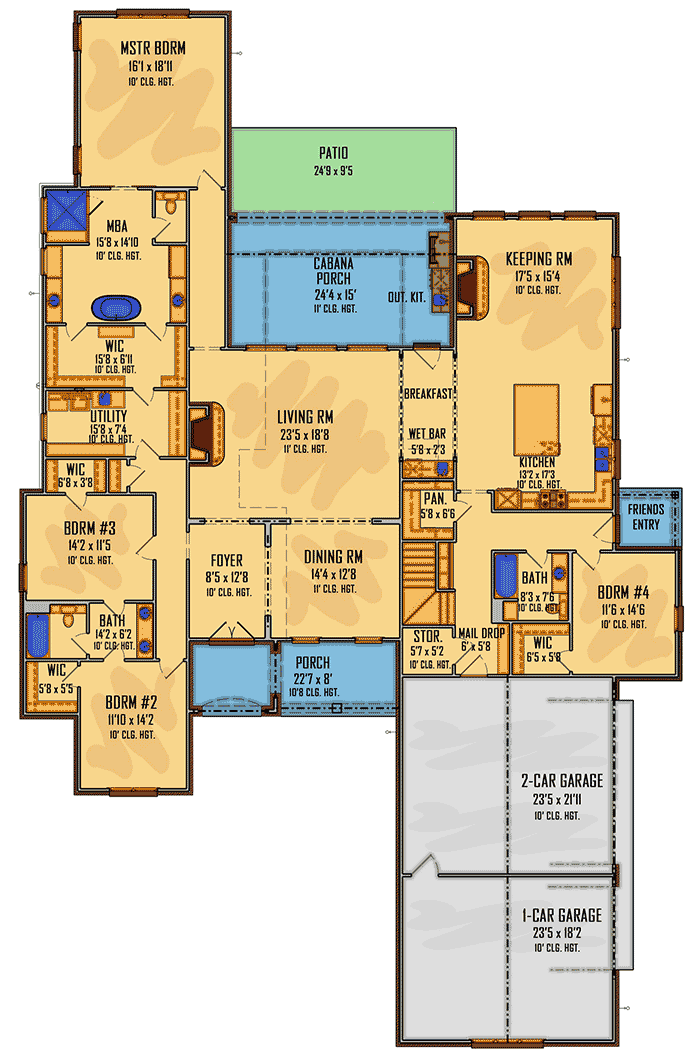

floor plan image Main Level
2nd Floor

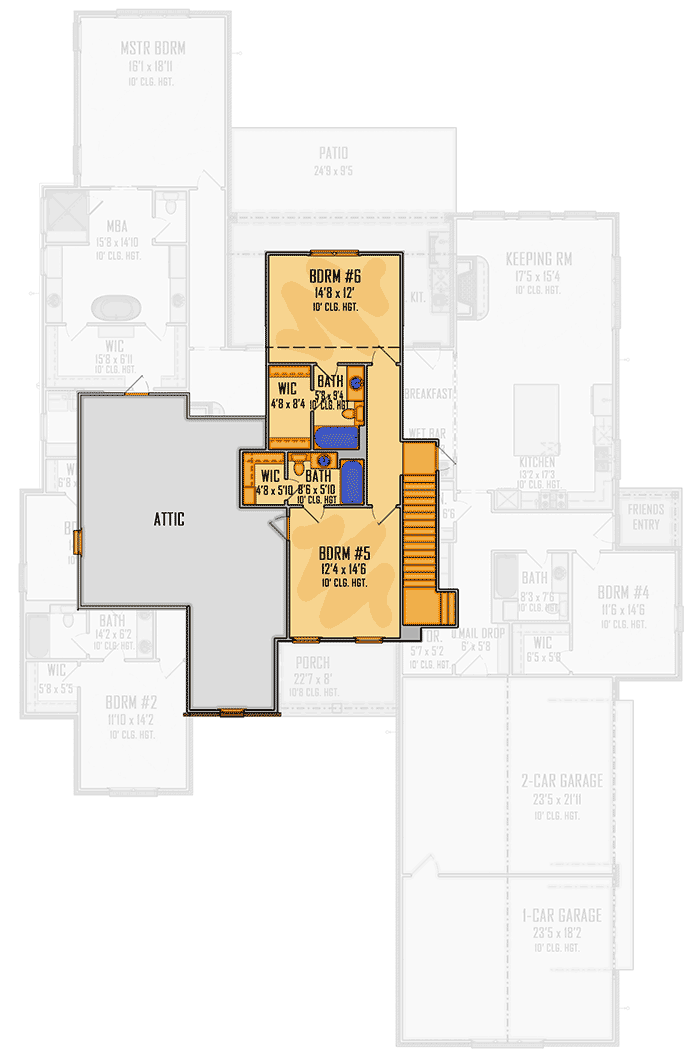

floor plan image 2nd Floor
Plan Details
  • A variety of siding materials adds to the visually-pleasing aesthetic offered by this two-story, Acadian house plan, exclusive to Architectural Designs.
  • Easily maneuver in and out of the kitchen, which hosts a large prep island, adjacent keeping room, and wet bar that connects to the living room.
  • Homeowners will appreciate the shortcut to the laundry room from the master closet, along with the spacious ensuite with 5 fixtures.
  • Three family bedrooms are dotted throughout the main level, while the remaining 2 bedroom suites can be found upstairs.
  • Enter from the 3-car garage to find a drop zone and storage closet.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,273 sq. ft.

1st Floor

3,490 sq. ft.

2nd Floor

662 sq. ft.

Porch, Combined

597 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 9"

Depth

115' 3"

Max Ridge Height

36' 9"

Garage

Type

Attached

Area

1009 sq. ft.

Count

3 Cars

Entry Location

Rear

Roof Details

Primary Pitch

12 on 12

Architectural Style

Acadian

Country

Louisiana

Southern

Traditional

Transitional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Wet Bar

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

4,273 sq. ft.

1st Floor

3,490 sq. ft.

2nd Floor

662 sq. ft.

Porch, Combined

597 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 9"

Depth

115' 3"

Max Ridge Height

36' 9"

Garage

Type

Attached

Area

1009 sq. ft.

Count

3 Cars

Entry Location

Rear

Roof Details

Primary Pitch

12 on 12

Architectural Style

Acadian

Country

Louisiana

Southern

Traditional

Transitional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Wet Bar

Plan Collections

Exclusive
