Plan 510188WDY

Exclusive

Exclusive 2-Story Home Plan with Private Master Bedroom - 3742 Sq Ft
Heated S.F.
3,742
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 510188WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510188WDY

1-800-854-7852

1-262-521-4596

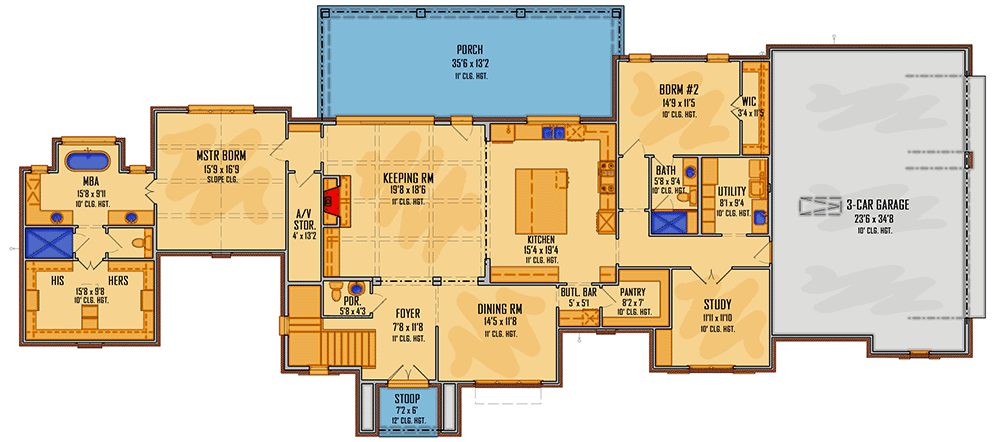

Main Level
floor plan image Main Level

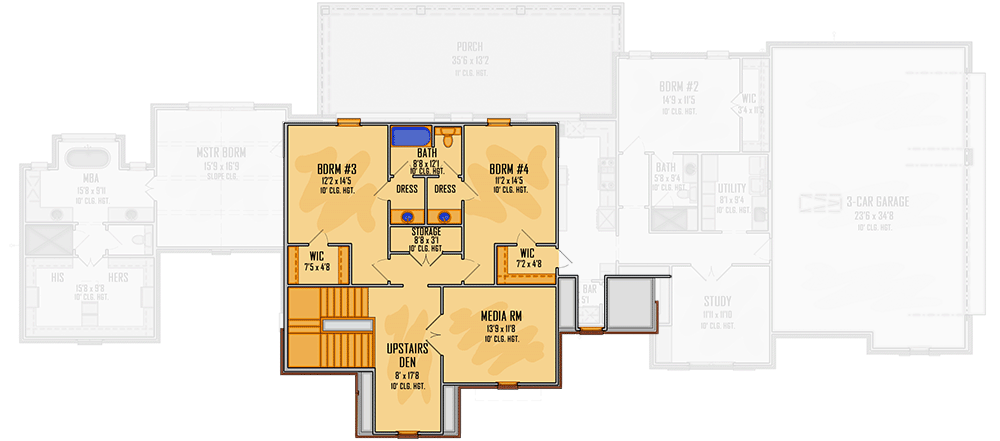

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This exclusive, two-story transitional home plan presents flared eaves on the steeply-pitched roof that offer a softness to the stone and brick facade.
  • Inside, you will find a powder bath in the foyer, across from a formal dining room to the right. An elegant coffered ceiling defines the keeping room, complete with a fireplace anchoring the left wall.
  • The sizable kitchen boasts a massive prep island, double-bowl sink that overlooks the rear porch, and a walk-in pantry next to a butler's bar.
  • The master bedroom is privately situated on the main level, and includes a freestanding tub in the 5-fixture bathroom, along with his / hers closets. A second bedroom and quiet study neighbor the 3-car garage to finish off the first floor.
  • Bedrooms 3 and 4 share a Jack-and-Jill bath upstairs, next to a media or playroom.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,742 sq. ft.

1st Floor

2,571 sq. ft.

2nd Floor

1,051 sq. ft.

Porch, Combined

580 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

116' 2"

Depth

52' 6"

Max Ridge Height

32' 5"

Garage

Type

Attached

Area

986 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Playroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,742 sq. ft.

1st Floor

2,571 sq. ft.

2nd Floor

1,051 sq. ft.

Porch, Combined

580 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

116' 2"

Depth

52' 6"

Max Ridge Height

32' 5"

Garage

Type

Attached

Area

986 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Playroom

Plan Collections

Exclusive
