Exclusive 25'-Wide 3-Bed House Plan
Heated S.F.
1,661
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 521002TTL

Main Level
slide image 0

Plan 521002TTL

1-800-854-7852

1-262-521-4596

Main Level

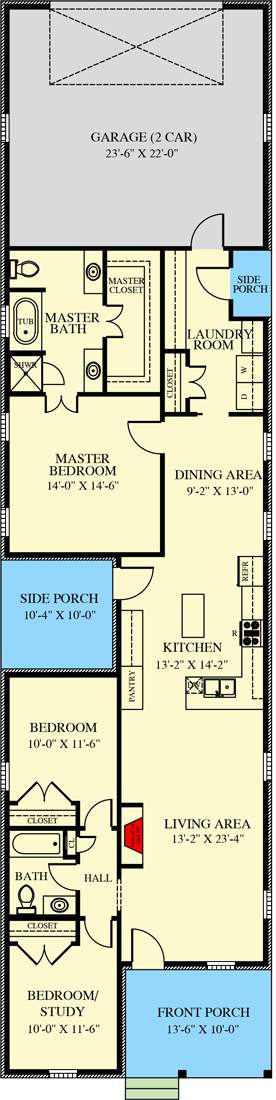

floor plan image Main Level
Plan Details
  • Just 25' wide, this 3-bed narrow house plan is ideally suited for your narrow or in-fill lot. Being narrow doesn't mean you have to sacrifice a garage. There is a 2-car garage in back, perfect for alley access.
  • The right side of the home is open from the living room to the kitchen to the dining area. A peninsula in the kitchen gives you cook space as well as counter seating.
  • All three bedrooms are lined up on the left side of the home, including the master suite with a walk-in closet and a 5-fixture bath.
  • A side porch with access to the kitchen gives you a nice spot to enjoy a cup of coffee or some fresh air.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plan
  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,661 sq. ft.

1st Floor

1,661 sq. ft.

Porch, Combined

261 sq. ft.
