Plan 400017FTY

Exclusive

Exclusive 3-Bed Craftsman House Plan with Bonus Room and Outdoor Shower
Heated S.F.
2,025
Beds
3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 400017FTY

Main Level
slide image 0
Bonus Room
slide image 1

Plan 400017FTY

1-800-854-7852

1-262-521-4596

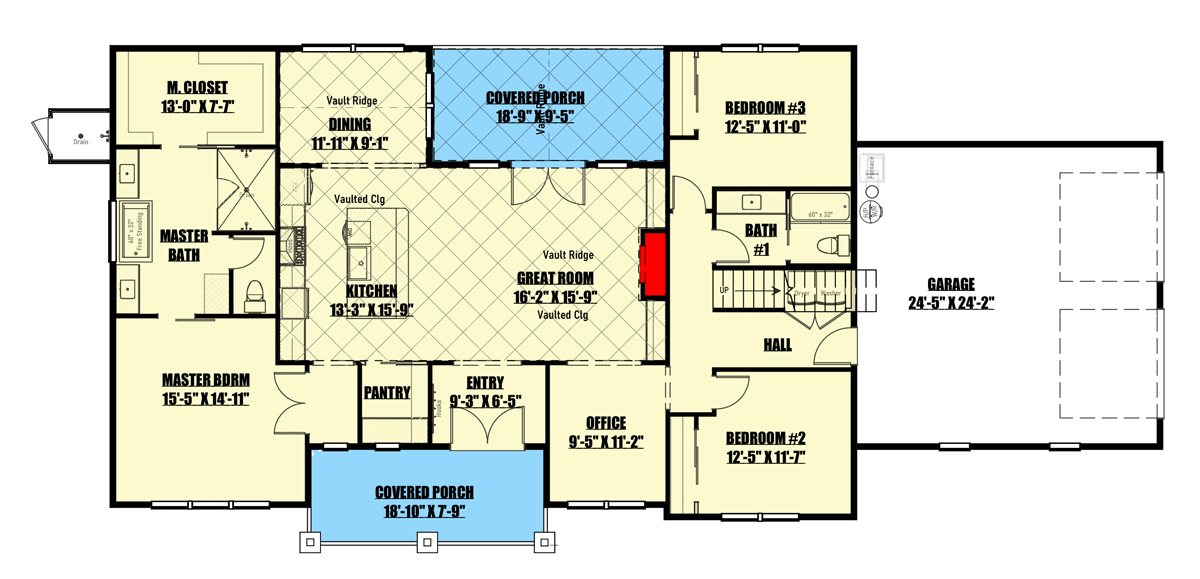

Main Level
floor plan image Main Level

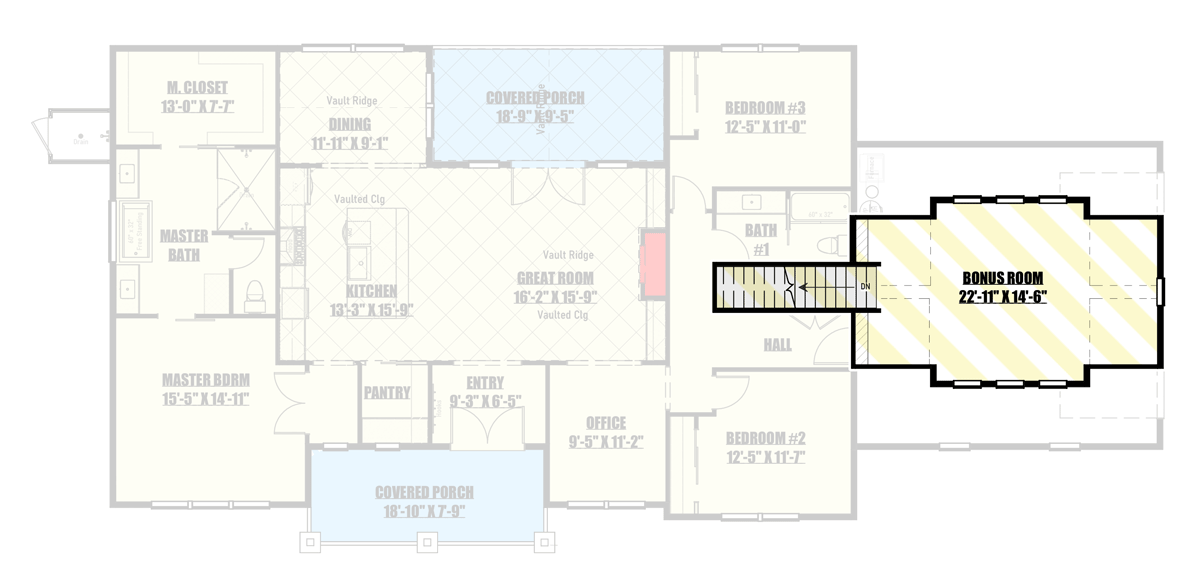

Bonus Room
floor plan image Bonus Room
Plan Details
  • This 3-bed Craftsman house plan - an Architectural Designs exclusive - gives you 2,025 square feet of heated living space plus 222 square feet of expansion above the 2-car side-entry garage.
  • Two porches give you a combined 387 square feet of covered outdoor space to enjoy and an outdoor shower on the left side is a nice touch.
  • French doors open to a grand entry with views ahead of the vaulted great room with fireplace. This space has views and access tot he back porch and is open to the island kitchen with walk-in pantry.
  • A formal dining room has a vaulted ceiling and views in two directions and a home office is located in front and makes a great work-from-home location.
  • The master suite occupies the entire left side of home and two beds are located across the home and divided by a shared bath, a hall and stair to the bonus room.
What's Included

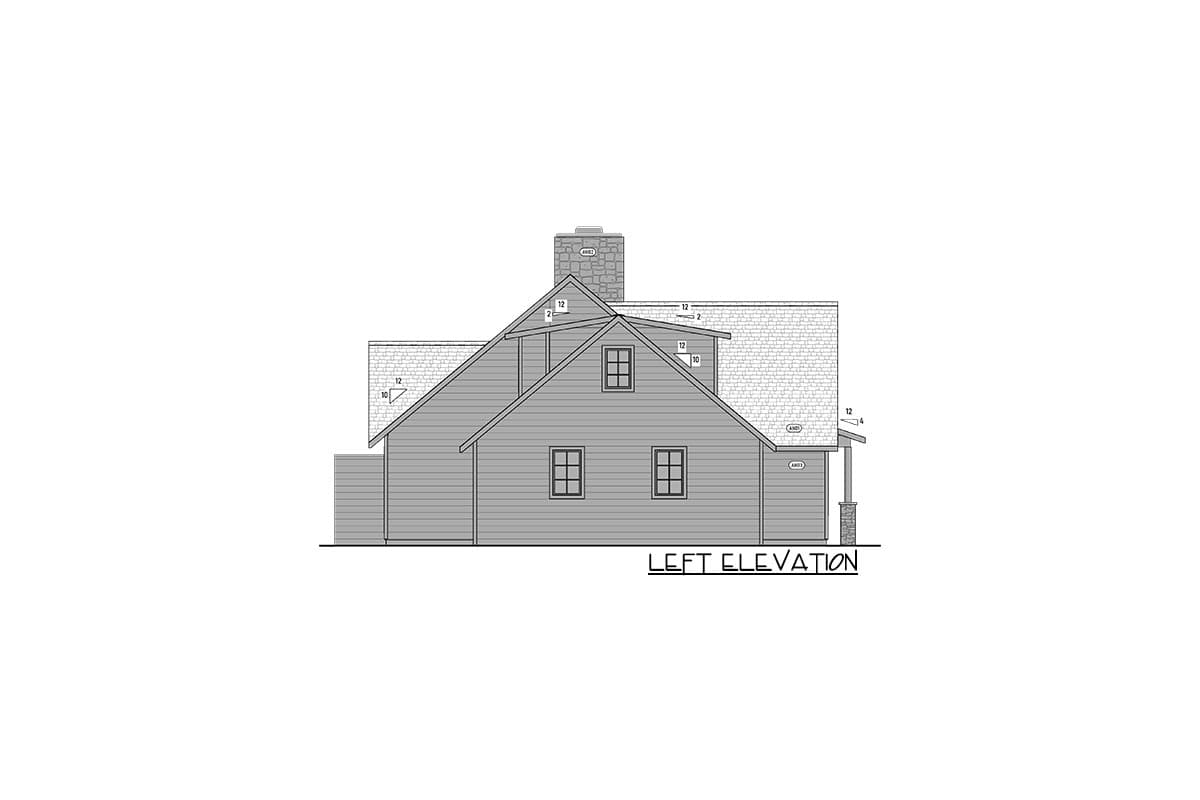

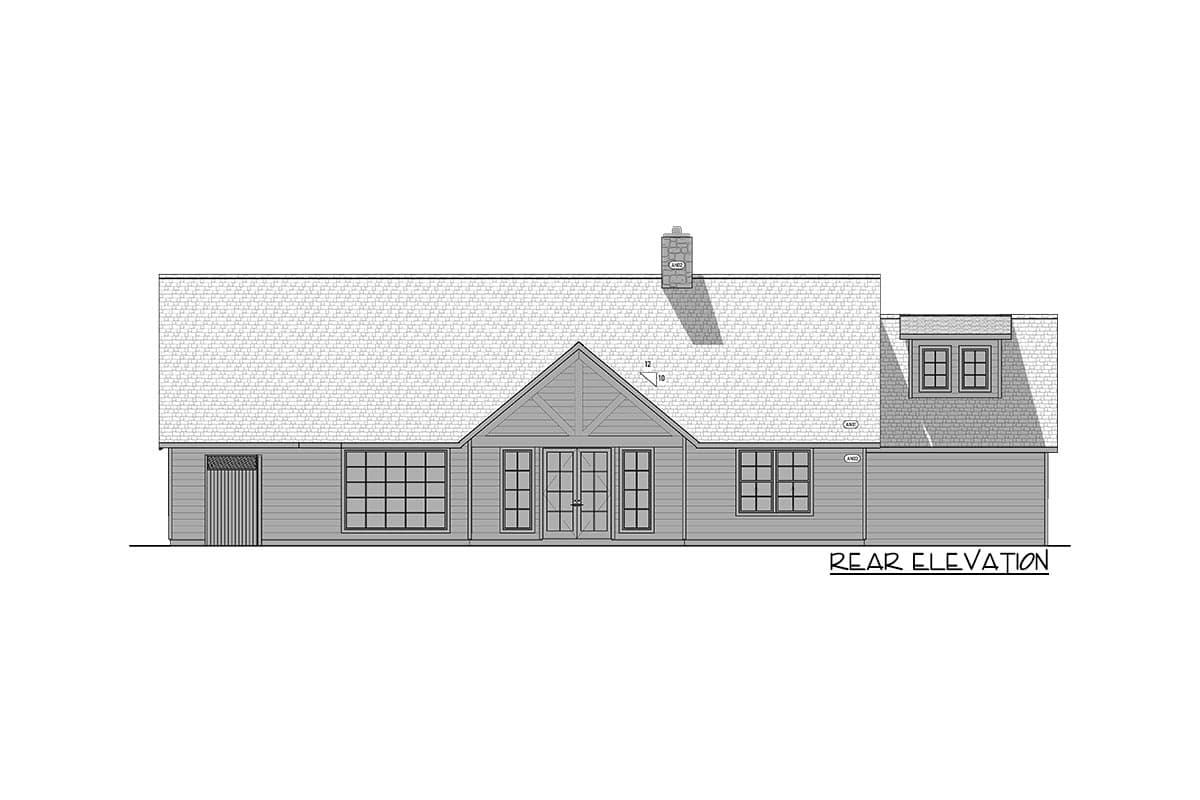

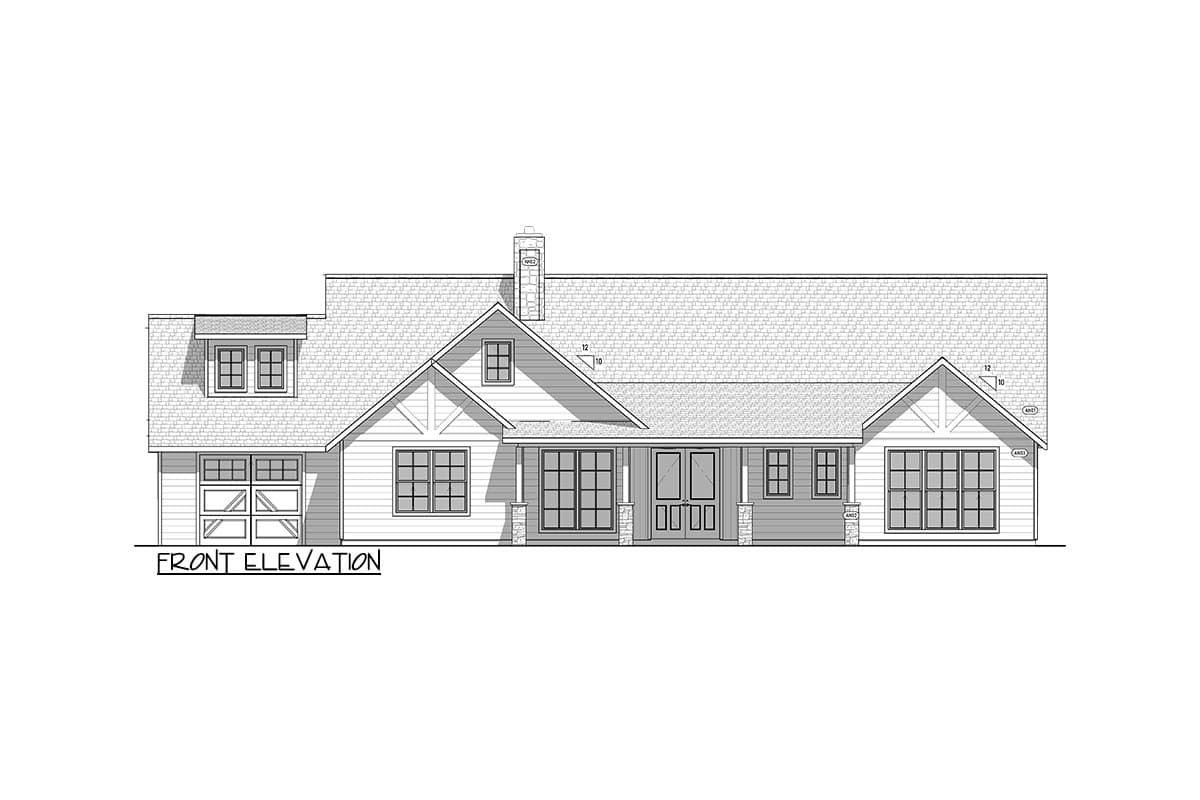

  • Building elevations
  • Detailed floorplan
  • Window and Door schedules
  • Roof plan
  • Electrical Plan
  • Standard and typical details
  • General notes and specifications
  • Foundation Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,025 sq. ft.

1st Floor

2,025 sq. ft.

Bonus

222 sq. ft.

Porch, Rear

180 sq. ft.

Porch, Combined

387 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 1"

Depth

45' 4"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

403 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Bonus

8' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 10

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

New American

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,025 sq. ft.

1st Floor

2,025 sq. ft.

Bonus

222 sq. ft.

Porch, Rear

180 sq. ft.

Porch, Combined

387 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 1"

Depth

45' 4"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

403 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Bonus

8' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 10

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

New American

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Exclusive
