Plan 910010WHD

Exclusive

Exclusive 3-Bed Mountain Craftsman House Plan with Optional Finished Lower Level
Heated S.F.
2,506
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
3
Floor Plan

Plan 910010WHD

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 910010WHD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • Decorative timbers add to the drama of the covered entry of this 3-bed mountain Craftsman house plan, exclusive to Architectural Designs, with an optional finished lower level. A mixture of stone, vertical siding and shingles combine to give this a rugged and refined look.

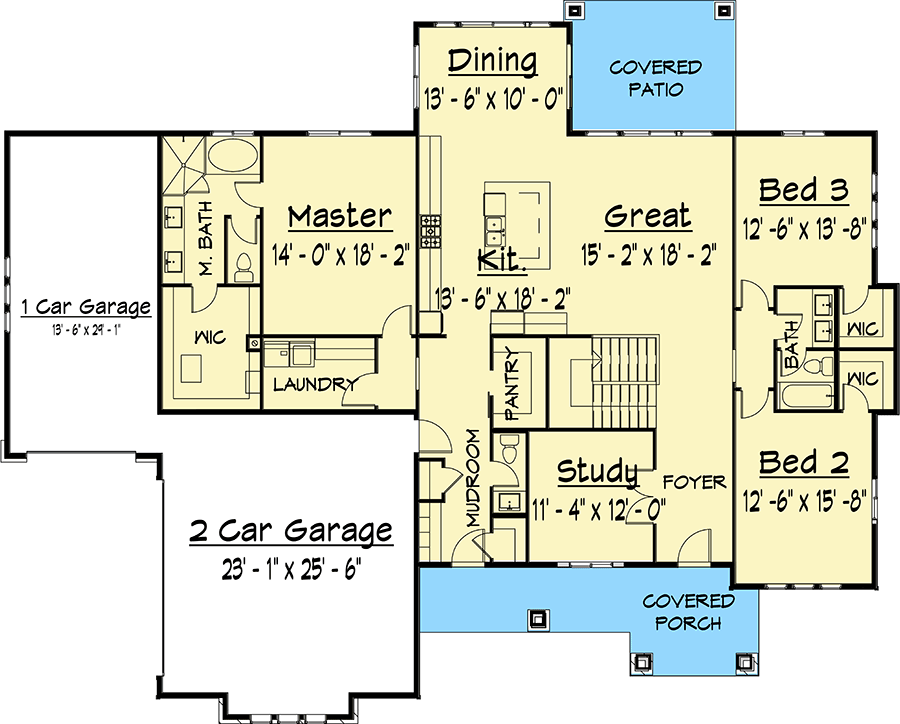

  • From the covered entry porch, guests are welcome to enter through the formal entry, where a private study resides behind french doors, or family and friends may enter through the family foyer, which leads into a mudroom with a powder bath.
  • The open layout is towards the back of the home, which takes advantage of the rearward views, and extends onto a covered patio for outdoor enjoyment.
  • The master suite is nestled next to the 3-car garage, and includes a 5-fixture bath and walk-in closet. Close proximity to the laundry room is an added bonus. Bedrooms 2 and 3, on the opposite side of the home, share the hall bath.

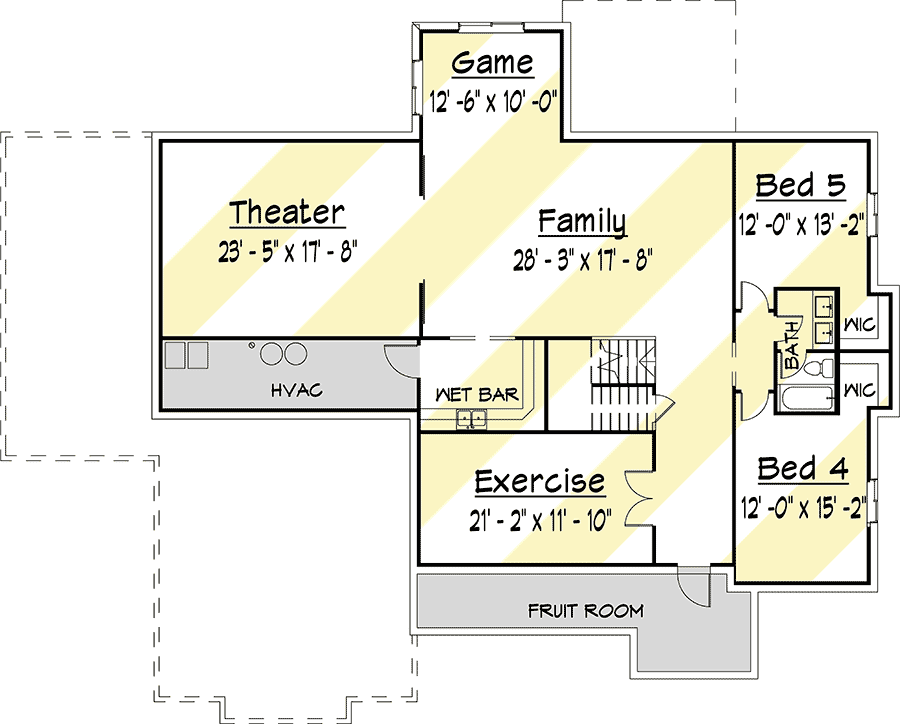

  • Finish the lower level as designed and increase living space by 2,377 sq. ft. Discover a spacious family / game room with a wet bar, exercise room, theater, and two bedrooms sharing a bath.
  • Related Plans: Get an alternate exterior with house plan 910008WHD and 910007WHD.
What's Included
  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,506 sq. ft.

1st Floor

2,506 sq. ft.

Optional Lower Level

2,371 sq. ft.

Porch, Combined

229 sq. ft.

Deck

182 sq. ft.

Storage

187 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

66' 0"

Max Ridge Height

29' 5"

Garage

Type

Attached

Area

1062 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

New American

Northwest

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,506 sq. ft.

1st Floor

2,506 sq. ft.

Optional Lower Level

2,371 sq. ft.

Porch, Combined

229 sq. ft.

Deck

182 sq. ft.

Storage

187 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

66' 0"

Max Ridge Height

29' 5"

Garage

Type

Attached

Area

1062 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

New American

Northwest

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Exclusive
