Plan 77607FB

Exclusive

Exclusive 4 Bed Brick House Plan
Heated S.F.
3,893
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 77607FB

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 77607FB

1-800-854-7852

1-262-521-4596

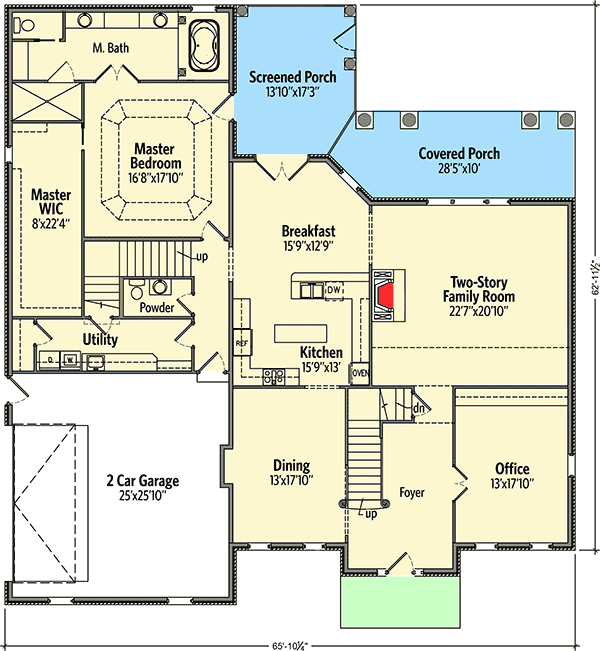

Main Level
floor plan image Main Level

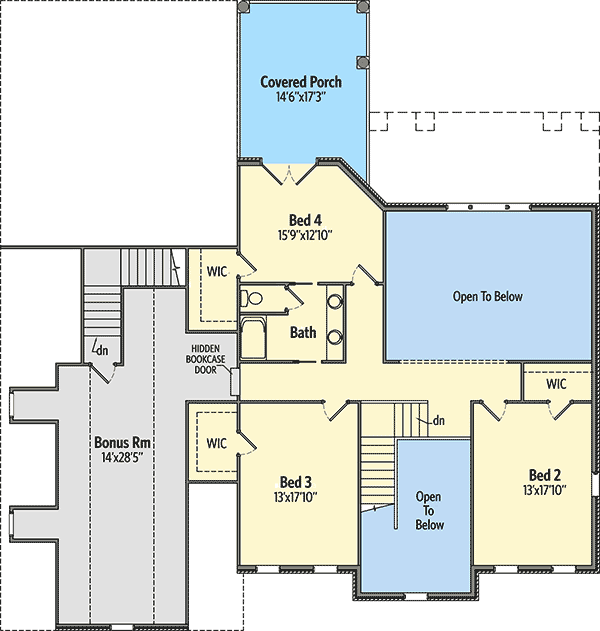

2nd Floor
floor plan image 2nd Floor

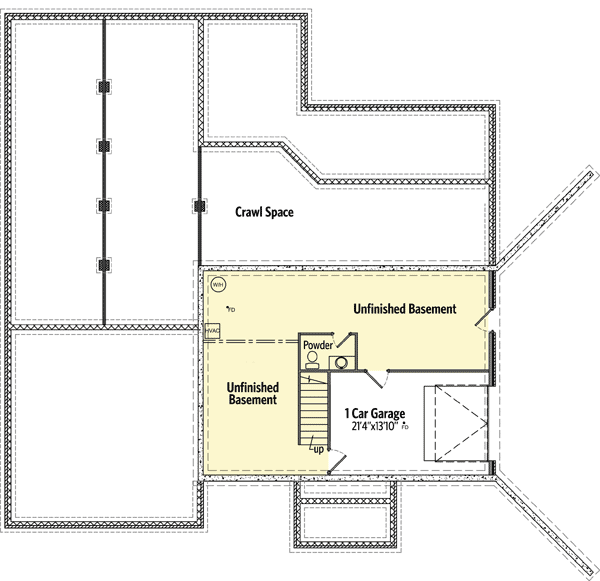

Lower Level
floor plan image Lower Level
Plan Details

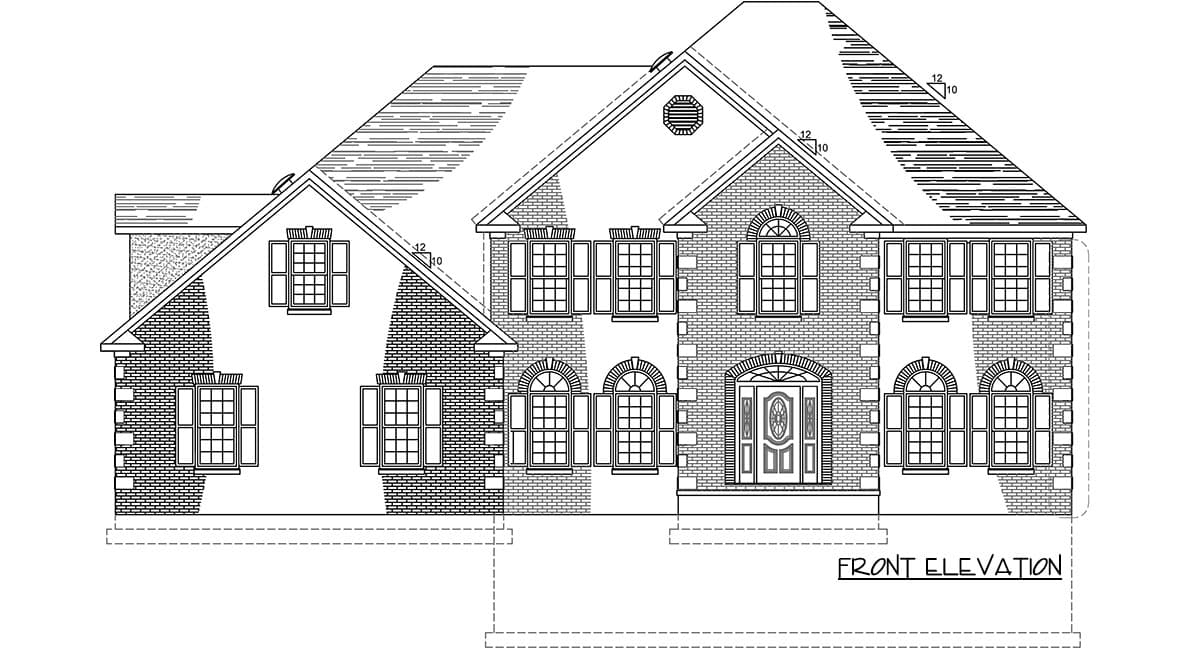

  • Exclusive to Architectural Designs, this stately brick Traditional house plan has beautiful arched windows across the front plus an elegant hip roof.
  • Both the foyer and the family room have ceilings that rise up two stories, giving you a feeling of spaciousness beyond their already large size.
  • You'll have lots of room for a big table in the formal dining room and there's a recessed space for a sideboard.
  • Bookshelves line one wall of the study that's equal in size to the dining room.
  • The kitchen and breakfast nook form one large space, with double doors to take you out to the screened porch.
  • Luxury is the keyword in the deluxe master suite that has a double tray ceiling and an enormous walk-in closet.
  • Every bedroom on the second floor gets a walk-in closet with a hall bathroom to serve them all.
  • Open railing in the hallway gives you views of the foyer and family room below.
  • A delightful hidden bookcase door in the hall opens to the huge bonus room that has a separate staircase down to the main floor.
  • The roof has a 10:12 main pitch and a 7:12 secondary pitch.
What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,893 sq. ft.

1st Floor

2,769 sq. ft.

2nd Floor

1,124 sq. ft.

Bonus

509 sq. ft.

Porch, Combined

763 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 10"

Depth

62' 11"

Max Ridge Height

35' 3"

Garage

Type

Attached

Area

646 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Family Room

Second Story

0' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

Library/Study

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery

Sloping Lot
