Plan 83904JW
Exclusive Acadian House Plan with Bonus Room
Heated S.F.
2,420
Beds
3
Baths
2
Stories
1
Cars
2
Photos

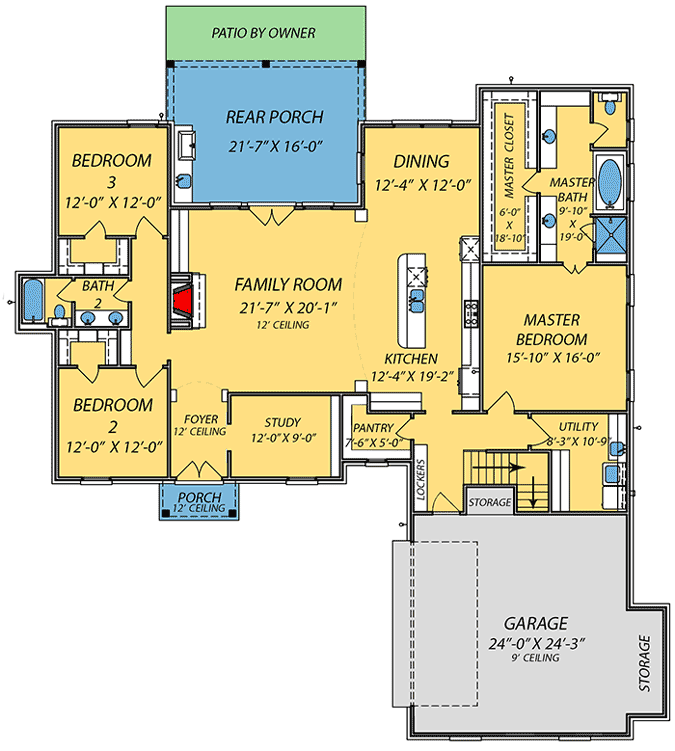

Floor Plan

Plan 83904JW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 83904JW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • With its striking good looks and functional layout, this Acadian house plan (exclusive to Architectural Designs) makes a terrific family home.
  • While the standard ceiling height is 10', the foyer and great room rise to 12'.
  • The tall ceilings and open floor plan work together to make the home feel larger than it is.

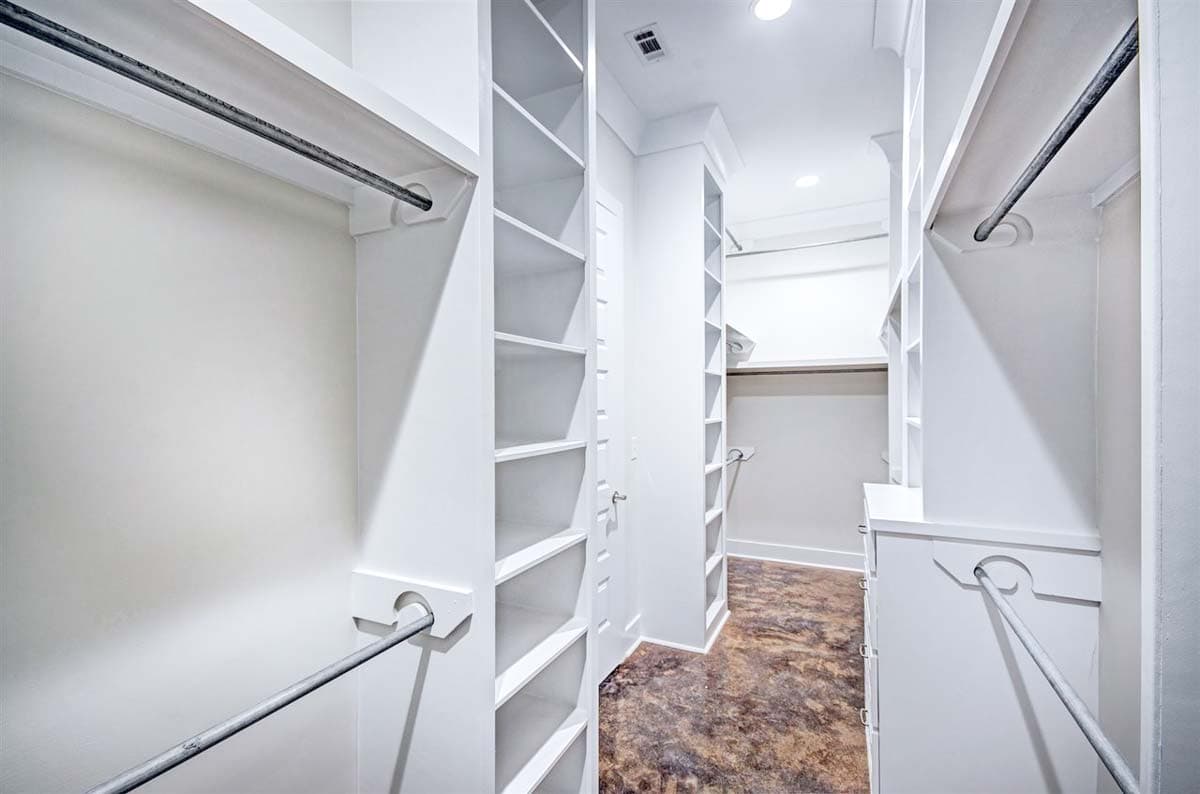

  • Amenities include built-ins and a super-sized master walk-in closet plus a walk-in pantry.
  • Built-in lockers off the gaage entry help to keep your family organized.
  • The split bedroom layout serves to give you a quiet master retreat set off by itself.

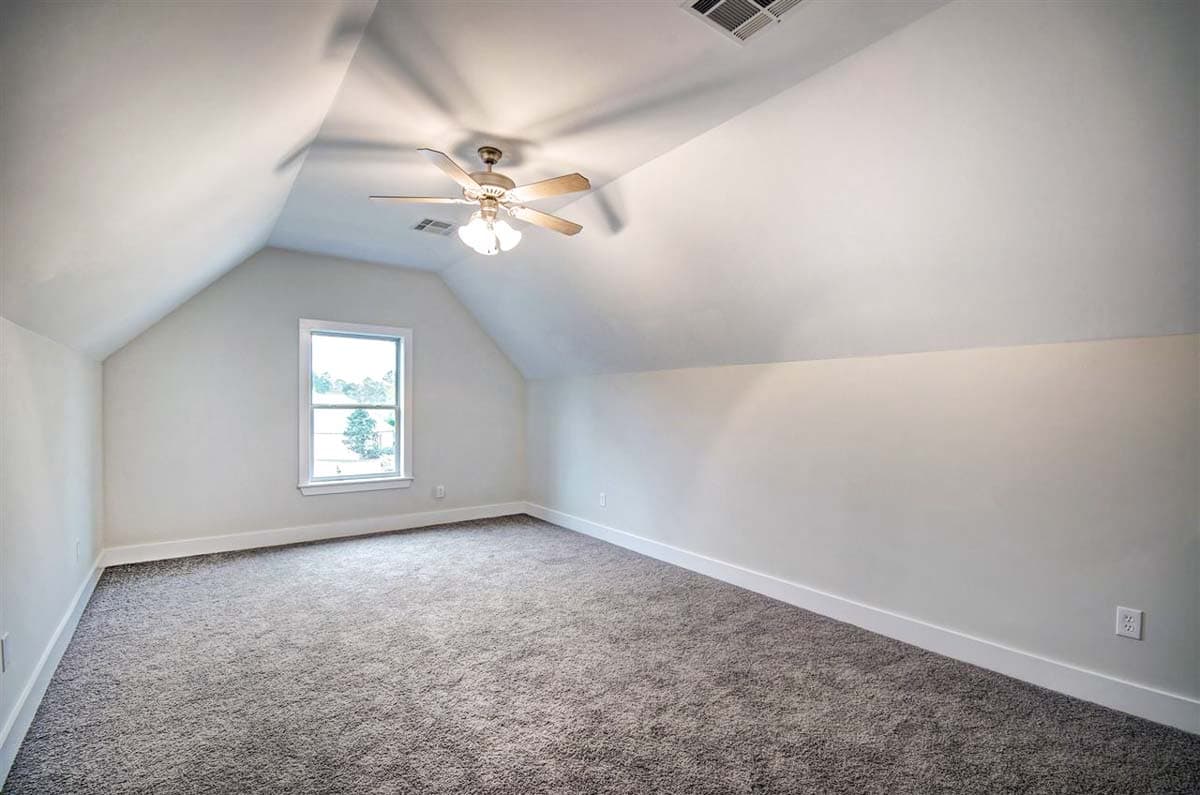

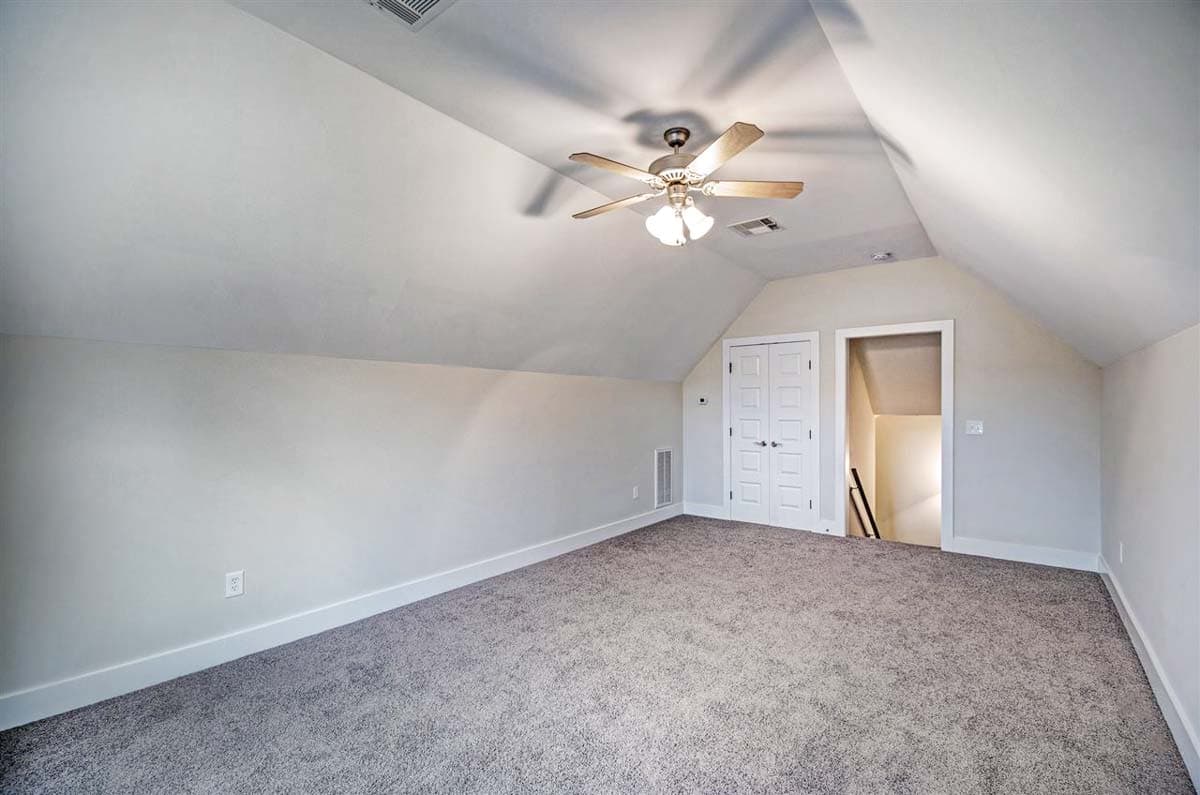

  • Finish the second floor bonus room to add an extra 316 square feet of living space.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 83904JW Comes to Life in Tennessee

House Plan 83904JW Comes to Life in Tennessee

66

Photos

What's Included

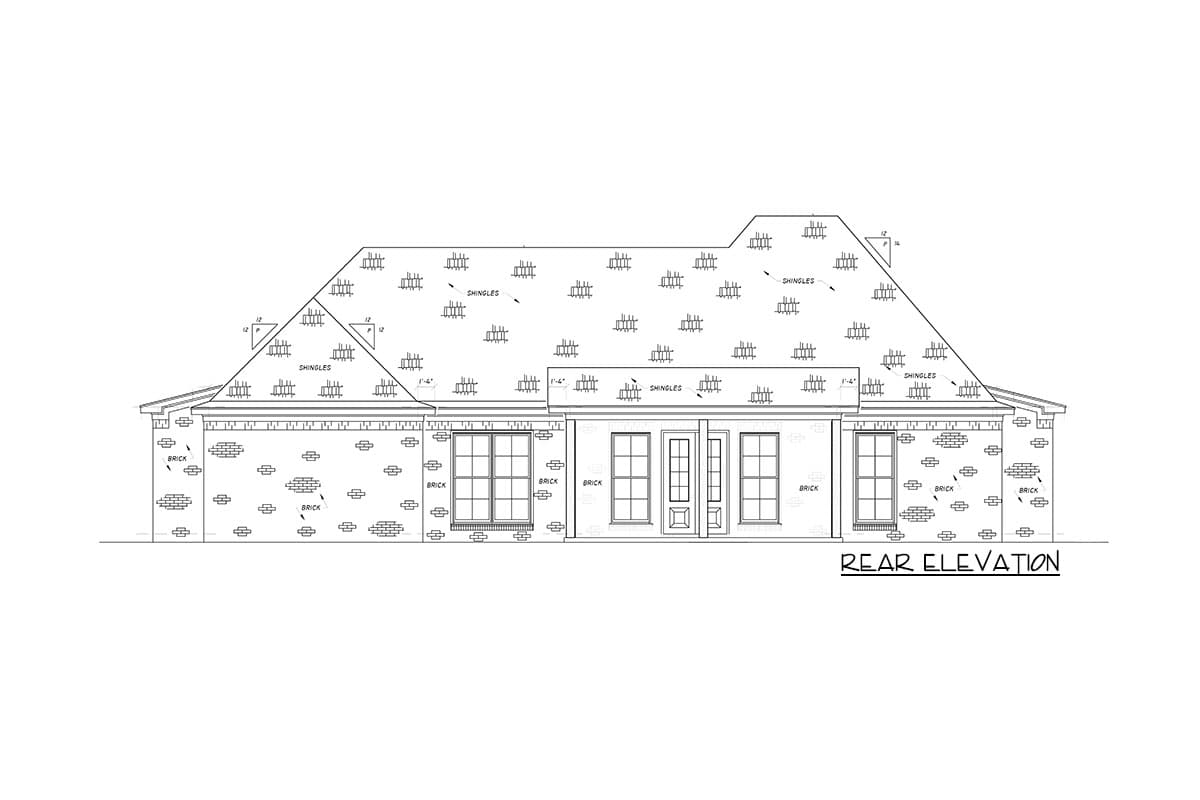

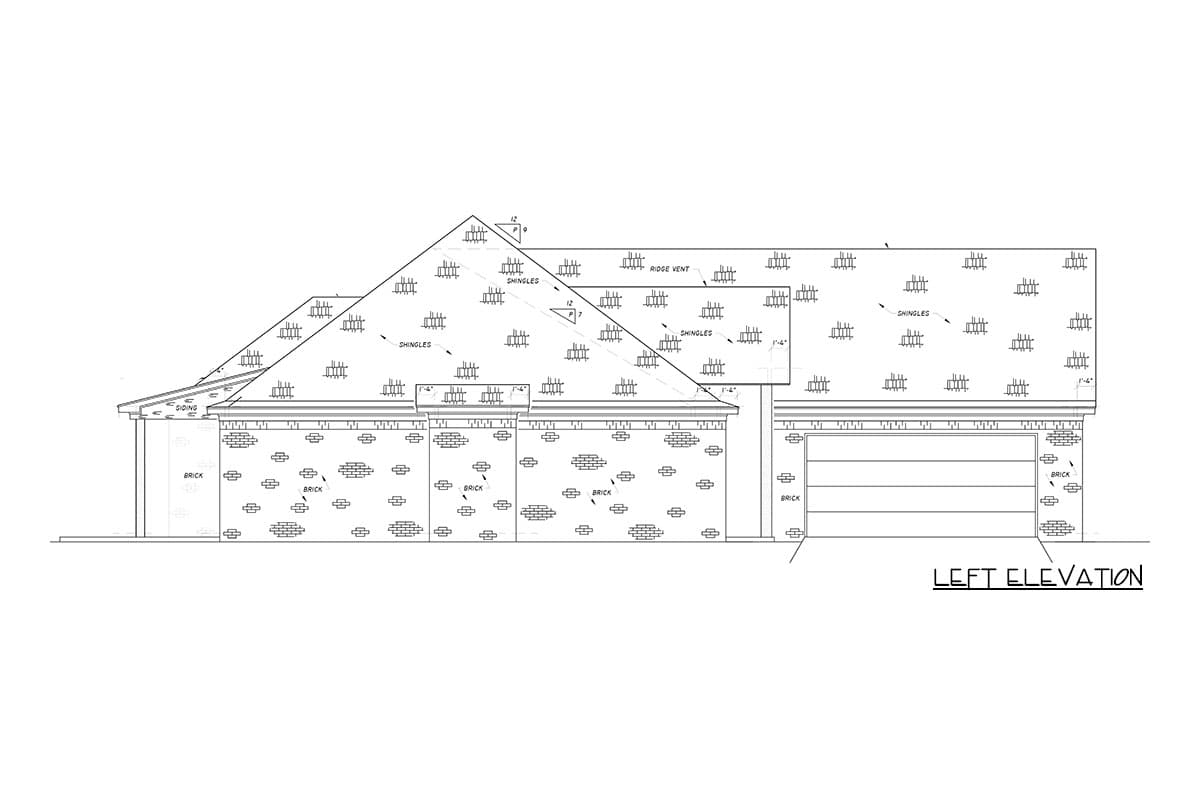

  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,420 sq. ft.

1st Floor

2,420 sq. ft.

Bonus

316 sq. ft.

Porch, Combined

384 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 0"

Depth

74' 6"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

652 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Family Room

10' 0''

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections
