Plan 521004TTL

Exclusive

Exclusive Cottage House Plan with Flex Room and Rear-access Garage
Heated S.F.
1,759
Beds
2 - 4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 521004TTL

Main Level
slide image 0

Plan 521004TTL

1-800-854-7852

1-262-521-4596

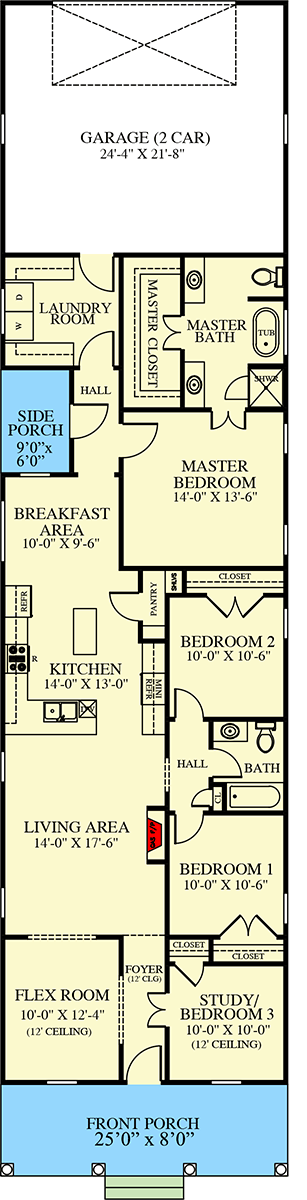

Main Level
floor plan image Main Level
Plan Details
  • Just 25' wide, exclusive cottage house plan is ideally suited for your narrow or in-fill lot. Being narrow doesn't mean you have to sacrifice a garage. There is a 2-car garage in back, perfect for alley access.

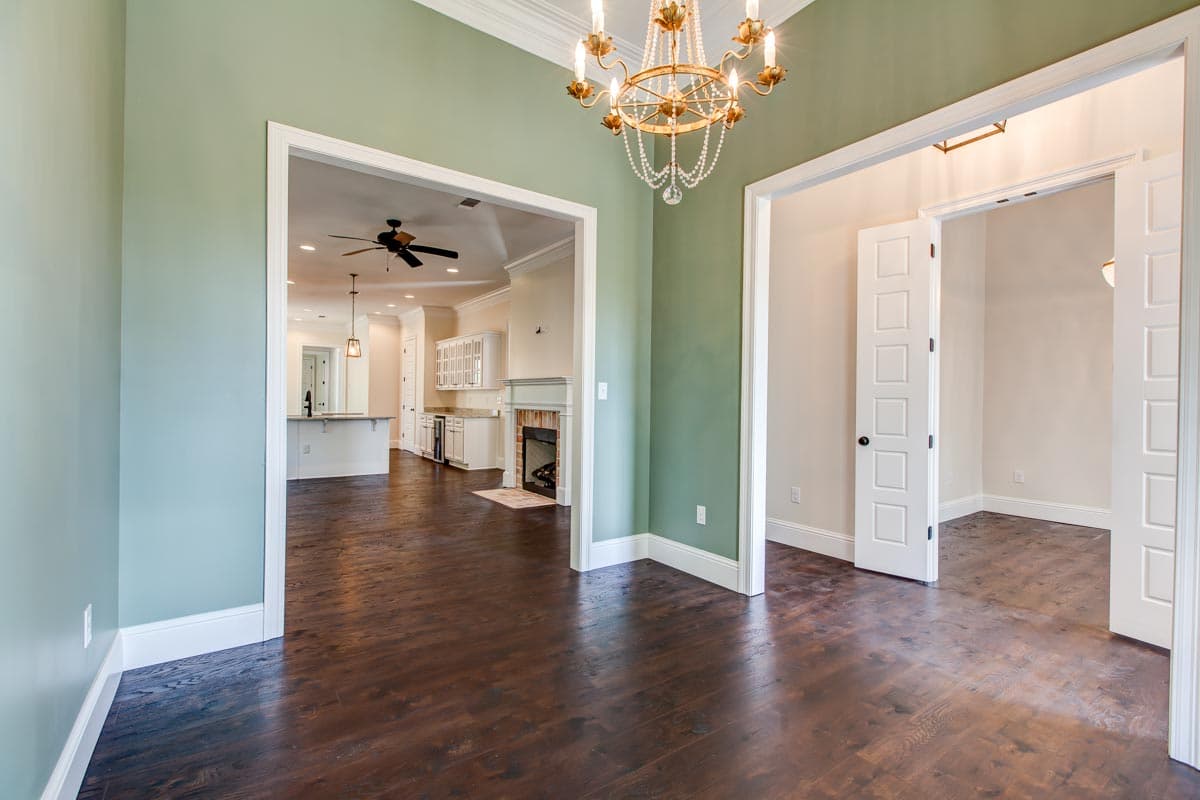

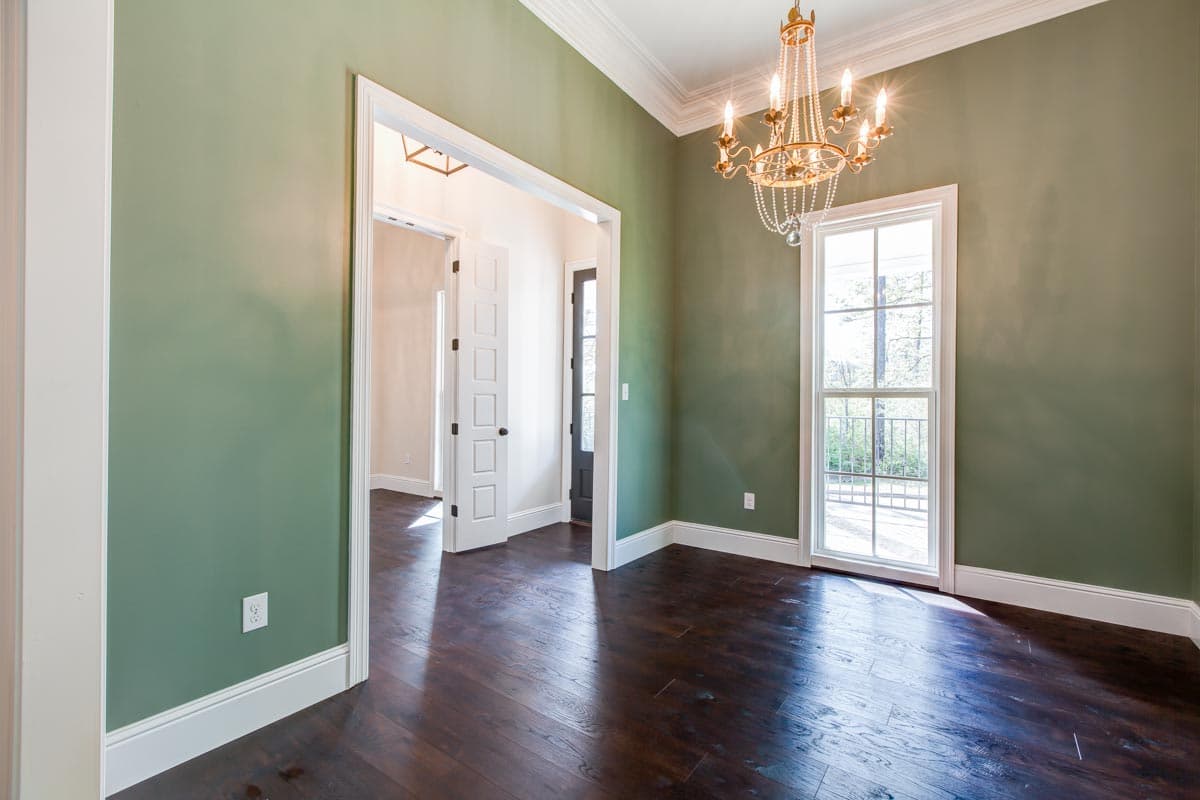

  • The foyer opens to the flex room on the left and to the living area ahead. That space is open to the kitchen and the breakfast area beyond. A peninsula in the kitchen gives you cook space as well as counter seating.
  • All the bedrooms are lined up on the right side of the home. The front bedroom is well-suited for use as a study or work-from-home office.

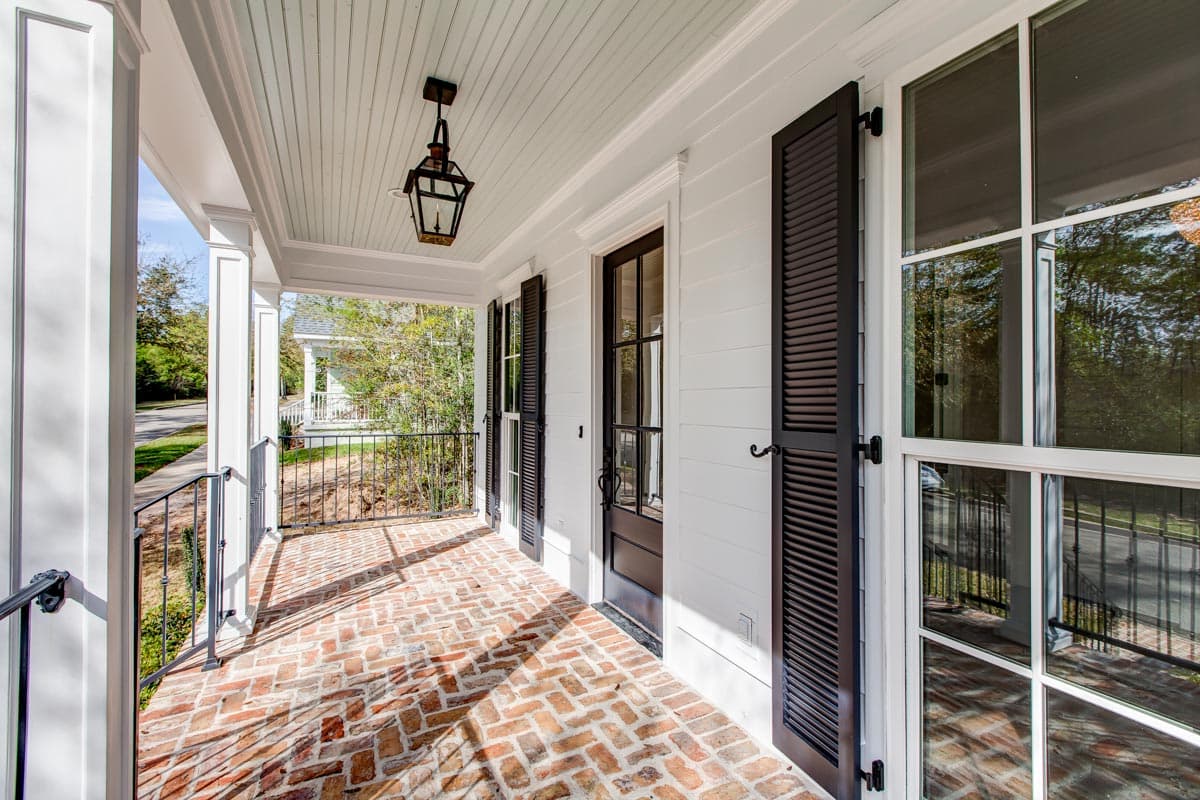

  • A side porch gives you a nice spot to enjoy a cup of coffee or some fresh air.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plan
  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,759 sq. ft.

1st Floor

1,759 sq. ft.

Porch, Combined

254 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

25' 0"

Depth

102' 6"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

550 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

12' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Southern

Traditional

Special Features

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Exclusive
