Plan 790077GLV

Exclusive

Exclusive Country House Plan with Main-Floor Master
Heated S.F.
1,791
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 790077GLV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 790077GLV

1-800-854-7852

1-262-521-4596

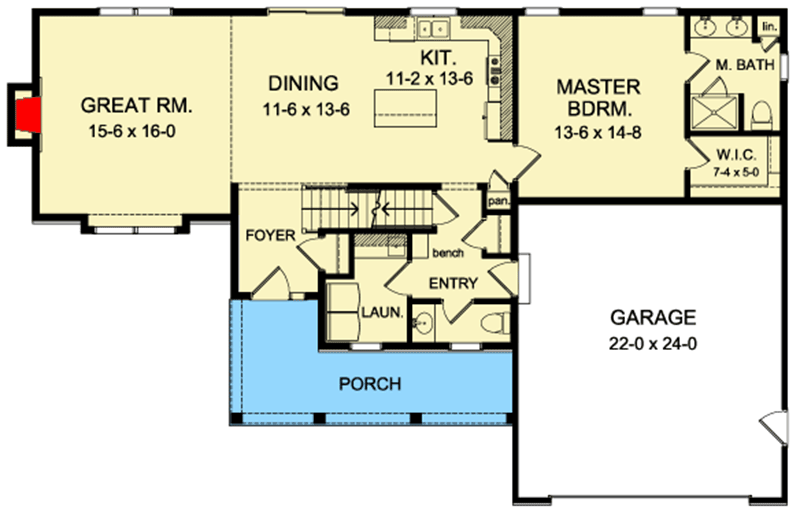

Main Level
floor plan image Main Level

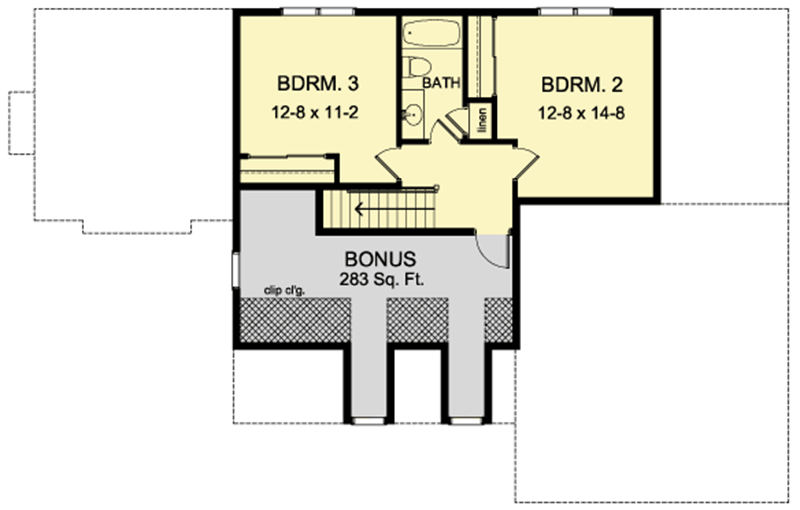

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This charming and traditional, country house plan, which is exclusive to Architectural Designs, presents gabled rooflines, two dormers, and a welcoming front porch.
  • Upon entering, discover a coat closet in the foyer, while the heart of the home is straight ahead. The great room, dining area, and kitchen are all open to one another, which brings the family together throughout everyday activities.
  • The master bedroom is nestled behind the 2-car garage, and includes a walk-in closet and 4-fixture bath.
  • Bedrooms 2 and 3 are located on the second level, and share a full bath. A bonus room upstairs could serve as storage, or a play room.
  • Entry from the garage leads to a mudroom with a built-in bench, coat closet, and powder bath.
What's Included
  • Cover sheet with notes

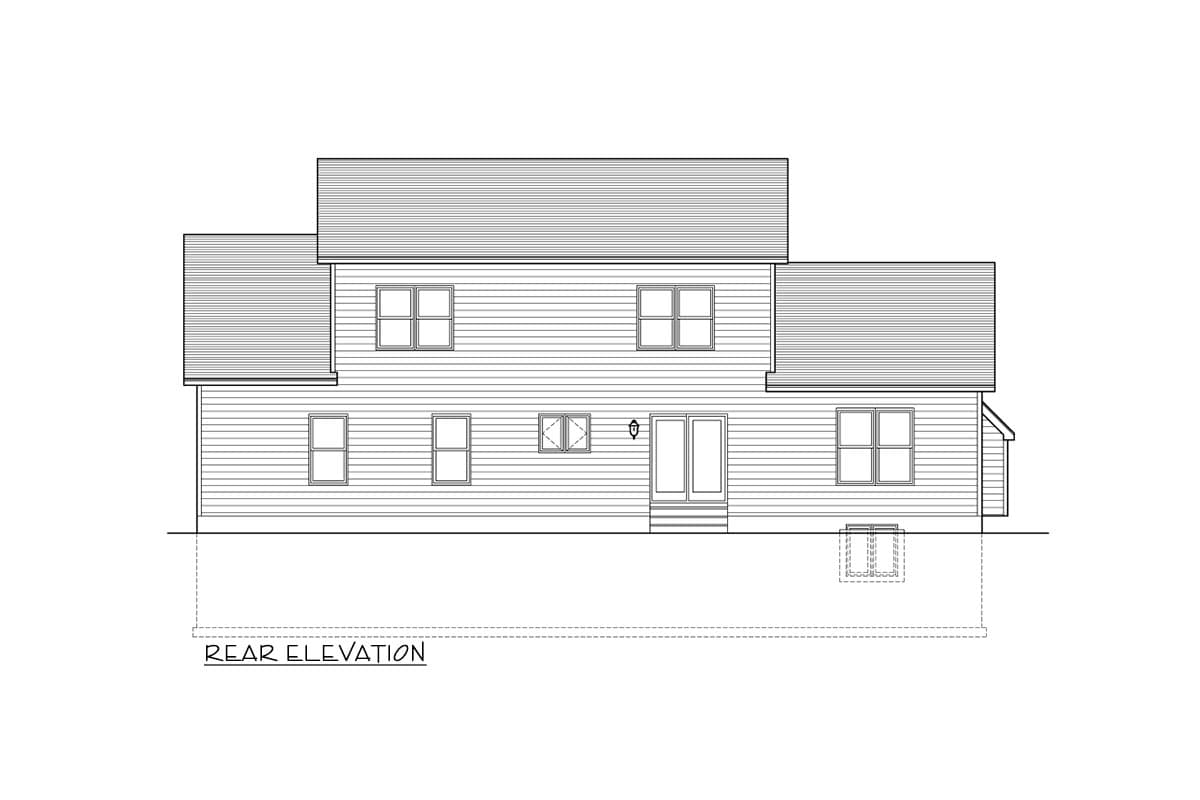

  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,791 sq. ft.

1st Floor

1,220 sq. ft.

2nd Floor

571 sq. ft.

Basement Unfinished

1,088 sq. ft.

Bonus

283 sq. ft.

Porch, Combined

164 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 8"

Depth

39' 8"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Architectural Style

Country

Ranch

Special Features

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Playroom

Plan Collections

Exclusive
