Plan 500080VV

Exclusive

Exclusive Craftsman Farmhouse Plan with Home Office and Flexible Upstairs Loft

Heated S.F.

2,677

Beds

3 - 4

Baths

2.5

Stories

2

Cars

2

Floor Plan

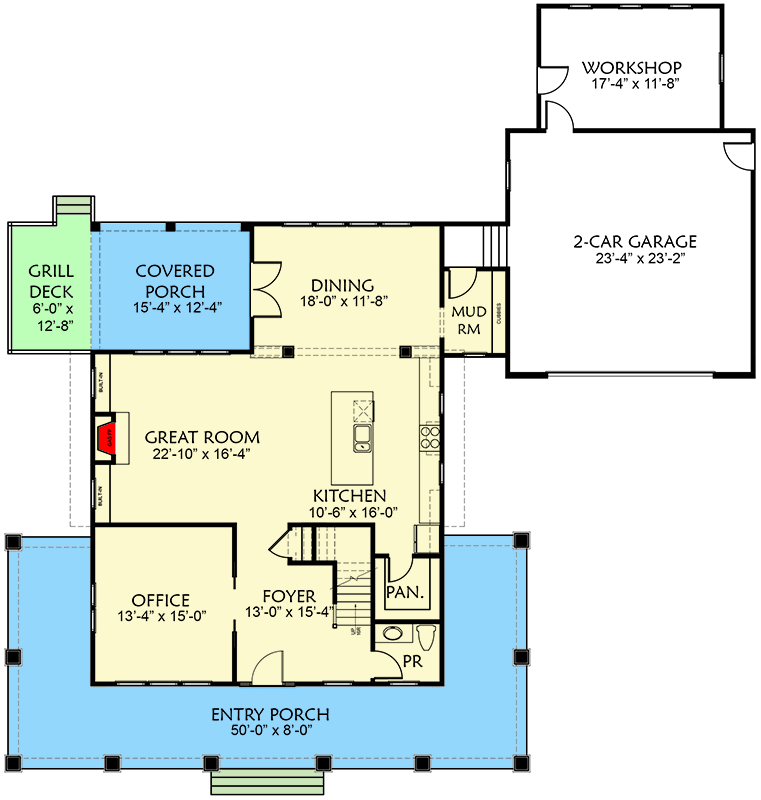

Main Level

floor plan image Main Level

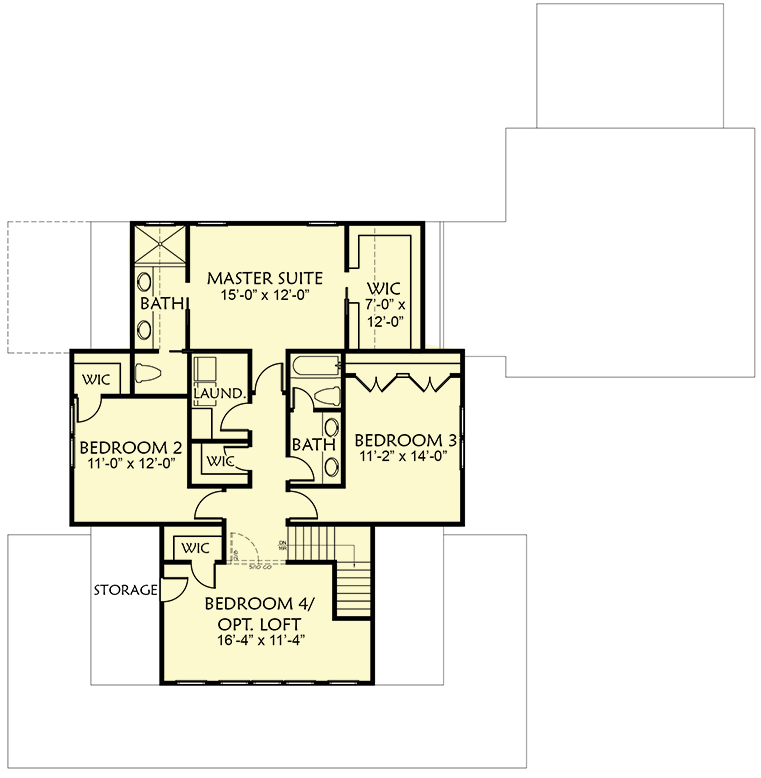

2nd Floor

floor plan image 2nd Floor

Plan Details

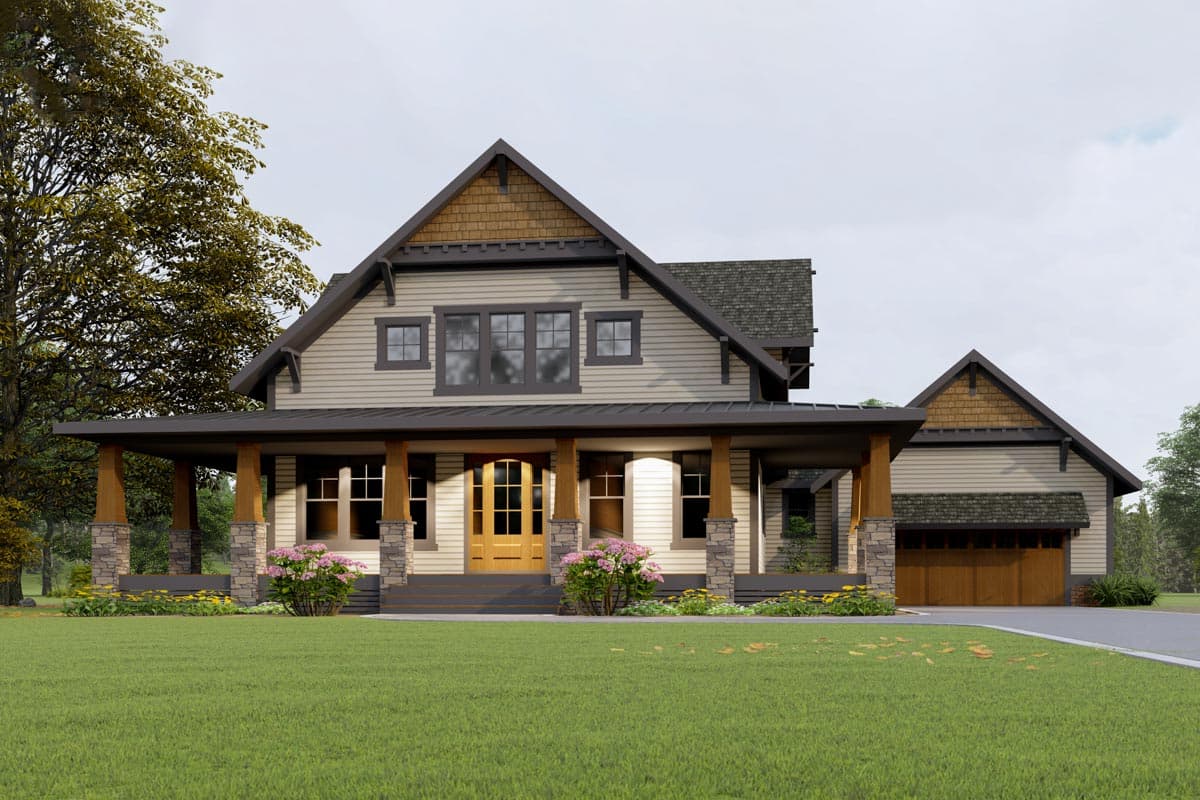

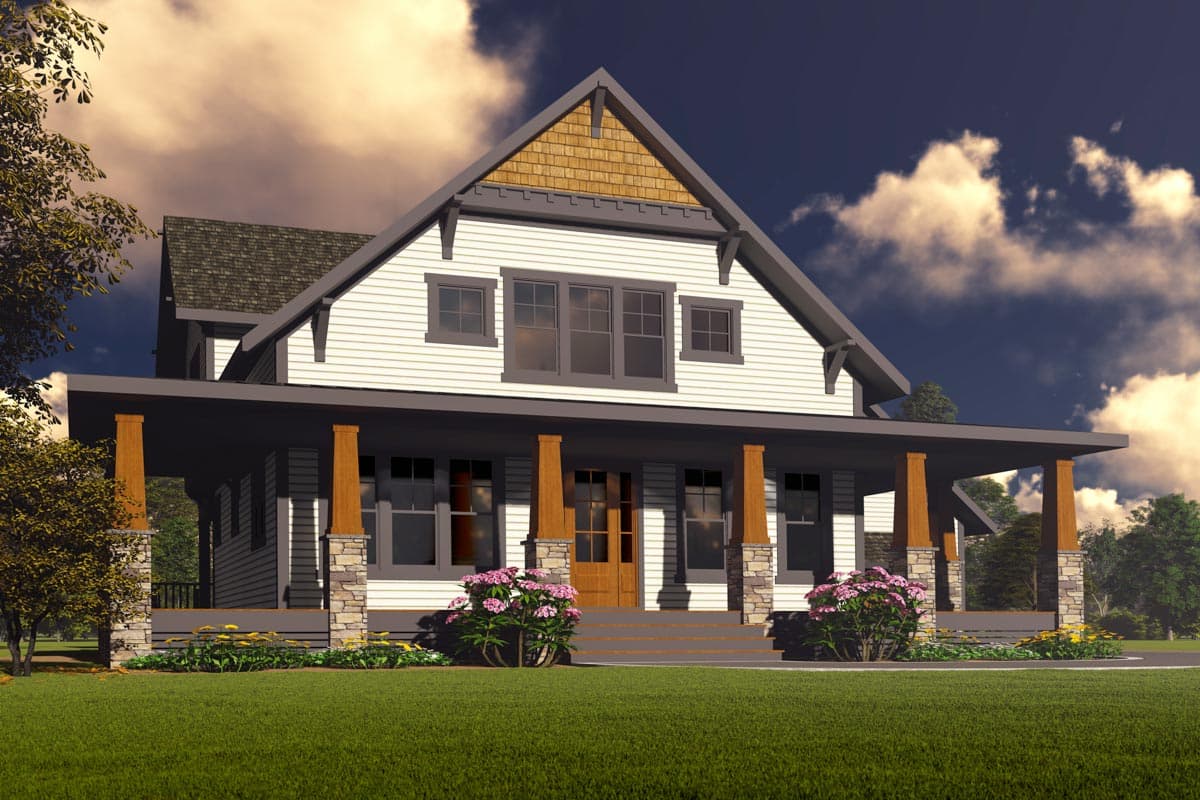

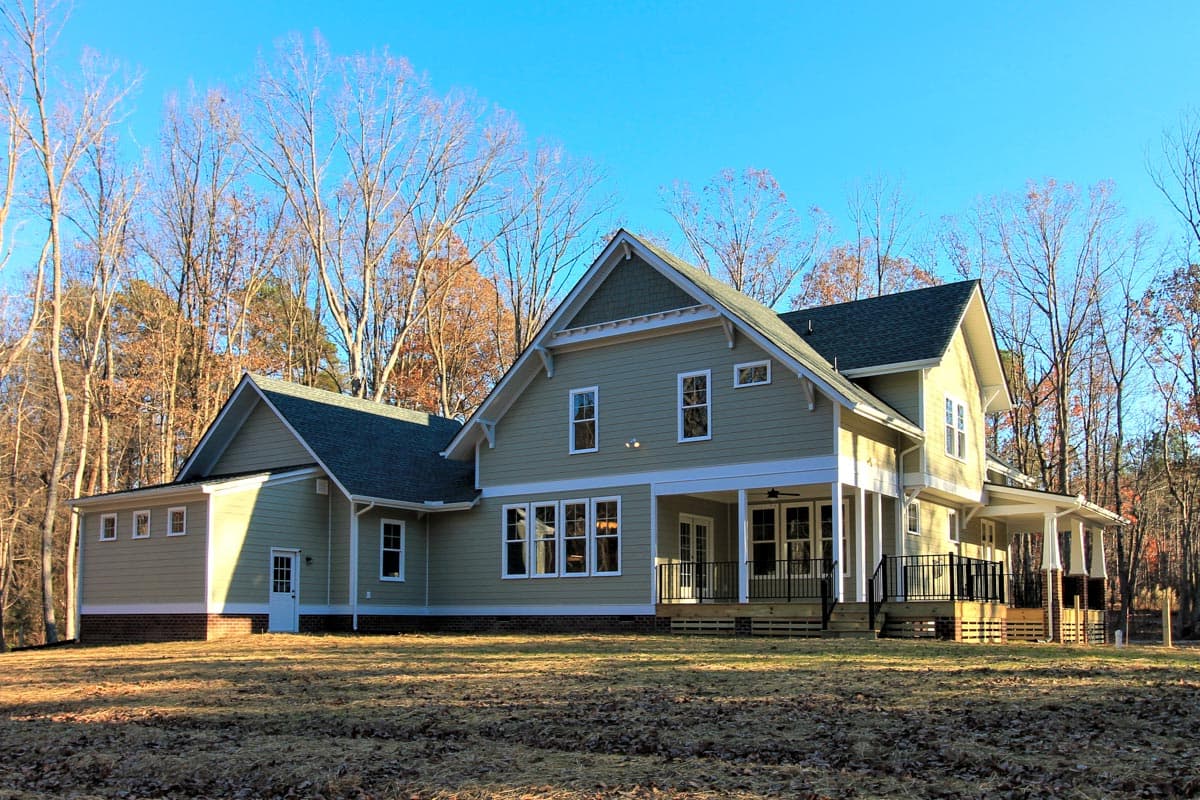

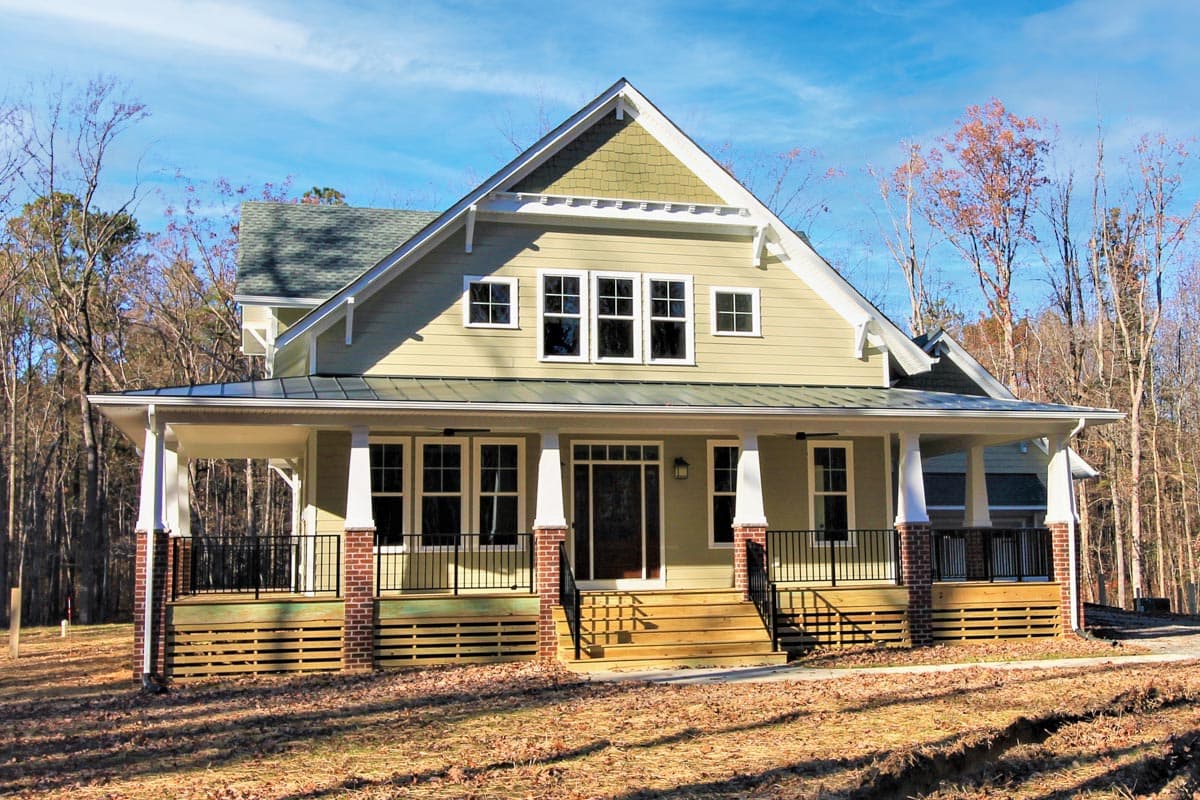

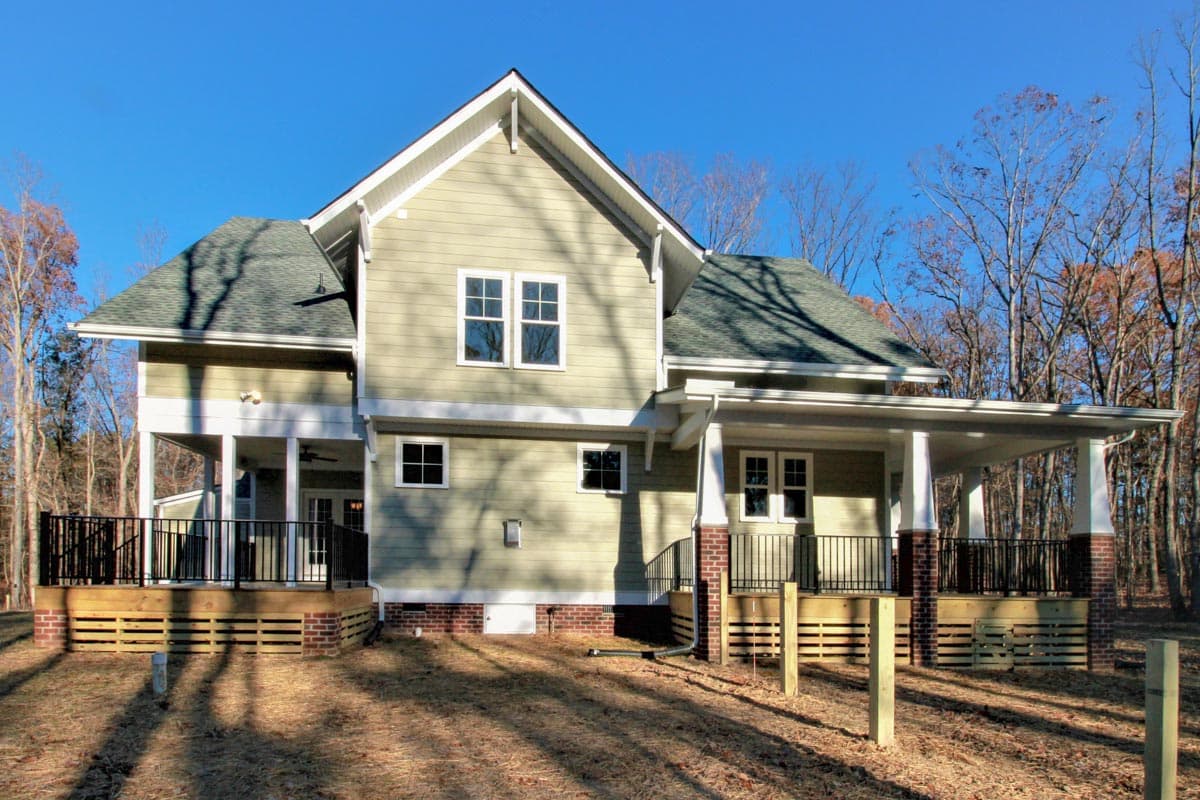

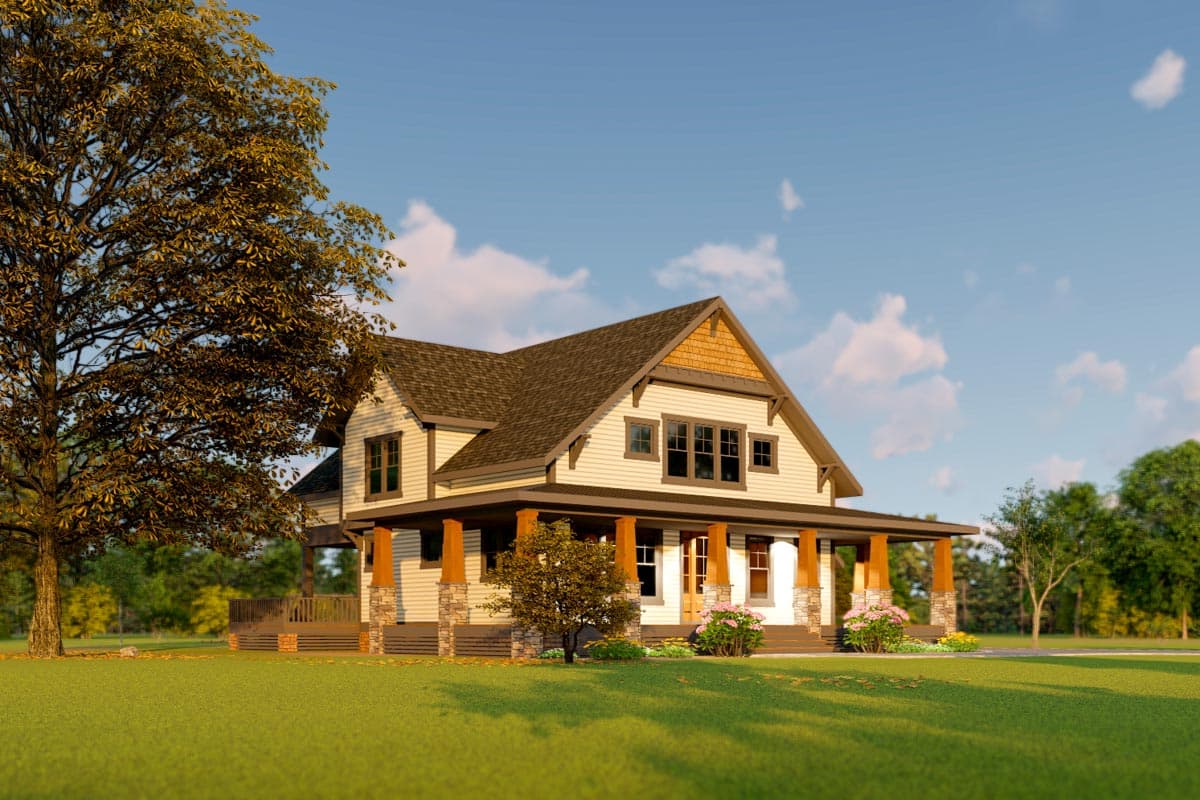

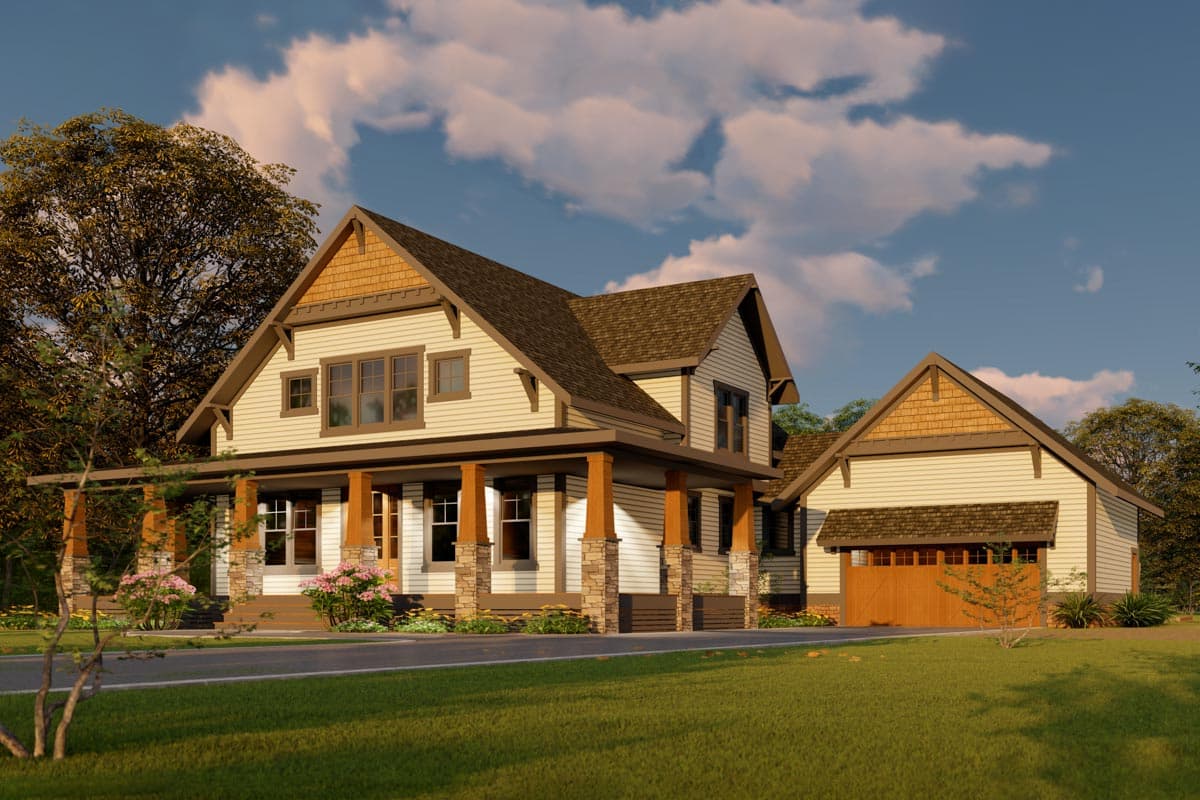

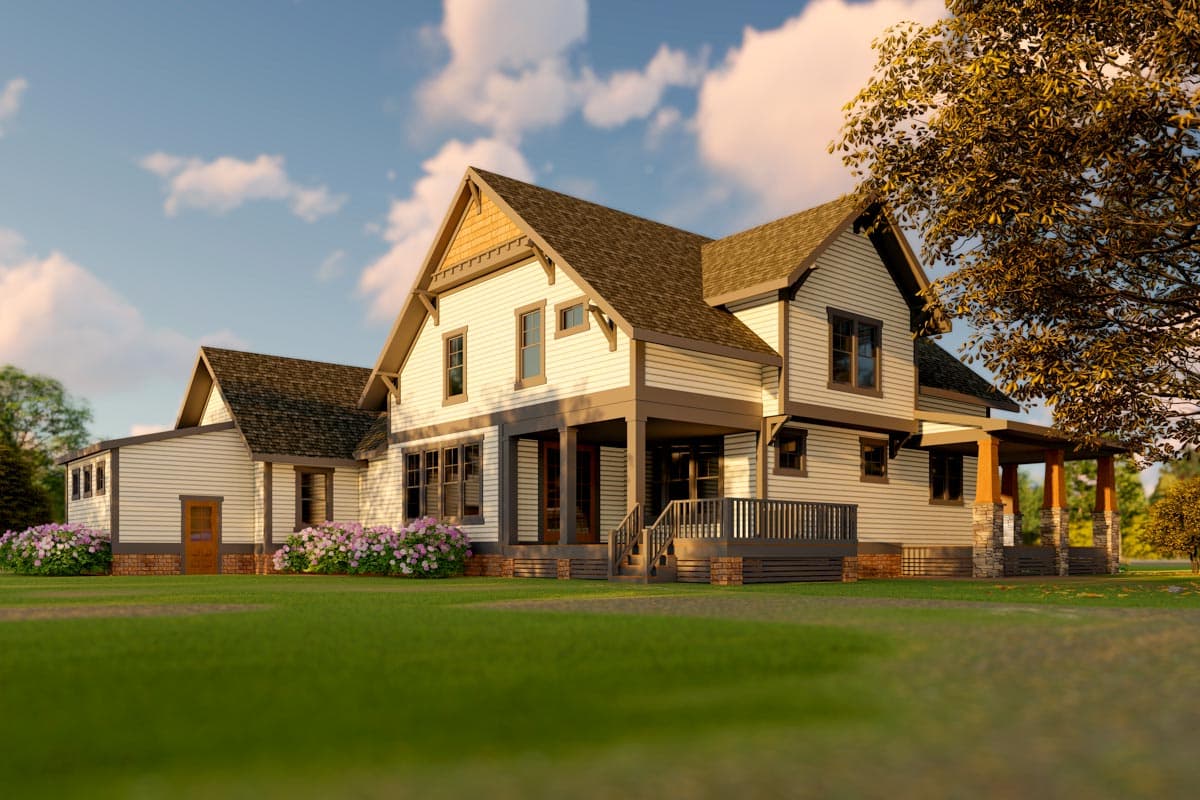

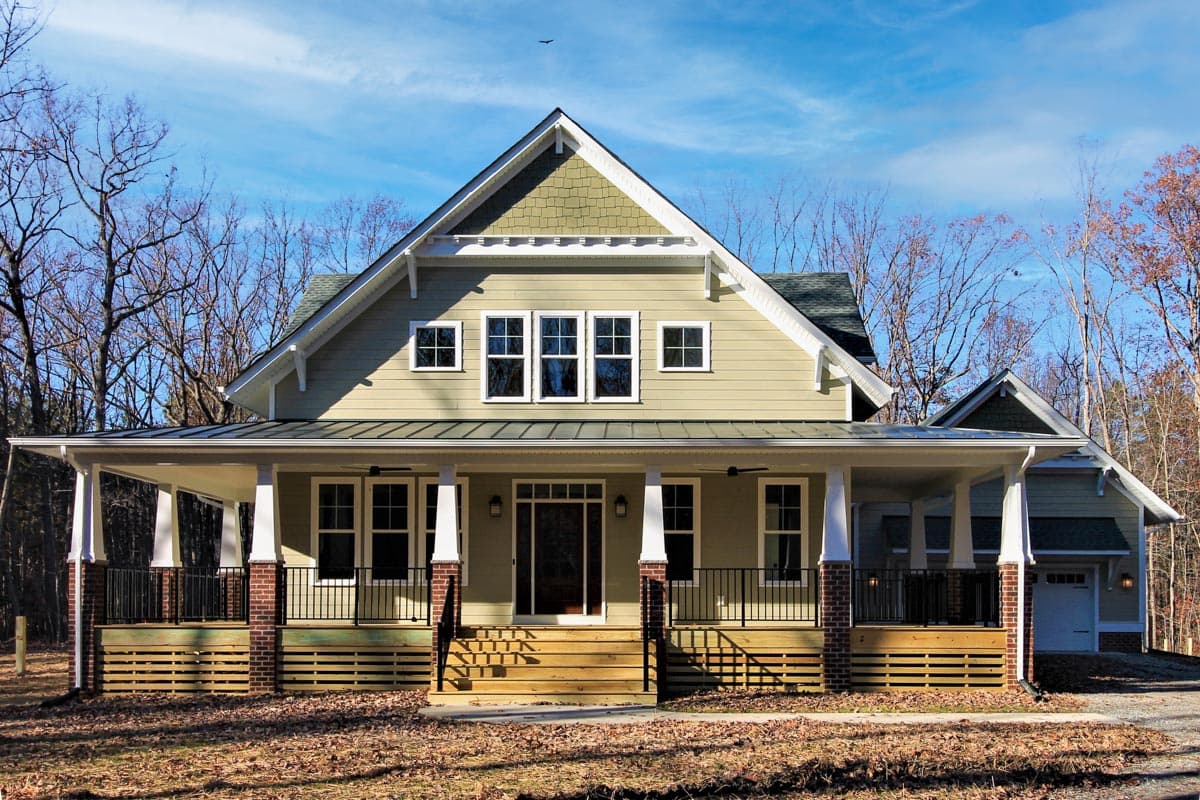

This exclusive Craftsman farmhouse house plan comes with an 8'-deep wrap-around porch in front, a porch connected to a grilling deck in back and a garage with a workshop in back.

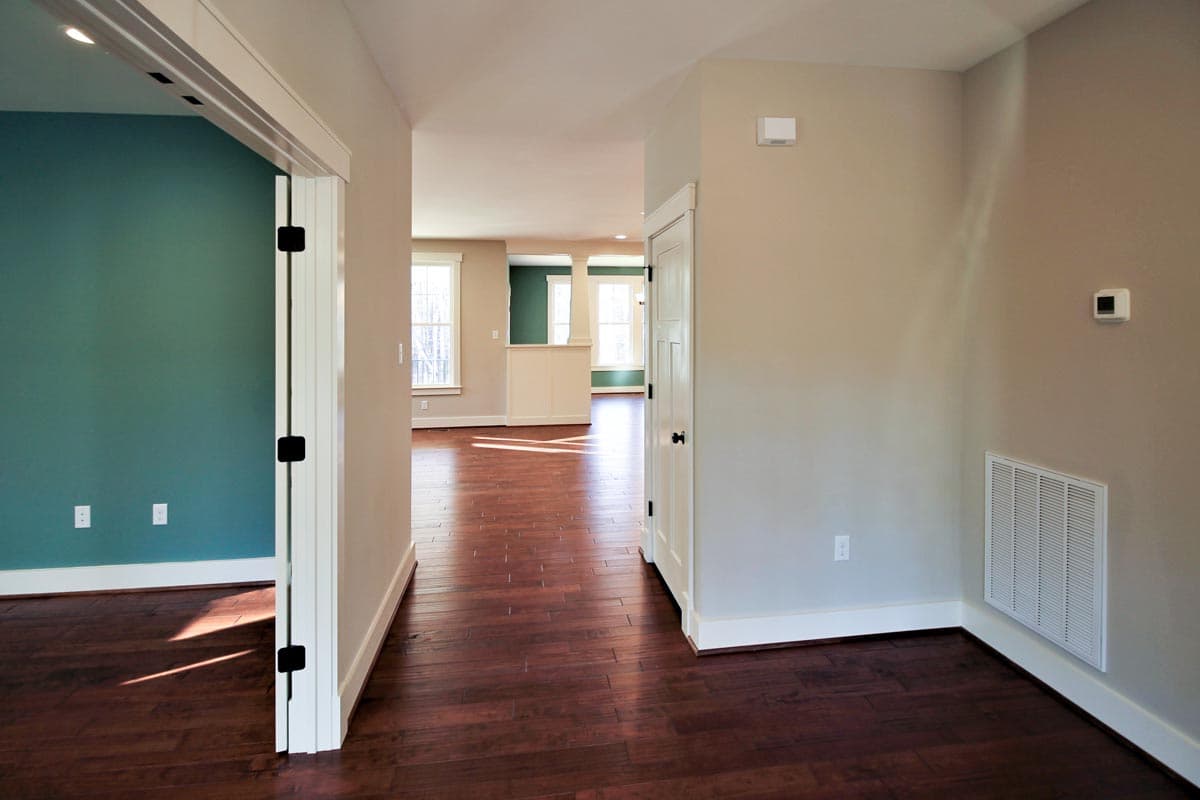

Pocket doors to the left of the foyer conceal your home office.

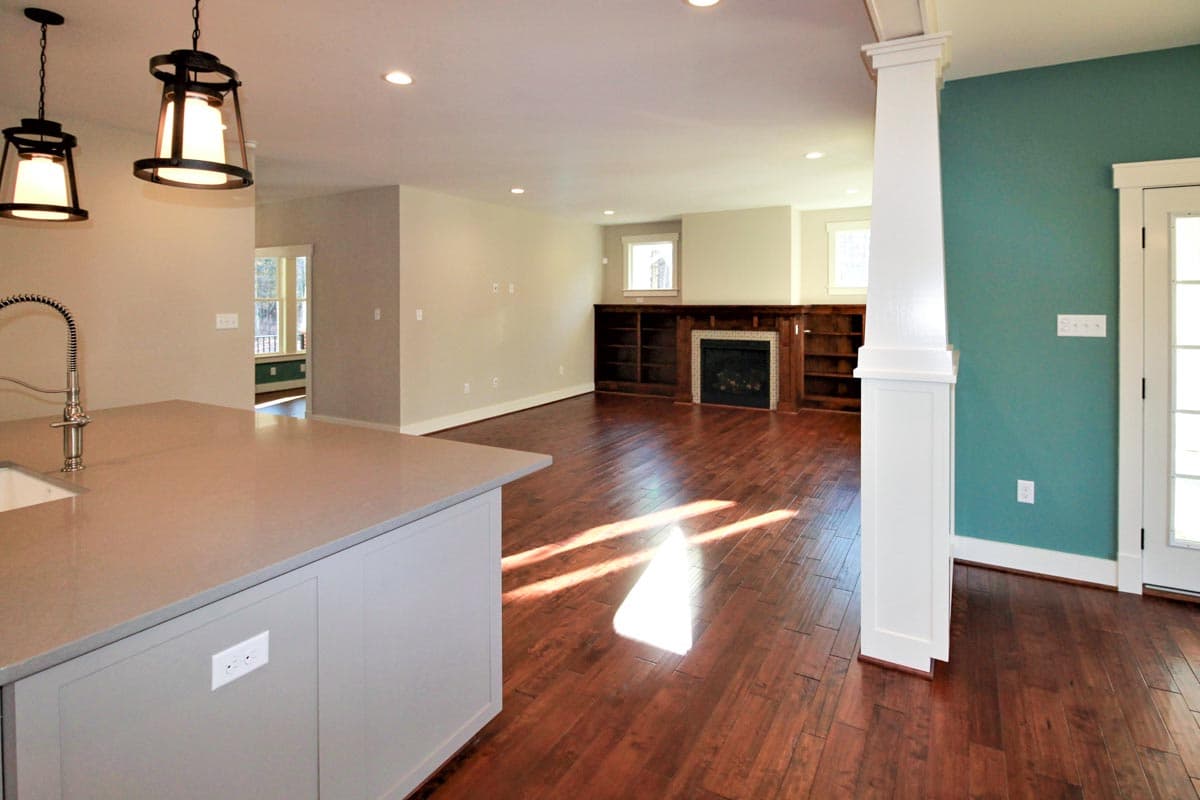

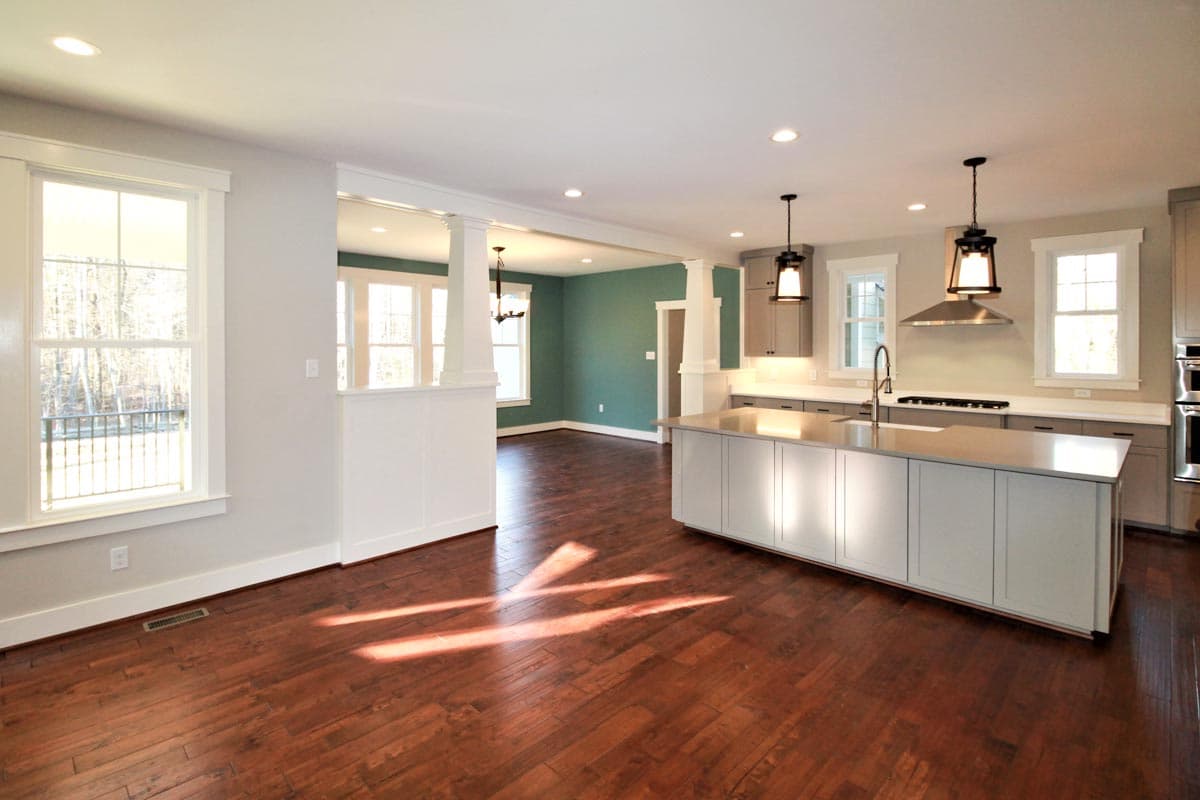

The great room fireplace can be seen fun the kitchen and dining room.
Extras include built-ins that flank the fireplace and a walk-in pantry off the kitchen.
On the second floor you get three bedrooms, a laundry room and a loft that can be used as a fourth bedroom if desired.
A mudroom off the garage entry prevents clutter from spreading through the home. Note the roomy workshop with outdoor access and windows on the back wall.
Related Plans: Get alternate versions with house plans 500067VV (2,984 sq. ft.) and 500050VV (3,518 sq. ft.). Remove the garage with house plan 500015VV

What's Included

Cover sheet with notes
Foundation
Floor plans

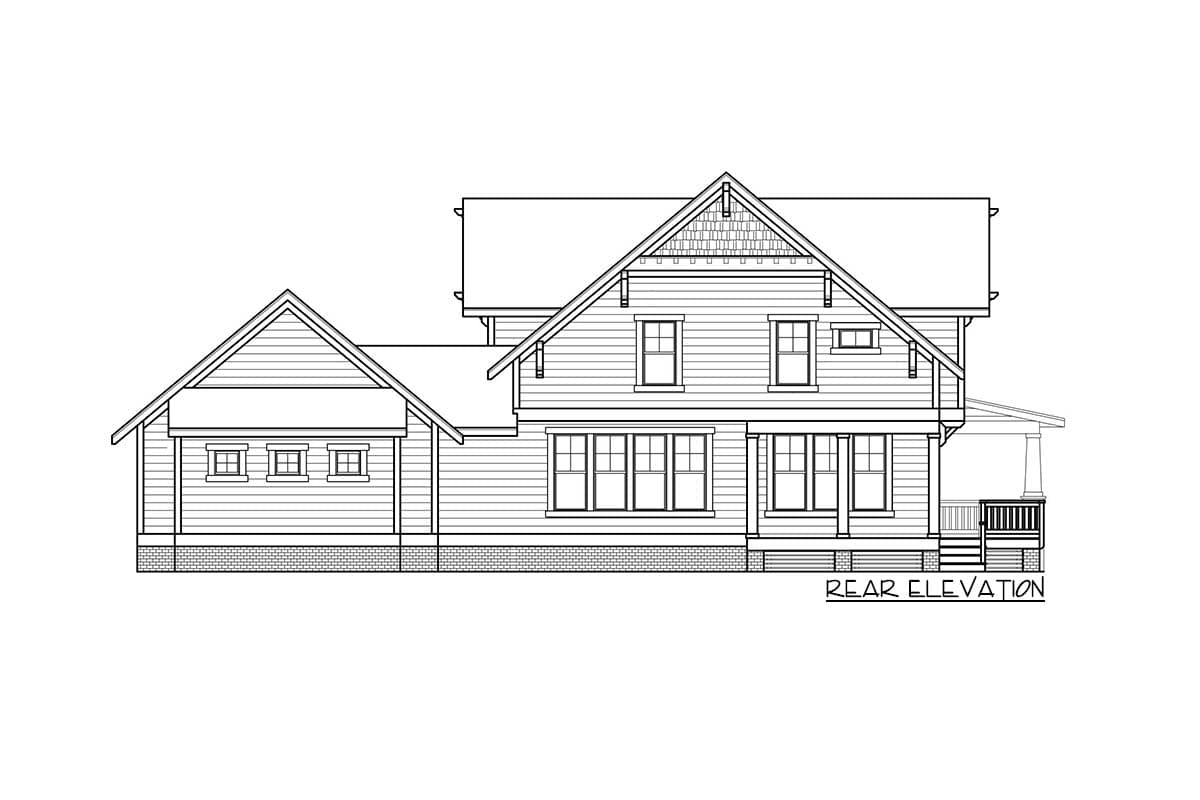

Elevations
Sections
Framing plans
Electrical plans

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,677 sq. ft.

1st Floor

1,412 sq. ft.

2nd Floor

1,265 sq. ft.

Porch, Front

631 sq. ft.

Porch, Rear

189 sq. ft.

Deck

101 sq. ft.

Workshop

216 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

72' 0"

Depth

73' 8"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

572 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Garage

8' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Wrap Around Porch
