Plan 83902JW
Exclusive Five Bedroom Traditional House Plan
Heated S.F.
3,531
Beds
5
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 83902JW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 83902JW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

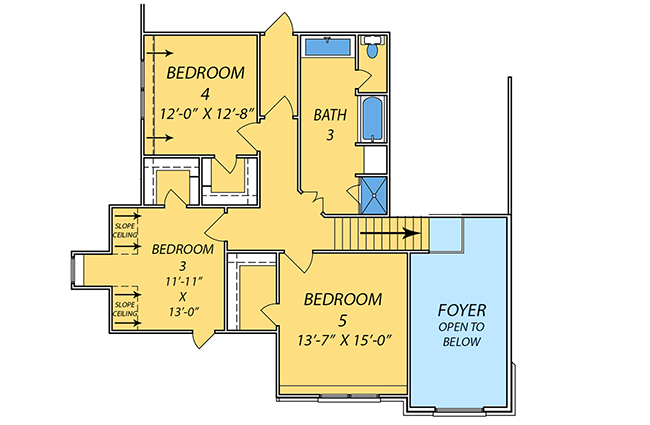

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A big covered front porch wraps around the front of this spacious five bedroom Traditional house plan that is exclusive to Architectural Designs.
  • The two-story foyer is huge and opens up to the formal dining room.
  • The open layout of the rooms in back create an easy flow from room to room.
  • A quiet pocket study is tucked away near bedroom 2 on the first floor.
  • Set at the back of the house, the master suite has a secluded location away from the hustle and bustle of the family room.
  • Each bedroom on the second floor has a walk-in closet and there's a giant bathroom with a trough sink and both a tub and shower.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,531 sq. ft.

1st Floor

2,542 sq. ft.

2nd Floor

989 sq. ft.

Porch, Combined

991 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 5"

Depth

86' 0"

Garage

Type

Attached

Area

638 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Butler Walk-in Pantry

Formal Dining

Library/Study

Master Suite - 1st Floor

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

3,531 sq. ft.

1st Floor

2,542 sq. ft.

2nd Floor

989 sq. ft.

Porch, Combined

991 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 5"

Depth

86' 0"

Garage

Type

Attached

Area

638 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Butler Walk-in Pantry

Formal Dining

Library/Study

Master Suite - 1st Floor

Wrap Around Porch
