Exclusive Narrow House Plan with Rear Double Garage - 1391 Sq Ft
Heated S.F.
1,391
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 521012TTL

Main Level
slide image 0

Plan 521012TTL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

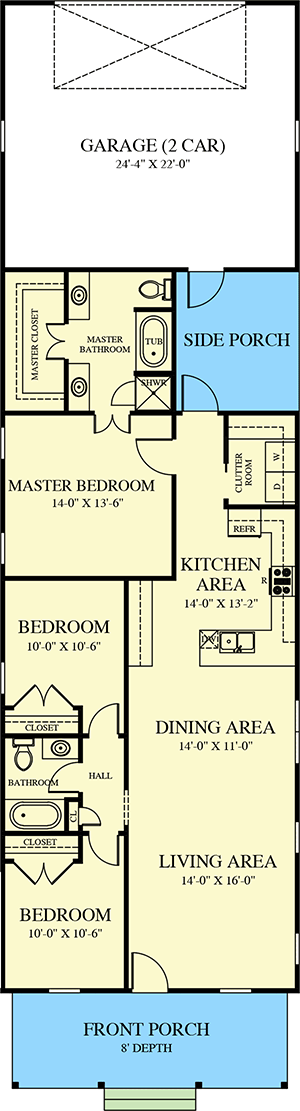

  • Totaling 1,391 square feet of living space and a width of 25 feet, this narrow lot house plan squeezes into smaller lots and is exclusive to Architectural Designs.
  • Lining the right side of the floor plan, discover the living, dining, and kitchen areas completely open to one another.
  • A peninsula-style eating bar helps to define the kitchen, while the neighboring laundry room offers additional storage space.
  • The side porch provides a great space for a grill and leads to the 2-car garage attached to the rear of the home.
  • Two family bedrooms share the hall bath, while the master bedroom is tucked towards the rear and includes a 5-fixture ensuite and walk-in closet.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plan

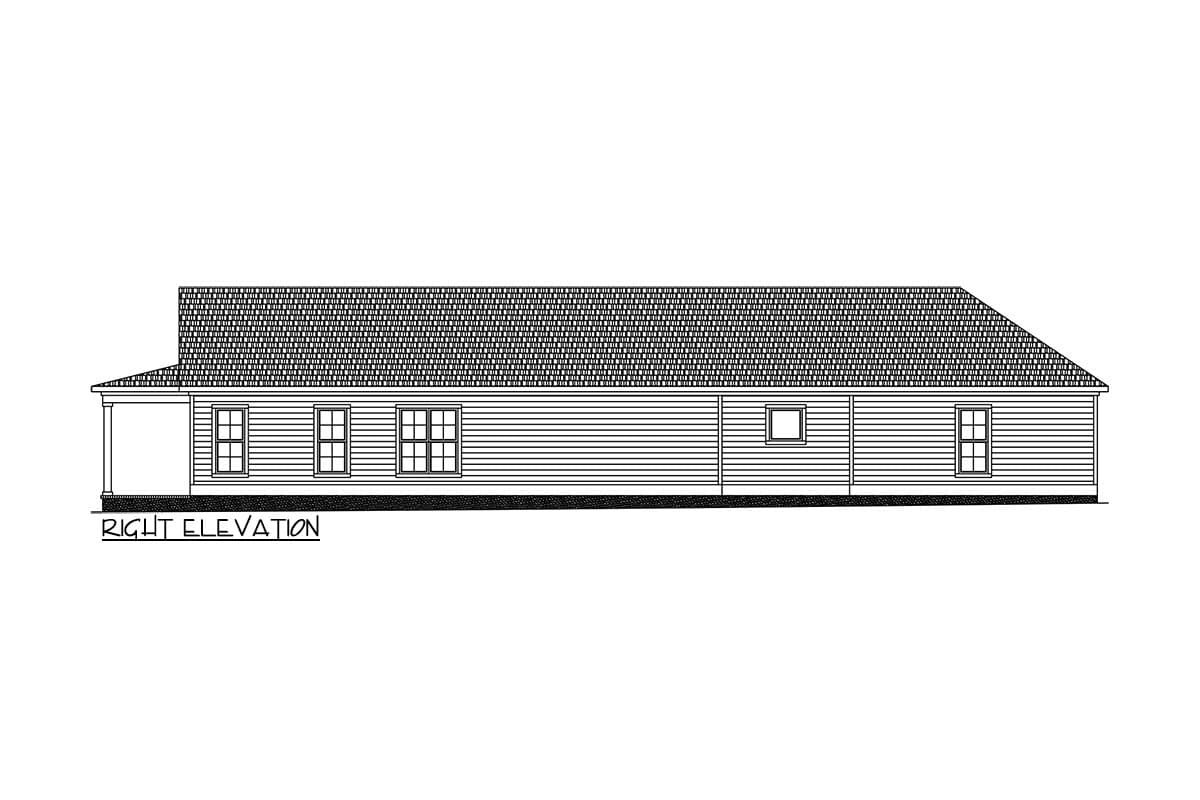

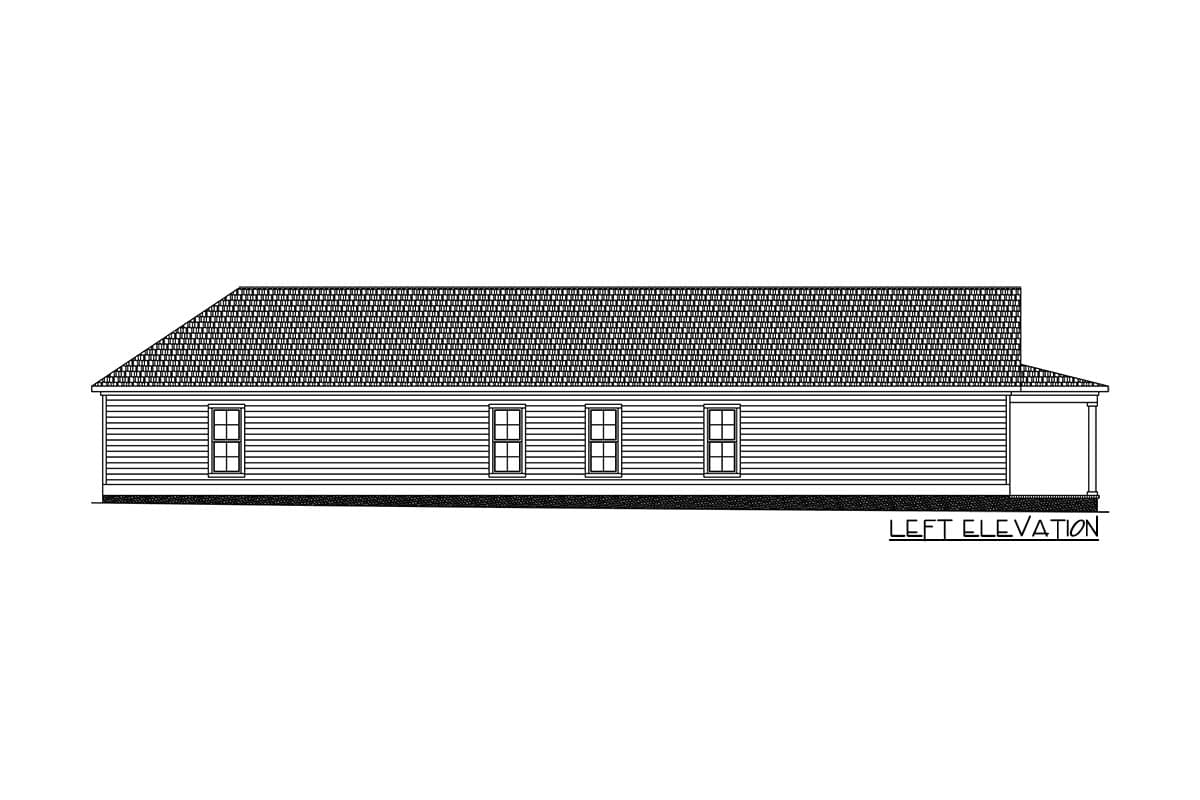

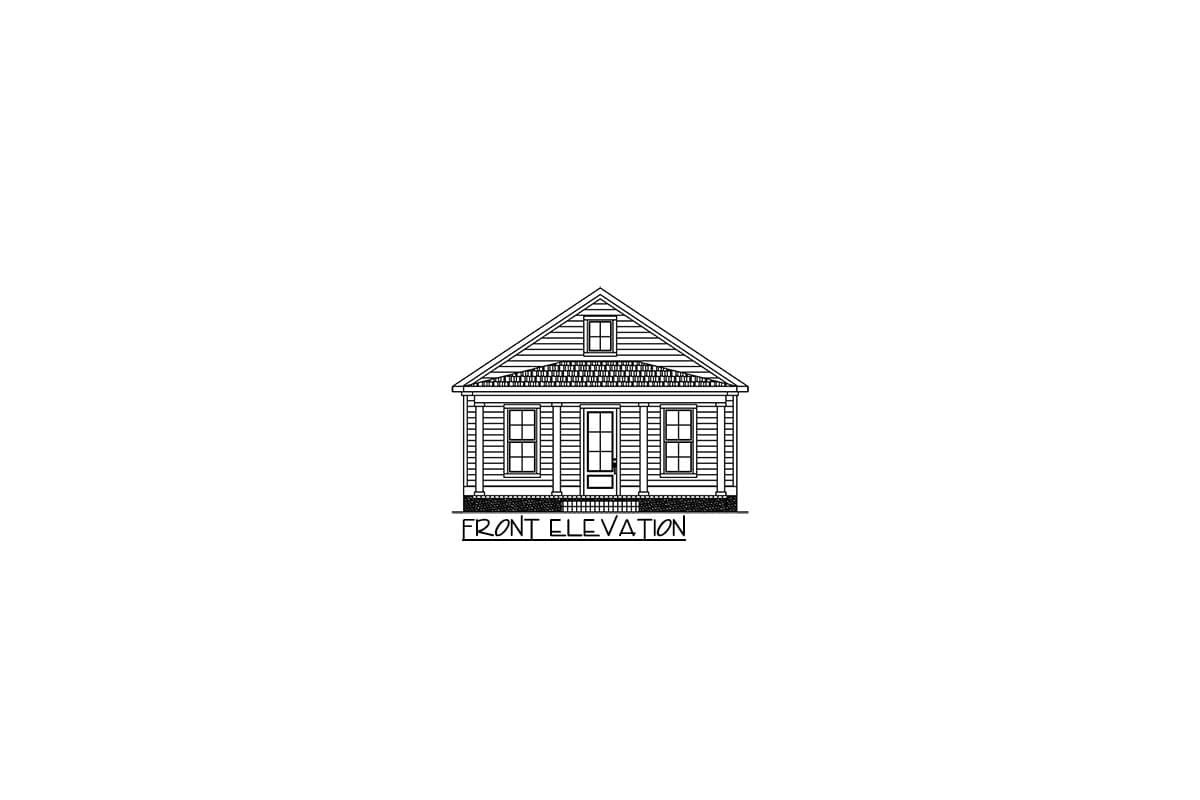

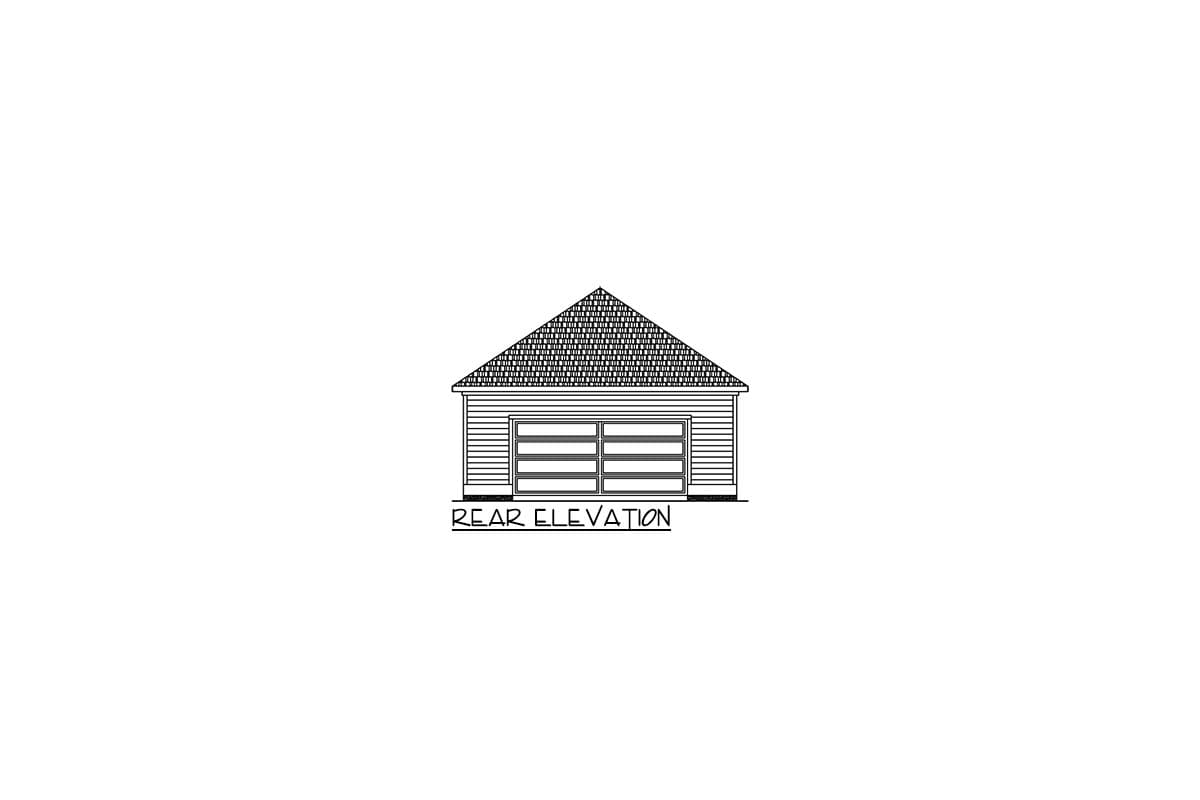

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
