Plan 85140MS

Exclusive

Exclusive Northwest House Plan with Casita
Heated S.F.
2,736
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 85140MS

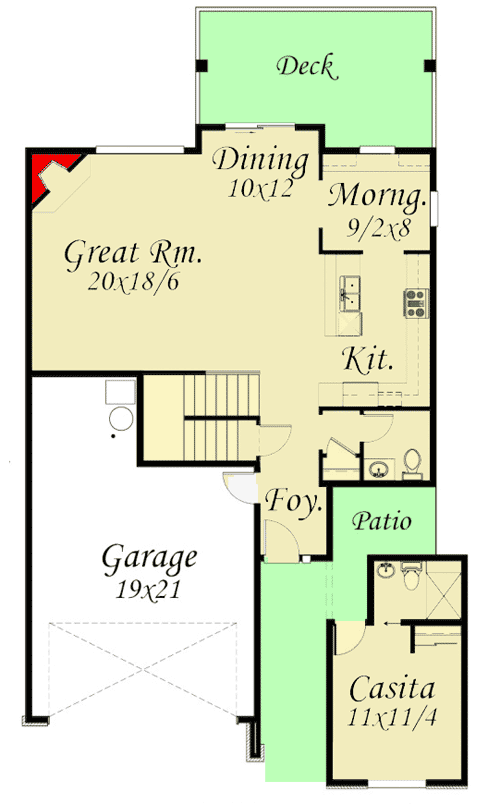

Main Level
slide image 0

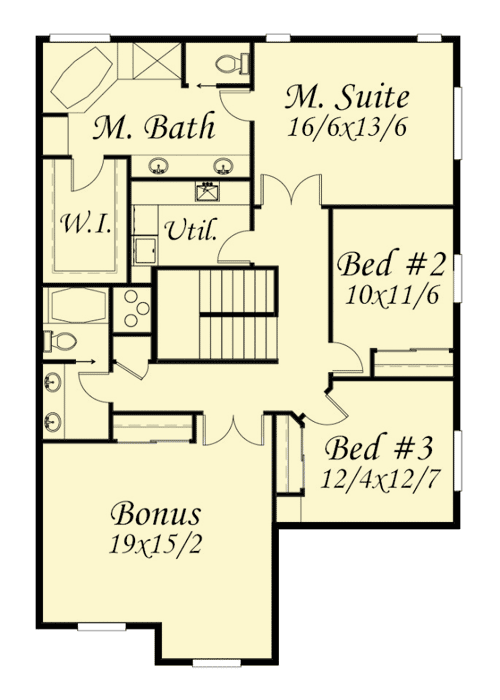

2nd Floor
slide image 1

Plan 85140MS

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Less than 40' wide, this Northwest house plan, exclusive to Architectural Designs, has a lot of space to offer your family.
  • There's even a separate casita with private bathroom that would make a great guest suite or home office.
  • One huge open space in back combines the kitchen, great room and dining area.
  • A cozy morning room is right off the kitchen, off by itself.
  • Enjoy the big deck out back that is half covered.
  • On the second floor, the bonus room and laundry room are convenient to all three bedrooms.
  • Note: Please allow approximately 10 days for delivery.
What's Included
  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,736 sq. ft.

1st Floor

1,185 sq. ft.

2nd Floor

1,551 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 7"

Depth

56' 4"

Garage

Type

Attached

Area

399 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Exclusive

Home Office

Square Footage Breakdown

Total Heated Area

2,736 sq. ft.

1st Floor

1,185 sq. ft.

2nd Floor

1,551 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 7"

Depth

56' 4"

Garage

Type

Attached

Area

399 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Exclusive

Home Office
