Plan 150009HRP

Exclusive

Exclusive One-Level Craftsman House Plan with Open-Concept Layout - 1345 Sq Ft
Heated S.F.
1,345
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 150009HRP

Main Level
slide image 0
Main Floor - 3D View
slide image 1

Plan 150009HRP

1-800-854-7852

1-262-521-4596

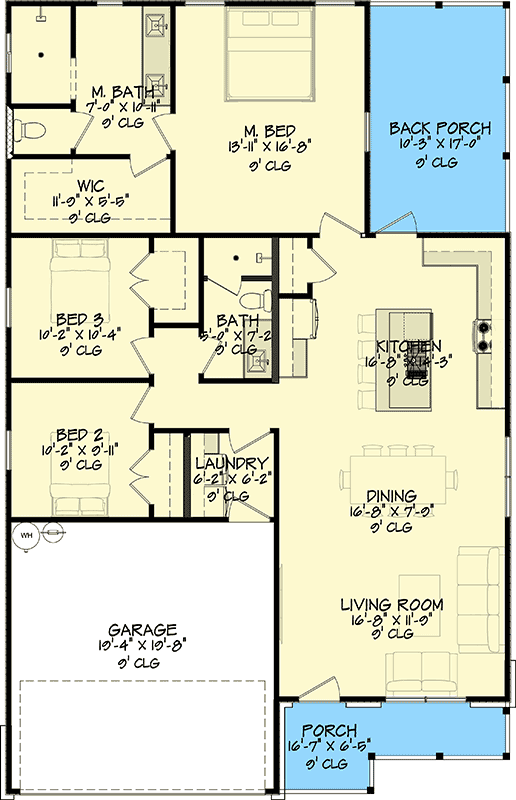

Main Level
floor plan image Main Level
Main Floor - 3D View
floor plan image Main Floor - 3D View
Plan Details
  • This one-level, Craftsman house plan is topped by a hip and valley roof and displays a stone trim and vertical siding. This design is exclusive to Architectural Designs.
  • The charming front porch leads into an open and airy living space that combines the living room, dining area, and kitchen.
  • The island kitchen includes four seats for casual dining and easy access to the back porch makes it ideal for BBQs.
  • The master bedroom is tucked towards the rear and features a custom tile shower, toilet room, and walk-in closet.
  • Bedrooms 2 and 3 share the hall bath and the laundry room doubles as a drop zone when entering from the double garage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.

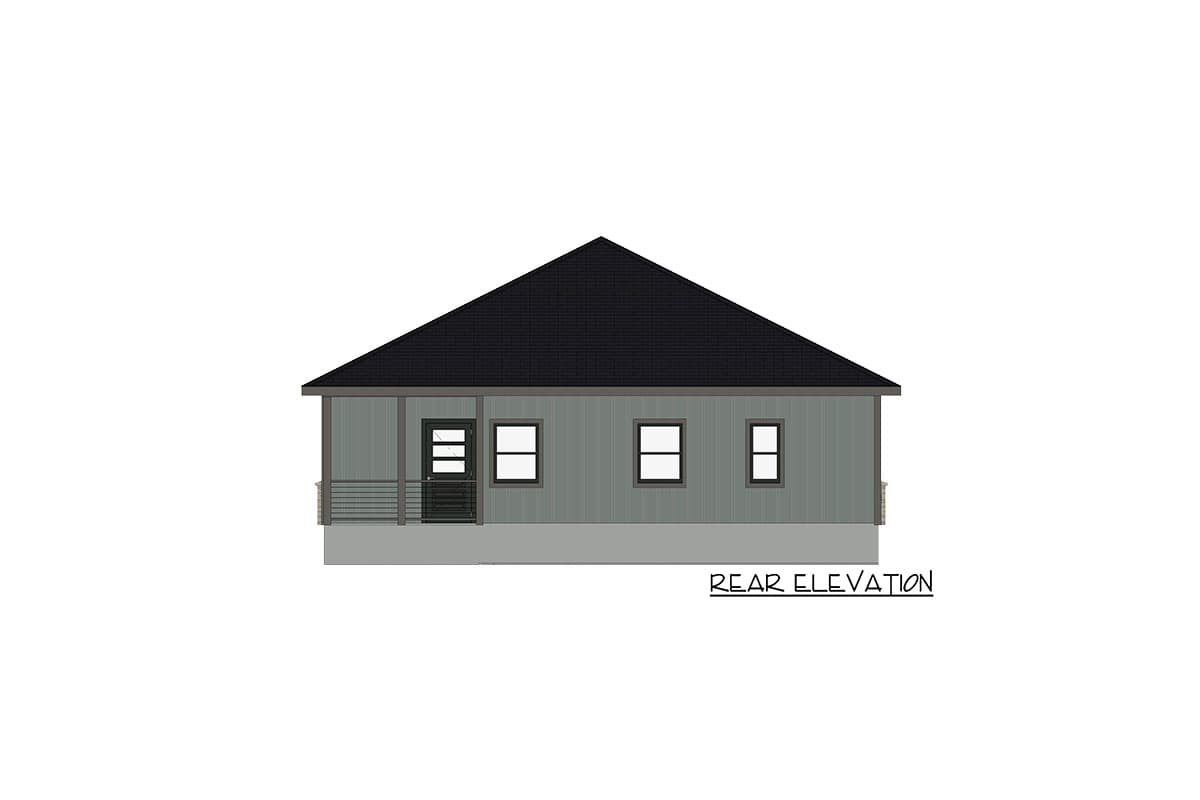

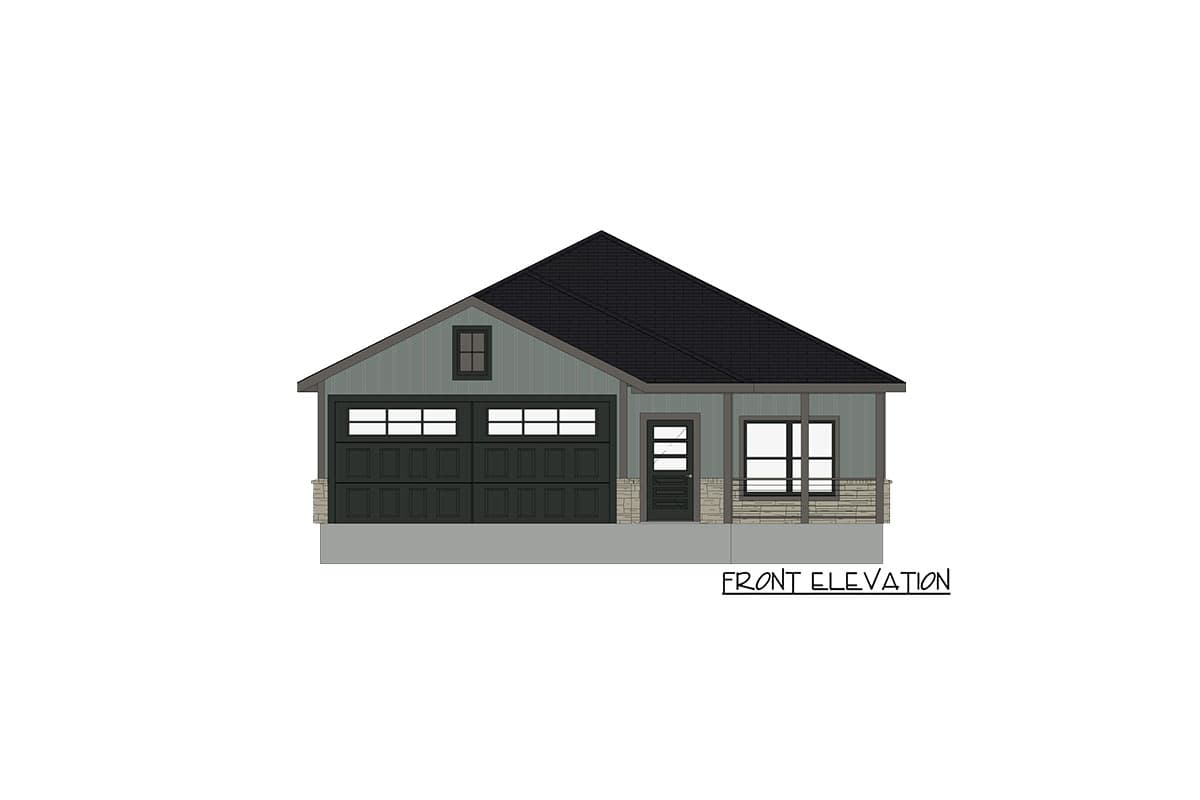

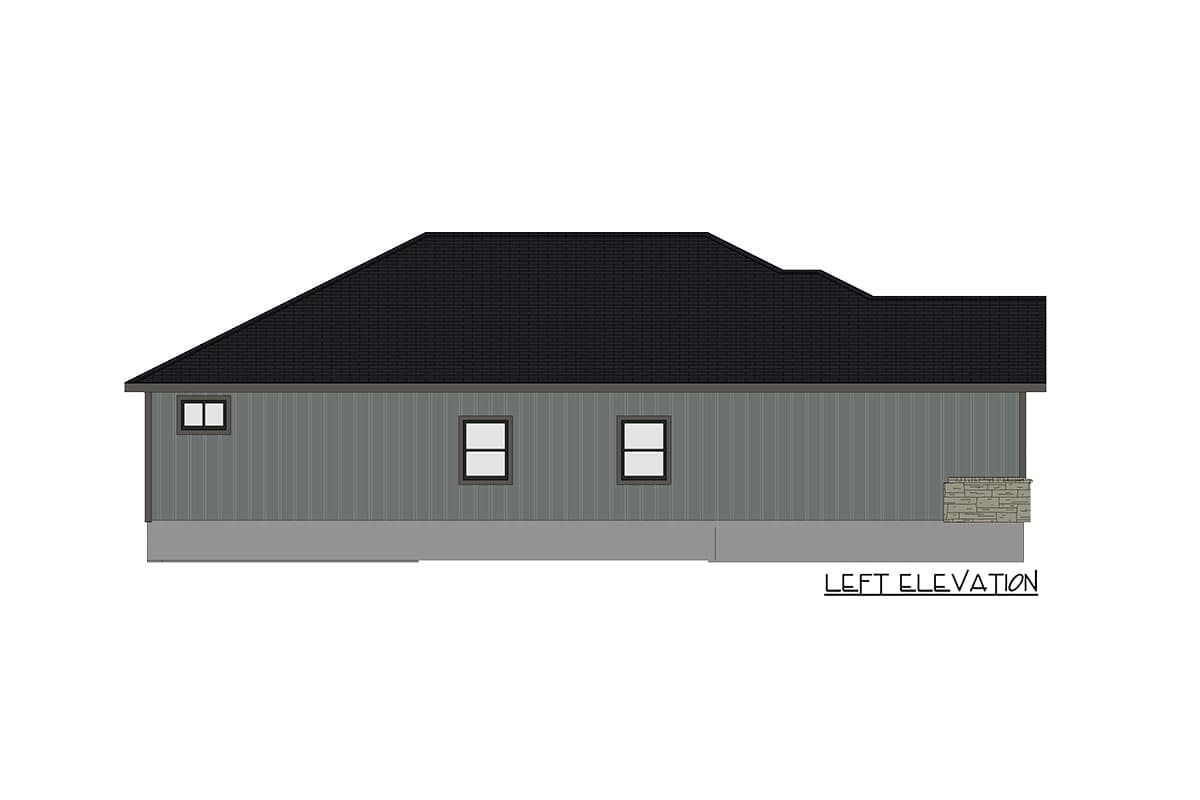

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

1,345 sq. ft.

Porch, Front

81 sq. ft.

Porch, Rear

175 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

37' 0"

Depth

58' 3"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

379 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

1,345 sq. ft.

Porch, Front

81 sq. ft.

Porch, Rear

175 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

37' 0"

Depth

58' 3"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

379 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
