Plan 770003CED

Exclusive

Exclusive Shingle Style House Plan with Vaulted Bedrooms
Heated S.F.
3,077
Beds
4
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 770003CED

Main Level
slide image 0

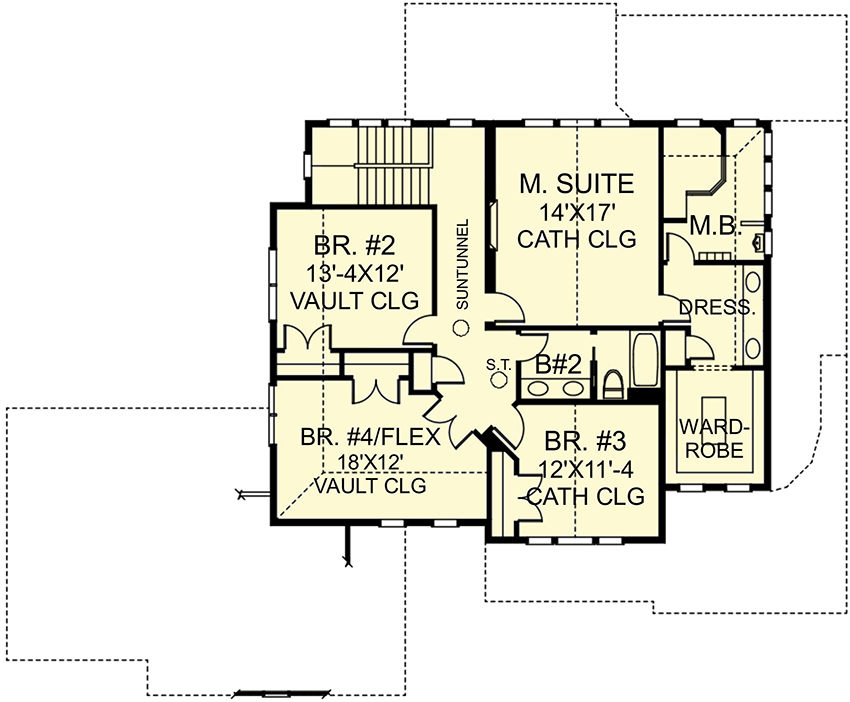

2nd Floor
slide image 1

Plan 770003CED

1-800-854-7852

1-262-521-4596

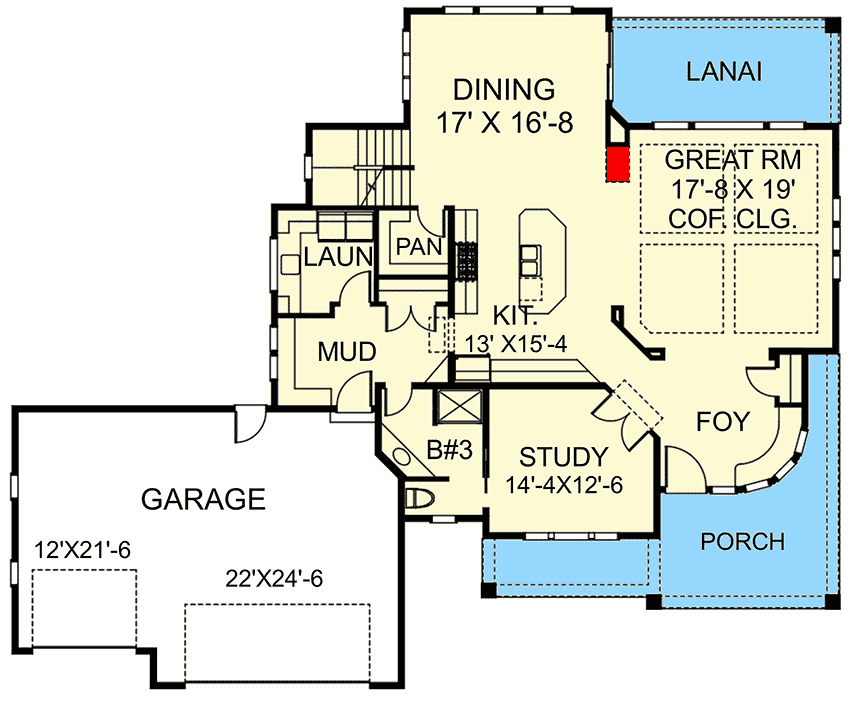

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A curved window seat snuggles into the gently curved foyer wall of this intriguing Shingle style house plan that is exclusive to Architectural Designs.
  • From the foyer to get step into the large study with its attached bathroom or head right into the spacious great room that has a gorgeous coffered ceiling.
  • The dining room and kitchen are all open to the great room, offering wonderful sight lines.
  • There's a big walk-in pantry and a large, well-organized mud room with bench seating.
  • Upstairs, all four bedroom come with beautiful vaulted ceilings and light streams in from sun tunnels in the hallway.
What's Included
  • Cover sheet with general notes
  • Elevations
  • Foundation plan
  • Floor plan(s)
  • Roof framing plan
  • Sections
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Electrical plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,077 sq. ft.

1st Floor

1,705 sq. ft.

2nd Floor

1,372 sq. ft.

Basement Unfinished

1,705 sq. ft.

Porch, Front

276 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 8"

Depth

59' 0"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

777 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Great Room

Coffered

0' 0''

Master Bedroom

Cathedral

0' 0''

Bedroom 2

Vaulted

0' 0''

Bedroom 3

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

New American

Shingle

Traditional

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Mudroom

Wrap Around Porch

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,077 sq. ft.

1st Floor

1,705 sq. ft.

2nd Floor

1,372 sq. ft.

Basement Unfinished

1,705 sq. ft.

Porch, Front

276 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 8"

Depth

59' 0"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

777 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Great Room

Coffered

0' 0''

Master Bedroom

Cathedral

0' 0''

Bedroom 2

Vaulted

0' 0''

Bedroom 3

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

New American

Shingle

Traditional

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Mudroom

Wrap Around Porch

Plan Collections

Exclusive

Photo Gallery
