Plan 461009DNN

Exclusive

Exclusive Southern Farmhouse with Loft

Heated S.F.

1,607

Beds

3

Baths

2

Stories

2

Floor Plan

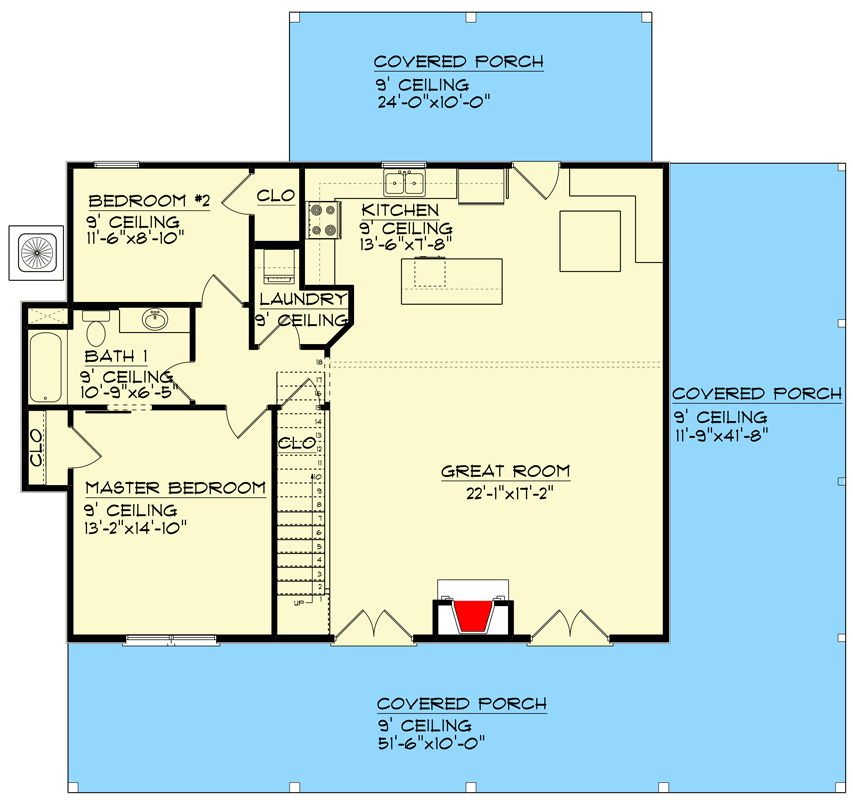

Main Level

floor plan image Main Level

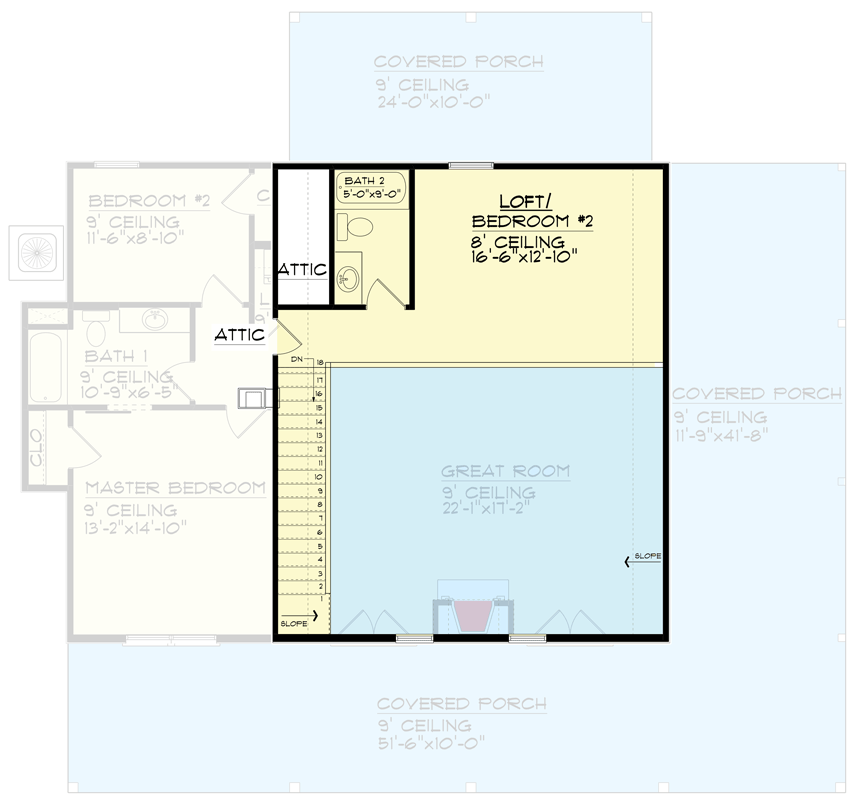

2nd Floor

floor plan image 2nd Floor

Plan Details

A classic cross-gable roof caps this Southern Farmhouse plan, which is exclusive to Architectural Designs.
Two sets of french doors guide you inside, where a two-story ceiling rests above the great room. Move easily into the open kitchen with an adjoining built-in dining nook.
A 9'-deep covered porch extends from three sides of the home to ensure plenty of outdoor living space can be enjoyed by friends and loved ones.
Two bedrooms occupy the left side of the home, separated by a shared full bathroom.
Upstairs, the loft includes a full bathroom and can be used as a playroom, bedroom, or home office.

What's Included

Foundation Plan
Fully Dimensioned Floor Plans

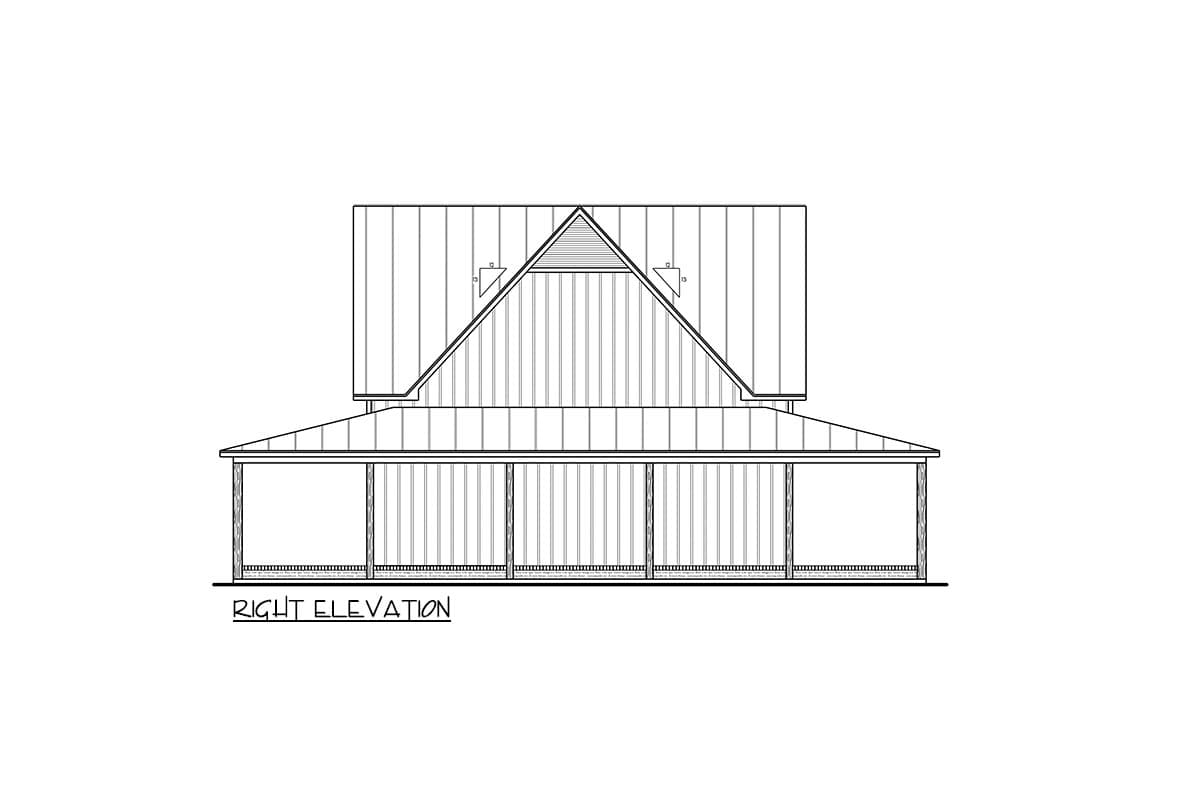

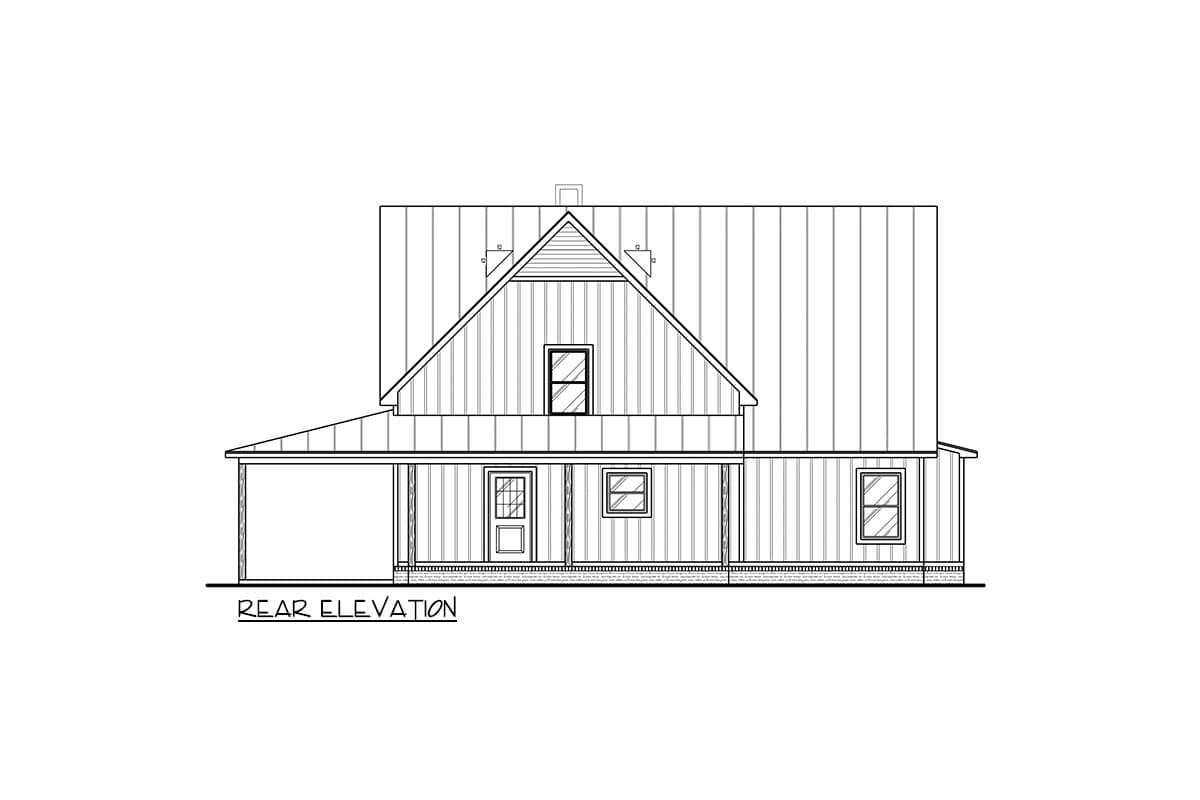

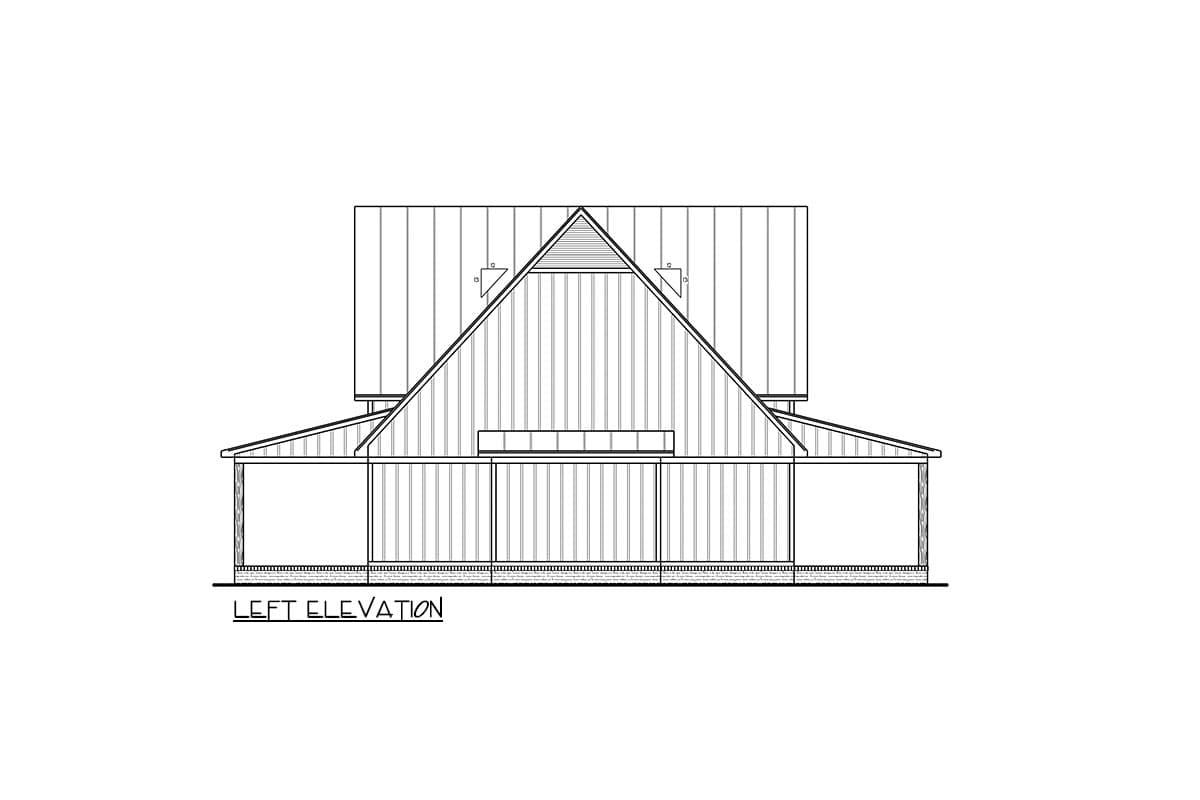

All Elevations
Birds Eye Roof Plan
Suggested Electrical Layout - This is part of the floor plan page(s)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,607 sq. ft.

1st Floor

1,294 sq. ft.

2nd Floor

319 sq. ft.

Porch, Front

515 sq. ft.

Porch, Rear

240 sq. ft.

Porch, Combined

755 sq. ft.

Storage

367 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 6"

Depth

51' 8"

Max Ridge Height

28' 5"

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

13 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

Square Footage Breakdown

Total Heated Area

1,607 sq. ft.

1st Floor

1,294 sq. ft.

2nd Floor

319 sq. ft.

Porch, Front

515 sq. ft.

Porch, Rear

240 sq. ft.

Porch, Combined

755 sq. ft.

Storage

367 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 6"

Depth

51' 8"

Max Ridge Height

28' 5"

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

13 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections
