Plan 510136WDY

Exclusive

Exclusive Southern Home Plan with Private Master Bedroom
Heated S.F.
3,274
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 510136WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510136WDY

1-800-854-7852

1-262-521-4596

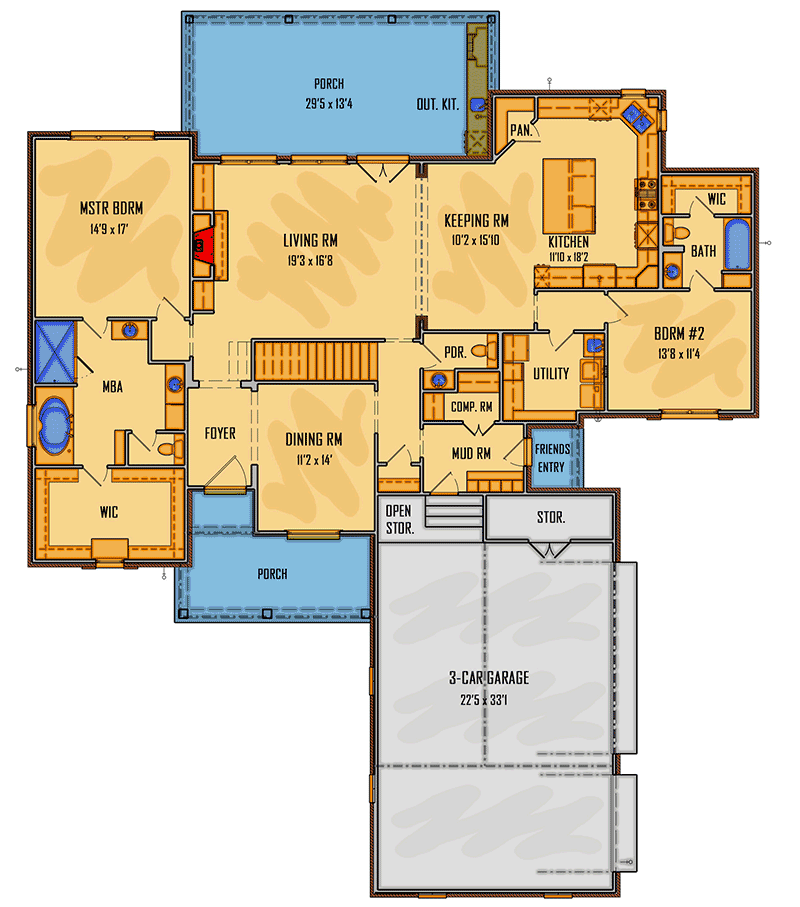

Main Level
floor plan image Main Level

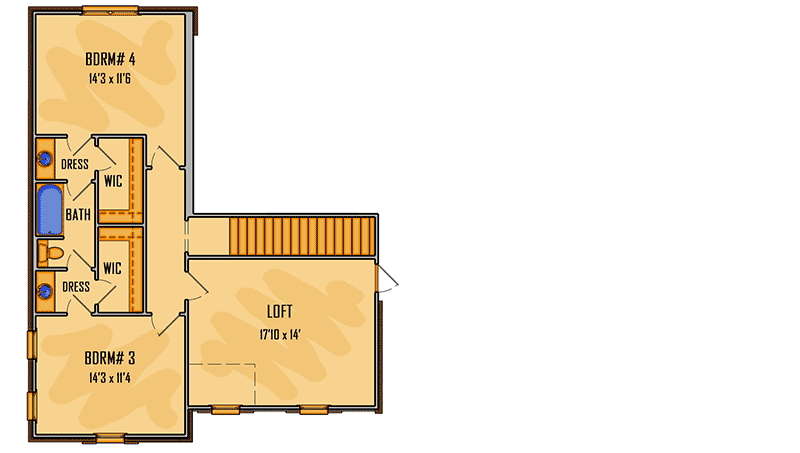

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The beautiful exterior of this Southern home plan, exclusive to Architectural Designs, is matched with a thoughtful interior floor plan. The 3-car garage, attached to the front of the home, includes a storage room, and opens into a mudroom with built-in cubbies and a coat closet.
  • Inside, a formal dining room sits to the right of the foyer, while the heart of the home can be found straight ahead. The living room is drenched in natural light, and french doors extend the living space onto a covered porch, complete with an outdoor kitchen.
  • The square-shaped kitchen features a multi-use island, and the adjoining keeping room creates a comfortable space for family and friends to keep the cook in the home company.
  • The master bedroom is on the main level and set apart from other bedrooms for the utmost privacy. The homeowner will delight in the spacious en suite with 5 fixtures and a walk-in closet.
  • A second bedroom on the main floor includes a full bath, while upstairs bedrooms 3 and 4 share a Jack-and-Jill bath. A loft on the second level provides a fun space for the kids to enjoy.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

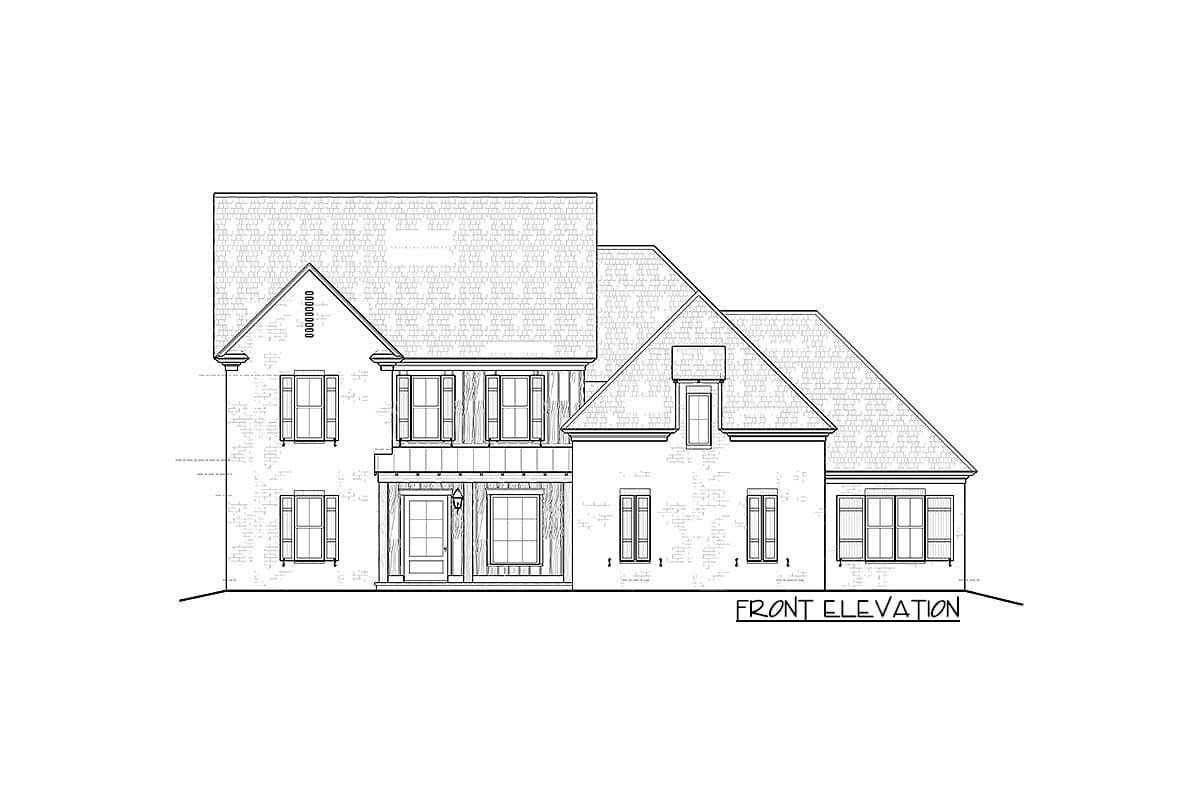

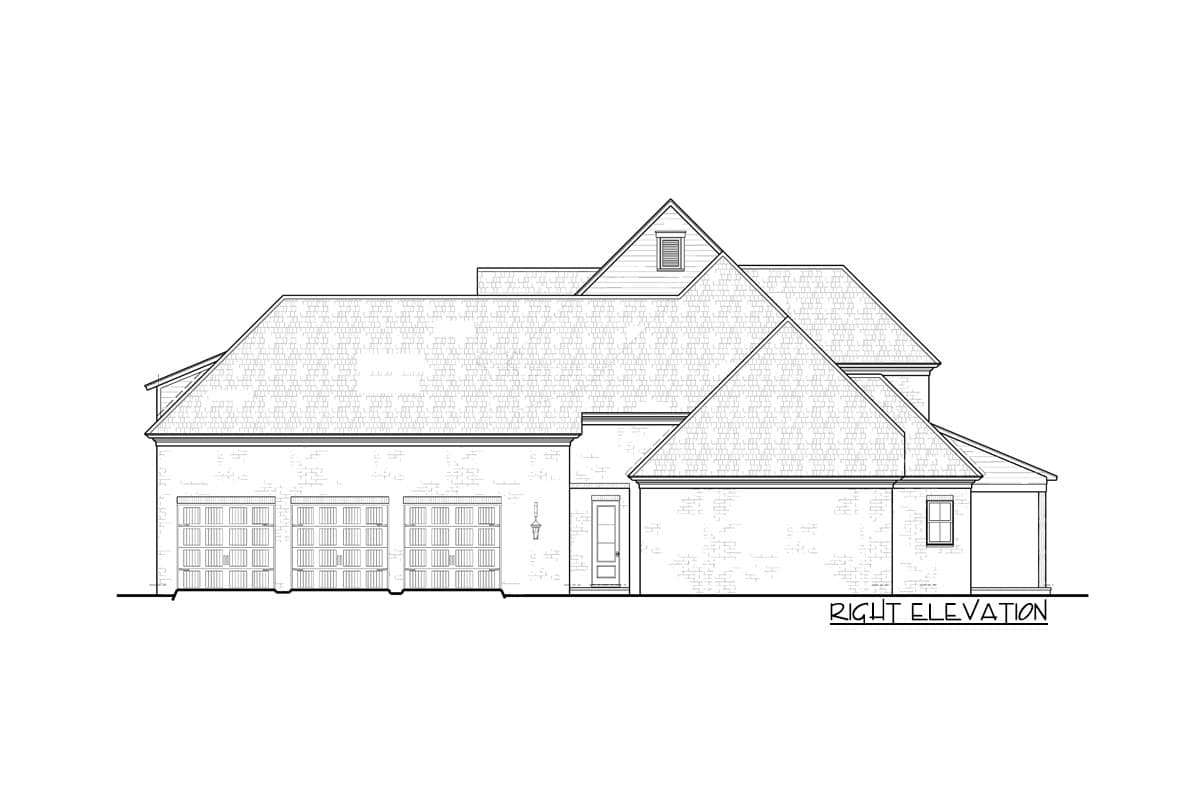

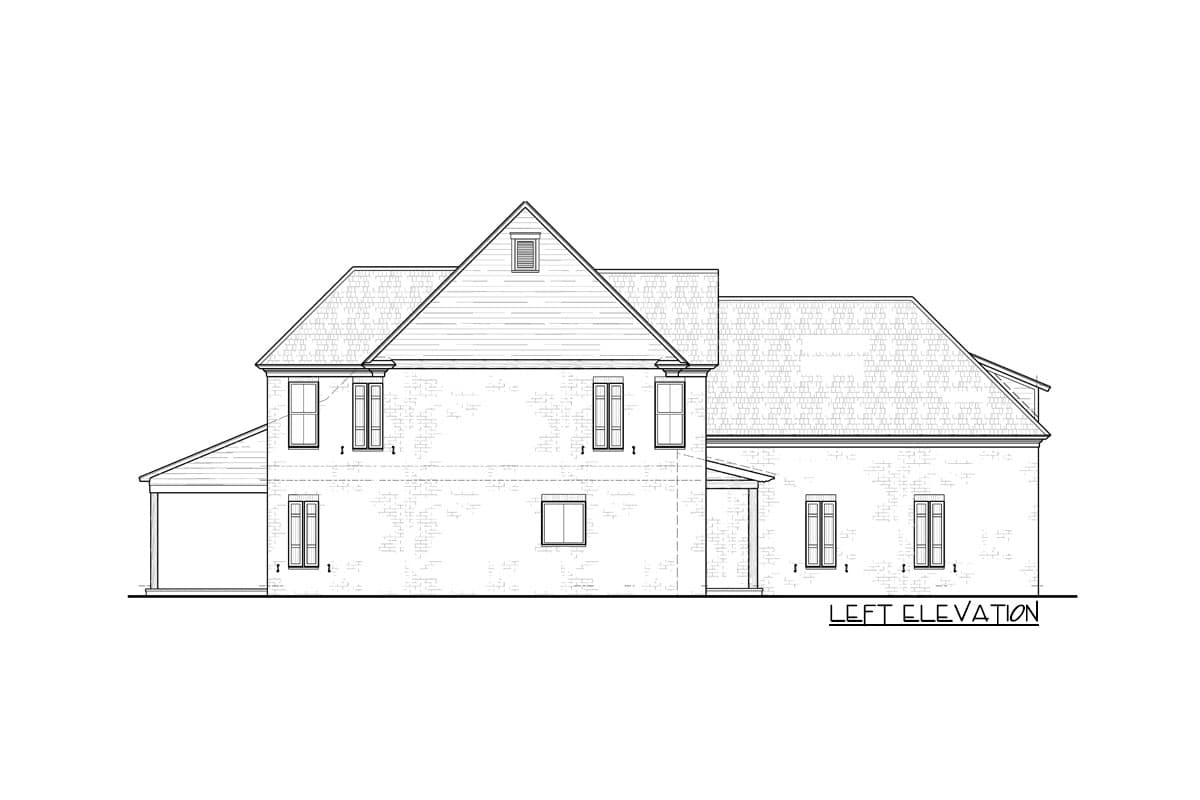

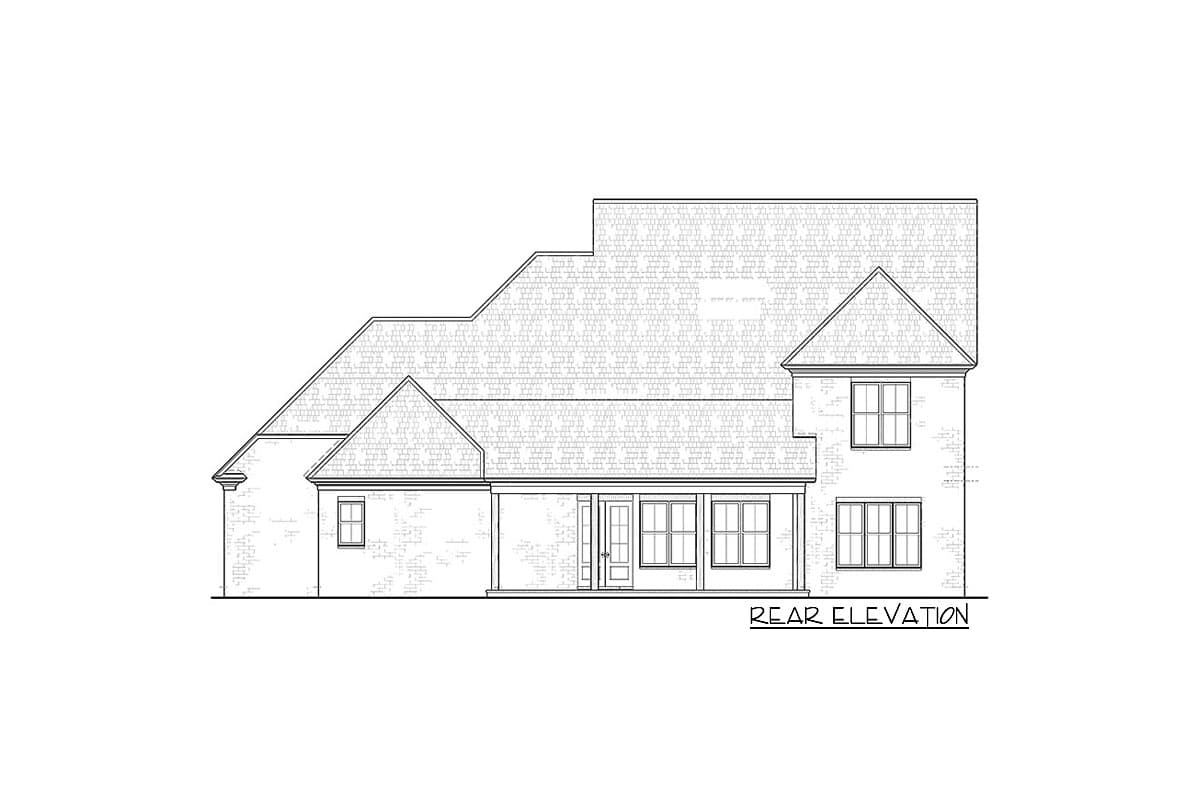

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,274 sq. ft.

1st Floor

2,296 sq. ft.

2nd Floor

890 sq. ft.

Porch, Combined

609 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

84' 5"

Garage

Type

Attached

Area

873 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

11'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,274 sq. ft.

1st Floor

2,296 sq. ft.

2nd Floor

890 sq. ft.

Porch, Combined

609 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

84' 5"

Garage

Type

Attached

Area

873 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

11'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana

Southern

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Exclusive
