Exclusive Southern Home Plan with Two-story Living Room
Heated S.F.
4,565
Beds
5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 510192WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510192WDY

1-800-854-7852

1-262-521-4596

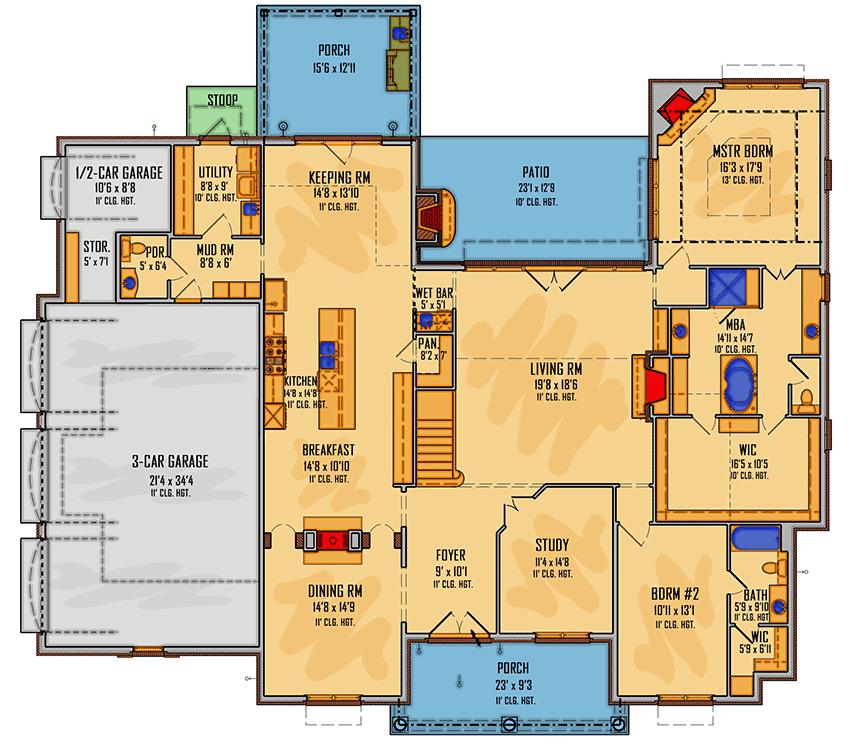

Main Level
floor plan image Main Level

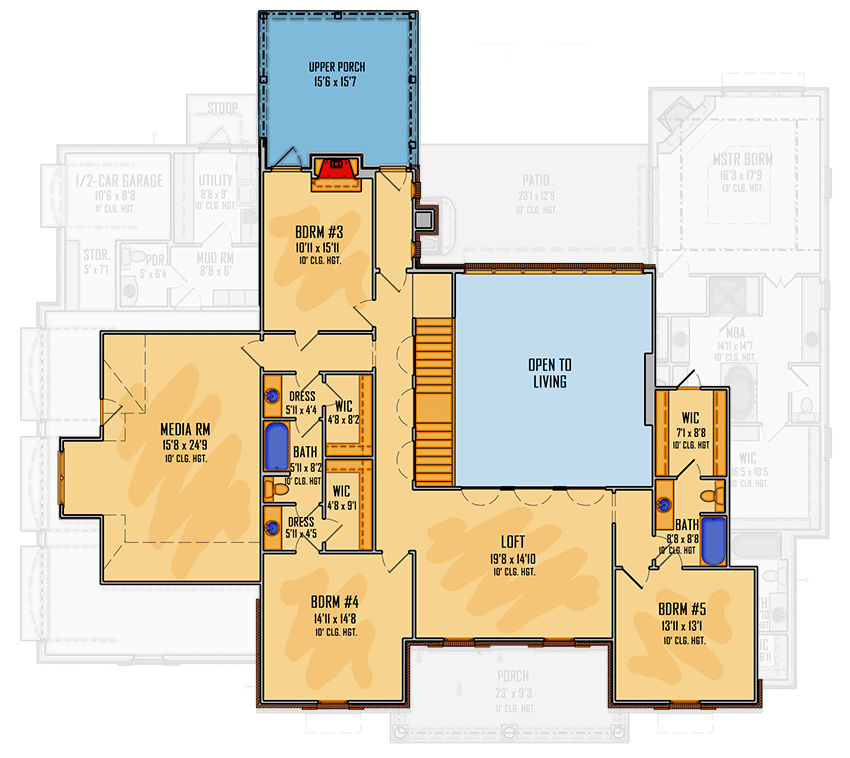

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This exclusive, Southern home plan features 5 bedrooms, 4 fireplaces, 3.5-car garage, a formal dining room, and main-level master bedroom; totaling 4,565 square feet of living space.
  • The sizable kitchen is flanked by a keeping room that extends onto a rear porch and formal dining room where a double-sided fireplace serves as the only partition.
  • Enter from the 3-car garage to find a mudroom and powder bath, next to a laundry room.
  • Retreat to the main-level master bedroom to find peace and quiet, and enjoy a corner fireplace, 5-fixture bathroom, and sizable walk-in closet. A second bedroom next to the study includes a full bath.
  • Three family bedroom suites are located upstairs, along with a communal loft, media room, and upper porch.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

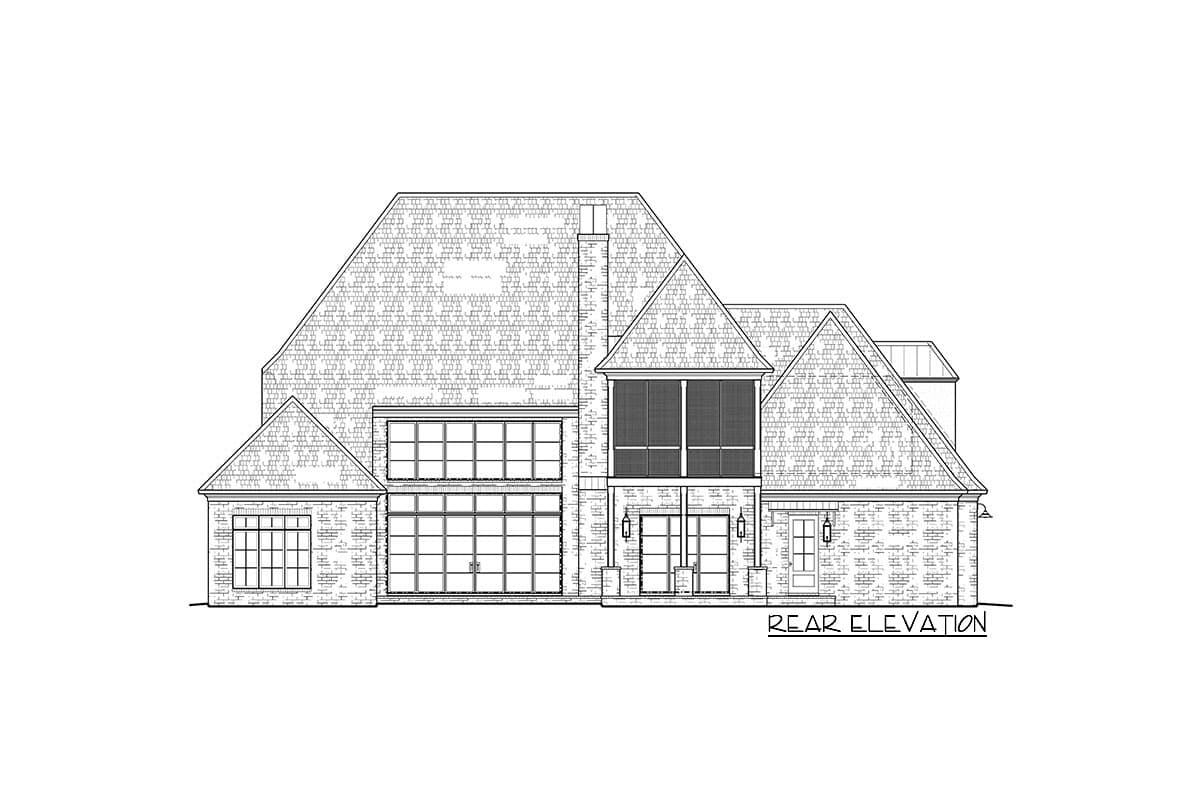

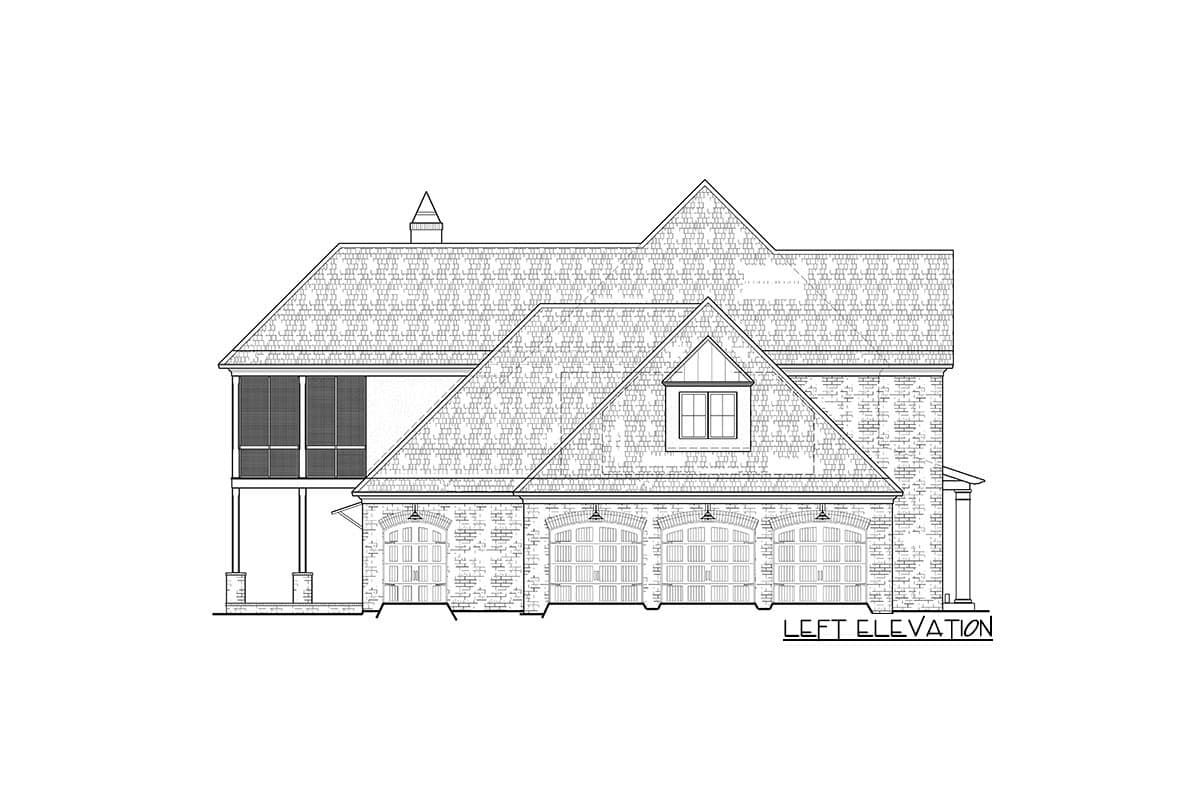

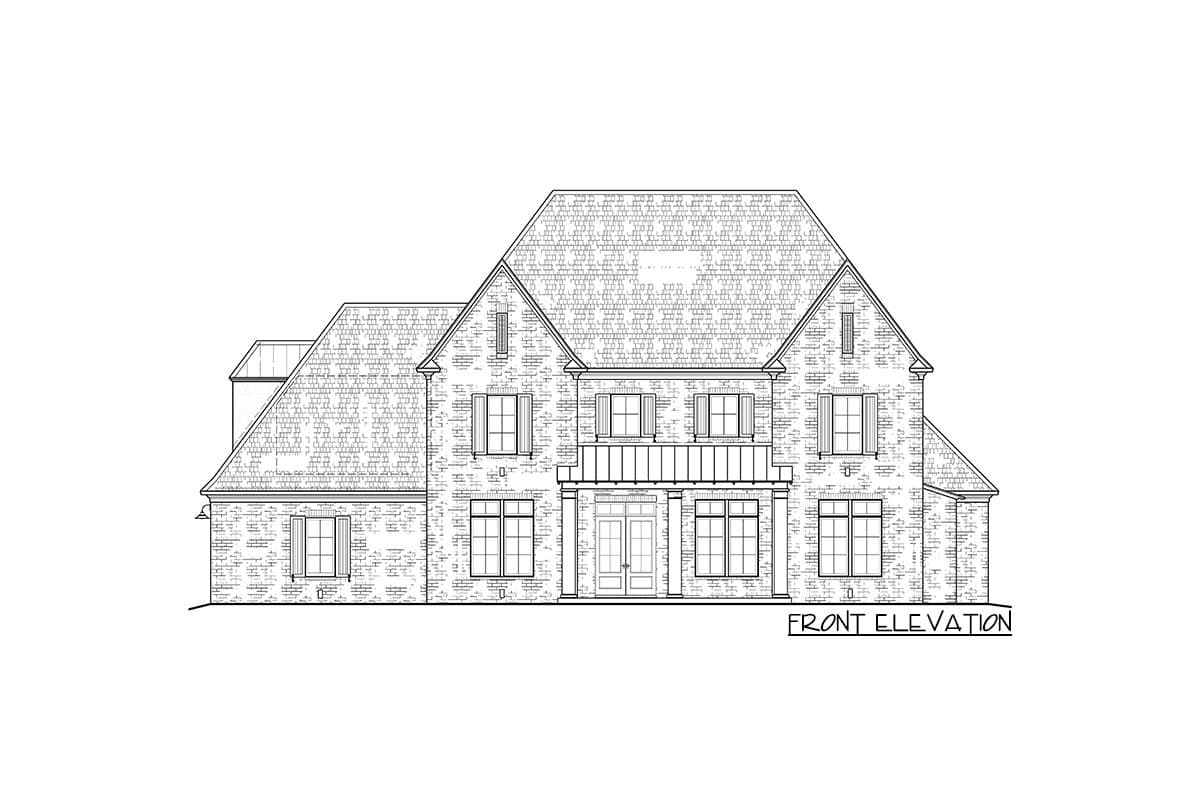

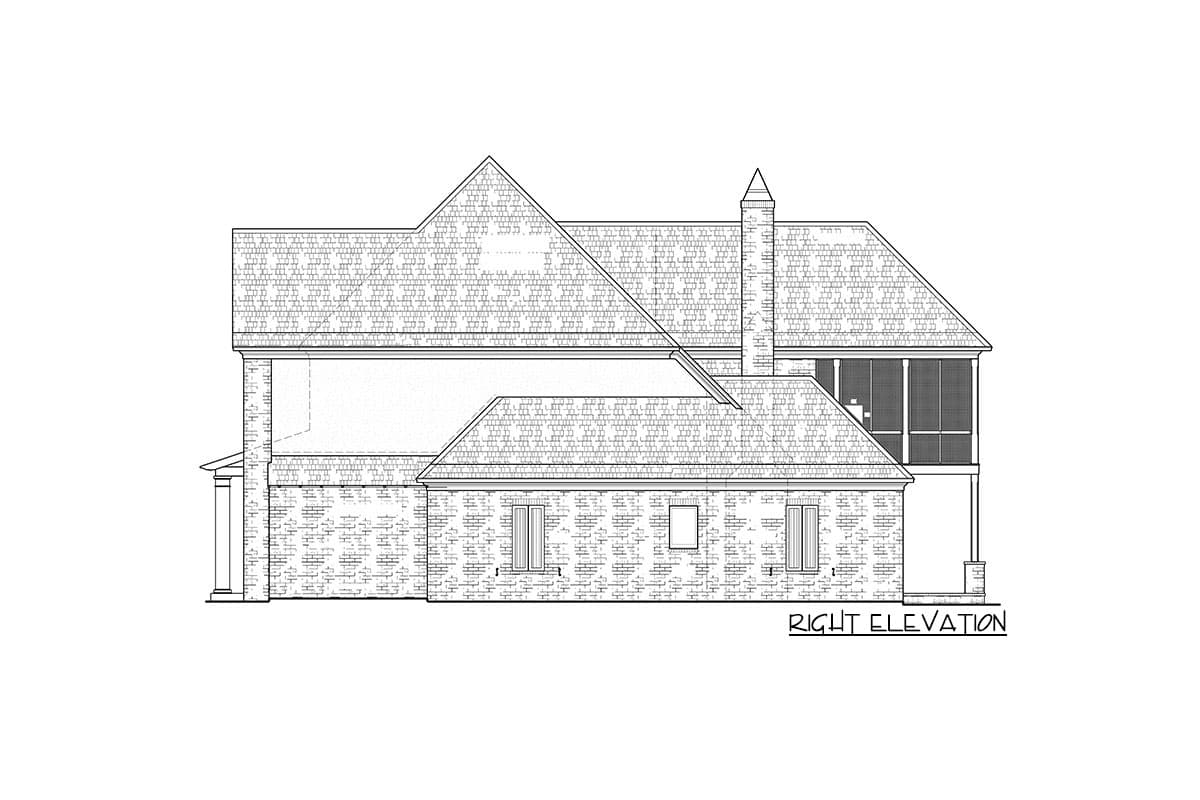

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us
