Plan 910041WHD

Exclusive

Exclusive Traditional Home Plan with Split Bedrooms
Heated S.F.
2,165
Beds
4 - 6
Baths
2 - 3
Stories
1
Cars
3
Floor Plan

Plan 910041WHD

Main Level
slide image 0
Lower Level
slide image 1

Plan 910041WHD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Lower Level
floor plan image Lower Level
Plan Details

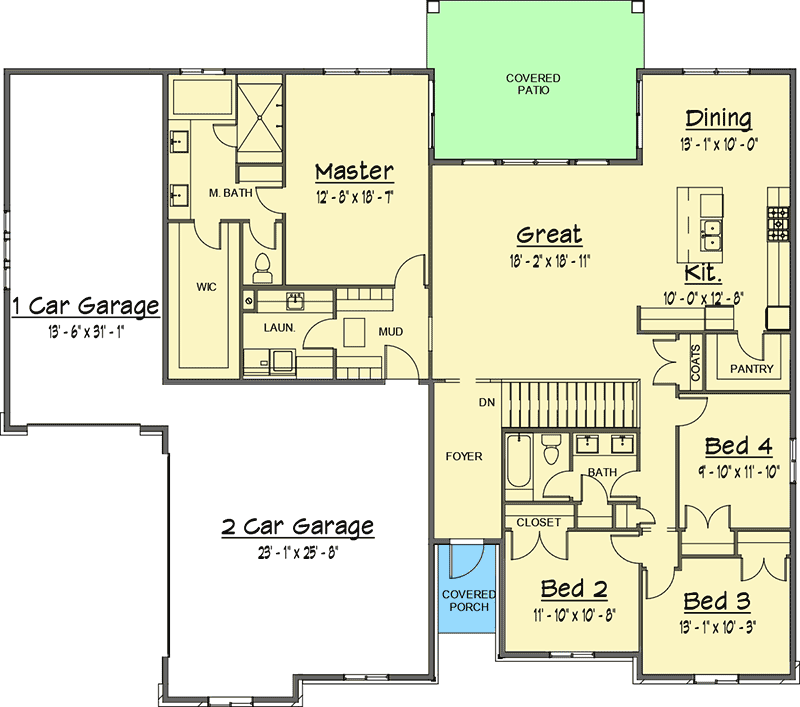

  • This traditional home plan, exclusive to Architectural Designs, warms your heart from the get-go. Inside, the open floor plan is filled with natural light and extends onto a covered patio for outdoor enjoyment when entertaining.
  • The master bedroom is separated from the secondary bedrooms, offering the homeowner the utmost privacy, while the master bath provides a spa-like experience with 5 fixtures.
  • Three additional bedrooms share a compartmentalized, 4-fixture bath on the opposite side of the home.
  • Built-in lockers, just inside from the 3-car garage, helps to organize outdoor gear and personal items when coming and going, and the adjacent laundry room includes a utility sink.

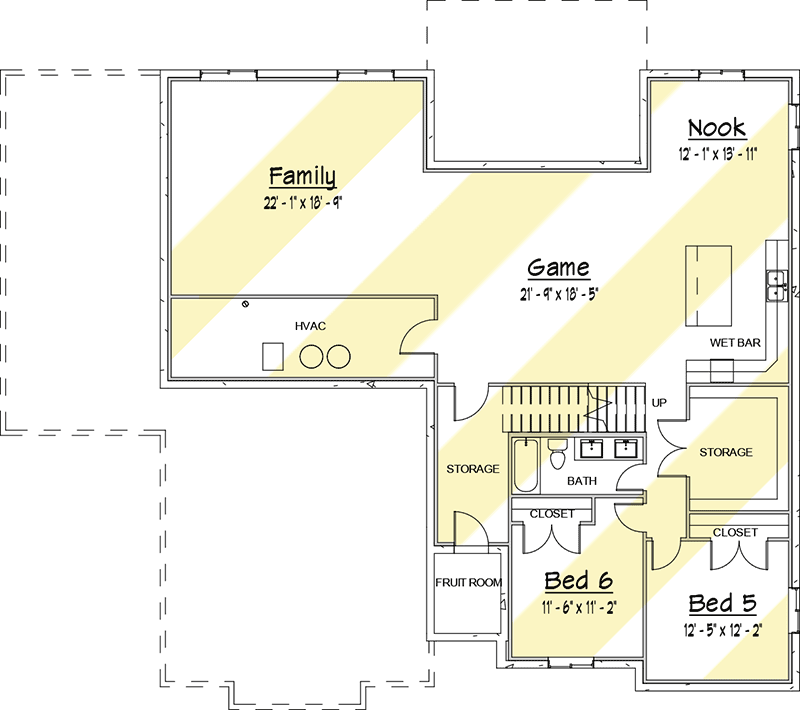

  • Boost the bedroom count from 4 to 6 when you finish the lower level, and gain a sizable family room with a wet bar and a 4-fixture bath, while maintaining plenty of storage space.
What's Included
This house plan has 16 pages as follows:
  1. Cover page with general notes
  2. Lower level floor plan with window and door schedules
  3. Main floor plan
  4. Bonus floor plan
  5. Front and left elevations
  6. Rear and right elevations
  7. Roof plan
  8. Cross section
  9. Lower level electrical plan
  10. Main floor electrical plan
  11. Upper level floor plan
  12. Floor plan footages
  13. Architectural details
  14. Foundation plan
  15. Main level floor framing
  16. Roof framing plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,165 sq. ft.

1st Floor

2,165 sq. ft.

Optional Lower Level

2,025 sq. ft.

Bonus

390 sq. ft.

Porch, Combined

40 sq. ft.

Deck

259 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

62' 0"

Max Ridge Height

26' 7"

Garage

Type

Attached

Area

1093 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

European

Ranch

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,165 sq. ft.

1st Floor

2,165 sq. ft.

Optional Lower Level

2,025 sq. ft.

Bonus

390 sq. ft.

Porch, Combined

40 sq. ft.

Deck

259 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

62' 0"

Max Ridge Height

26' 7"

Garage

Type

Attached

Area

1093 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

European

Ranch

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Exclusive
