Plan 81602AB

Expandable Northwest Home Plan

Heated S.F.

2,756

Beds

3 - 5

Baths

2.5 - 4.5

Stories

1

Cars

4

Floor Plan

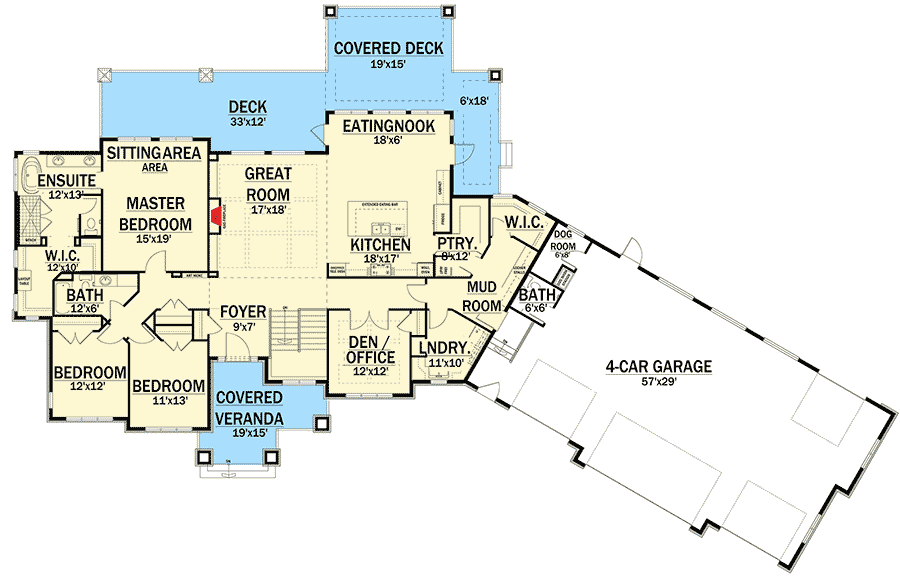

Main Level

floor plan image Main Level

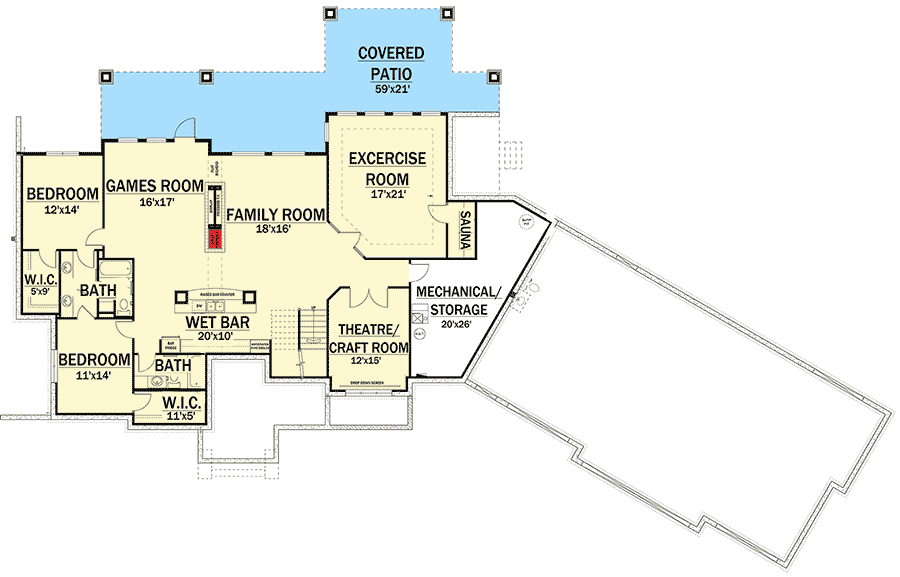

Lower Level

floor plan image Lower Level

Plan Details

Live comfortably all on one level or expand by finishing the lower level as shown - owner's choice.
From the moment you step into the foyer, the huge open floor plan will catch your eye.
Coffered ceilings top the great room and the huge island in the kitchenoffers plenty of extra counter space.
The bedroom wing is on the left dominated by the gorgeous master suite with its sitting area and huge walk-in closet.
Open decks and covered porches in the rear beckon you to enjoy the great outdoors.
A huge lower level offers extra bedrooms and a fabulous entertainment space complete with wet bar and games room, crafts room and an exercise room.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

build gallery item - House Plan 81602AB comes to life in Montana!

House Plan 81602AB comes to life in Montana!

60

Photos

What's Included

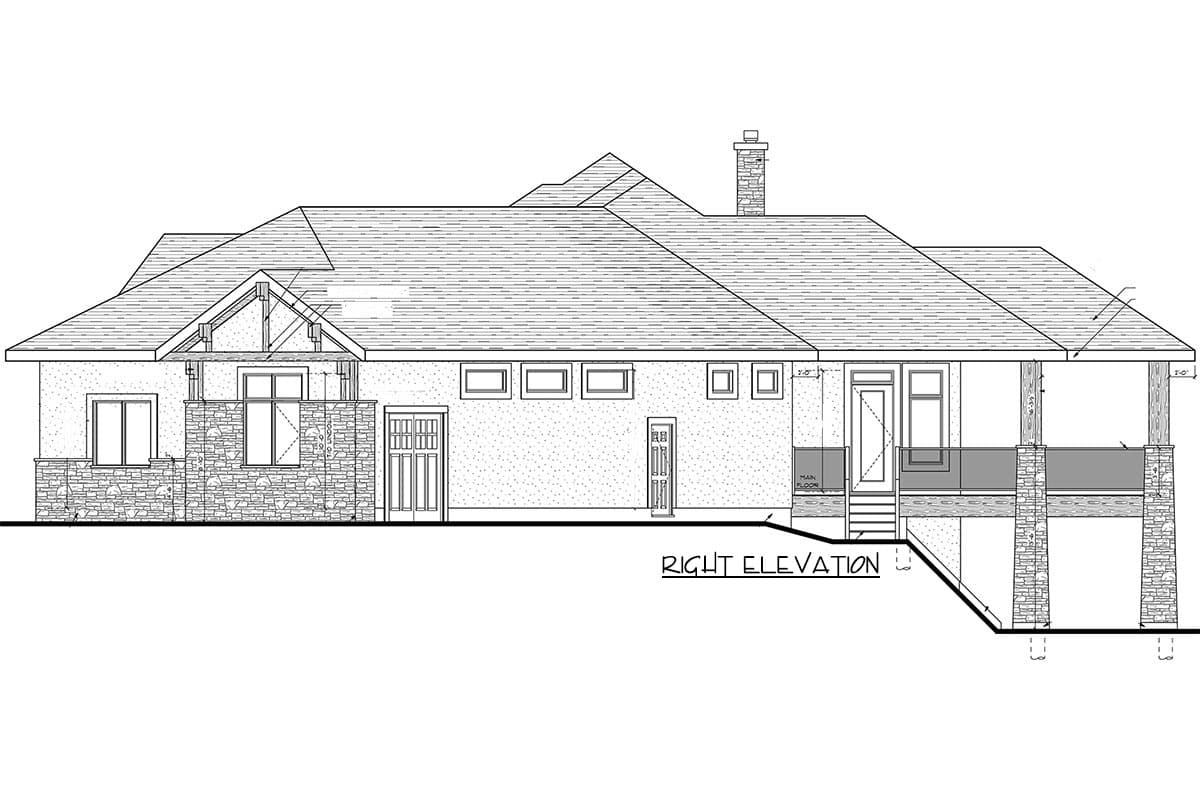

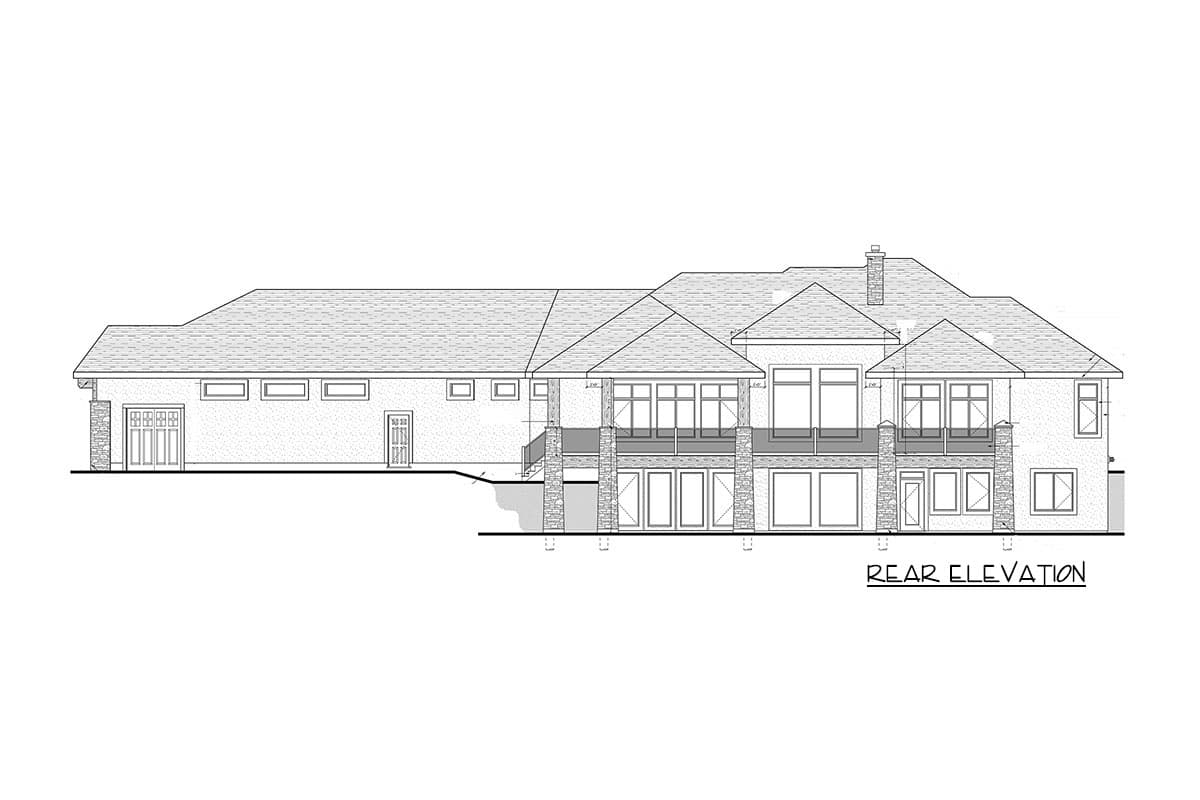

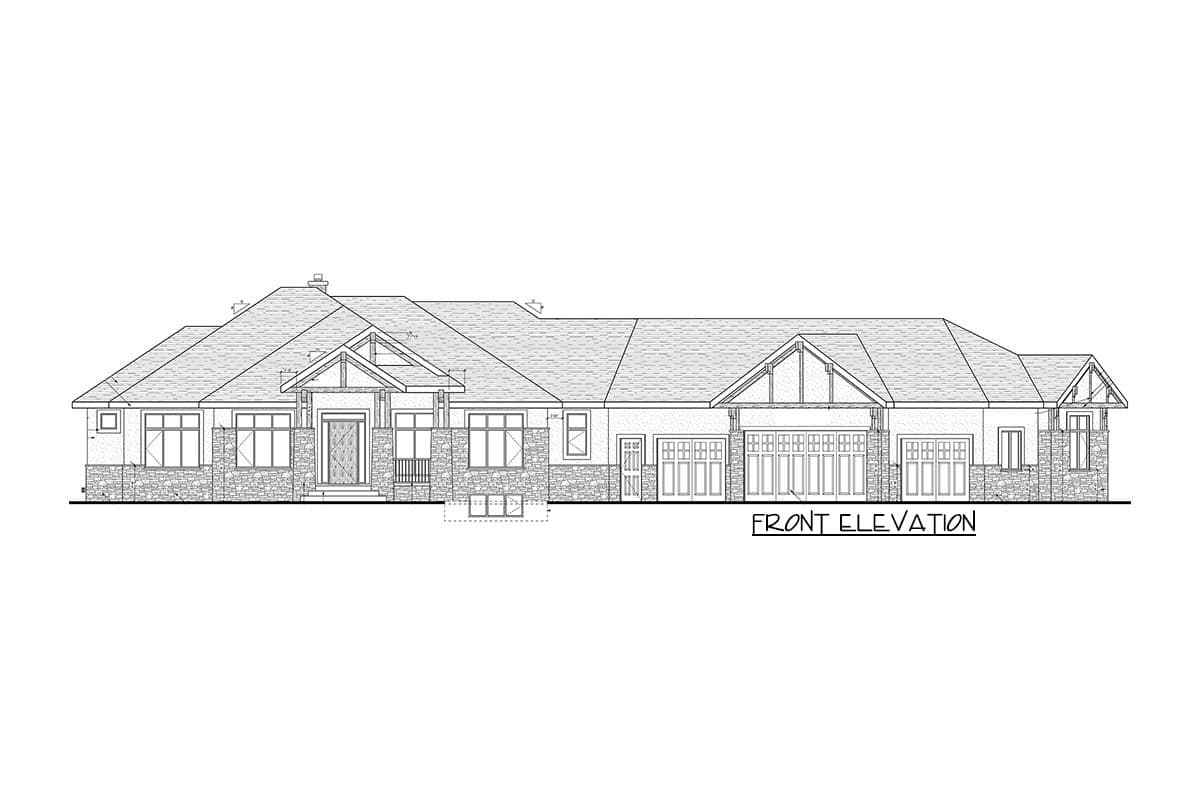

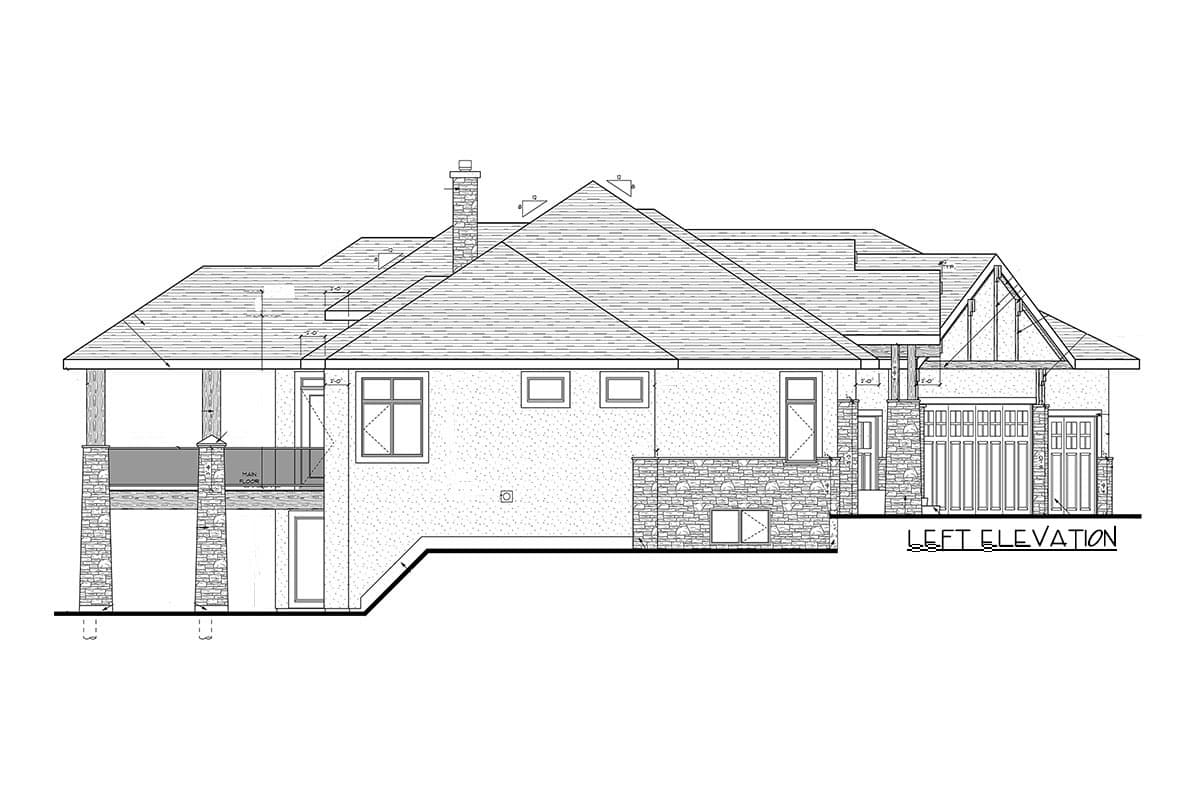

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,756 sq. ft.

1st Floor

2,756 sq. ft.

Optional Lower Level

2,163 sq. ft.

Deck

829 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

132' 0"

Depth

85' 0"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

1652 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,756 sq. ft.

1st Floor

2,756 sq. ft.

Optional Lower Level

2,163 sq. ft.

Deck

829 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

132' 0"

Depth

85' 0"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

1652 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Canadian House Plans
