Plan 290168IY

Expandable Transitional House Plan - 4588 Sq Ft

Heated S.F.

4,588

Beds

2 - 3

Baths

4.5+

Stories

2

Cars

4

Floor Plan

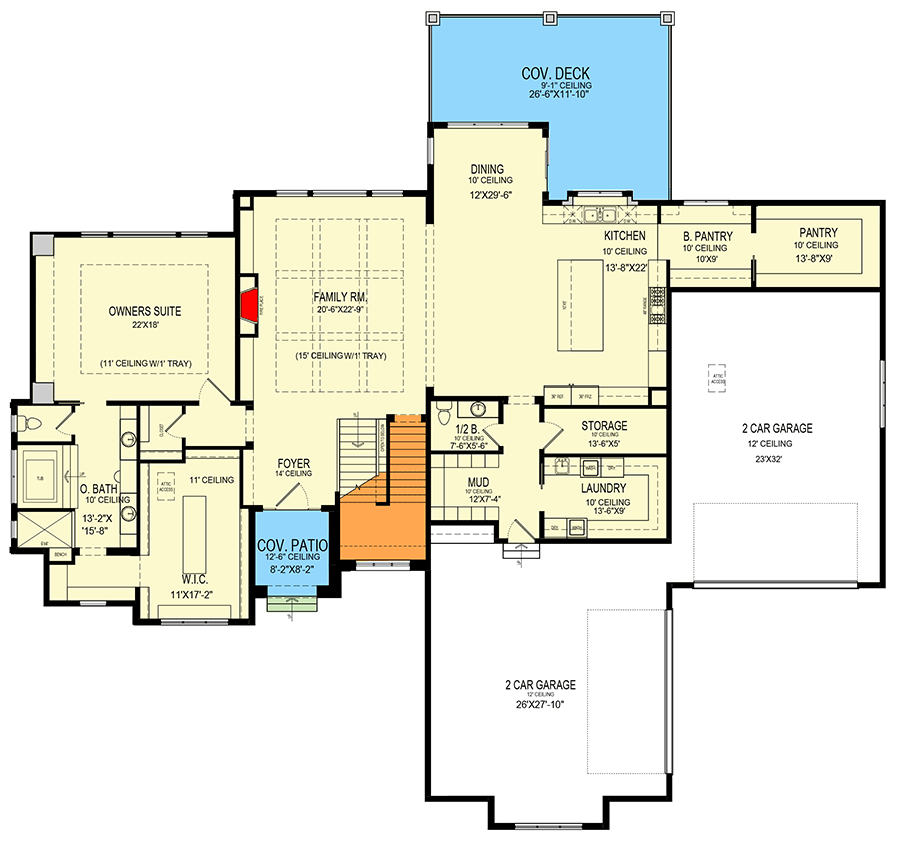

Main Level

floor plan image Main Level

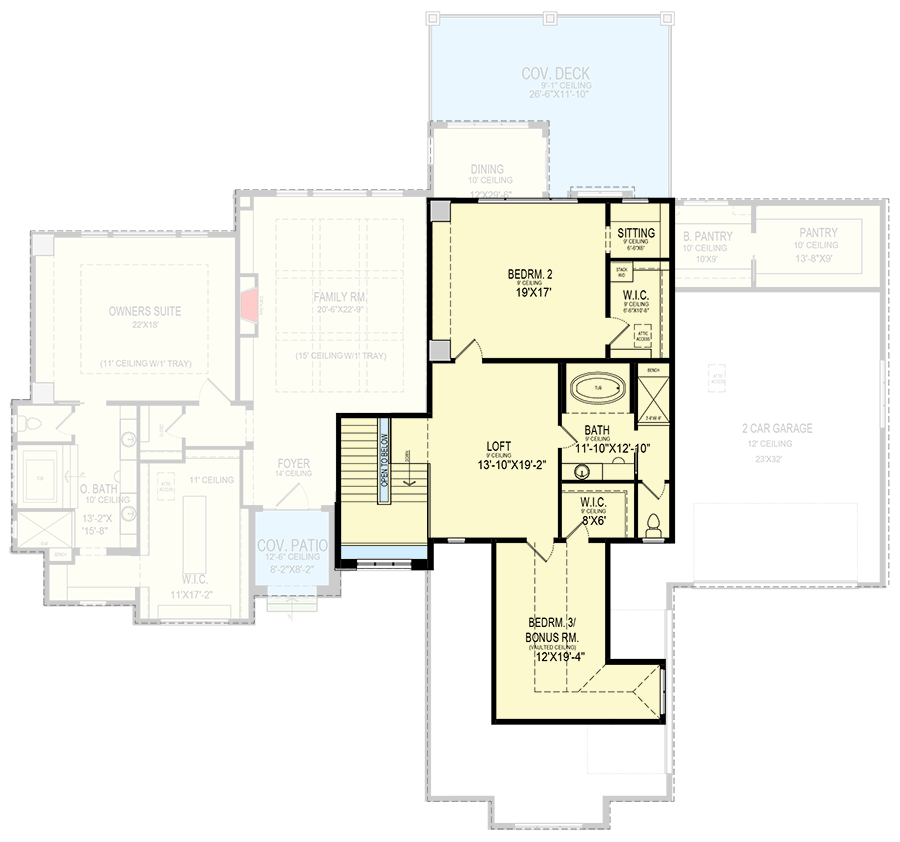

2nd Floor

floor plan image 2nd Floor

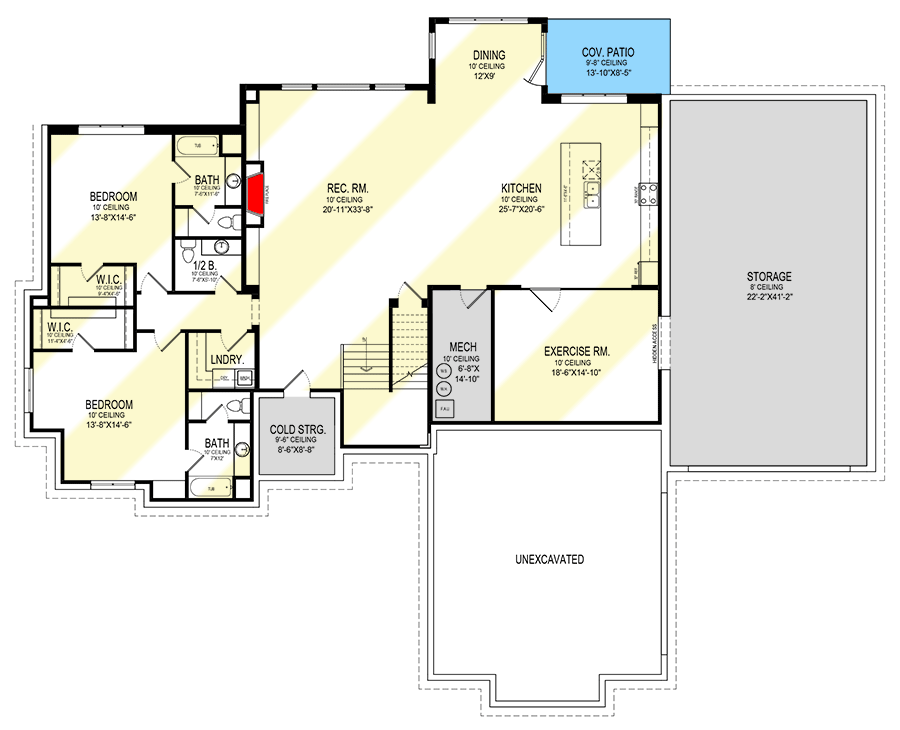

Optional Lower Level

floor plan image Optional Lower Level

Plan Details

This transitional house plan gives you two floors of living (4,588 square feet; 3 beds) with an optional finished lower level (3,782 square feet; 2 bedrooms).
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover sheet (with rendering)
Notes page
Complete schedule page
Foundation plan
Floor plans
Dimension plans

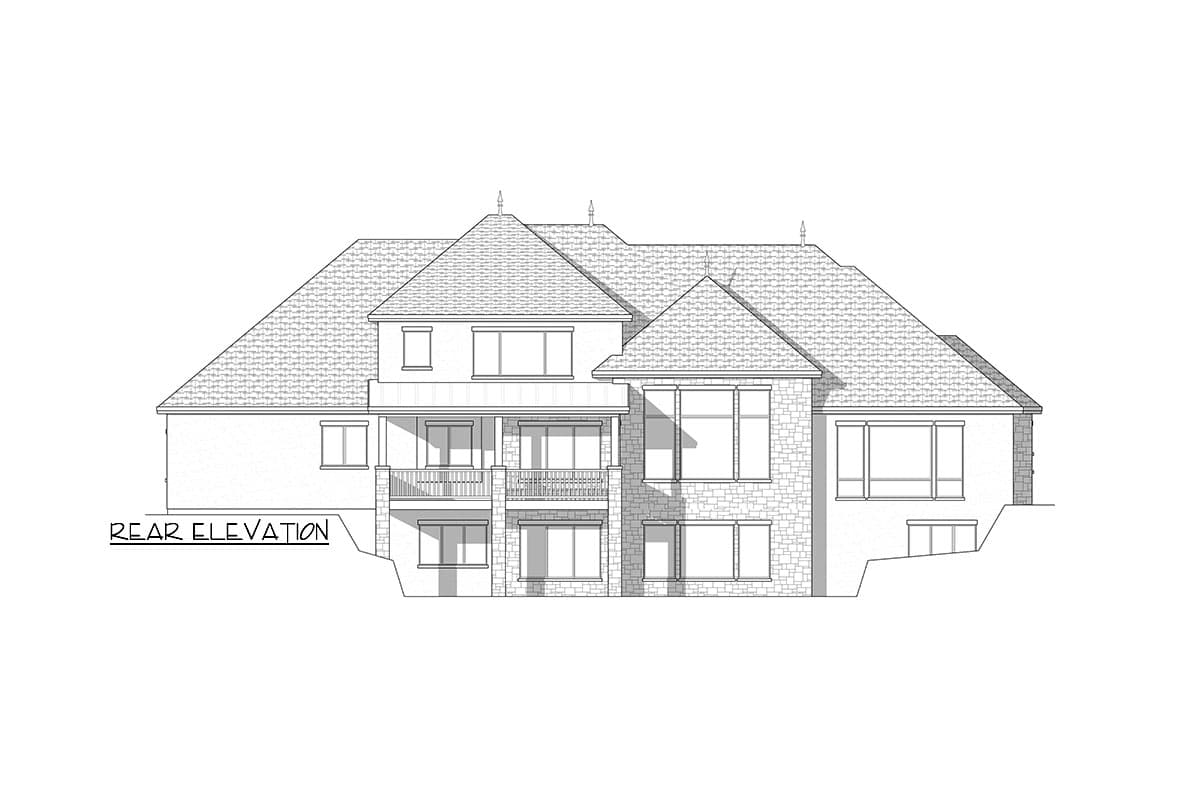

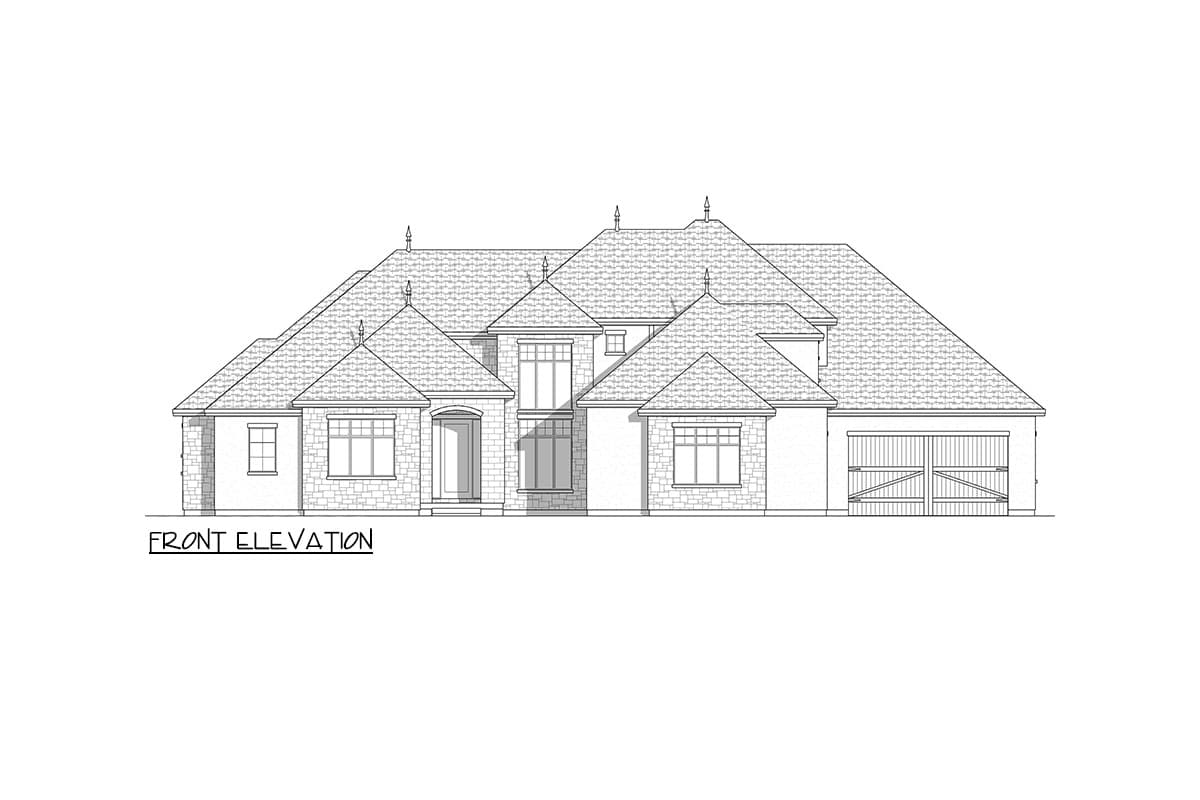

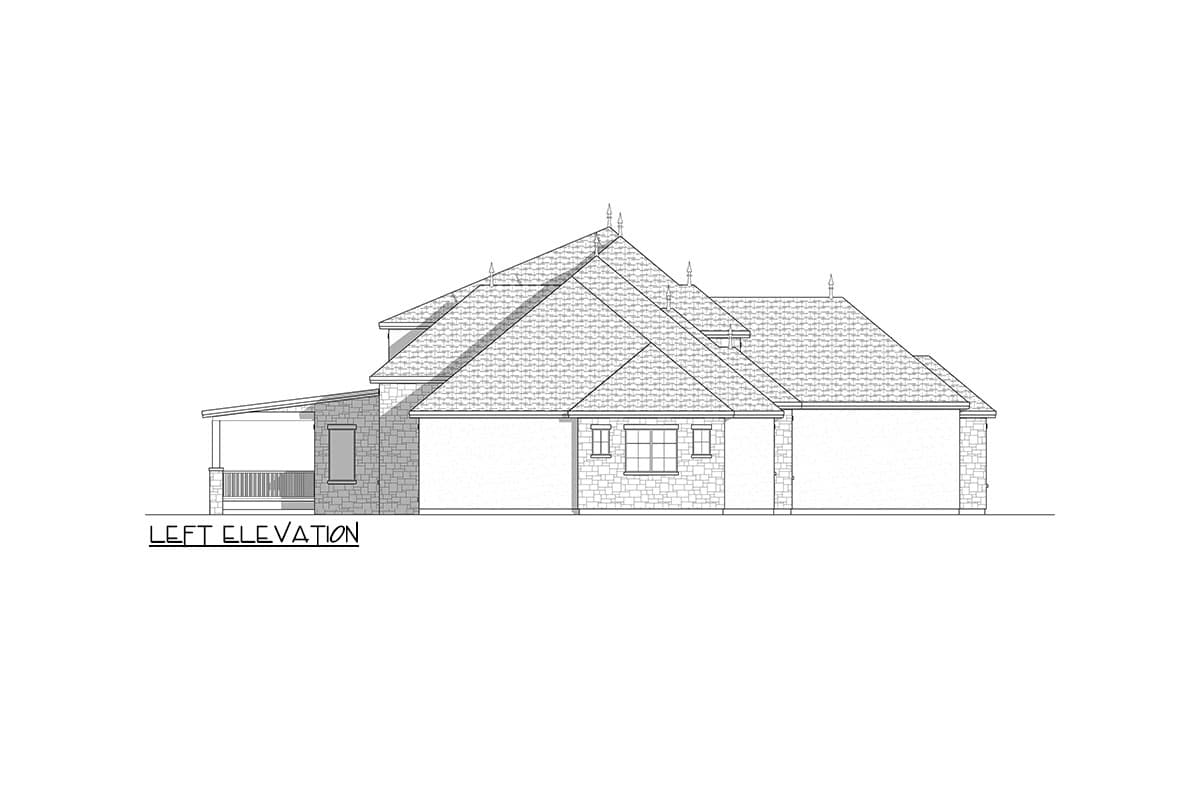

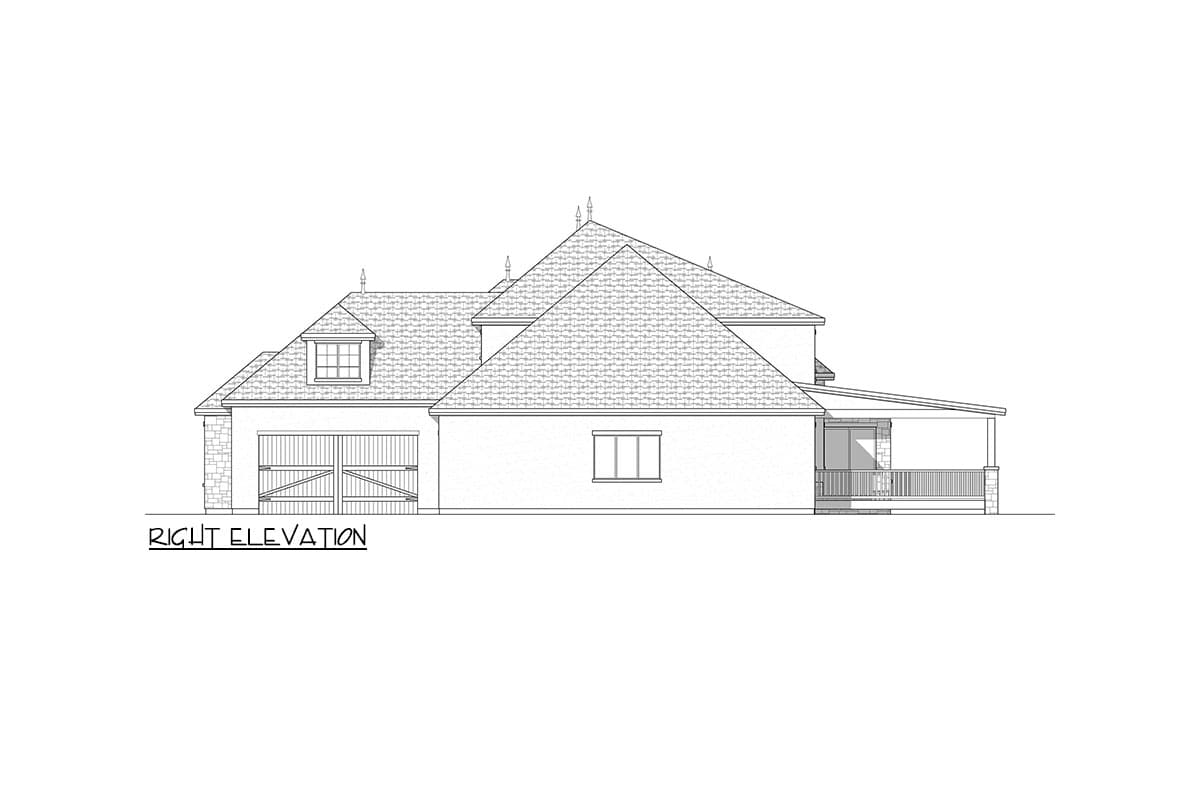

Elevations
Sections
Architectural details
3D perspective views (not included with all plans)
Floor finish plans
Roof plan
Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,588 sq. ft.

1st Floor

3,140 sq. ft.

2nd Floor

1,448 sq. ft.

Optional Lower Level

3,782 sq. ft.

Deck

429 sq. ft.

Entry

82 sq. ft.

Covered Patio

119 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 2"

Depth

89' 6"

Max Ridge Height

33' 5"

Garage

Type

Attached

Area

1580 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 10

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

4,588 sq. ft.

1st Floor

3,140 sq. ft.

2nd Floor

1,448 sq. ft.

Optional Lower Level

3,782 sq. ft.

Deck

429 sq. ft.

Entry

82 sq. ft.

Covered Patio

119 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 2"

Depth

89' 6"

Max Ridge Height

33' 5"

Garage

Type

Attached

Area

1580 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 10

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
