Name: Plan 51830HZ: Expanded 4-Bed Modern Farmhouse with a Game Room and a Bonus Room - 3086 Sq Ft
SKU: 51830HZ
Price: 1545.0 USD
Availability: InStock

Plan 51830HZ

Expanded 4-Bed Modern Farmhouse with a Game Room and a Bonus Room - 3086 Sq Ft

Heated S.F.

3,086

Beds

4 - 5

Baths

3.5 - 4.5

Stories

Cars

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

House Plan 51830HZ Comes to Life in Texas

Photos

House Plan 51830HZ Comes to Life in Texas

Photos

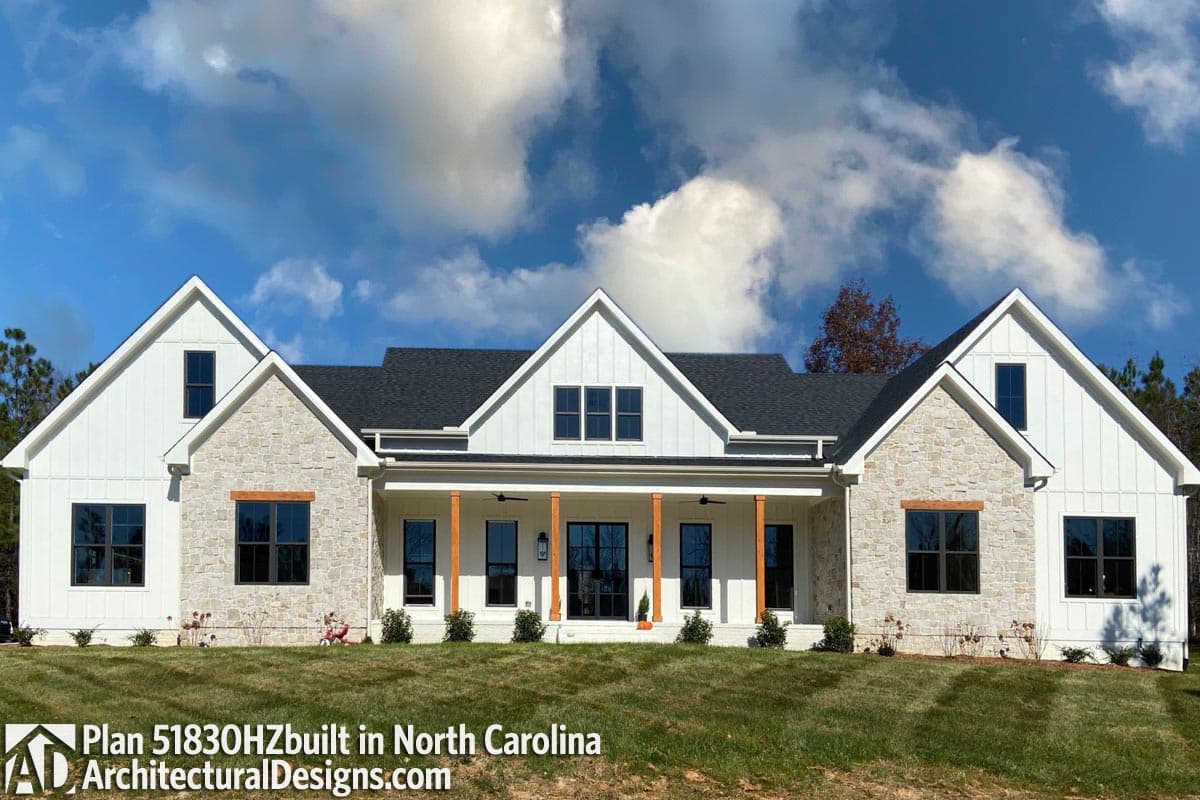

House Plan 51830HZ comes to life in North Carolina!

Photos

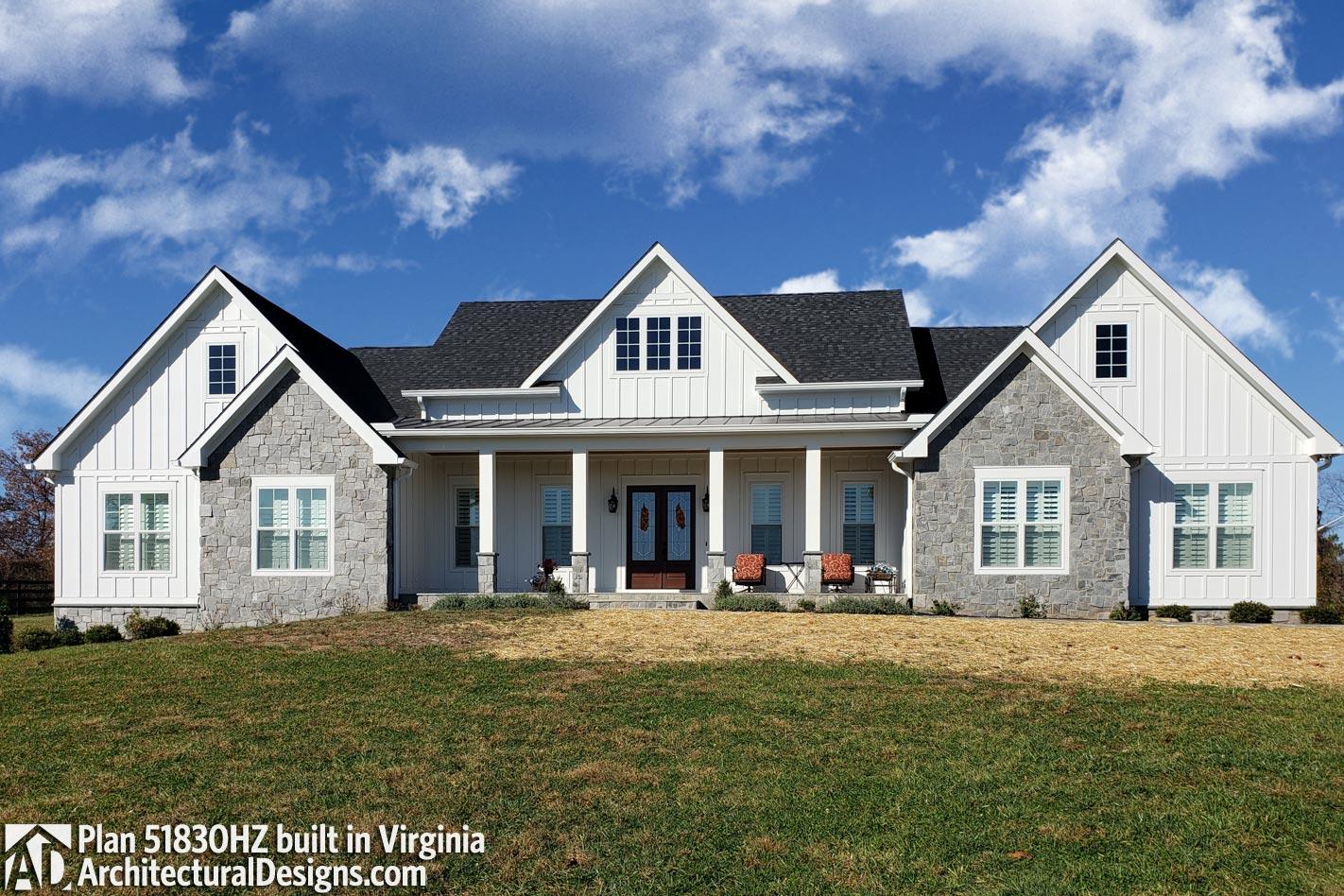

House Plan 51830HZ comes to life in Virginia!

Photos

TourPhotos

Floor Plan

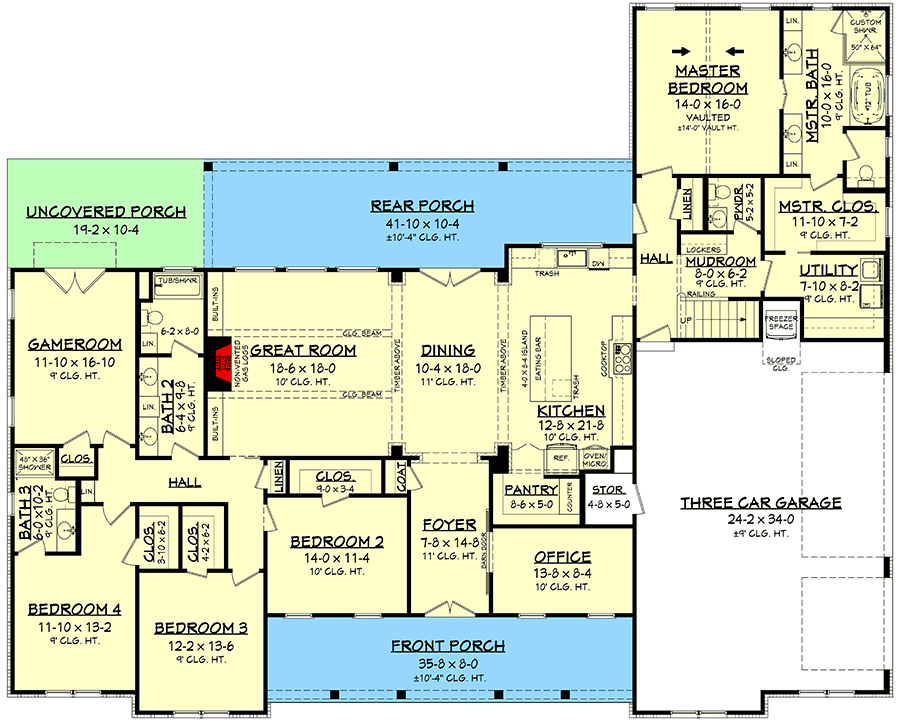

Main Level

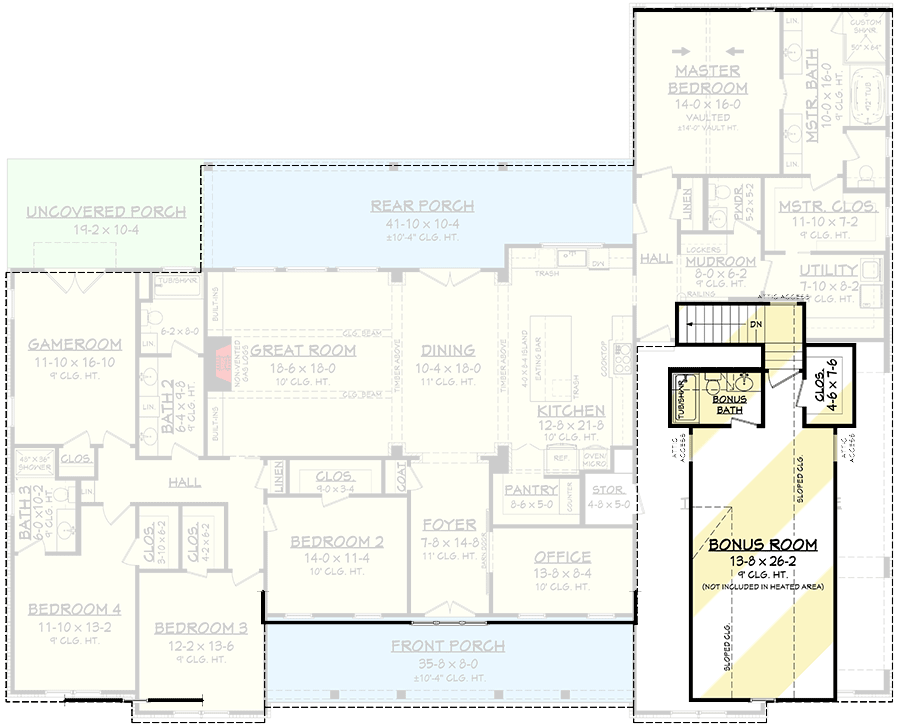

Bonus Level

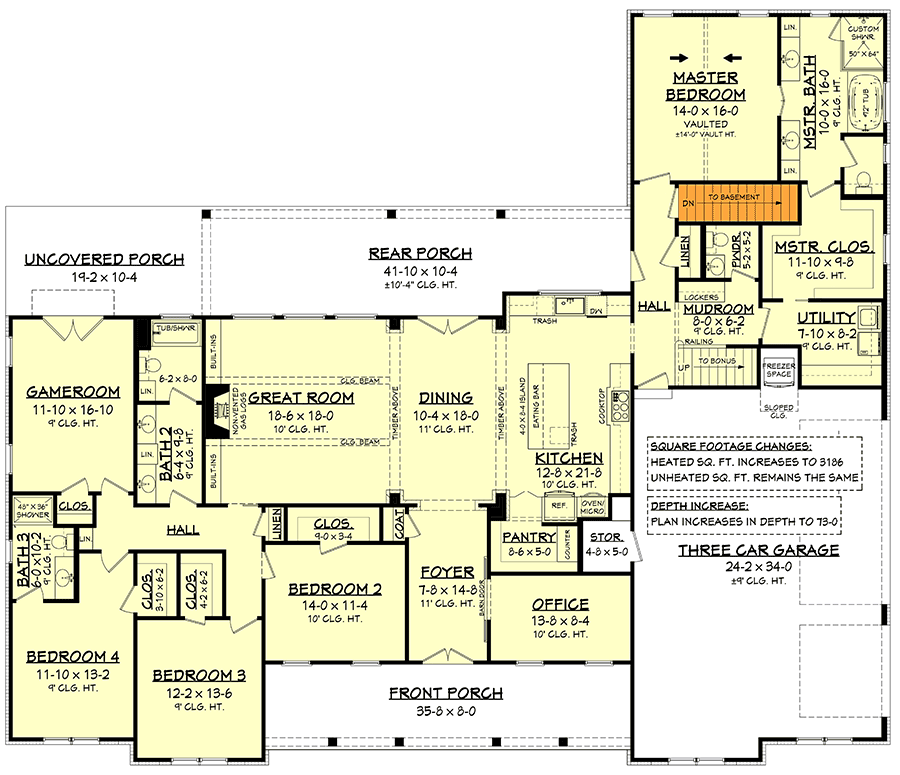

Basement Stairs Location

Plan Details

This modern farmhouse plan expands on our popular plan 51814HZ (which itself expands upon house plan 51758HZ ) and gives you an extra bedroom, a game room and a 3-car garage.

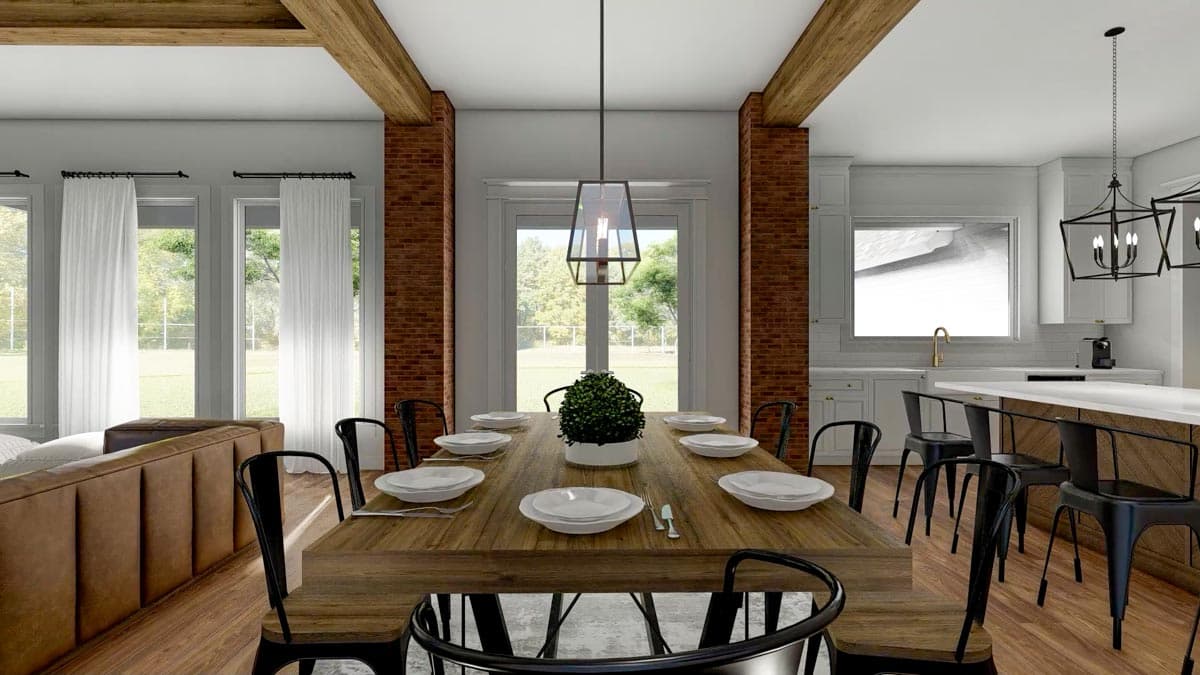

Enter the foyer off the front porch and your view extends through the dining room to the French doors that take you to the large rear porch. To your right, a single door takes you to your private home office.

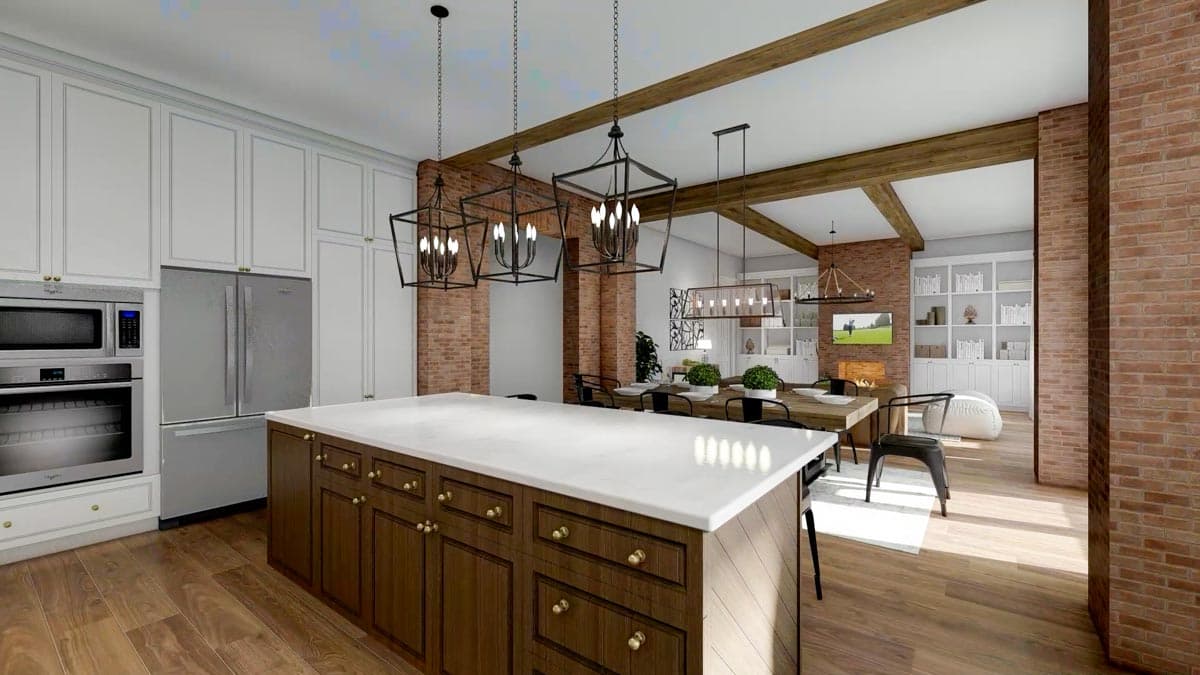

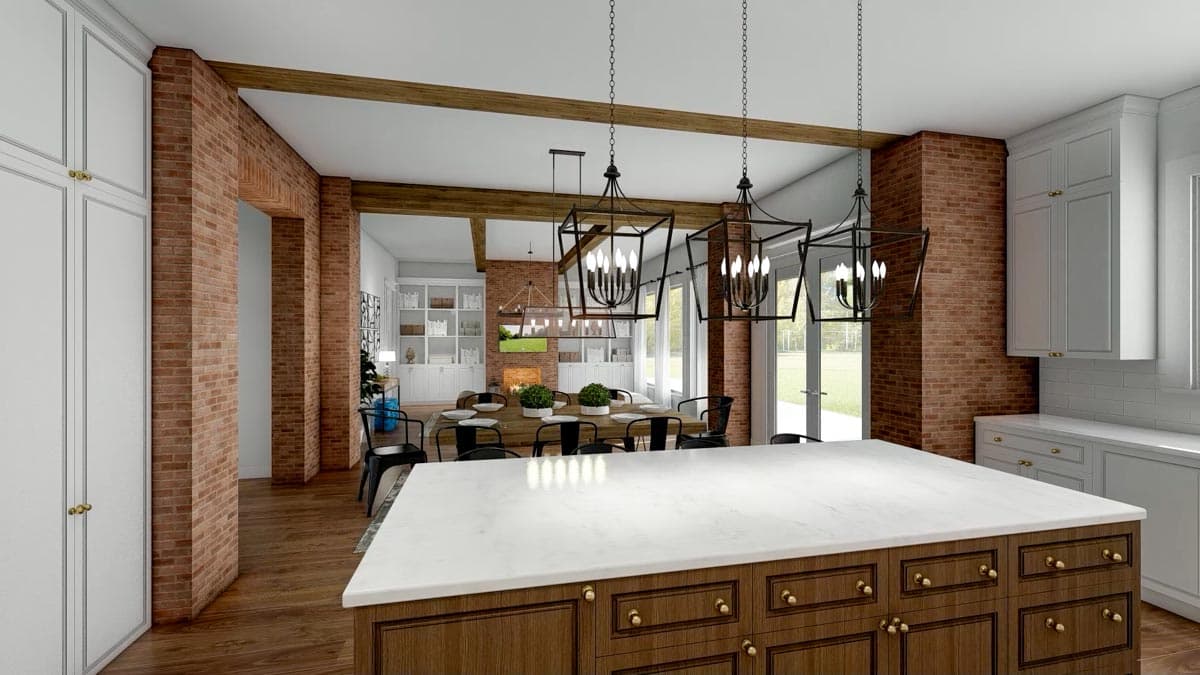

The large kitchen has views that extend across the dining room tot he great room. A large island with eating bar and a true walk-in pantry are two great features you'll enjoy.

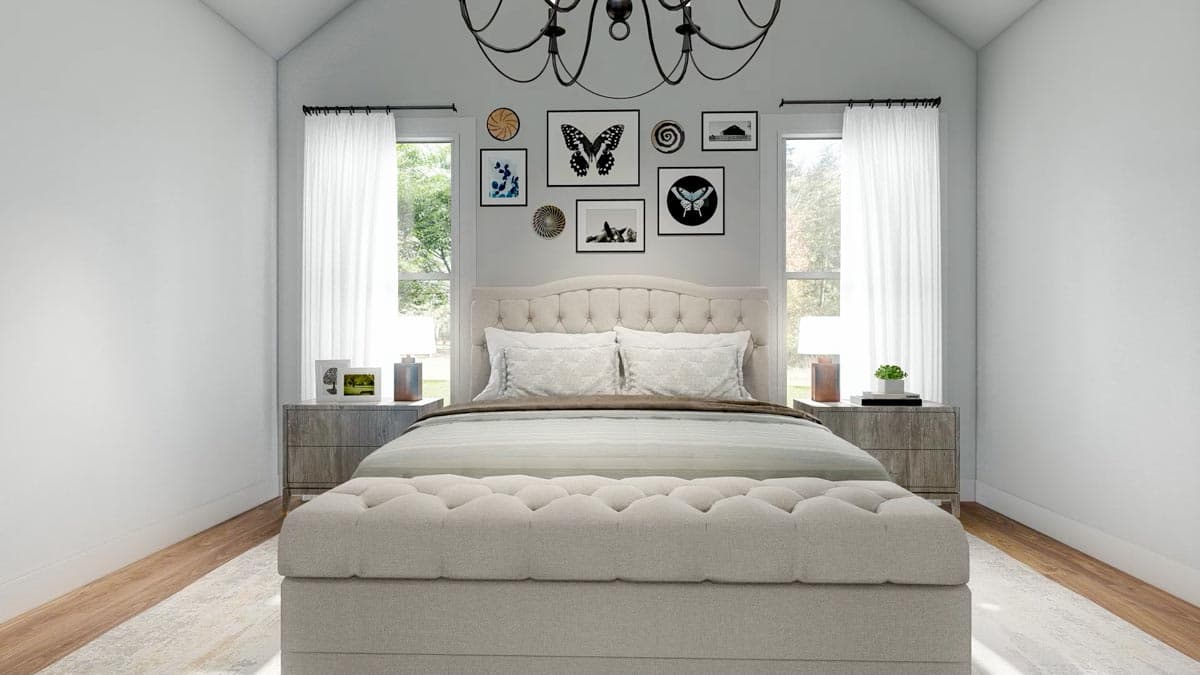

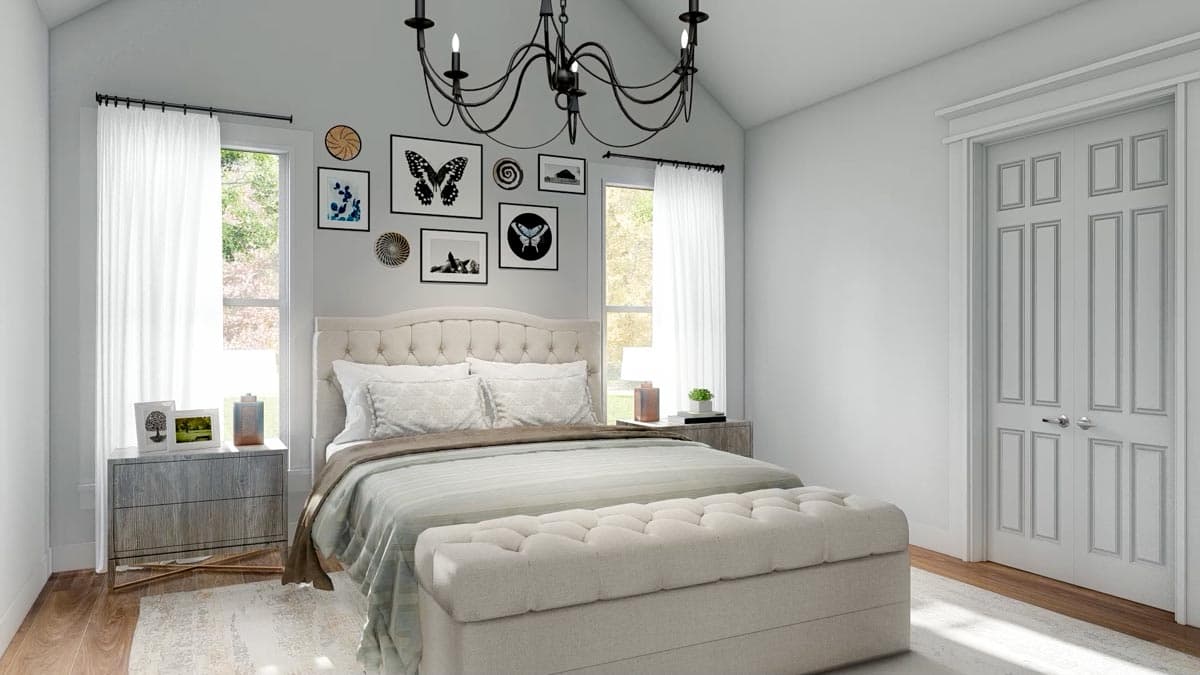

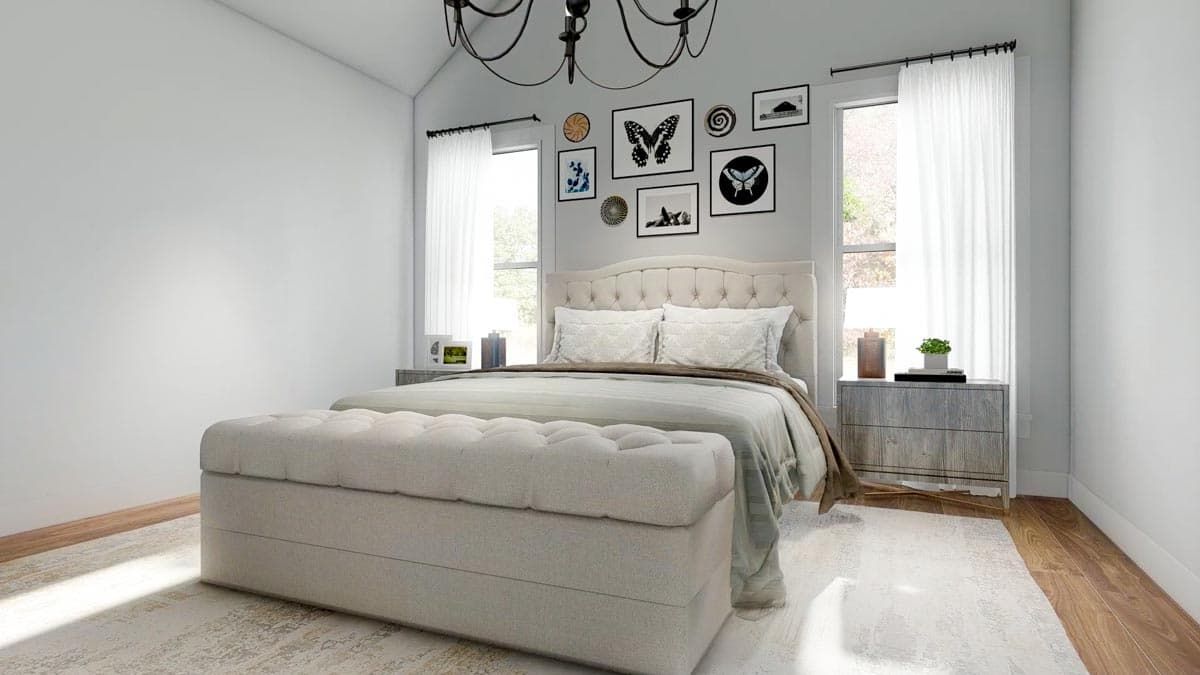

The master suite has a vaulted ceiling and the convenience of having access to the laundry room through the walk-in closet. Across the home, you'll find three more bedrooms, two bathrooms plus a game room with access to the outside.
An optional upstairs bonus room over the garage gives you 525 sq. ft. and has a full bath and would be perfect for a guest suite or that family game room.
Related Plans: Get a 3-bed, 2-car version with house plan 51814HZ (2,553 sq. ft.) and 51810HZ (3,076 sq. ft.). Get a smaller version with house plan 51758HZ (2,282 sq. ft.) and a similar floor plan with house plan 51916HZ (2,977 sq. ft.).

What's Included

This house plan consists of the following pages

Page 1 Cover Sheet with abbreviations, rendering, sheet index
Page 2 Foundation Plan and Details
Page 3A Detailed main floor plan(includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 3B Detailed bonus floor plan(includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

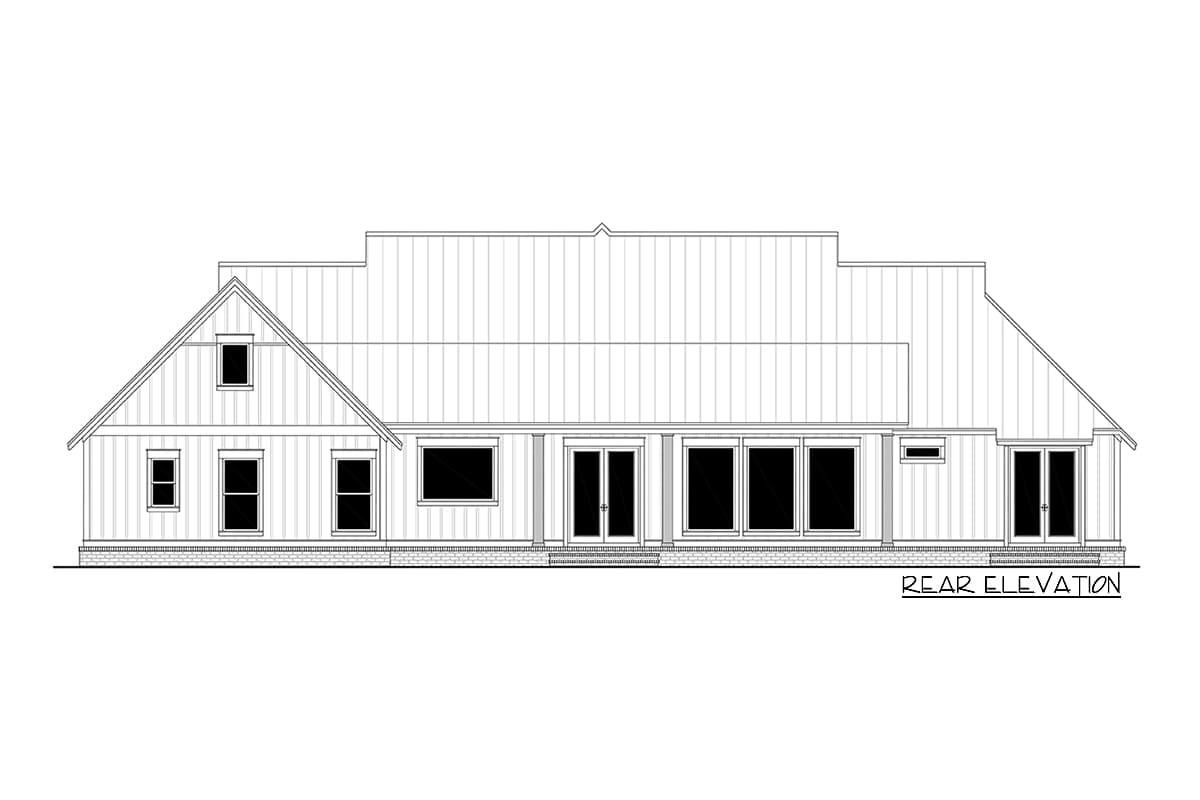

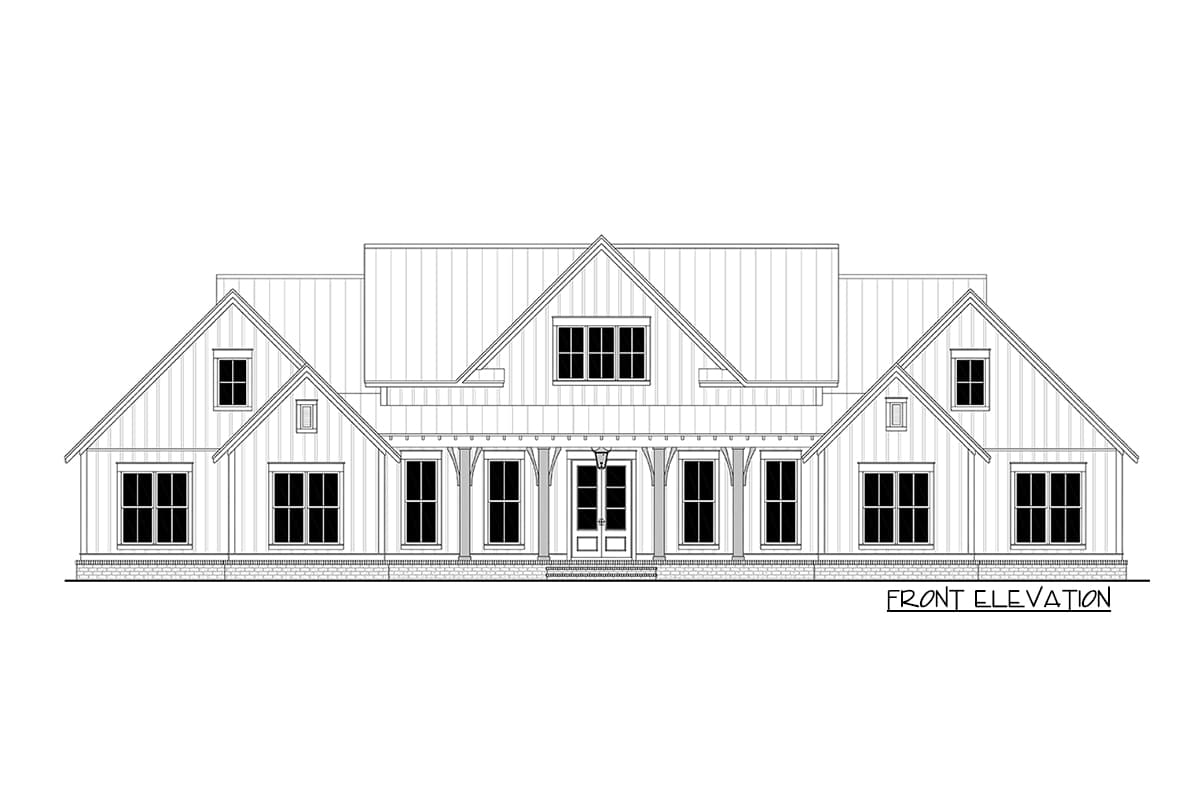

Page 4 Front and rear exterior views with additional details

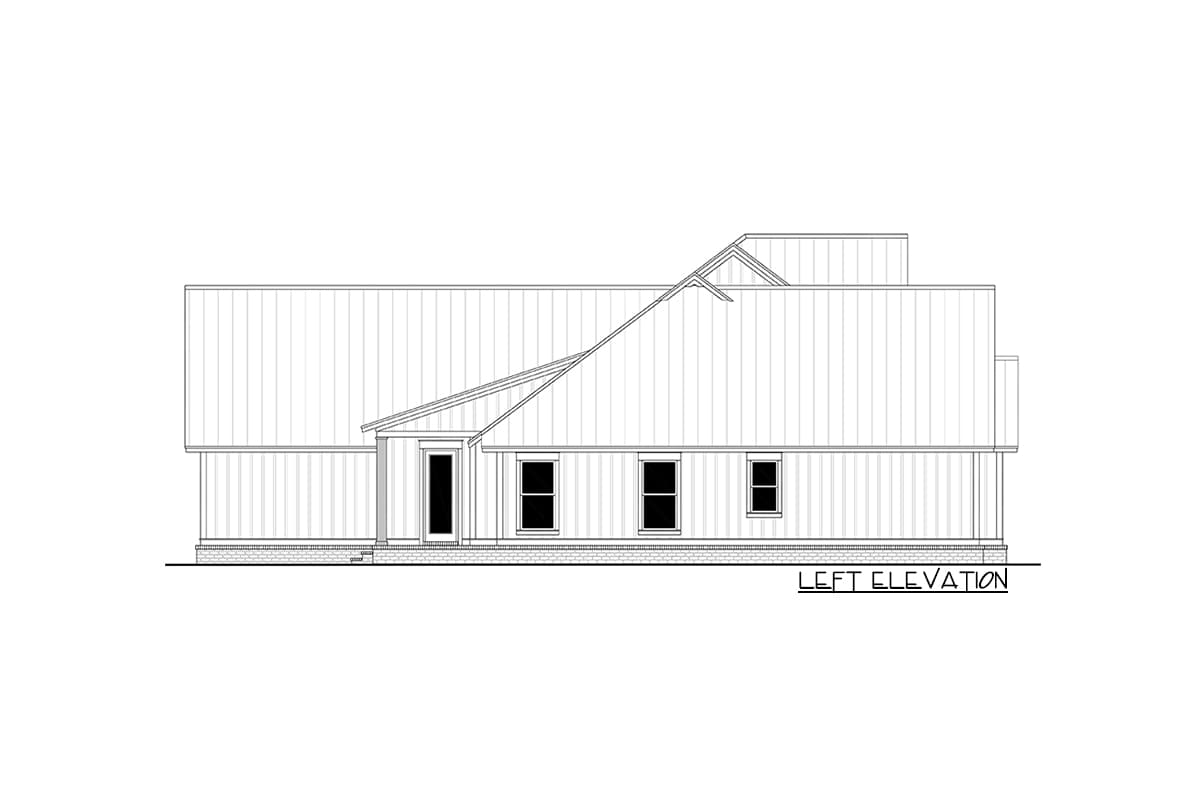

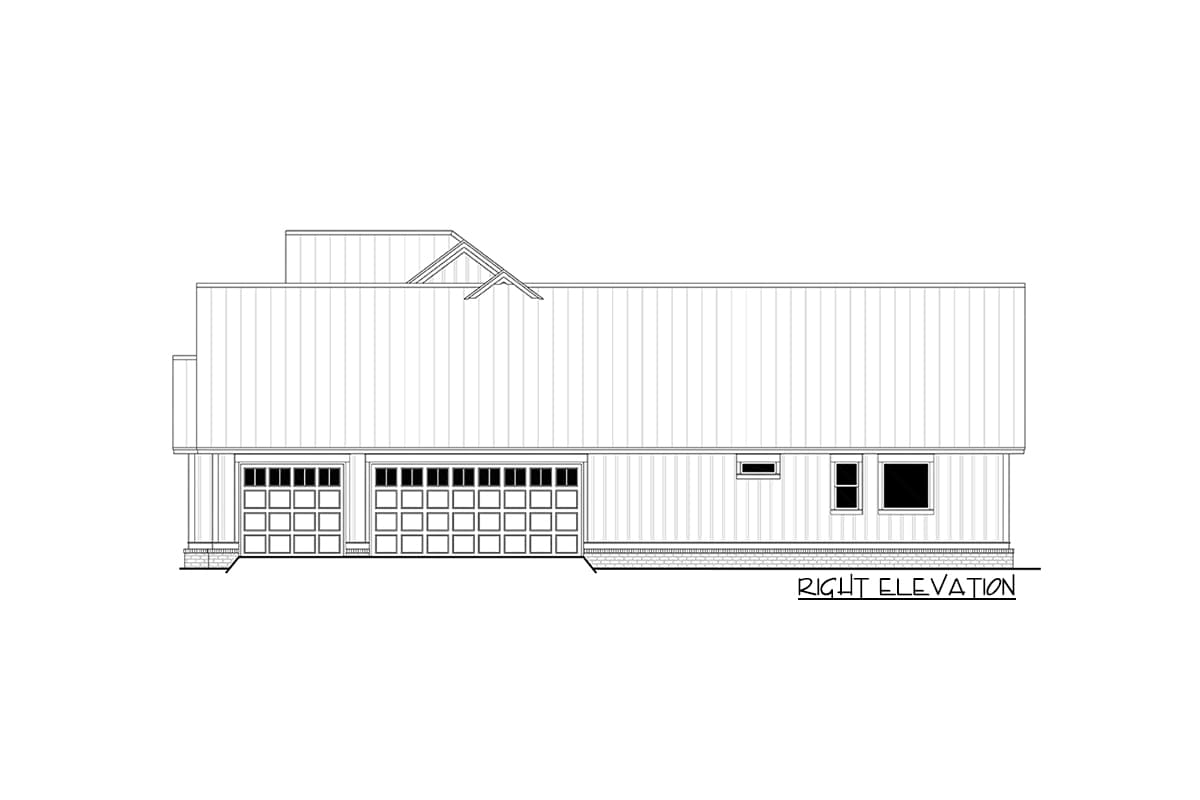

Page 5 Right and left exterior views with additional details
Page 6 Cross Section & kitchen cabinet views
Page 7 Roof plan and span charts with additional details
Page 8 Electrical plan & notes/ legend

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require
